StarTech.com SATDOCK2520 Manuale utente

Serial ATA Hard Drive

Mobile Rack

3.5”Trayless SATA Mobile Rack

for Dual 2.5” Hard Drives

SATDOCK2520

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses and can radiate radio frequency energy and, if not installed

and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a

particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.•

Increase the separation between the equipment and receiver.•

Connect the equipment into an outlet on a circuit different from that to which the receiver•

is connected.

Consult the dealer or an experienced radio/TV technician for help.•

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other

protected names and/or symbols of third-party companies not related in any way to

StarTech.com. Where they occur these references are for illustrative purposes only

and do not represent an endorsement of a product or service by StarTech.com, or an

endorsement of the product(s) to which this manual applies by the third-party company

in question. Regardless of any direct acknowledgement elsewhere in the body of

this document, StarTech.com hereby acknowledges that all trademarks, registered

trademarks, service marks, and other protected names and/or symbols contained in this

manual and related documents are the property of their respective holders.

Table of Contents

Introduction..................................................................... 1

Packaging Contents.....................................................................1

System Requirements .................................................................1

Front View....................................................................................2

Rear View ....................................................................................2

Installation....................................................................... 3

Hardware Installation...................................................................3

Driver Installation.........................................................................3

How to Use ...................................................................... 4

Speciﬁcations.................................................................. 5

Technical Support........................................................... 6

Warranty Information...................................................... 6

Introduction

This 3.5” trayless SATA Mobile Rack allows you to install two 2.5”

SATA drives in an available/unused 3.5” ﬂoppy drive bay. Featuring a

convenient trayless “easy eject” feature (like a tape cartridge or ﬂoppy

disk), the hard drive bay doesn’t require that the drives be installed into

a tray - making it the ideal solution for quick and easy drive removals

and insertions as part of a system building process, or integration into

rackmount systems or industrial environments.

Packaging Contents

1 x SATDOCK2520 hard drive backplane•

1 x Package of mounting screws•

2 x Keys•

2 x 18” 7-pin SATA cable•

1 x Instruction Manual•

System Requirements

9.5mm 2.5” SATA 1.5/3.0 Gbps hard drive(s)•

An available external 3.5” bay in the computer case•

SATA enabled computer system•

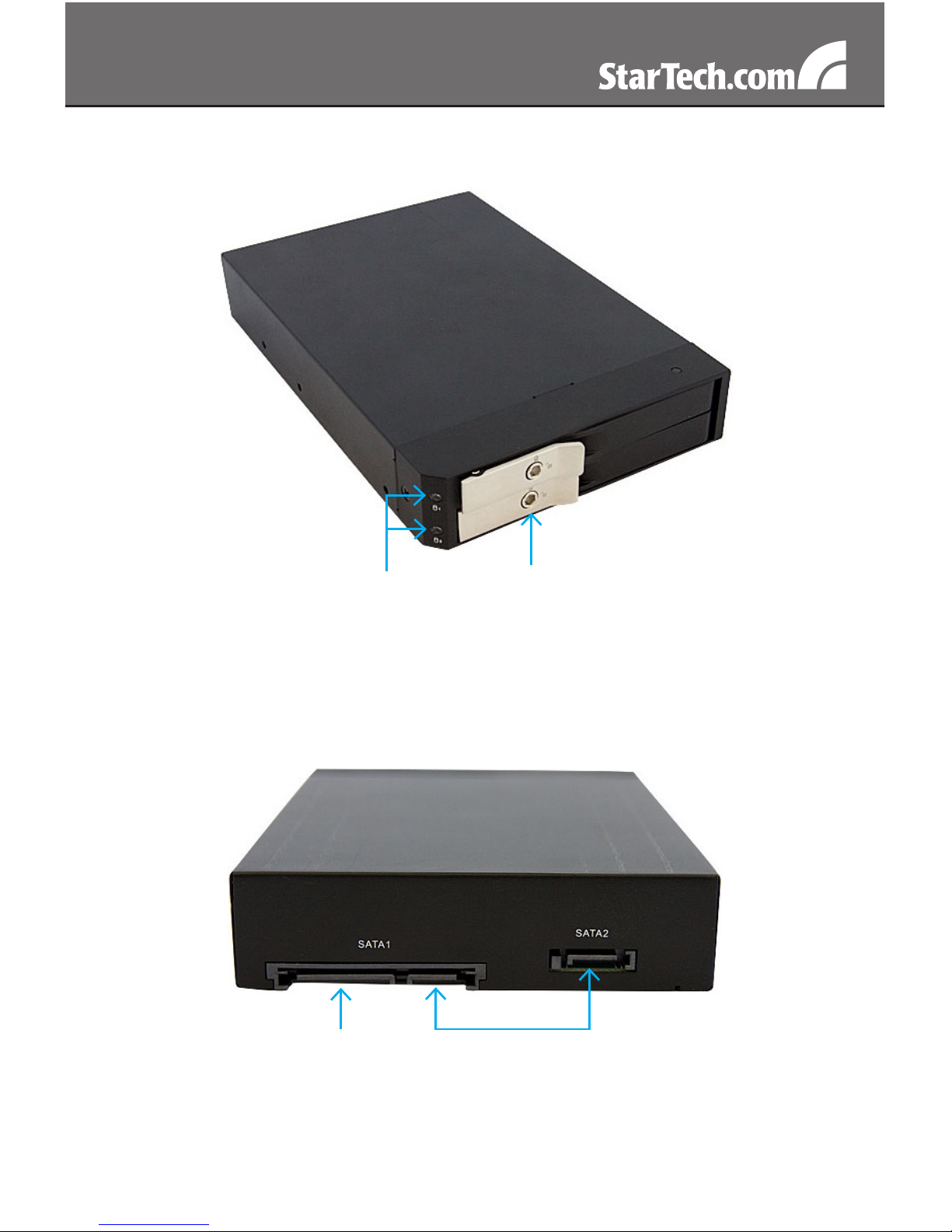

Door Lock

Power/Activity

LED

15-pin SATA

power

7-pin SATA

connector

Front View

Rear View

Installation

WARNING: Hard drives require careful handling, especially when

being transported. If you are not careful with your hard disk, lost data

may result. Always handle your hard drive and storage device with

caution.

Hardware Installation

Make sure the computer system is powered off and unplugged from1.

the power source before attempting any hardware installation.

Locate an available external 3.5” ﬂoppy drive bay on the2.

computer case and install the Mobile Rack appropriately. See

the documentation for your computer case for installation details.

Mounting screws are included, if necessary.

Connect two 7-pin SATA cable from the back of the Mobile Rack to3.

the SATA port in the computer system.

Connect the 15-pin SATA power cable from the computer power4.

supply to the Mobile Rack.

Pull on the metal tabs/hinge on the front of the Mobile Rack to open5.

the drive bay doors. Insert a SATA hard drive into the drive bay

(label facing up) and close the door behind it, making sure it latches

properly.

OPTIONAL: Use the included keys to lock the front door to prevent

accidental/unauthorized access to the hard drive(s).

Power up the computer and use the hard drive(s) as if connected6.

directly to the SATA controller/motherboard.

Driver Installation

No driver installation is required for any operating system, as this

Mobile Rack is a pass through device, so only the hard drives are seen

by the computer system.

How to Use

If the SATA controller supports Hot-Swapping drives, then hard drives

can be removed and installed into the Mobile Rack without having to

shut the computer system off. Refer to the documentation for the SATA

controller for details on how to use Hot-Swapping. If not supported, the

computer must be shut down ﬁrst, to install or remove hard drives.

To remove hard drives from the Mobile Rack, unlock the front drive bay

door (if necessary) with the provided keys and open the door by pulling

on the metal latch. Swing the door fully open and the drive will be

ejected, and can then be pulled out of the drive bay by hand.

Specications

Bus Interface SATA 3.0Gb/s

External Connectors 2 x 7-pin SATA

1 x 15-pin SATA power

LEDs Power/Activity

Hard Drive Compatibility

9.5mm 2.5” SATA 1.5/3.0 Gbps

hard drives up to 500GB in

capacity*

Insertion Rating 15 000 cycles

Operating Temperature 5oC to 70oC

Storage Temperature -40oC to 80oC

Humidity 8 - 90% RH

Dimensions 154.0mm x 101.0mm x 25.0mm

Weight 224g

The unit will only support SATA hard drive capacities supported by*

the SATA controller, up to a maximum of 500GB.

Technical Support

StarTech.com’s lifetime technical support is an integral part of our

commitment to provide industry-leading solutions. If you ever need

help with your product, visit www.startech.com/support and access

our comprehensive selection of online tools, documentation, and

downloads.

Warranty Information

This product is backed by a one year warranty.

In addition, StarTech.com warrants its products against defects in

materials and workmanship for the periods noted, following the initial

date of purchase. During this period, the products may be returned

for repair, or replacement with equivalent products at our discretion.

The warranty covers parts and labor costs only. StarTech.com does

not warrant its products from defects or damages arising from misuse,

abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA

LLP (or their ofﬁcers, directors, employees or agents) for any damages

(whether direct or indirect, special, punitive, incidental, consequential, or

otherwise), loss of proﬁts, loss of business, or any pecuniary loss, arising

out of or related to the use of the product exceed the actual price paid

for the product. Some states do not allow the exclusion or limitation of

incidental or consequential damages. If such laws apply, the limitations

or exclusions contained in this statement may not apply to you.

StarTech.com has been making “hard-to-ﬁnd easy” since 1985,

providing high quality solutions to a diverse IT and A/V customer

base that spans many channels, including government, education

and industrial facilities to name just a few. We offer an unmatched

selection of computer parts, cables, A/V products, KVM and Server

Management solutions, serving a worldwide market through our

locations in the United States, Canada, the United Kingdom and

Taiwan.

Visit www.startech.com today for complete information about all

our products and to access exclusive interactive tools such as the

Cable Finder, Parts Finder and the KVM Reference Guide.
