Stealth Cam STC-V550MTR Manuale utente
Stealth Cam
STC-V550MTR
User’s Manual
Toll Free Customer Support 1-877-269-8 90
www.stealthcam.net
Version 1.1 07/07
STC-V550MTR
www.stealthcam.net Toll Free 877-26 -84 0 2
For Customer Service or Warranty Information Call Toll Free
877-269-8 90
Stealth Cam, LLC
P.O. Box 53 504
Grand Prairie, TX 75053- 504
www.steatlhcam.net
Stealth Cam Limited Warranty
Your Stealth Cam scouting camera is covered by a 0 days Limited Warranty on
parts and labor from the date of original purchase, and purchases must be made
through an authorized dealer. The warranty covers defects in workmanship and
materials. The warranty does not apply to units, which have been damaged or
abused intentionally or unintentionally. A purchase from individuals or
unauthorized internet sites voids the warranty.
Tampering with or altering the unit will void the warranty. Any unauthorized
service will void warranty. Original sales receipt must be produced for any
warranty service and a Return Authorization (RA) number must be obtained from
customer service at 877-26 -84 0 prior to returning product
STC-V550MTR
www.stealthcam.net Toll Free 877-26 -84 0 3
Manual Contents
Camera overview 4
Camera kit contents 8
Battery and memory Installation
Set up and programming 13
Camera use 21
Mounting the camera 22
Viewing & Deleting images 2
Using external solar power 36
Memory compatibility chart 38
Technical Specs 3
General Information 42
Moon Phase symbol chart 44
STC-V550MTR
www.stealthcam.net Toll Free 877-26 -84 0 4
Camera overview

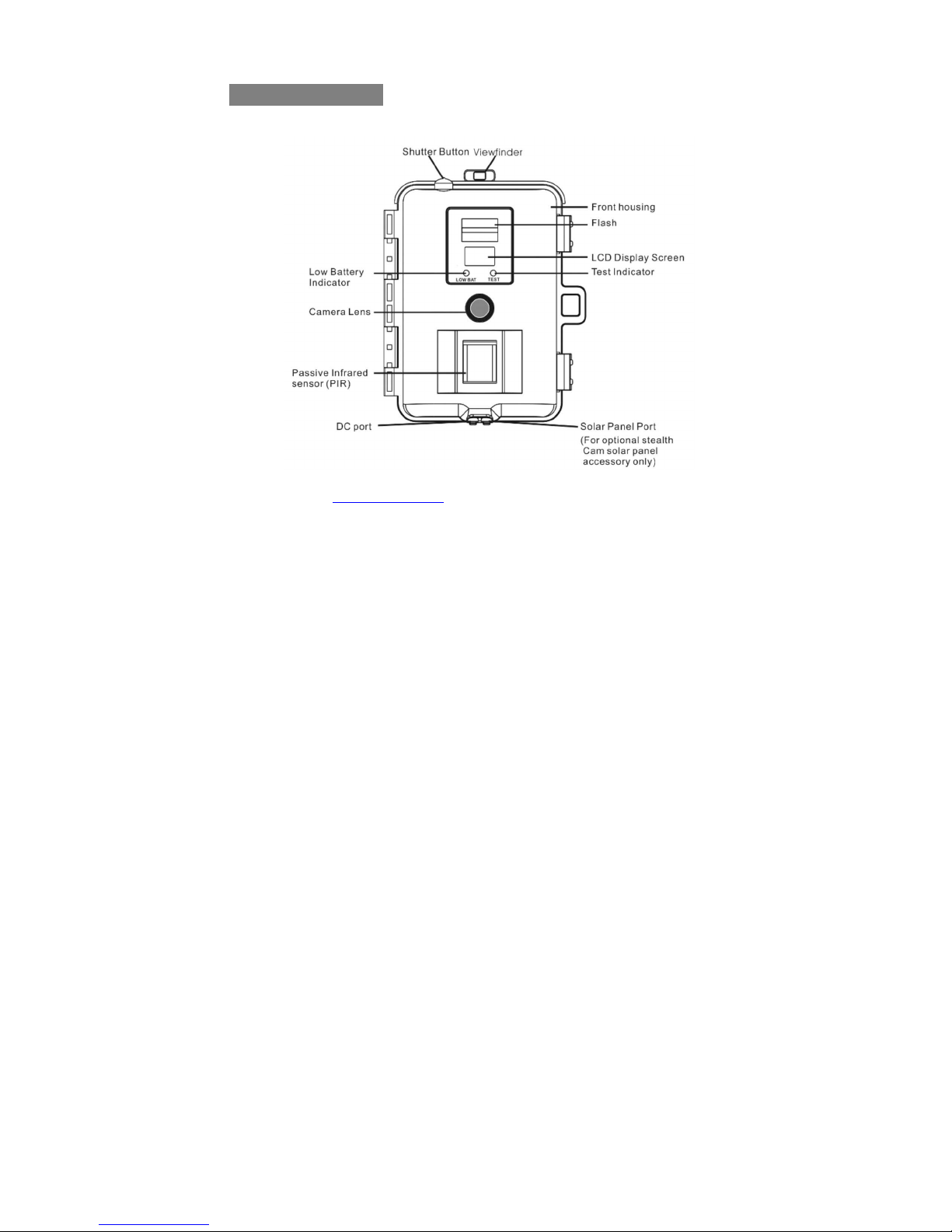

Front housing image with major parts indication.
For use with Stealth Cam cable or 12V
Battery Box. (sold separately)
STC-V550MTR
www.stealthcam.net Toll Free 877-26 -84 0 5

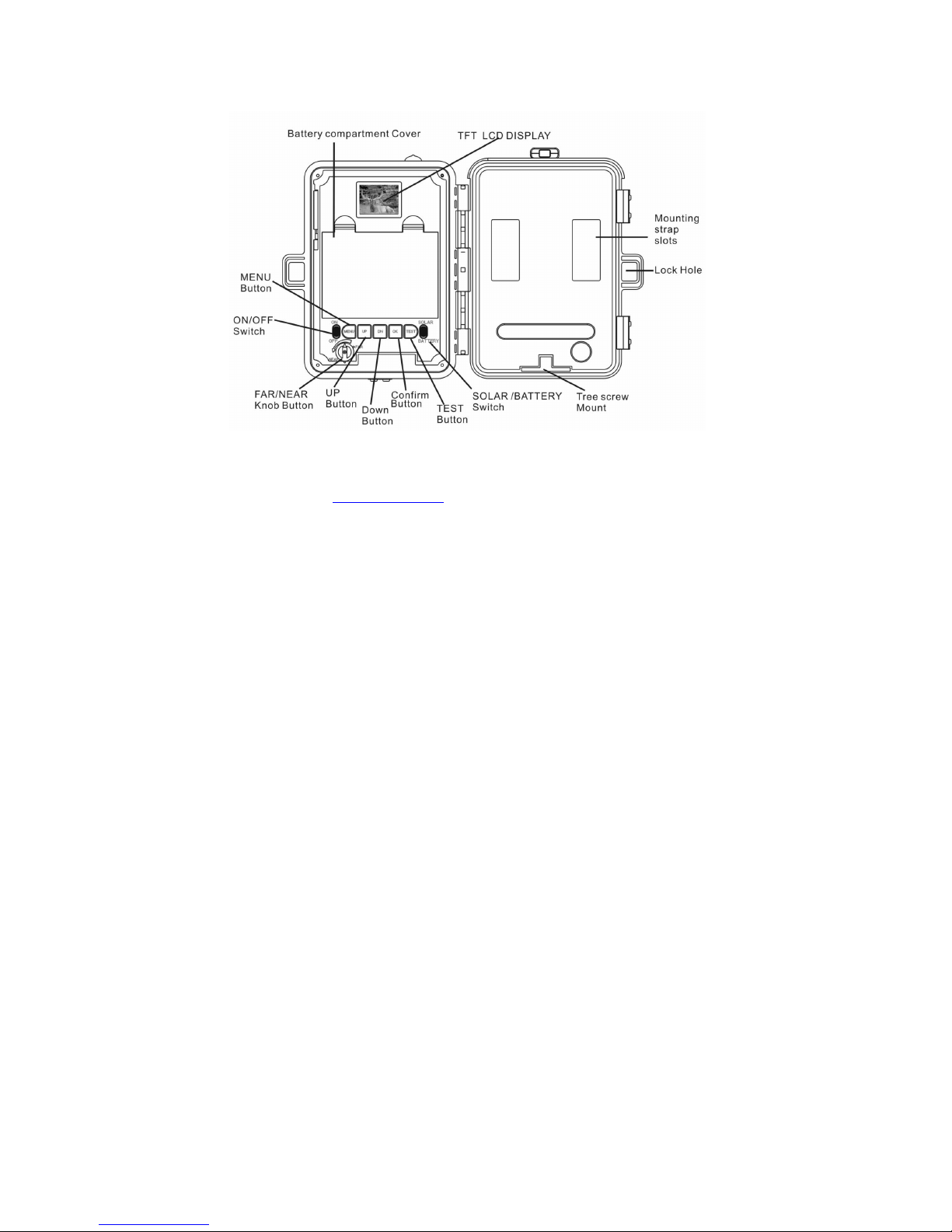

Open view image with major parts indication
Side view with major parts indication
STC-V550MTR
www.stealthcam.net Toll Free 877-26 -84 0 6

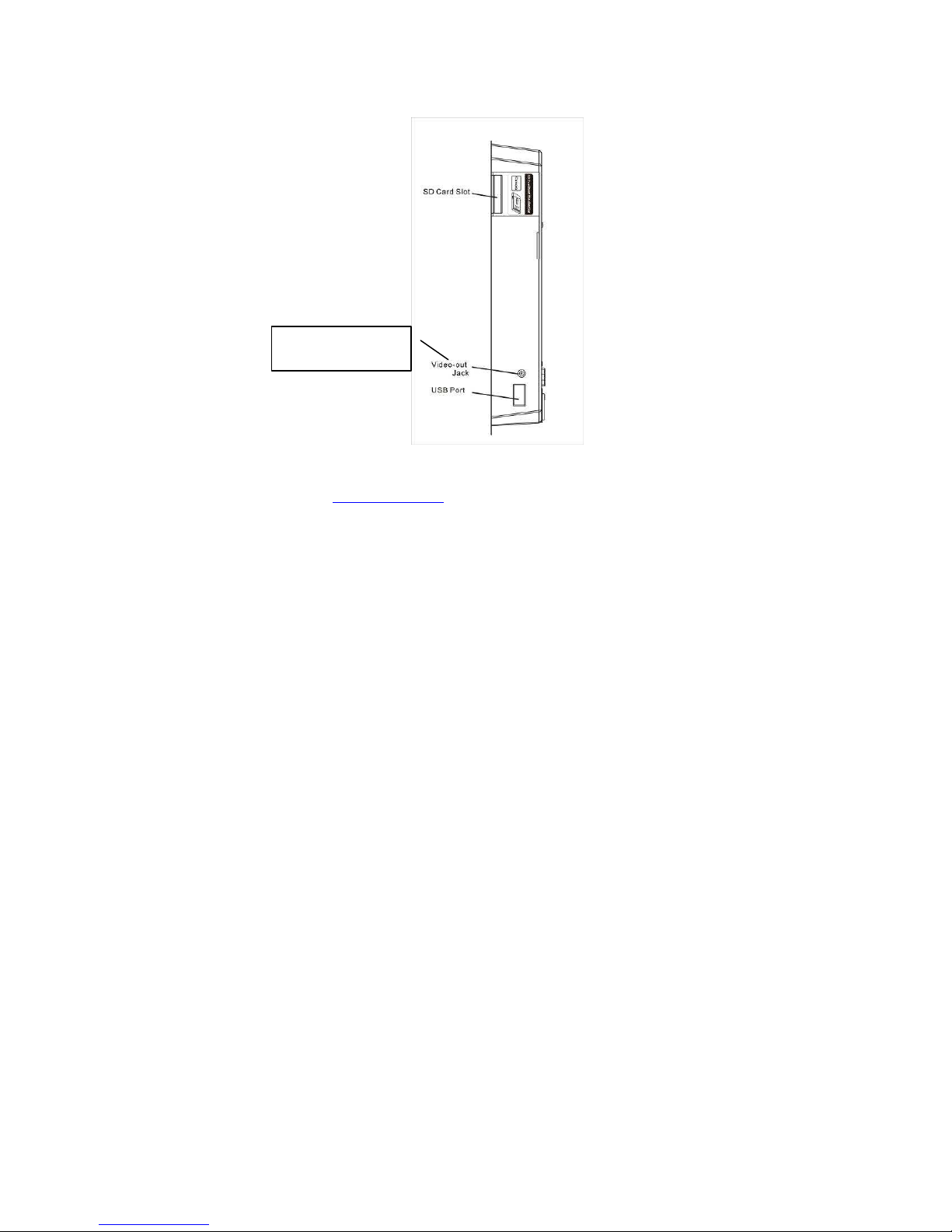

Side view
For use with Stealth Cam
exclusive Monitor / TV sold
separately
STC-V550MTR
www.stealthcam.net Toll Free 877-26 -84 0 7
Picture / Image Capacity
SD card High Mid Base Low AVI
16MB 11 27 40 106 5
32MB 22 54 80 212 10
64MB 44 108 160 424 20
128MB 88 216 320 848 40
256MB 176 432 640 16 6 80
512MB 352 864 1280 33 2 160
1 GB 704 1728 2560 6784 320
2 GB 1408 3456 5120 13568 640
NOTE: Picture / Image Capacity Chart provides approximate
number of images or AVI movies based on resolution setting and
the size of memory card. These figures may vary depending on
the amount of detail in the image.
STC-V550MTR
www.stealthcam.net Toll Free 877-26 -84 0 8
Camera kit contents
• Model STC-V550MTR Digital Scouting Camera
• CDROM (Contains Ulead image editing software and camera
driver)
• User Manual
• USB cable
• TV out cable for TV (RCA Jack)
• TV out cable for handheld TV (Mini Jack)
• Mounting Strap
• Tree Twister
• Metal Lock Plate
STC-V550MTR
www.stealthcam.net Toll Free 877-26 -84 0 9
Battery & memory installation
The Stealth Cam STC-V550MTR Advanced Digital Scouting
Camera is designed to operate using two different types of battery
power options.
NOTE: Always have camera in the OFF position when installing or
removing batteries.
Batteries “C” cell
The internal battery compartment accepts 6 “C” cell batteries. Be
sure to use high quality brand name alkaline batteries. Install
batteries with correct polarity (+/-) as noted inside the battery
compartment.
Warning:
Do not use a different Voltage lead
acid battery other than the one specified in
this section. Doing so will damage the camera
and will void the warranty.
STC-V550MTR
www.stealthcam.net Toll Free 877-26 -84 0 10
12V Lead Acid external battery
The STC-V550MTR is equipped with an external power jack
designed to accept a barrel plug cable to attach to a sealed lead
acid battery. (sold separately). Battery cable and complete 12V
Lead Acid battery kits are available wherever Stealth Cam scouting
cameras are sold or call toll free 877-26 -84 0. Only Stealth Cam
external battery accessories are recommended.
• Insert the external battery barrel plug into the DC 12V jack on
the bottom of camera housing
• Turn the camera power on.
Please make sure the voltage and polarity (+/-) are correct
before connection. Incorrect voltage or polarity (+/-) will
damage the camera.
