Steelcase Context Aggiornamento firmware

Steelcase, Inc.

Grand Rapids, MI 49501

U.S.A.

1-888-783-3522

Tools

Assembly Directions Printed In U.S.A.

REV

93-9504014 A

Page 1 of 4

This assembly direction shows installation of the Base Power-in into a utility trunk,

boundary wall is typical.

IMPORTANT: Do not assemble this product until you have read the supplementary Assembly

Directions outlining specifications and safety standards necessary to the safe use for this product.

This power system must be earthed (grounded)!

All electrical installations should be done by a

qualified person in accordance with codes and

regulations applicable at the installation site.

International Base Power-InContext®

(With Circuit Breakers)

Assembly Directions

93-9504014 REV APage

2 of 4

1. Remove access plate.

2. Remove closure plate from access plate.

3. Attach base power-in mounting bracket

to receptacle mounting bracket.

BASE POWER-IN

MOUNTING BRACKET

SERRATED PAN HEAD

TAPPING SCREWS (2)

BLUNT TIP

ACCESS PLATE

CLOSURE PLATE

ACCESS PLATE

4. Position access plate. Do not attach at this time! Thread base

power- in extender cables through receptacle opening, and

connect to power distribution blocks. (See power distribution legend )

Power Distribution Block Legend

Block Color Circuit

Black

Blue

White (optional)

Power

Dedicated

Assembly Directions

93-9504014 REV APage

3 of 4

BASE POWER-IN

ASSEMBLY ACCESS PLATE

POWER DISTRIBUTION

BLOCKS

5. Mount base power-in.

a. Position and replace access plate.

b. Clip base power-in housing over top

edge of access plate.

c. Secure base power-in housing to base

power-in mounting bracket. BASE

POWER-IN

ASSEMBLY

SERRATED PAN HEAD

TAPPING SCREWS (2)

BLUNT TIP

ACCESS

PLATE

MOUNTING

SCREW

6. Assemble base power-in cover.

Assembly Directions

93-9504014 REV APage

4 of 4

BASE POWER-IN COVER

7. Connect base power-in cord sets to building power supply.

SERRATED PAN HEAD

TAPPING SCREWS (2)

BLUNT TIP

BASE POWER-IN

CORDSET

IMPORTANT: Base power-in cordsets are color

coded with tape according to their circuit usage.

(see legend in step 4.) They must be plugged

directly into the building power supply.

BRITISH ONLY:

Maximum current not to exceed

10 A for each fused plug.

Indice

Altri manuali Steelcase Attrezzature per ufficio

Steelcase

Steelcase Brody Desk Manuale

Steelcase

Steelcase Turnstone Smoke Manuale utente

Steelcase

Steelcase Activa Lift 2 Manuale utente

Steelcase

Steelcase Montage In Manuale utente

Steelcase

Steelcase Wood Selections Worksurface Aggiornamento firmware

Steelcase

Steelcase CF Intro Aggiornamento firmware

Steelcase

Steelcase Avenir PAB-3 Manuale utente

Steelcase

Steelcase UAW60 Manuale utente

Steelcase

Steelcase V.I.A. FEIJA2V Manuale utente

Steelcase

Steelcase Avenir PAB-4 Joining Panel Manuale utente

Steelcase

Steelcase Cable Up Cover Manuale utente

Steelcase

Steelcase media:scape Kiosk Manuale utente

Steelcase

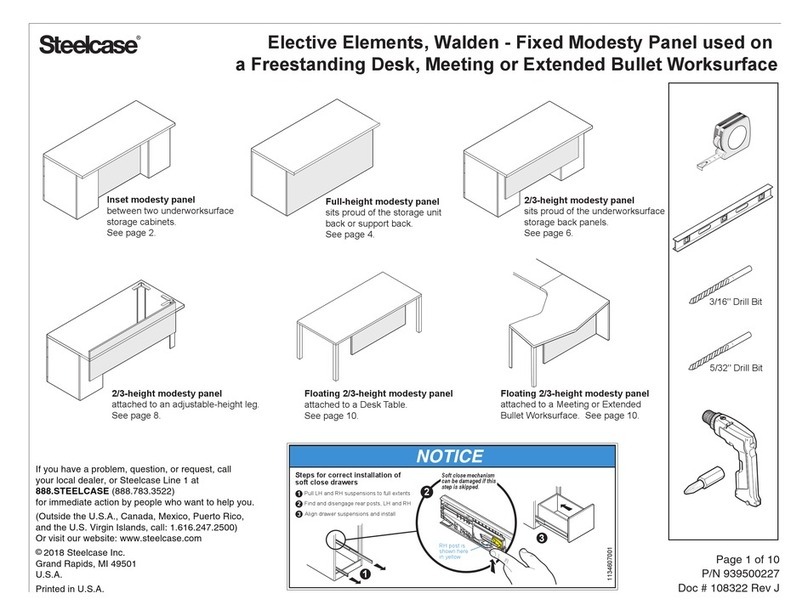

Steelcase Elective Elements Fixed Modesty Panel Manuale utente
