step4 ACTIVITY FORT Manuale utente
ACTIVITY FORT
INSTRUCTION
MANUAL
2
A BUTTON SCREWS = 22 Qty.
B 20mm NEO SCREWS = 42 Qty.
C 40 mm CHIPBOARD SCREWS = 45 Qty.
D 50mm ROOFING SCREWS = 42 Qty.
E 75mm BATTEN SCREWS = 60 Qty.
F 100mm BATTEN SCREWS = 34 Qty.
ABCDE
FINIALS
2 Qty.
BUGLE BIT (Hex
Head)
PHILIPS HEAD
BIT
5/16
SOCKET BIT BIT BULK
BADGE = 1 Qty.
F
3
COMPONENTS
Fort Floor 1700 × 2460 mm
Fort Wall (2 Qty.) 1700 × 1565 mm
Side Seners (4 Qty.)
640 × 140 × 35mm
Fort Floor Aachment
1700 x 620 mm
Roof Truss 2300 × 70 × 20mm
Gable (2 Qty.) 1700 × 385mm
Floor Decking 1700 × 90 × 20mm
Balustrade (4 Qty.)
1520 x 780 mm
Balustrade Connector (2 Qty.) 2300 × 70 × 45 mm
4
Roof Batens (4 Qty.)
2735 × 90 × 35 mm
Roof Capping
2730 × 203 mm
Roof Trims (4 Qty.)
1040 × 70 × 20 mm
L Channel (2 Qty.)
2730 × 58 mm
Corri Sheet (7 Qty.)
1000 × 850 mm
Skylight
1000 × 850 mm
5

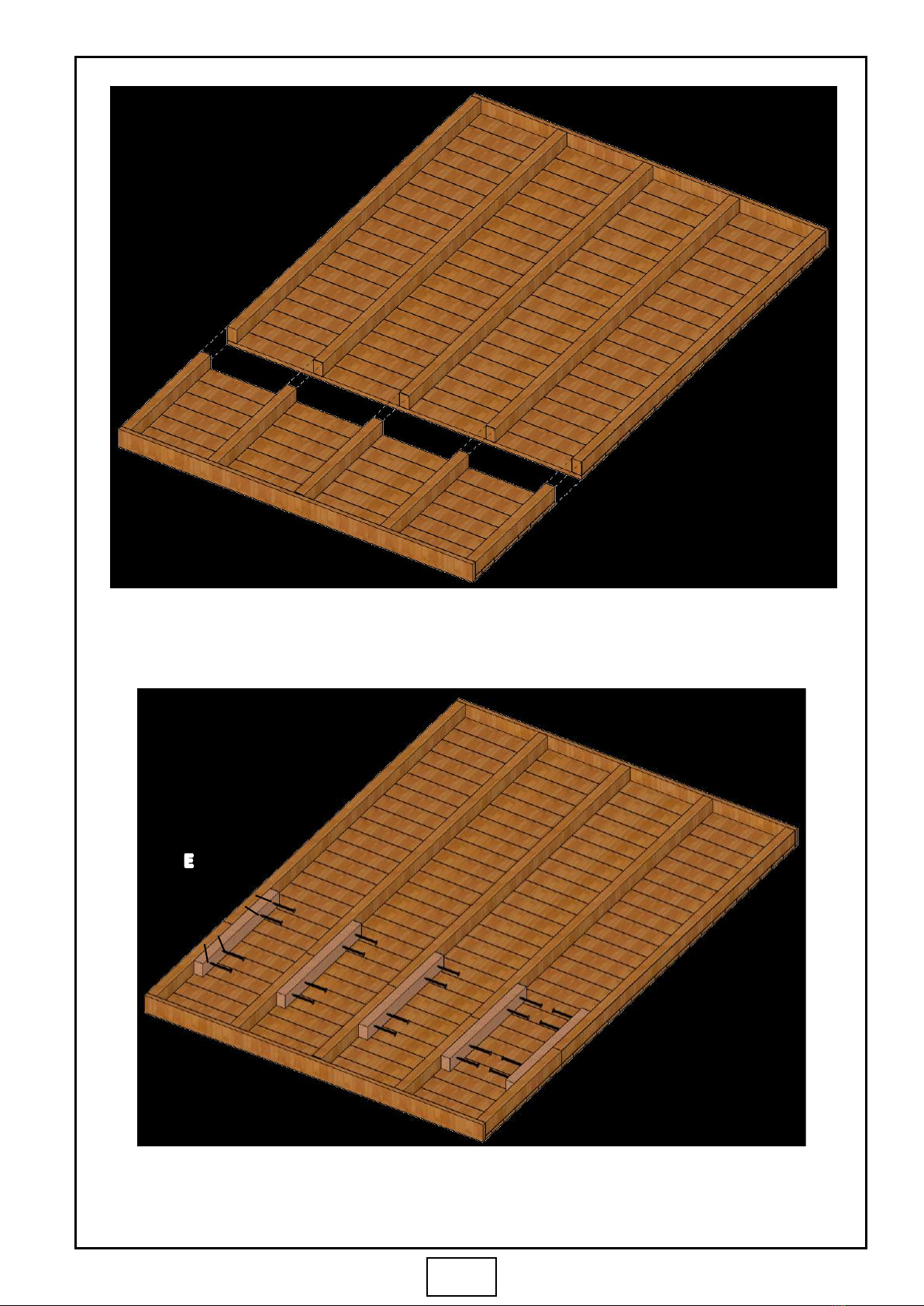

Once pushed together, center the Floor Joiners over where the oors meet, and aach with 4 (E)
screws. Do this for each oor joiner.
Total Screws = 20 Qty. of (E)
Take the Fort Floor and the Fort Floor aachment and push them together.
E
6

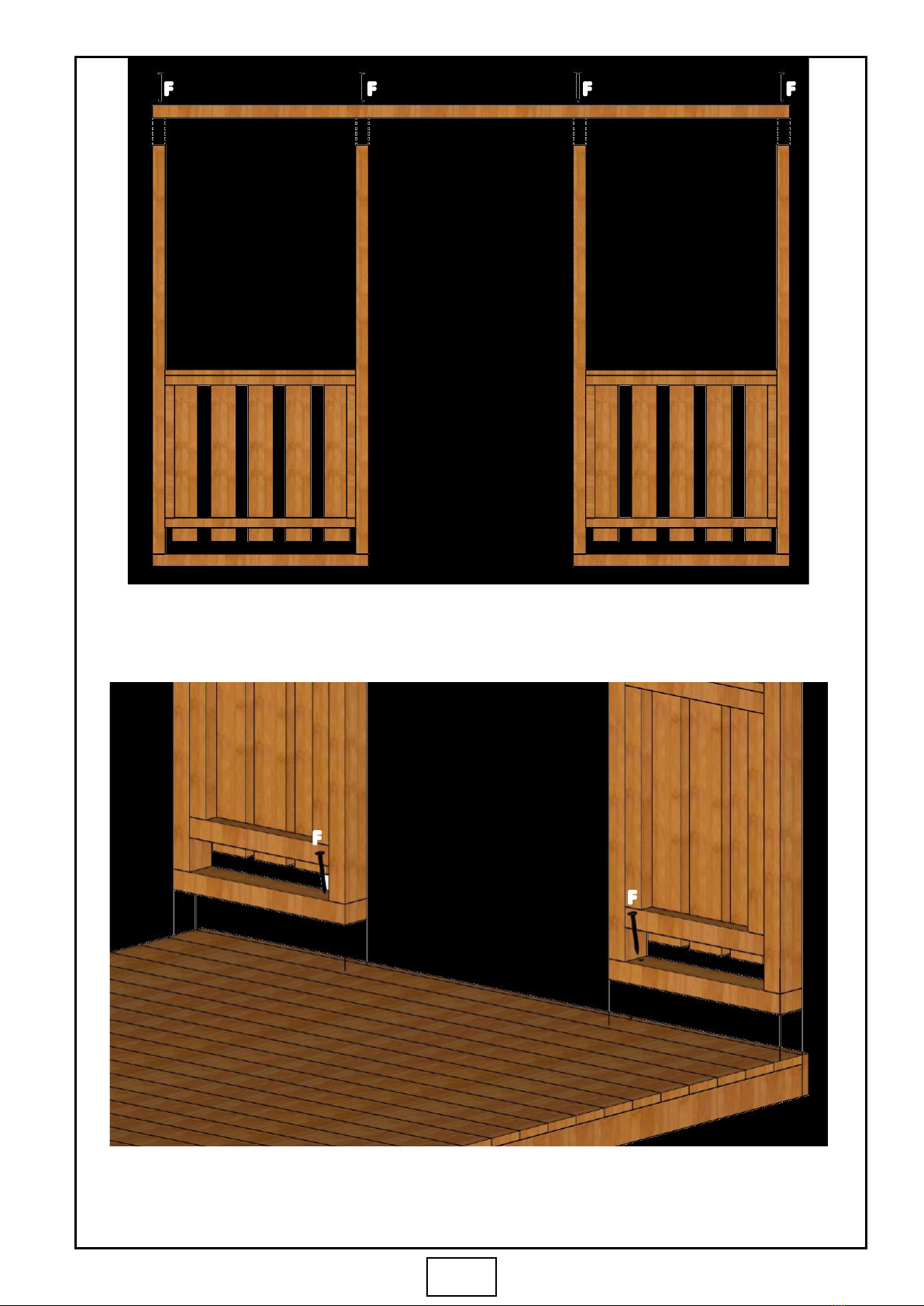

Now that all the seperate components are complete, ip the Fort Floor, and aach one of the
1700mm Fort Walls to the Fort Floor. Ensure that the E screws are screwed into the oors joists.
Total Screws = 2 Qty. of (F)
To construct the 2300mm Fort Wall, you must take a Balustrade connector, and aach 2 of the
Balustrades on each side using (F) screws, as shown. Do this twice to get both 2300mm Fort Walls.
Total Screws = 8 Qty. of (F)
F
F
F F F F
7
Aach a 2300mm Fort Wall to the 1700mm Fort Wall.
Total Screws = 3 Qty. of (F)
Aach the other 2300mm Fort Wall to the 1700mm Fort Wall.
Total Screws = 3 Qty. of (F)
F
F
F
F
F
F
8

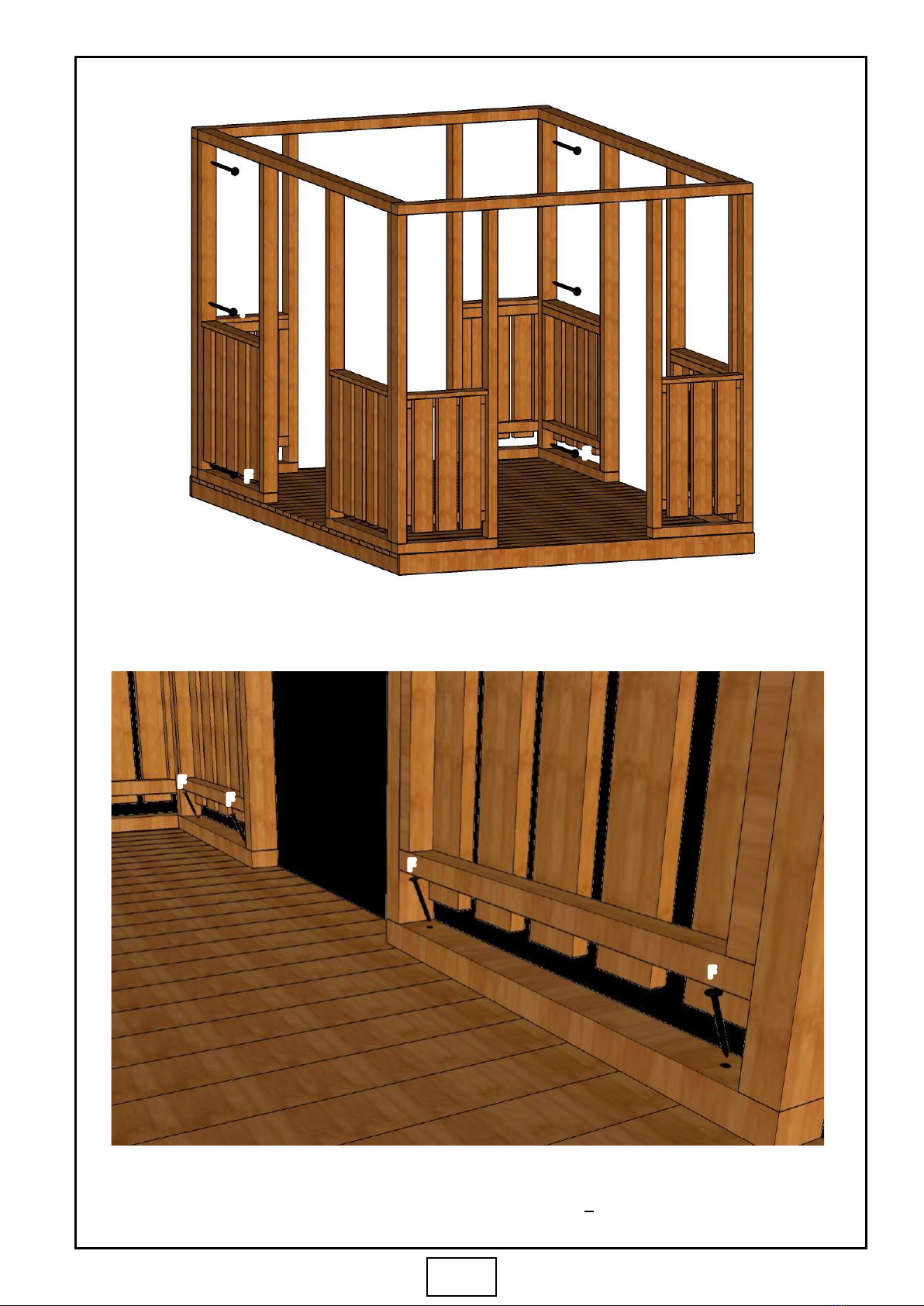

Aach the nal 1700mm Fort Wall to the already standing 2300mm Fort Walls.
Total Screws = 6 Qty. of (F)
Aach the both 2300mm Fort Walls to the Fort Deck. Do this on both sides.
Total Screws = 4 Qty. of (F) for each wall. 8 in total.
F
F
F
F
F
F
F
F
F
F
9

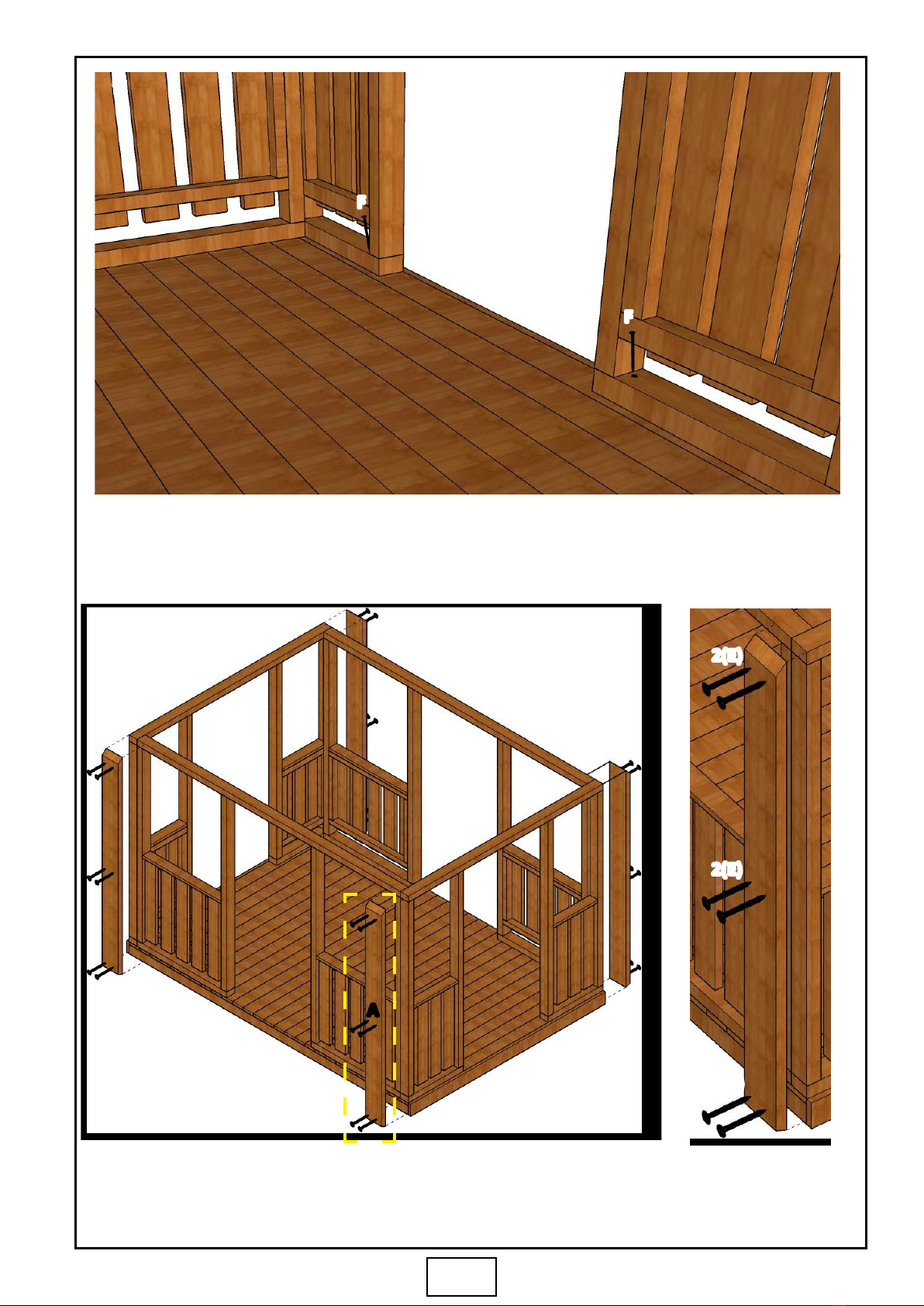

Screw the nal 1700mm Fort Wall to the Fort Floor. Like the rst Fort Wall to Fort Floor, ensure the
screws are screwed through to the oor joists.
Total Screws = 2 Qty. of (F)
Fit the Side Seners as shown in Detail B for all four edges. Use 6 (E) screws per sener.
Total Screws = 24 Qty. of (E)
DETAIL A
A
F
F
2(E)
2(E)
2(F)
10

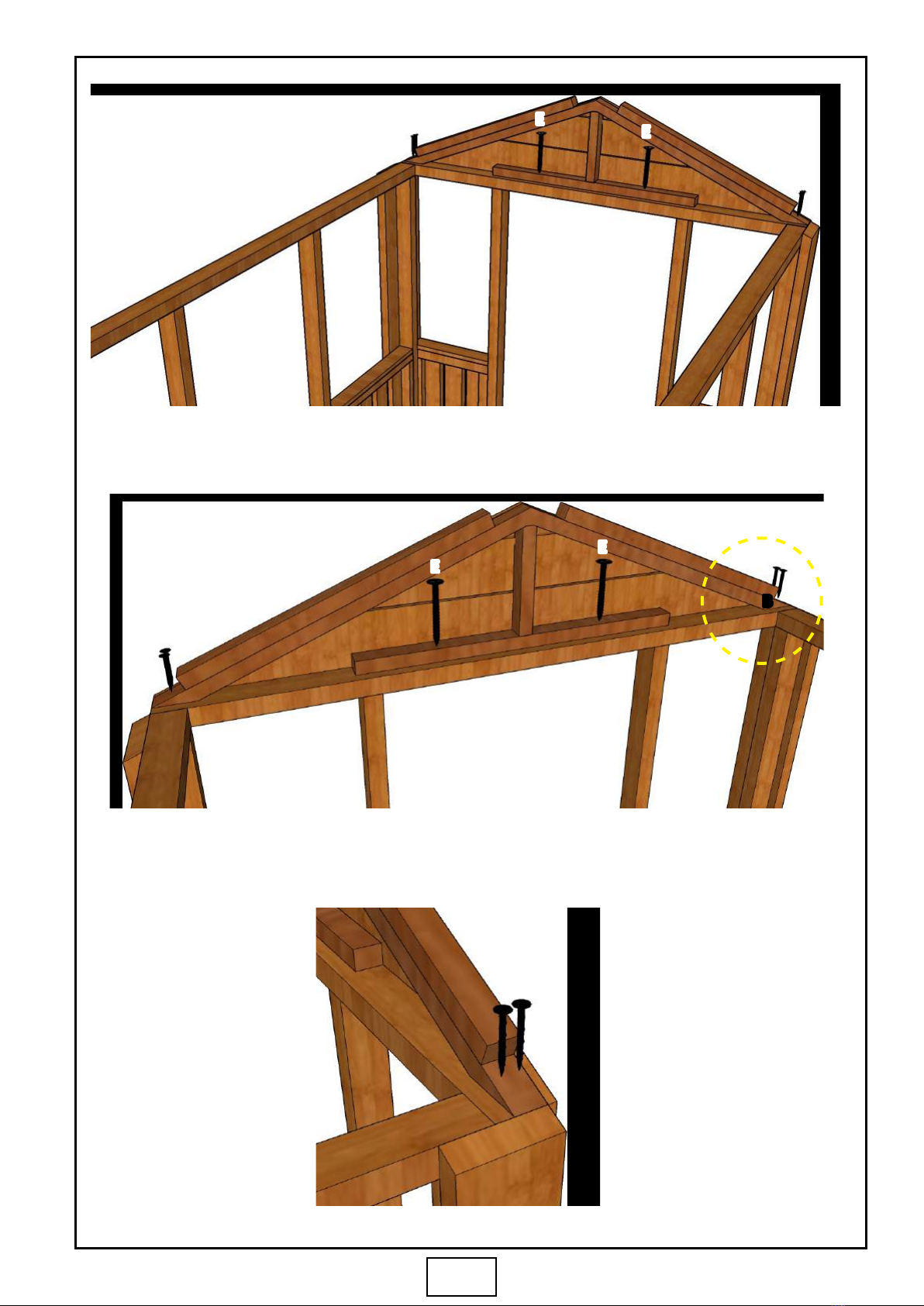

Screw the boom chord of the Gable to theTop plate of the other 1700mm Fort Wall
Total Screws = 2 Qty. of (E) and 4 Qty. of (C)
Screw the boom chord of the Gable to the top plate of a 1700mm Fort Wall.
Total Screws = 2 Qty. of (E) and 4 Qty. of (C)
B
C(2)
C(2)
C(2)
C(2)
C(2)
DETAIL B
Screw the Gable with
2(C) Chipboard screws
as shown in Detail B
EE
E
E
