IMPORTANT
Before using your new Color Video Doorphones System, please
read the following recommendations.
This device must be placed in an area with adequate ventilation in
order to avoid humidity and dust.
Do not place this device near magnetic devices such as TVs and
VCRs.
Always use a sofa dry cloth in order to clean this device.
Never press several buttons at once.
Do not attempt to open this device. Doing so could cause
malfunctions and the voiding of the warranty.
If the power cord is damaged, it must be replaced. See the
manufacturer, a service agent, or qualied personnel in order to
replace the power cord.
If you will not be using this device for an extended period of time,
make sure to disconnect the power cable from the electrical outlet.
FEATURES
•
•
•
•
•
•
•
ENGLISH
ENGLISH-03
FEATURES
Allows for the identication and communication with people outside
your home or ofce.
Infrared night-vision camera allows you to recognize visitors even
at night time.
Perfect for home or ofce.
Easy to install.
High resolution color images.
•
•
•
•
•
ENGLISH
ENGLISH-04

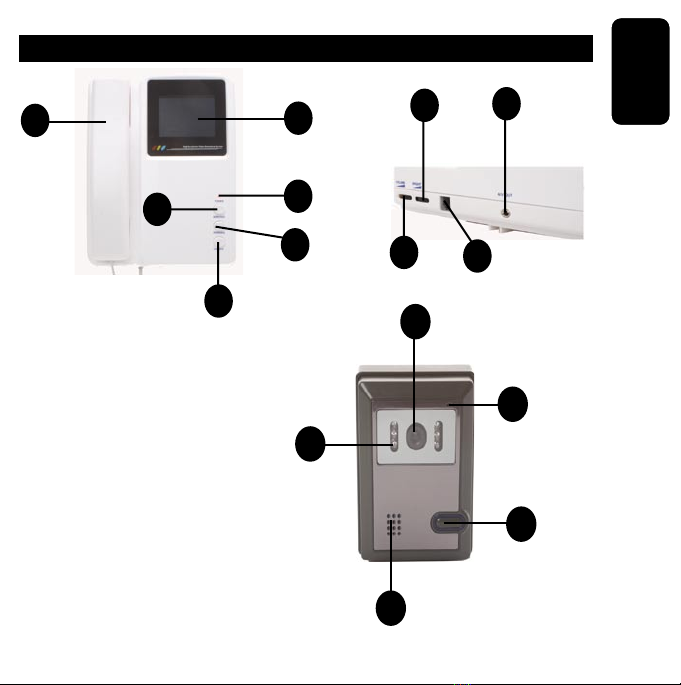

CONTROLS
1. Screen.
2. Handset.
3. Volume.
4. Brightness.
5. Earphone jack.
6. A/V output jack.
7. Power indicator light.
8. Monitor Button.
9. Alert Button.
10. Door Open Button.
11. Microphone.
12. Camera.
13. Infrared LED.
14. Speaker.
15. Call Button.
16. Camera Adjust Button.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
ENGLISH
ENGLISH-05
INSTALLATION
INSTALLING THE CAMERA
It is recommended that you install the camera at a height of 4.5 – 5
feet
1. Select the place where you wish to install the camera.
2. Move the camera adjust switch up and down in order to have the
camera dene the viewable area.
ENGLISH
ENGLISH-06
3. Place the connection cable (white cable with four colored strands at
each end) on the rear side of the mounting base. Connect them
according to the following chart as seen:
CAMERA BACK
PANEL CABLE COLOR
A BLACK
B WHITE
C YELLOW
D RED
A B C D RED
YELLOW
WHITE
BLACK
ENGLISH
ENGLISH-07

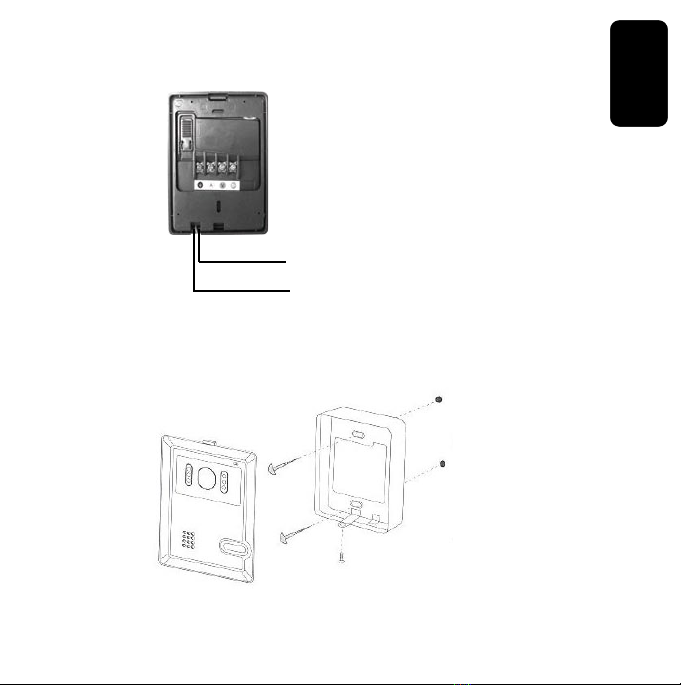

4. Connect the two cables (black/red) to an electric door latch (not
included) in order to be able to open the door.
5. Set the mounting base to the desired height and place two screws in
order to mount it rmly to the wall.
BLACK
RED
AN ELECTRIC LOCK
(no included)
ENGLISH
ENGLISH-08
INSTALLING THE INTERCOM
It is recommended that the intercom be placed at a height of 4.5-5
feet
1. Set the metal plate using screws at the desired height.
2. On the intercom, connect the cameras cables according to the colors
on the following chart:
INTERCOM CABLE COLOR
1 BLACK
2 WHITE
3 YELLOW
4 RED
3. Set the intercom on the previously installed metal base.
4. Connect the power cable to an electrical outlet near the intecom.
BLACK
RED
YELLOW
WHITE
ENGLISH-09
ENGLISH
ENGLISH-10
OPERATION
1. When a visitor presses the call button, you will hear a ring on the
intercom. The image of the visitor will simultaneously be displayed on
the monitor.
2. Pick up the handset in order to speak with the visitor. The system
will power off after you hang up the handset. If you do not answer the
intercom, the system will power off after 30 seconds.
3. After speaking with the visitor, press the open door button in order to
open the door (if you have this feature installed)
4. If you wish to view what is happening outside your house/ofce
simply press the monitor button. The image will be displayed for 30
seconds.
5. IF the visitor is an undesired person, press the alert button and the
camera will emit an alarm tone. This tone will continue until you release
the button.
