Stern Pinball Iron Man

Backbox Arc Reactor Flasher Kit

1211 Rev. 1

1 - Lamp holder, bracket and wire.

2 - #6 - 3/8" Unslotted hex head screws.

1 - Blue Splice Tap

1 - Template for installation (found on the last

page of this manual.)

1 - Red Splice Tap

Stern Pinball Iron Man

Backbox Arc Reactor Flasher Kit

Overview:

Tools:

This document will aid you with the install of your backbox flasher kit.

This kit requires that you add wiring to your game, please enlist help if not comfortible.

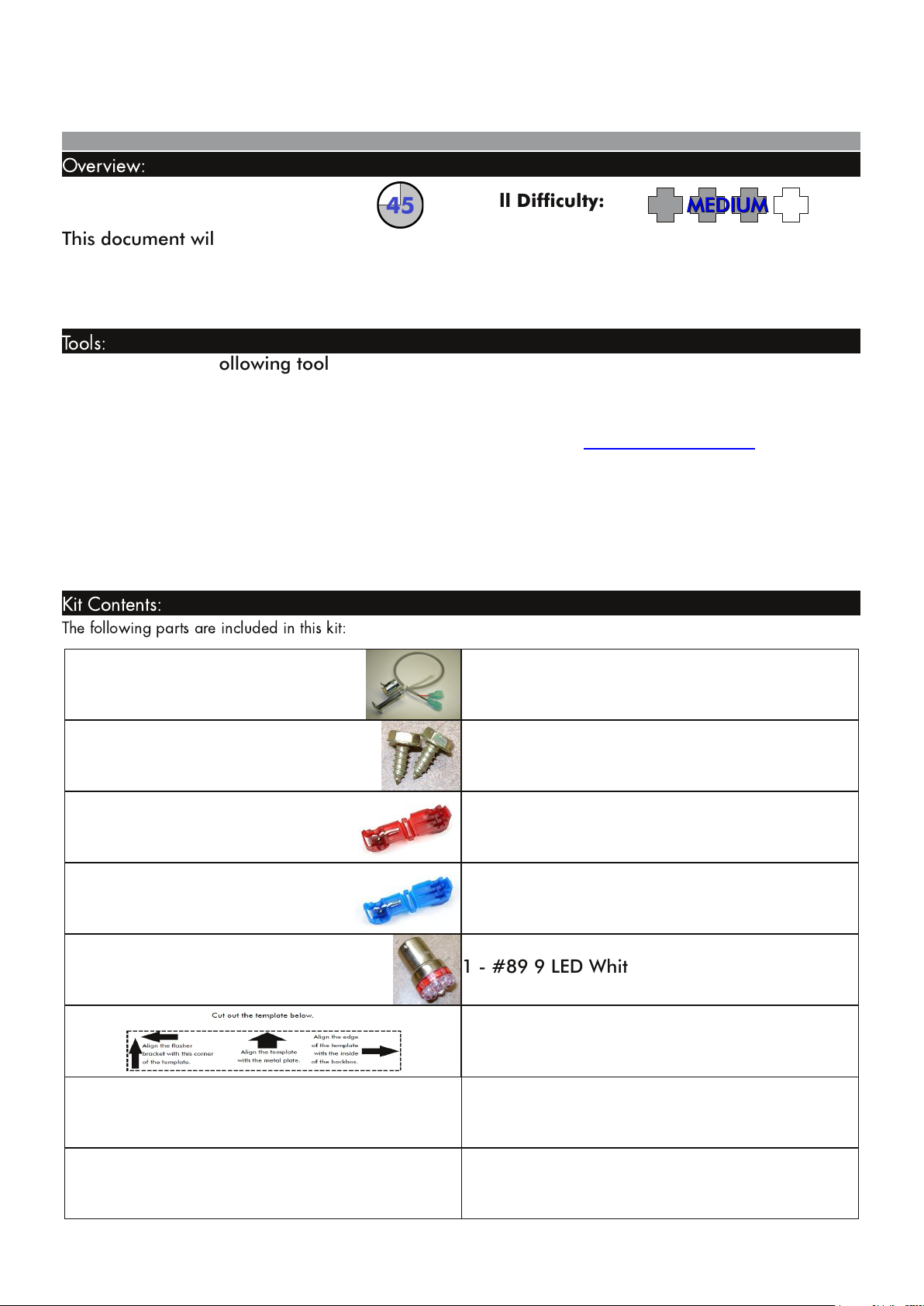

Kit Contents:

You will need the following tools to complete this installation:

•1/4" Drive Hex Nut Driver

I recommend a magnetic tip version. A nice set is available at Pinball Life to

feed your pinball tool habit. Search for Klein on www.pinballlife.com for details.

• Wire Cutters

• Pliers

• #2 Phillips Head Screwdriver

• Scotch or masking tape

The following parts are included in this kit:

Install Time: 45 minutes Install Difficulty: M

1 - #89 9 LED White Flash Lamp

Stern Pinball Iron Man

Backbox Arc Reactor Flasher Kit

Instructions:

1) Ensure your machine is turned off.

2) Remove the backglass.

3) Remove the display and lay it on the playfield

glass.

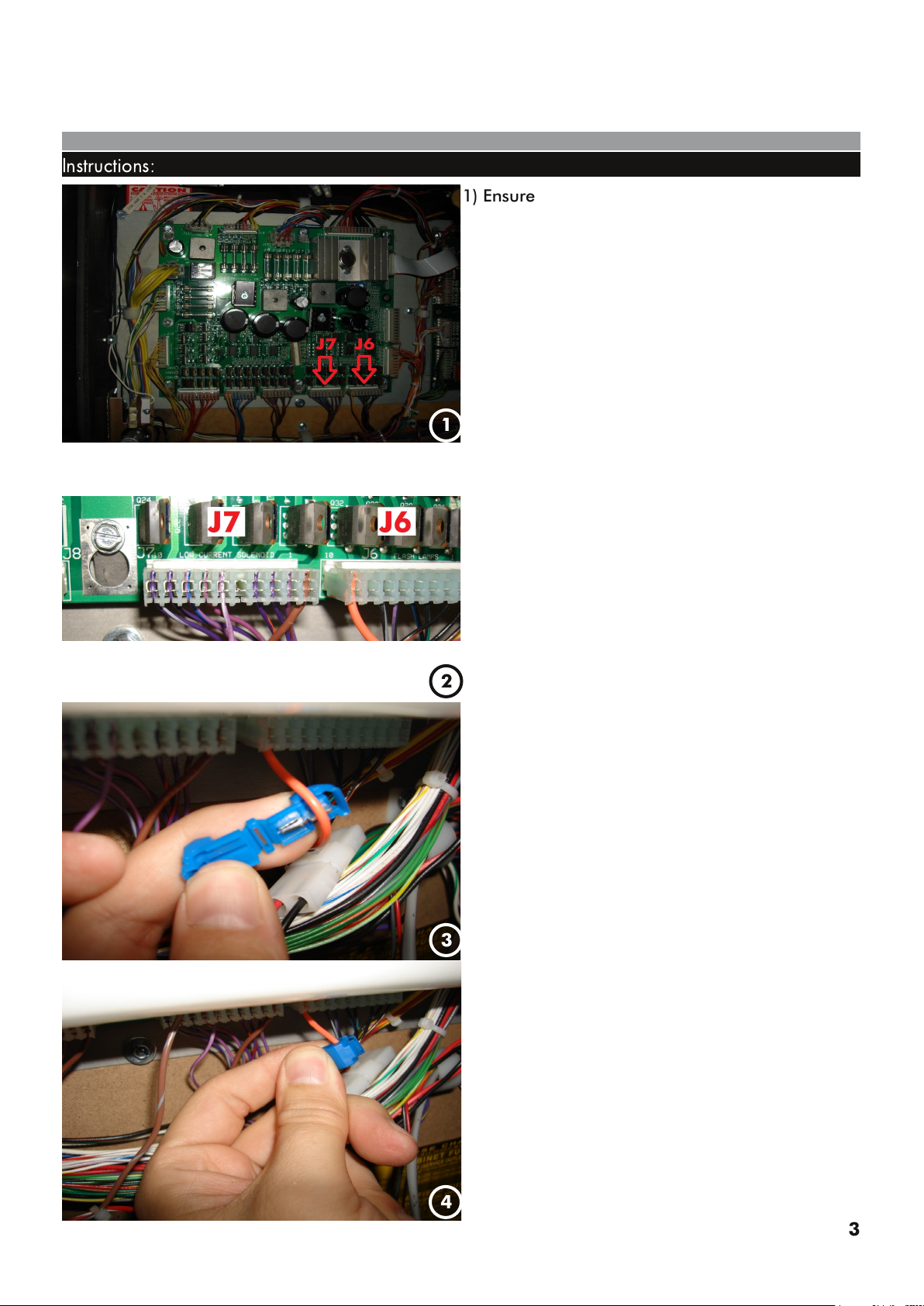

4) Locate the connector labeled J6 Flash Lamps

and J7 Low Current Solenoid.

It will be in the middle bottom of the

power driver board.

Picture 1 & 2 shows these connectors.

5) Locate the Orange Wire on the J6 connector.

* Note: These connectors are labeled

with the lower numbers on the right of

the connector.

6) It may be necessary to undo factory

installed wire managment before you

proceed.

7) Take the BLUE splice from the kit.

8) Using your thumbs, push the wire into the

metal part of the splice as shown. It will

only just begin to seat, this is just to

keep the wire from moving.

This is shown in Picture 3.

9) Close the splice around the wire.

Be sure that the wire is in the center of

the metal clip as shown in Picture 4 to

the left.

* Note: Failure to watch this step carefully can

cause you to CUT the wire you are splicing!

10) Once you are sure the wire is in the

correct locations in the crimp, grab it by

the thin end as shown in Picture 4

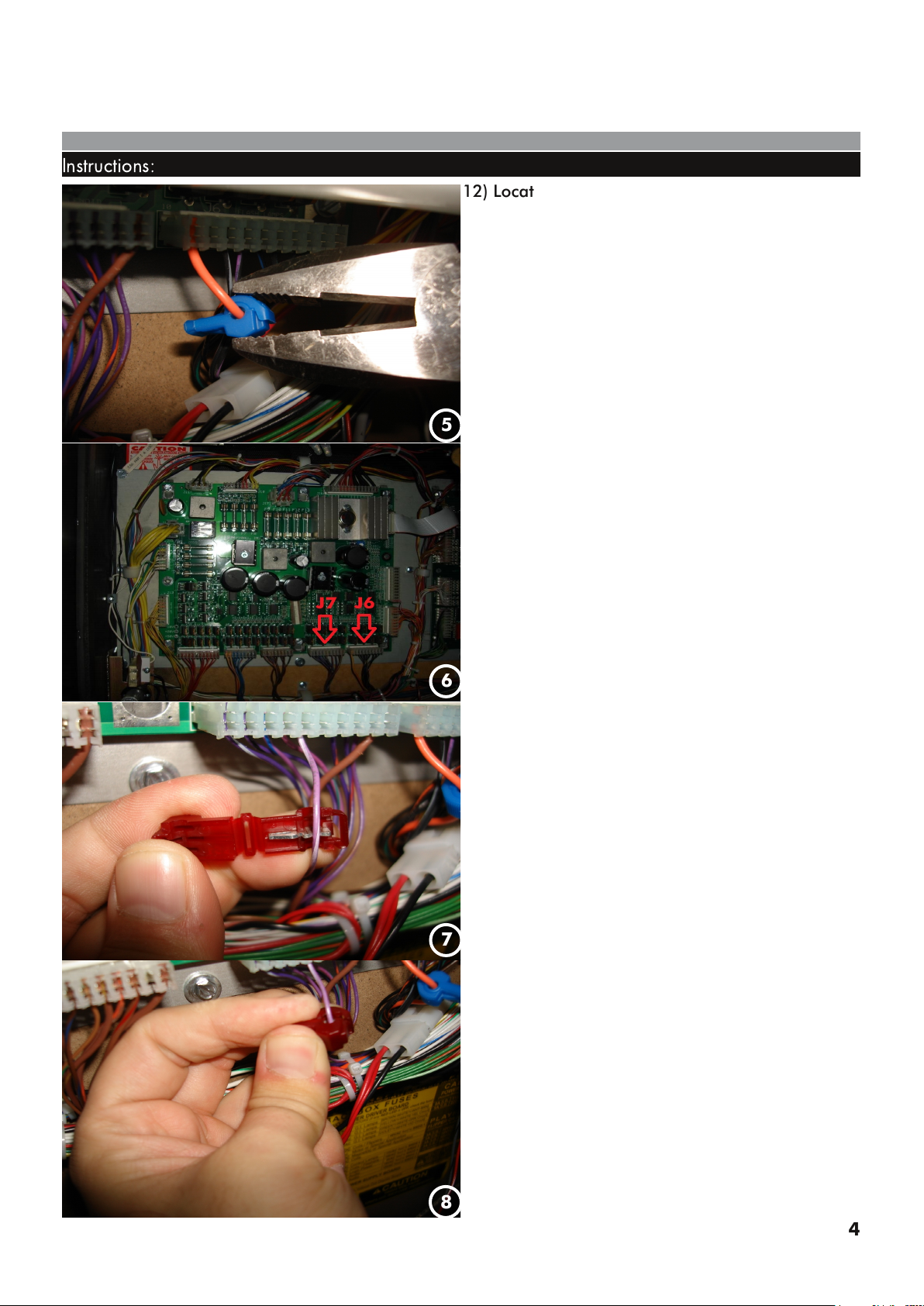

11) Grab the closed end of the splice with the

pliers on it's fat end as shown in

Picture 5 on Page 4.

Check one more time! Is the wire in the

right location in the splice? If so, squeeze the

pliers until you hear a click.

Stern Pinball Iron Man

Backbox Arc Reactor Flasher Kit

Instructions:

12) Locate the connector labeled J7 Low Current

Solenoid. It will be in the middle

bottom of the power driver board.

Picture 6 shows this connector.

13) Locate the violet wire with the white stripe

on the J7 connector. It is in position 6,

which is the 5th wire from the left of the

connector.

* Note: These connectors are labeled

with the lower numbers on the right of

the connector.

14) Take the RED Splice from the kit.

15) Using your thumbs, push the wire into the

metal part of the splice as shown. It will

only just begin to seat, this is just to

keep the wire from moving.

This is shown in Picture 7.

16) Close the splice around the wire.

Be sure that the wire is in the center of

the metal clip as shown in Picture 8 to

the left.

* Note: Failure to watch this step carefully can

cause you to CUT the wire you are splicing!

17) Once you are sure the wire is in the

correct locations in the crimp, grab it by

the thin end as shown in Picture 8.

18) Grab the closed end of the splice with the

pliers on it's fat end as shown in

Picture 9, Page 5.

Check one more time! Is the wire in the

right location in the splice? If so, squeeze the

pliers until you hear a click.

Stern Pinball Iron Man

Backbox Arc Reactor Flasher Kit

Instructions:

19) Place the template from the kit directly below

the metal plate holding the CPU and

PDB in the backbox and all the way to the

side of the cabinet.

See Picture 10.

20) Use tape to attach the template.

21) Locate the #6 screws from the kit. Put

one screw in the nut driver and feed it

through the base of the bracket and

lamp assembly as shown in

Picture 11.

22) Line up the bracket and lamp assembly

with the left edge of the template right

beneth the metal plate holding the

boards in. See Picture 12.

23) Install screw into the bracket. Be sure that the

bracket is lined up with the template

before proceeding! Do not tighten the

screw all the way, it should be snug only.

24) Make sure the bracket is flush to the

metal plate holding the CPU and

Power Dirver board. Once confirmed,

install the remaining screw.

25) Remove the template.

27) Install the lamp into the socket.

28) Install the BLACK wire from the lamp

socket into the red splice on the JP6

connector. See picture 1, Page 1.

29) Plug the RED wire from the lamp socket

into the blue splice on the JP7 connector.

30) Wire manage as needed.

Your install is now complete!

Stern Pinball Iron Man

Backbox Arc Reactor Flasher Kit

Instructions:

You can adjust the lamp socket as needed by

bending it slightly.

You can test the flash lamp functionality by

going into the Flash Lamp Test and running

FLASH: Pop Bumper #20. See Picture 13.

BE SURE YOUR COIN DOOR IS CLOSED

WHEN DOING THIS!

Enjoy!

Credits:

Special thank you to Kim Riechmann for her help with this project, and with kit assembly.

Thank you to Terry at Pinball Life for bringing this kit to market, and his support in the

process.

A very special thank you to those of you who do or have worked at Stern Pinball Inc., who

were involved in creating this game. We cannot thank you enough for your hard work and

creative energy.

One last thank you goes to all the people who bring kits like these to life. Some guy in his

basement, garage or even hotel room working on these kits has brought so many great mods

and fixes to our hobby. Your tireless efforts have not gone unnoticed. Thank you.

Andrew Barney

APB Enterprises

"Some guy in his basement."

WWW.APBENTERPRISES.COM

Cut out the template below.

Align the flasher

bracket with this corner

of the template.

Align the edge

of the template

with the inside

of the backbox.

Align the template

with the metal plate.
