Sting HD-104 Manuale utente

HD-104

─4CH DVR ─

User Manual

HD-114 v0.4(S02)

This document contains preliminary information and subject to change without notice.

(866-84-STING - (702) 737-8464

This symbol is intended to

alert the user to the presence

of unprotected “Dangerous

voltage" within the product's

enclosure that may be strong

enough to cause a risk of

electric shock.

This symbol is intended to

alert the user to the presence

of important operating and

maintenance (servicing)

instructions in the literature

accompanying the appliance.

WARNING

TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS APPLIANCE TO RAIN OR

MOISTURE.

NOTE: This equipment has been tested

and found to comply with the limits for a

class digital device, pursuant to part 15 of

the FCC Rules. These limits are designed

to provide reasonable protection against

harmful interference when the equipment is

operated in a commercial environment.

This equipment generates, uses, and can

radiate radio frequency energy and, if not

installed and used in accordance with the

instruction manual, may cause harmful

interference to radio communications.

Operation of this equipment in a residential

area is likely to cause harmful interference

in which case the user will be required to

correct the interference at his own expense.

Disposal of Old Electrical & Electronic Equipment (Applicable in the European

Union and other European countries with separate collection systems)

This symbol on the product or on its packaging indicates that this product shall not be treated

as household waste. Instead it shall be handed over to the applicable collection point for the

recycling of electrical and electronic equipment. By ensuring this product is disposed of

correctly, you will help prevent potential negative consequences for the environment and

human health, which could otherwise be caused by inappropriate waste handling of this

product. The recycling of materials will help to conserve natural resources. For more detailed

information about recycling of this product, please contact your local city office, your household

waste disposal service or the shop where you purchased the product.

HD-104 User Manual

Table of Contents

CHAPTER 1 PACKING DETAIL AND INSTALLATION _____________________5

1-1 PACKING ___________________________________________________ 5

1-2 Hard Disk Installation ________________________________________ 6

CHAPTER 2 PANEL LOCATION________________________________________7

2-1 FRONT PANEL CONTROLS ____________ Error! Bookmark not defined.

2-2 4CH REAR PANEL CONNECTORS _____________________________ 8

CHAPTER 3 LIVE, PLAYBACK AND PTZ OPERATIONS __________________8

3-1 LIVE Mode _________________________________________________ 9

3-2 PLAYBACK Mode___________________________________________ 11

3-3 PTZ Mode _________________________________________________ 13

CHAPTER 4 MAIN MENU SETUP ____________________________________16

4-1 RECORD SETUP ___________________________________________ 17

4-1.1 Quality & Frame Rate Setup ____________________________ 18

4-2 EVENT SETUP _____________________________________________ 18

4-2.1 MOTION SETUP _______________________________________ 19

4-2.1.1 MOTION AREA SETUP_____________________________ 20

4-2.2 SENSOR SETUP_______________________________________ 20

4-3 SCHEDULE SETUP _________________________________________ 21

4-3.1 Schedule Record Setup ________________________________ 22

4-3.2 Holiday Setup _________________________________________ 22

4-4 CAMERA SETUP ___________________________________________ 23

4-5 ACCOUNT SETUP __________________________________________ 24

4-5.1 Permission Setup______________________________________ 25

4-5.2 User Picture Setup ____________________________________ 25

4-6 NETWORKING SETUP_______________________________________ 26

4-6.1 NETWORKING SETUP __________________________________ 26

4-6.1.1 DHCP ___________________________________________ 26

4-6.1.2 LAN_____________________________________________ 27

4-6.1.3 ADSL____________________________________________ 27

4-6.2 HTTP Setup___________________________________________ 28

4-6.3 DDNS Setup __________________________________________ 28

4-6.4 Mail Setup ____________________________________________ 29

4-7 PTZ & RS485 SETUP _______________________________________ 30

4-8 SYSTEM SETUP____________________________________________ 31

4-8.1 DISPLAY SETUP_______________________________________ 32

4-8.2 DATE/TIME SETUP _____________________________________ 32

4-8.2.1 CHANGE DATE & TIME____________________________ 33

4-8.2.2 TIME ZONE AND DAYLIGHT SAVING TIME SETUP____ 33

4-8.2.3 INTERNET TIME SETUP ___________________________ 34

4-8.3 BUZZER & RELAY SETUP ______________________________ 34

4-8.4 SPOT SETUP__________________________________________ 35

4-9 UTILITY SETUP ____________________________________________ 36

4-10 DIAGNOSTIC______________________________________________ 37

CHAPTER 5 BACKUP & SEARCH____________________________________38

5-1 BACKUP SETUP____________________________________________ 38

5-2 SEARCH SETUP____________________________________________ 39

5-2.1 EVENT SEARCH_______________________________________ 39

5-2.1.1 CRITERIA SETUP FOR EVENT SEARCH _____________ 40

5-2.2 TIME SEARCH_________________________________________ 41

HD-104 User Manual

CHAPTER 6 Rempte Software Installation and Setup ____________________42

6-1 AP Software Installation and instruction ______________________ 42

6-2 How to do remote monitoring through IE _____________________ 44

6-3 AP Software Operation______________________________________ 46

CHAPTER 7 SPECIFICAITONS_______________________________________47

CHAPTER 8 MOBILE APPLICATION INSTALLATION AND USAGE__________49

8-1 Mobile Application Installation and Operation for Symbian System49

8-1.1 Mobile Application Installation___________________________ 49

8-1.2 Mobile Application Operation____________________________ 50

8-1.2.1 Add New Login DVR ______________________________ 50

8-1.2.2 Logging Onto the DVR ____________________________ 50

8-1.2.3 Modify the Login Information of DVR _______________ 51

8-1.2.4 Delete the Login Information of DVR________________ 51

8-1.3 Live Monitoring Operation ______________________________ 51

8-1.3.1 Scroll the Image__________________________________ 52

8-1.3.2 Image Quality Setup ______________________________ 52

8-1.3.3 Channel Display __________________________________ 52

8-1.3.4 Size of Image ____________________________________ 53

8-1.3.5 Rotate the image _________________________________ 53

8-1.3.6 Alarm ___________________________________________ 53

8-2 Mobile Application Installation and Operation for Windows Mobile S

ystem ________________________________________________________ 54

8-2.1 Mobile Application Installation___________________________ 54

8-2.2 Mobile Application Operation____________________________ 55

8-2.3 Operation under the LIVE monitoring.____________________ 56

CHAPTER 9 CMS INSTALLATION AND USAGE GUIDE___________________57

9-1 CMS Installation____________________________________________ 57

9-2 CMS LOGIN AND ENVIRONMENT_____________________________ 60

9-3 DVRs, Groups & Events_____________________________________ 61

9-3.1 View DVR

／

Group List _________________________________ 61

9-3.2 View Event Logs ______________________________________ 62

9-4 Local PC Information and Control____________________________ 62

9-5 Main Display_______________________________________________ 63

9-5.1 Audio Control _________________________________________ 63

9-5.2 eMAP Display _________________________________________ 64

9-5.3 PTZ Control___________________________________________ 65

9-6 Operation Bar______________________________________________ 66

9-6.1 User administration ____________________________________ 67

9-6.2 DVR Administration ____________________________________ 67

9-6.3 Group Administration __________________________________ 68

9-6.4 eMap Administration ___________________________________ 69

9-6.5 Remote Play __________________________________________ 70

9-6.6 HDD Playback_________________________________________ 71

9-6.7 File Playback__________________________________________ 71

9-6.8 Event Playback________________________________________ 72

9-6.9 Snapshot Data ________________________________________ 72

9-6.10 Recording Data_______________________________________ 73

APPENDIX I I-DVR.NET REGISTRATION _____________________________74

APPENDIX II Remote Monitoring IE ActiveX Control Installation InstructionError! Bookmark not defined.

HD-104 User Manual

CHAPTER 1 PACKING DETAIL AND INSTALLATION

1-1 PACKING

1. DVR

2. Quick Start 3. IR Remote Control 4.Batteries x2

5. CD 6. Hard Disk Mount x2 7.Screws x8

8. Power Adaptor 9. SATA Cord x 1

Note: Standard shipping products do not include HDD

HD-104 User Manual

1-2 Hard Disk Installation

Step 1) Fix the HDD to rack mount with the screws as indicated.

Step 2) Place the HDD on the HDD plate and screw it as indicated.

Step 3) Connect the power and the SATA cables as indicated.

Note: After installation, please initialize Hard Disk before starting to record. For more detailed

information, please check out User Manual 4-9 System Tools for reference.

HD-104 User Manual

CHAPTER 2 PANEL LOCATION

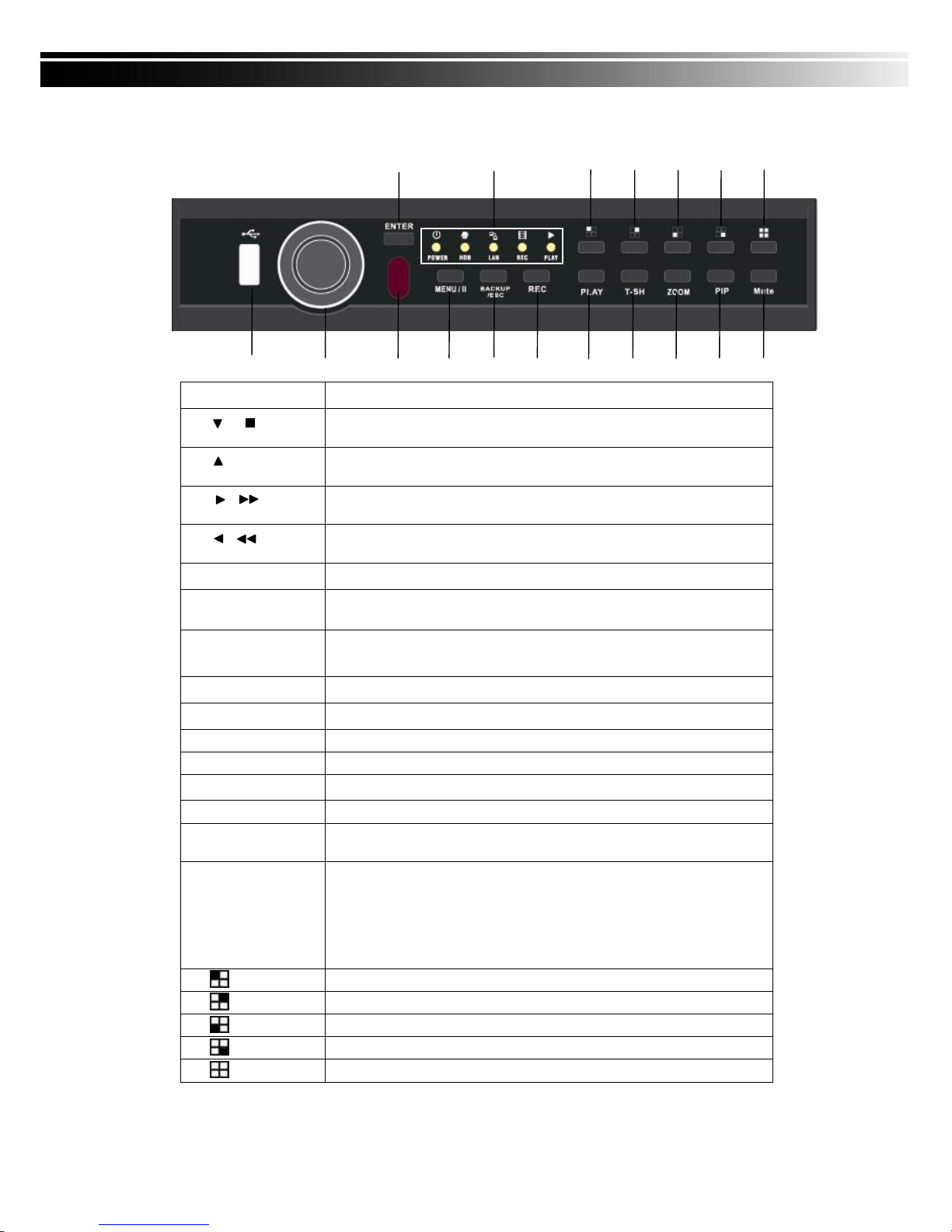

2-1 FRONT PANEL CONTROLS

⑫⑬⑭⑮⑯⑰⑱

①②③④⑤⑥⑦⑧⑨⑩⑪

①USB 2.0

Port for USB external devices.

②/

In SETUP mode, press to move cursor down. In PLAYBACK mode,

press to stop playing back.

/ SLOW

In SETUP mode, press to move cursor up. In PLAYBACK mode,

press to slow down.

In SETUP mode, press to increase value. In PLAYBACK mode

press to play forwards.

In SETUP mode, press to reduce value. In PLAYBACK mode,

press to play rewind.

③IR Sensor

Input sensor for the remote control.

④MENU

In LIVE mode, press to display menu. In PLAYBACK mode, press

to pause playback.

⑤BACKUP/ESC

In LIVE mode, press to display the BACKUP menu. In SETUP

mode, press to return to previous page.

⑥REC

Start or stop recording.

⑦PLAY

Play back in normal speed.

⑧T-SRH

Display the search menu.

⑨ZOOM

In LIVE or PLAYBACK mode, enlarge the display of a channel.

⑩PIP

In LIVE mode, display with picture in picture format.

⑪MUTE

Enable / Disable Key Tone.

⑫ENTER

In SETUP mode, press to enter values. In PLAYBACK mode,

switch between full, quad, 9-channel, 16-channel display in order.

⑬LED Display

(From left to right)

Power: Power is on.

HDD: Hard disk is in use.

LAN: Connected to the internet (in red): Remote user logged in.

REC: Recording.

PLAY: Playing back.

⑭

In LIVE or PLAYBACK mode, switch to CH1。

⑮

In LIVE or PLAYBACK mode, switch to CH2。

⑯

In LIVE or PLAYBACK mode, switch to CH3。

⑰

In LIVE or PLAYBACK mode, switch to CH4。

⑱

In LIVE or PLAYBACK mode, switch to 4-channel display。

HD-104 User Manual

2-2 4CH REAR PANEL CONNECTORS

①③⑤⑥⑧

②④⑦⑨⑩⑪

①VGA

VGA port

②DC 12V

Socket for a DC 12V input.

③SPOT monitor

BNC port to display full screen image of all installed cameras in

sequence.

④MAIN monitor

BNC port for the main monitor.

⑤VIDEO IN

BNC input ports for cameras, 4 in total.

⑥AUDIO IN

RCA input port for audio signal.

⑦AUDIO OUT

RCA output port for audio signal.

⑧USB

USB port (Device USB Mouse)

⑨NTSC／PAL

Switch between NTSC and PAL format.

⑩LAN

Network port

⑪EXTERNAL I/O

EXTERNAL I/O port (see below for pin definition)

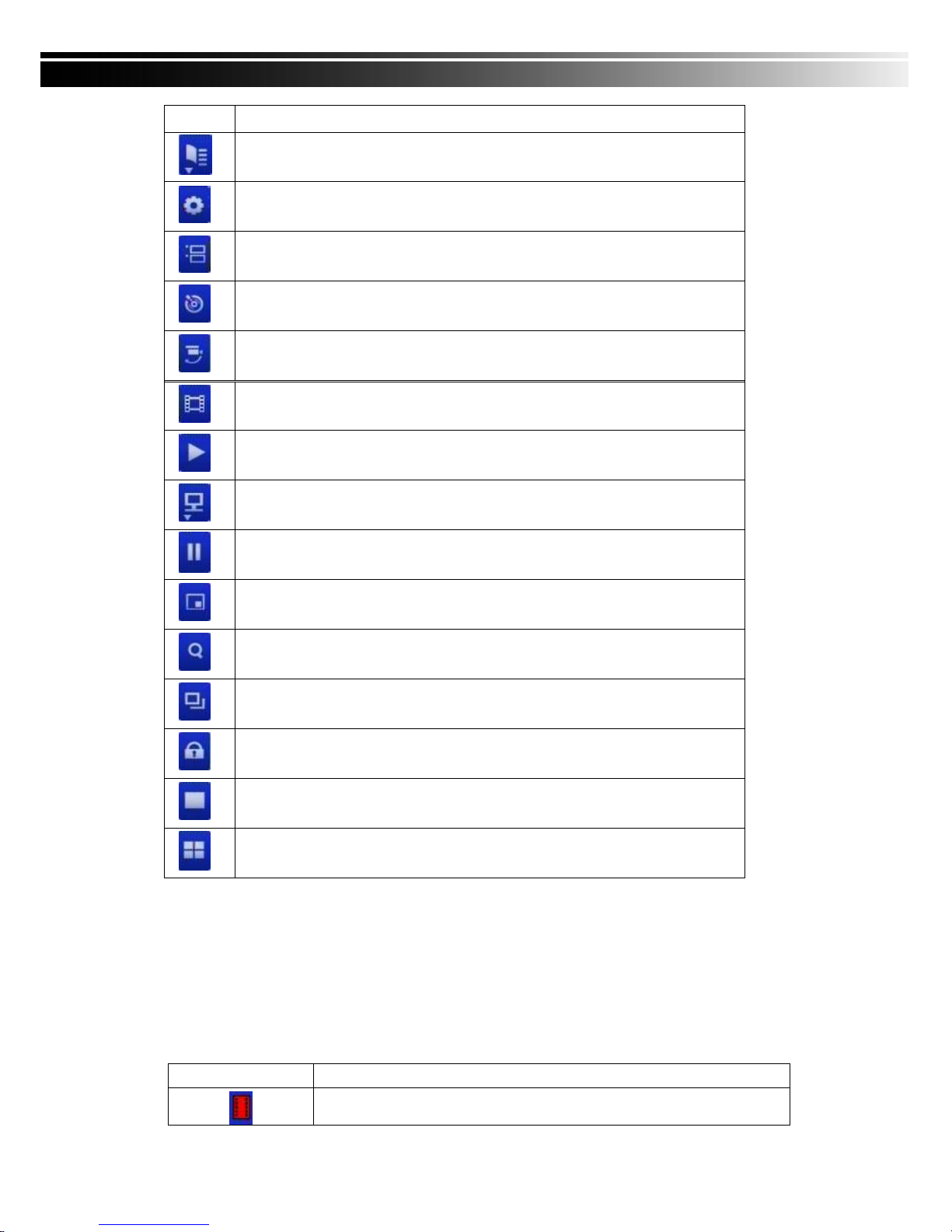

CHAPTER 3 LIVE, PLAYBACK AND PTZ OPERATIONS

The IR remote control and mouse operate differently under each mode; this chapter describes

HD-104 User Manual

the functions of them under three different modes: LIVE, PLAYBACK and PTZ.

3-1 LIVE Mode

You can monitor all the channels, listen to audio signal and have some related operations under

LIVE mode. This paragraph describes the IR remote control, mouse operation and on screen

graphical icons under LIVE mode.

Table 3-1.1 Functions of remote control under LIVE mode

Table 3-1.2Graphical icons that will display after right-clicking your mouse under LIVE mode.

Button

Description

REC

Start/Stop recording.

PLAY

Start playing back the most recently recorded segment.

LOCK

Enable/Disable the Keypad function

1,2,3,4

Select the channel to monitor in full screen

FREEZE

Turn on/off screen freeze function.

Switch to quad display.

Switch to 9-channel display. 4ch DVR doesn‟t feature this function.

Switch to 13-channel display. 4ch DVR doesn‟t feature this function.

Switch to 16-channel display. 4ch DVR doesn‟t feature this function.

ENTER/MODE

Switch to full screen, quad display.

MENU/

Enable/ Disable setup Menu.

BK-UP/ESC

Enable/ Disable backup menu.

SRH

Enable/ Disable search menu.

MUTE

Switch channel 1 output audio / turn off LIVE audio

STATUS

Enable/ Disable Status.

OSD

Turn on/off the screen display

Zoom/Zoom -

Enable/ Disable double screen size display. You can click on the channel

name for choosing a specific channel.

PIP/Zoom +

Turn on picture-in-picture format. Click on the channel name can switch to

other channels.

PTZ

Enable PTZ control.

AUTO

In AUTO mode, all available channels will be cycled through in full screen.

HD-104 User Manual

Icon

Description

Resting the cursor on this icon will bring up the following four menu icons.

Main menu.

Search menu.

Backup menu.

PTZ mode.

Turn on/off recording.

Playback.

Resting the cursor on this icon will bring up the following five display icons.

FREEZE.

PIP, picture in picture

ZOOM, double the screen size

AUTO-sequence

LOCK, activate the key lock.

Full screen display.

Quad display.

Table 3-1.3Description of on screen graphical icons in LIVE mode

Icon

Description

Recording is on

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sting Sistema di sicurezza

Sting

Sting ST-400 Manuale utente

Manuali Sistema di sicurezza popolari di altre marche

Inner Range

Inner Range Concept 2000 Manuale utente

Climax

Climax Mobile Lite R32 Istruzioni per il montaggio

CADDX

CADDX NX-6 Manuale utente

FBII

FBII XL-31 Series Manuale utente

Johnson Controls

Johnson Controls PENN Connected PC10 Manuale utente

Aeotec

Aeotec Siren Gen5 Manuale utente

Blaupunkt

Blaupunkt SA 2700 Manuale utente

IDEAL

IDEAL Accenta Manuale del proprietario

AJAX

AJAX DoubleButton Manuale utente

Swann

Swann SW-P-MC2 Manuale utente

Ecolink

Ecolink Siren+Chime Manuale utente

Digital Monitoring Products

Digital Monitoring Products XR150 Manuale utente

EDM

EDM Solution 6+6 Wireless-AE Manuale utente

Highway Safety Group

Highway Safety Group EA401 Manuale utente

Siren

Siren LED GSM Manuale utente

Detection Systems

Detection Systems 7090i Istruzioni per il montaggio

Se-Kure Controls

Se-Kure Controls MicroMini SK-4841 Manuale utente

Siemens

Siemens FDM273 Manuale utente
