Stirling SU105U Manuale utente

Operating Manual

03.2012.1

SU105U -86˚C

Ultra Low Storage

6000 Poston Rd Athens, Ohio 45701, USA t: 740.274.7900 / 855.274.7900 f: 740.274.7901 www.stirlingultracold.com

203.2012.1

Operating Manual: SU105U-86˚CUltra Low Storage

t: 855.274.7900 www.stirlingultracold.com

SU105U Quick Guide

Initial Setup

1. Unpack freezer unit and included components, ensure all packaging material has been

removed from around the fan inlet and outlet holes.

2. Plug AC power cord into the main power socket at the back of the unit and then into

an electrical outlet.

3. Turn the AC power switch to the“On”position.

4. Turn on battery power. Battery switch is located in main power housing on the rear

of the freezer.

5. Ensure set point is within desired range (default is -86˚C) or change set point to user-preferred

temperature according to the control functions outlined below.

Guide to Basic GUI Functions

ON / OFF Switch the main power on, located at the back of the unit above the AC cord.

Battery Power Switch on the battery power located on the left of the Recessed Electrical

Panel. This is essential if monitoring is required in the event of a power failure.

Change Set Point Tap Home > Setup > Setup > Enter PIN > Enter > Change > Set Point > +/- > Save

Silence Alarm Tap Home > Setup > Silence

Event Log Tap Home > Setup > Event Log > Prev. Page, Next Page

Chart History Tap Home > Setup > Chart History

Guide to Advanced GUI Functions

Alarm Setup Tap Home > Setup > Setup > Enter PIN > Enter > Alarms > xxx Delay > +/- > Save

Date and Time Tap Home > Setup > PIN > Date & Time > +/- > Save

Change PIN Tap Home > Setup > Setup > Enter PIN > Enter > PIN > Enter New PIN > Enter >

Re-enter New PIN > Enter

Calibrate RTDs Tap Home > Setup > About > Service > RTD Calibr. > RTD Select > +/- > Calib.

Notice:

Before engaging door latch, ensure handle is fully rotated

down to the stop point in order to reset latching mecha-

nism. To engage door latch when closing, push outer

door IN before rotating door handle to UP position.

403.2012.1

Operating Manual: SU105U-86˚CUltra Low Storage

t: 855.274.7900 www.stirlingultracold.com

The model SU105U incorporates next generation free-piston Stirling engine (FPSE)

technology. FPSE technology diﬀers from conventional compressor-based refrigeration

by providing high eﬃciency, deep-temperature cooling in a lightweight package.

SU105U

-86˚CUltra Low Storage

EU Authorized

Representative:

Global Cooling, BV

Lage Dijk 22,

Helmond, 5705 BZ

The Netherlands

Table of Contents:

1. INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

1.1 Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

1.2 Applications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

1.3 Documentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

1.3.1 Operating Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

1.4 Organization of this Operating Manual. . . . . . . . . . . . . . . . .7

2. FEATURES OF THE SU105U FREEZER . . . . . . . . . 8-11

2.1 Free-Piston Stirling Engine (FPSE) . . . . . . . . . . . . . . . . . . . . . .8

2.2 Cabinet Design Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

2.3 Temperature Monitoring Features . . . . . . . . . . . . . . . . . . . . .8

2.4 The Swift GUI Touch Screen. . . . . . . . . . . . . . . . . . . . . . . . . . . .9

2.5 Pictorial Tour . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

2.6 Included Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

2.7 Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

2.7.1 Adapter Installation Procedure. . . . . . . . . . . . . . . . . . . . . . .11

3. SAFETY PRECAUTIONS . . . . . . . . . . . . . . . . . . . . 12-13

4. UNPACKING AND INSTALLATION. . . . . . . . . . . . 14-15

4.1 Freezer Site Qualiﬁcation . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

4.2 Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

5. OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16-31

5.1 Operation of the SU105U Freezer . . . . . . . . . . . . . . . . . 16-29

5.1.1 Swift touch Screen Control Panel. . . . . . . . . . . . . . . . . . . . .17

5.1.2 Control Panel Quick Guide. . . . . . . . . . . . . . . . . . . . . . . 18-19

5.1.3 Swift Graphical User Interface (GUI) Instructions. . . 20-29

5.2 Managing Freezer Contents . . . . . . . . . . . . . . . . . . . . . . . . . .30

5.3 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

5.4 Calibration of the RTDs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

6. TRANSPORTING, MOVING AND STORAGE . . . . . . 31

7. SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . 32-33

7.1 Freezer Speciﬁcations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

7.2 Materials Speciﬁcations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

8. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . 3435

9. WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36-37

10. CE DOCUMENTATION. . . . . . . . . . . . . . . . . . . . . . . . 39

603.2012.1

Operating Manual: SU105U-86˚CUltra Low Storage

1. Introduction

1.1 – Description

The Stirling Ultracold SU105U FPSE Ultra Low Temperature (-86°C) Freezer uses

proven M150A free-piston Stirling engine (FPSE) technology to provide high eﬃ-

ciency, deep-temperature cooling.

1.2 – Applications

The SU105U freezer is designed for long-term storage of materials with ultra low,

well-regulated temperature storage requirements, such as found in clinical and bio-

logical laboratory and testing settings.

1.3 – Documentation

1.3.1 – Operating Manual

• This operating manual describes all aspects of receiving, installing, use, moving and

storage of the Stirling Ultracold SU105U Freezer. More detail on speciﬁc aspects of

operation of the freezer is available via online supplementary documentation.

• Performance of the freezer is controlled by electronic logic that is programmed

through a touch screen interface termed the Swift Graphical User Interface (GUI).

This operating manual describes use of the Swift GUI, and the appended Swift GUI

Supplement expands that description with pictorials of each screen and option.

User Advisory:

Deep temperatures are dangerous, use proper precautions when operating ultra

low temperature freezers. This ultra low temperature freezer is intended for storage

of frozen sample product or vials at deep temperatures. Stirling Ultracold, Division

of Global Cooling, Inc. cannot be held responsible for damages or loss of stored

product attributed to unintended use. In no case will Stirling Ultracold, Division of

Global Cooling, Inc. be held liable for loss of stored product resulting from electrical,

mechanical or structural failure. As with any ultra low temperature freezer, appropri-

ate back-up and redundancy considerations are the responsibility of the user.

t: 855.274.7900 www.stirlingultracold.com

Two Model SU105U cabinets stacked.

Shown with optional stacking adapter.

1.4 – Organization of this Operating Manual

This manual is organized as follows:

• Unpacking and installation

• Set-up

• Operation

• Transporting and moving

Please note that precautions and safety instructions are part of each section of the

manual, and must be observed to avoid damage to the freezer or harm to its users.

1. Introduction

803.2012.1

Operating Manual: SU105U-86˚CUltra Low Storage

2. Features of the SU105U freezer

2.1 – Free-Piston Stirling Engine (FPSE)

The SU105U Ultra Low Temperature Freezer uses the

state of the art Stirling Ultracold Model M150A free-

piston Stirling engine (FPSE) to provide high eﬃciency,

deep-temperature cooling. No HCFC or CFC refrigerants

are used in the M150A and SU105U. The M150A Stirling cycle engine uses approxi-

mately 2 grams of helium gas as a working ﬂuid. The secondary coolant loop uses

60 - 65 grams of refrigerant, R-508B (“SUVA® 95” *), as a working ﬂuid.

2.2 – Cabinet Design Features

The cabinet is VIP insulated with polyurethane foam support providing an internal

volume of cabinet approximately 105 liters. The blowing agent is HFC R245a. A

locking cam door latch ensures door gasket compression when closed. Door sealing

consists of three gaskets and is factory replaceable. A door defrost minimizes water

or ice deposition on the gasket interface.

2.3 – Temperature Monitoring Features

Two resistance temperature detectors (RTDs) measure the internal cabinet tempera-

ture of the SU105U. One provides input to the FPSE controller and the other provides

input for the Swift GUI display and for reporting and logging. The display RTD may be

user calibrated through the Swift GUI. The Swift GUI provides a door open timeout

alarm and monitors the temperature reporting RTD for excursions beyond high and

low limits that are set automatically or manually. Alarms are reported through an

audible alarm in the freezer enclosure and through a contact closure that may be

connected to an external alarm. The Swift GUI provides options to temporarily sup-

press alarms and set a delay time before the alarm is reported via the contact closure.

A one-time temperature alarm suppression provided by the Swift software allows for

the initial cooling of the freezer after start-up.

AC power from 90 to 264 Volts is allowable, with a maximum current draw of about

3.0 Amps at 110 V and 1.5 Amps for 240 V.

* Trademark DuPont.

t: 855.274.7900 www.stirlingultracold.com

2.4 – The Swift GUI Touch Screen

The Swift GUI is implemented on a touch screen control

panel on the front of the cabinet. Its capabilities are described

in detail later. General features of the control panel are:

• Set freezer control, alarm and communications parameters

• Provide password protected access to parameter changes

• Display freezer status

• Display temperature graph and event log

• Display diagnostic and service information

• Display freezer identiﬁcation information

Values for the following SU105U parameters are viewed and modiﬁed through

the touch screen.

Modiﬁable Values Accessible Values

Temperature set point Current freezer interior temperature

Under temperature limit Temperature history chart

Over temperature limit Interior vs. FPSE temperatures

Over temperature delay after door opening Alarm status

Audible alarm silence interval Swift GUI ﬁrmware event log

External contact delay upon alarm “About” screen (general information)

Door open alarm delay Service contact information

Door defroster status Diagnostics screen

Door auto-defrost status

Manual defrost time

Password Identiﬁcation Number (PIN) status

Current date

Current time

RTD calibration adjustments

2. Features

10 03.2012.1

Operating Manual: SU105U-86˚CUltra Low Storage

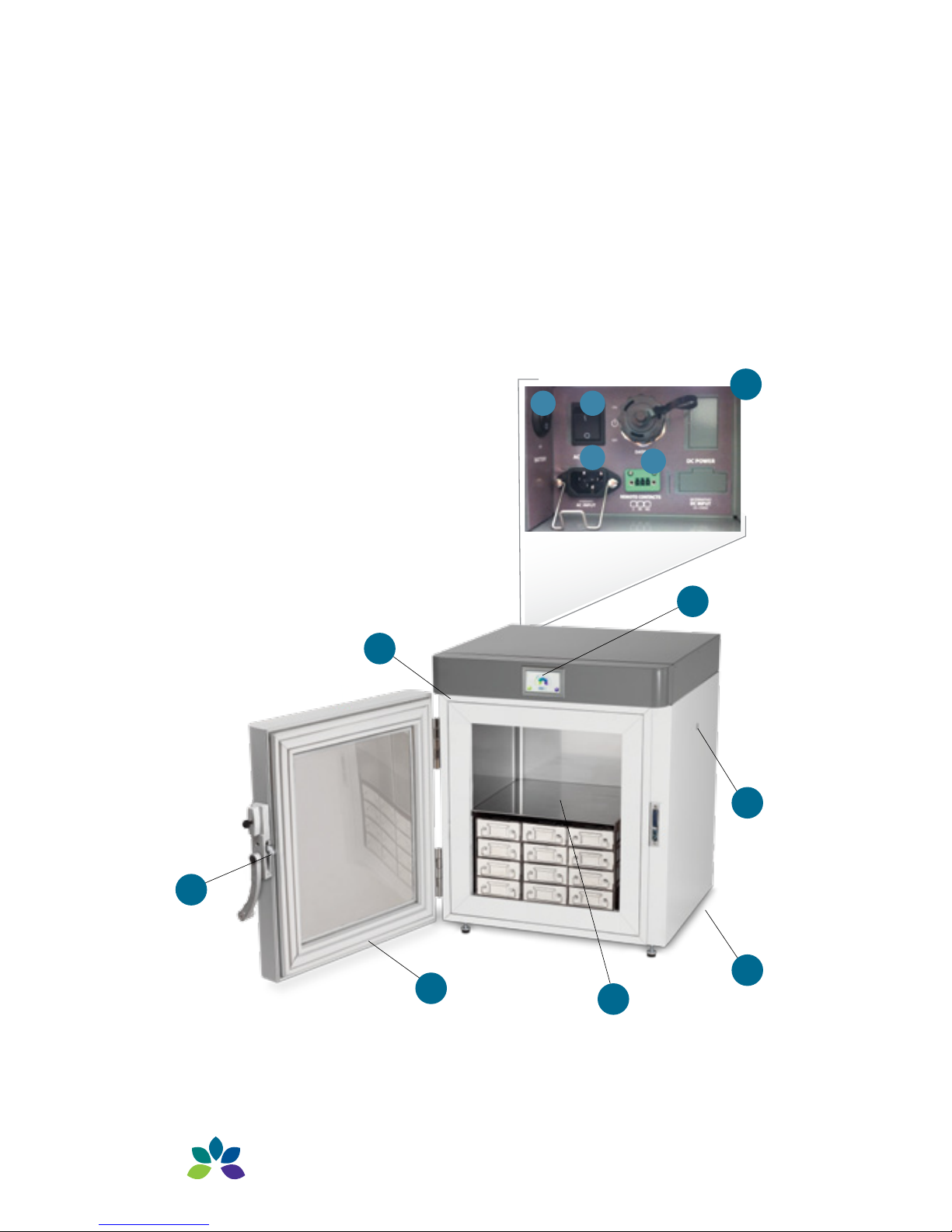

2.5 – Pictorial Tour

1. Control Panel

2. Locking Latch

3. Door Gasket

4. Fixed Stainless Steel Shelf

5. Air Inlet

6. Access Port

— For thermocouple wires, purge gas, etc.

7. Air Outlet

8. Recessed Electrical Panel

A. AC Power Connector

B. AC Power Switch

C. External Alarm Terminal Strip,

Dry Contacts (NO, NC, C)

D. Battery Power Switch

Model SU105U. Shown with optional

stainless steel inventory racks.
