STO N SHO SNS 251 Guida di riferimento

Installation Procedures

2017-2018 Lexus GS 350/F-Sport

SNS 251

Warning: Please read directions completely before starting. If you have any

questions, please contact BMPP before beginning your installation. Also, please

check our website (www.stonsho.com)for any updates or changes. Thank You.

Parts Included: License Plate mounting bracket Assembly. Includes Base Plate and

License Plate Holder.

License Plate mounting Screws: (4) 6mm X 12mm (Phillips head) and

6mm nuts (10mm wrench size)

Base plate mounting screws: (2) 6.3mm X 30mm screws and (2) 5/16”

spacers.

Tools Needed: 10mm socket with ratchet Note: 1/4-inch drive referred but 3/8 will work

but extra caution will be needed when tightening bolts.

Phillips screwdriver, and 10mm wrench

Step 1: Ensure all parts listed above are accounted for. Note: If at any time during the

installation process you need assistance please call (408) 776-4080.

Step 2: Separate the license plate holder from the base by simply pulling the pull pin ring

outward and sliding apart.

Step 3: Remove the two center screws as shown in figure 1. Position the base mount over the

holes where the two factory screws were just removed. See figure 2.

Step 4: Using the two 6.3mm X 30mm screws and spacers, secure the base plate to the vehicle.

Caution: Do not over tighten screws. See figure 3.

Step 5: Secure the license plate and frame (optional) to the license plate bracket using the

screws and nuts provided. Requires the Phillips screwdriver and 10mm wrench (Not included).

Step 6: Slide the license plate rods into the two tubes located on the base plate. Slide the rods

into the tubes until the rods hit the pull pin. Simply pull the ring on the pull pin and advance the

rods. Release ring and continue to advance rods until the pull pin locks into place. Note: The

rods and spring-loaded pull pin are required to be sprayed periodically with WD-40 or any

other silicone type spray lube. Failure to do so could result in either the failure of the pull pin

or the rods becoming difficult to remove or reinsert. Note: In harsh environments, such as

areas where roads are either salted or sanded in the winter, spraying of the rods and pull pin

should be performed on a regular basis. Failure to provide this maintenance may void your

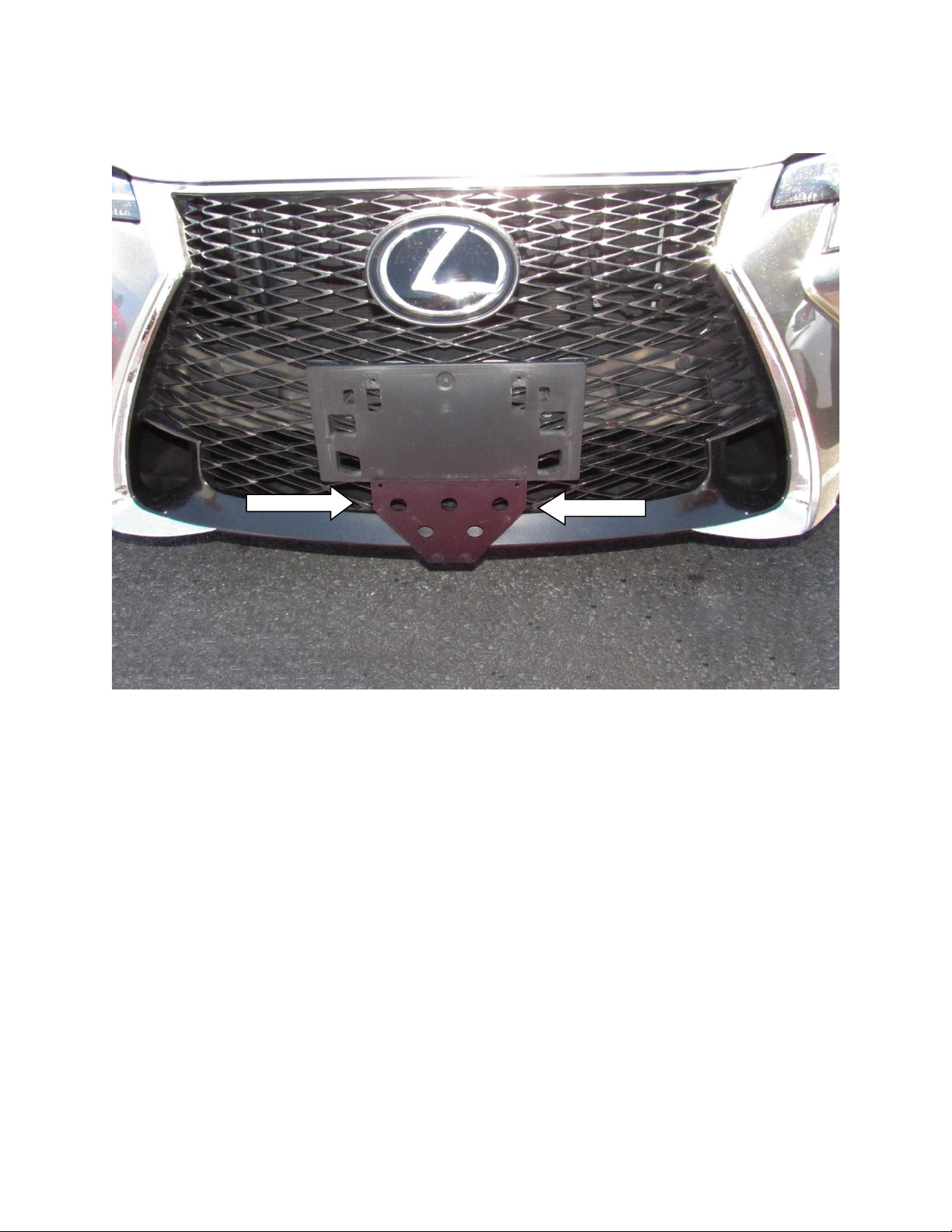

warranty. See figure 4. In some occasions the license plate may require a little adjustment to

level. Simply pull pin and slide plate out approximately two inches, grab frame at arrows (See

figure 5) and rotate. If plate is high on left or right side, rotate high side down slightly and

release. Verify alignment and repeat as necessary. Once leveled plate will remain level.

Congratulations! You have just installed the STO N SHOTM (Patented) front license plate

mounting system. Thank You for your purchase.

Caution: Bracket lowers ground clearance by approx 1/2 inch.

Remove prior to entering automated car wash

Exercise care when entering or exiting steep driveways or damage will occur

Parking Stops or high curbs stop well before or damage will occur

Remove prior to running on track or racing

Moderate skill level required. If unsure, have bracket installed by your local Dealer or Body

shop.

Limited Lifetime Warranty (Excluding Pull-pin). Pull pin will be warrantied for a period of 1 year

(12 months) from the date of purchase.

Big Mike's Performance Parts (BMPP) warrants to the original purchaser only that this product

will be free of manufacturing defects in material and workmanship for the life of the product

(Excluding pull-pin, see above) provided all maintenance is performed as required to the

limitations and exclusions set forth below:

Return product to any authorized dealer. Contact BMPP for the dealer nearest you. Upon

examination, BMPP or its representative will, at its sole option and expense, repair or replace

any product found to be defective. If product to be replaced via mail, BMPP will return the

repaired or replaced unit to you via its usual shipping method from the factory to your address

in the United States of America or Canada only. Any shipping costs for addresses outside of the

United States or Canada shall be the responsibility of the purchaser.

This warranty is not transferable.

REMEDIES FOR BREACH OF WARRANTY.

This Warranty does not include repair for damage caused by improper use or handling,

including but not limited to damage caused by accident, mishandling, improper installation,

abuse, negligence, or any defect caused by repair to the product by anyone other than BMPP.

This warranty does not cover reimbursement for your costs of removing and transporting the

product for warranty service evaluation, or installation of any replacement product provided

under this warranty.

This Warranty will be void if the product was not purchased from an authorized dealer or

reseller.

THE FOREGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESSED AND

IMPLIED WARRANTIES. ALL SUCH OTHER WARRANTIES, INCLUDING BUT NOT LIMITED TO

IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND NON-

INFRINGEMENT, WITH RESPECT TO THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY

LAW, BMPP SHALL NOT BE RESPONSIBLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES

EXCEPT TO THE EXTENT PROVIDED (OR PROHIBITED) BY APPLICABLE LAW, EVEN IF BMPP HAS

BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.

Notwithstanding the above, if you qualify as a “consumer” under the Magnuson-Moss

Warranty Act, or applicable state laws, then you may be entitled to any implied warranties

allowed by law for the Warranty Period. Further, some states do not allow limitations on how

long an implied warranty lasts or allow the exclusion or limitation of consequential damages, so

such limitations may not apply to you. This warranty gives you specific legal rights, and you may

also have other rights which vary from state to state.

For the name of your nearest authorized STO N SHO dealer, contact: Big Mike's Performance

Parts at (408)776-4080 or go to www.stonsho.com

Fig 1

Fig 2

One left and one right of center

approx. 12” apart.

Fig 3

Fig 4

Fig 5
