STODDART SPPL.HSS.01 Manuale utente
Rev: A - 01/02/2018
Model:
SPPL.HSS.01
Installation Manual
Hand Sanitiser Stand
Due to continuous product research and development,
the information contained herein is subject to change without notice.
Page 1 www.stoddart.com.au
SPPL.HSS.01
In the box
Assembly
1 x Stand Body
1 x Stand Base
1 x 1/9 GN Pan
6 x M5 16mm Mushroom Phillips Head Screws
2 x M5 Flat Washers
2 x M5 Nylock Nuts

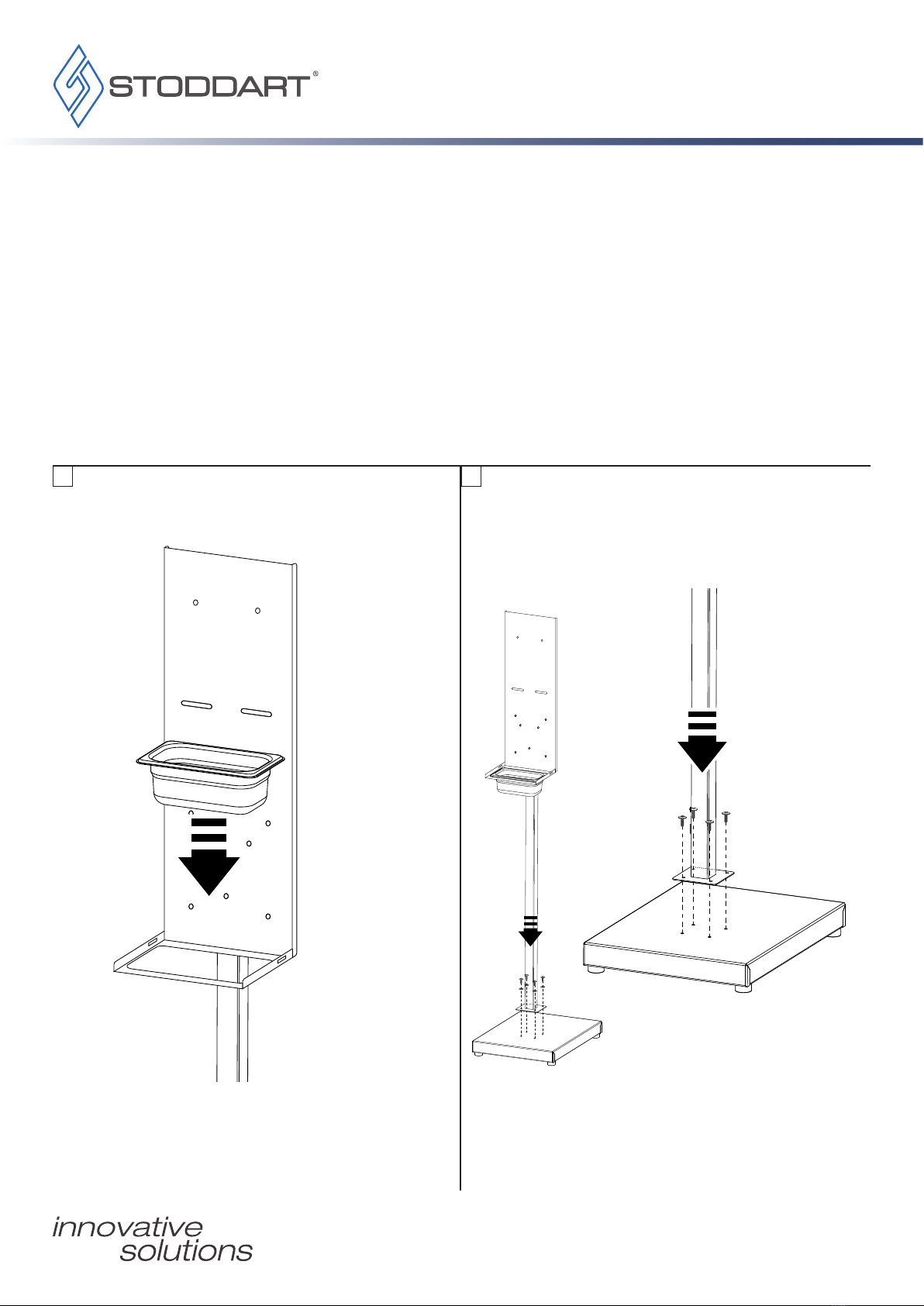

• Insert 1/9 GN pan into the stand body
• Using a Phillips head screwdriver, secure the stand body to the
stand base with 4 M5 mushroom head screws
2.1.
Hand Sanitiser Dispenser Units
Tools Required
Phillips Head Screwdriver #2
Socket Set and/or Shifting Spanner
Due to continuous product research and development,
the information contained herein is subject to change without notice.
Page 2
www.stoddart.com.au
Auto Dispenser Installation - Screw Fixing
Auto Dispenser Installation - Screw Fixing Auto Dispenser Installation - Double Sided Tape
(Early versions of the Dispenser Stand do not include top mounting
holes).
For stands with top mounting holes go to Step 4.
• Measure 40mm from the top edge of the stand
• Open the auto dispenser, align the top of the dispenser with the
40mm mark
• Using a permanent marker, outline the dispenser hole locations
onto the stand
• Centre punch marked holes
• Using a 6.5mm drill bit, drill holes
• Using a Phillips head screwdriver and shifting spanner, secure
the dispenser to the stand (use the top hole locations) with the
supplied M5 mushroom head screws, M5 washers and M5
nylock nuts
• For dispenser units supplied with double sided tape, install the
dispenser as per the instructions supplied by the dispenser
manufacturer
• Measure 40mm from the top edge of the stand
• Apply double sided tape to the back of the dispenser stand
(Tape not supplied by Stoddart)
• Peel backing layer from the double sided tape
• Align the top of the dispenser with the 40mm mark. Apply firm
pressure onto the dispenser ensuring it adheres to the stand
3.
4. 5.
40mm
Hand Sanitiser Dispenser Stand
