INSTALLING the EMU (Electronic Monitoring Unit)
The best location for mounting the EMU is under an upper kitchen cabinet approximately 12” (30cm) from the right or
left side of the gas stove, or on the wallapproximately 18” (45cm) from the right or left side of the stove.
Remember: DO NOT place it directly on or above the stove.
MOUNTING TO THE BOTTOM OF A KITCHEN CABINET
Remove the plastic covers from the 2 holes on the top and bottom of the EMU.
Feed the two long screws from the bottom to the top of the EMU and screw directly into the
bottom of the cabinet.
Ensure that the cable is properly routed back to the Power Box.
MOUNTING TO THE WALL
Mark 2 points on the wall exactly 7 1/16 “ (18cm) apart.
Drill 2 holes and install two short screws, leaving the screw threads exposed approx. 1/4” (6mm).
Line up & Place the EMU on the screw heads and slide it down.
Ensure that the cable is properly routed back to the Power Box.
USING GAS STOVE GUARD

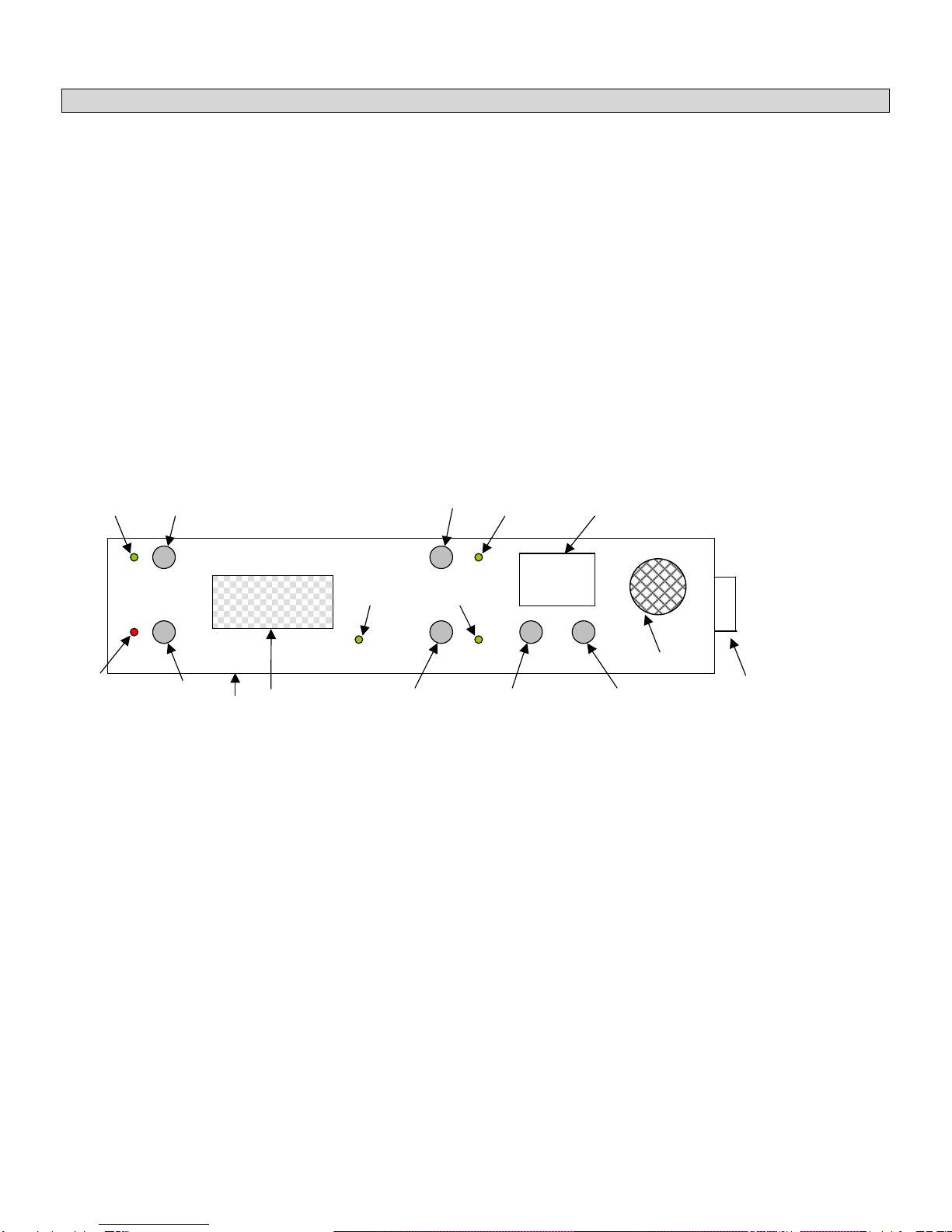

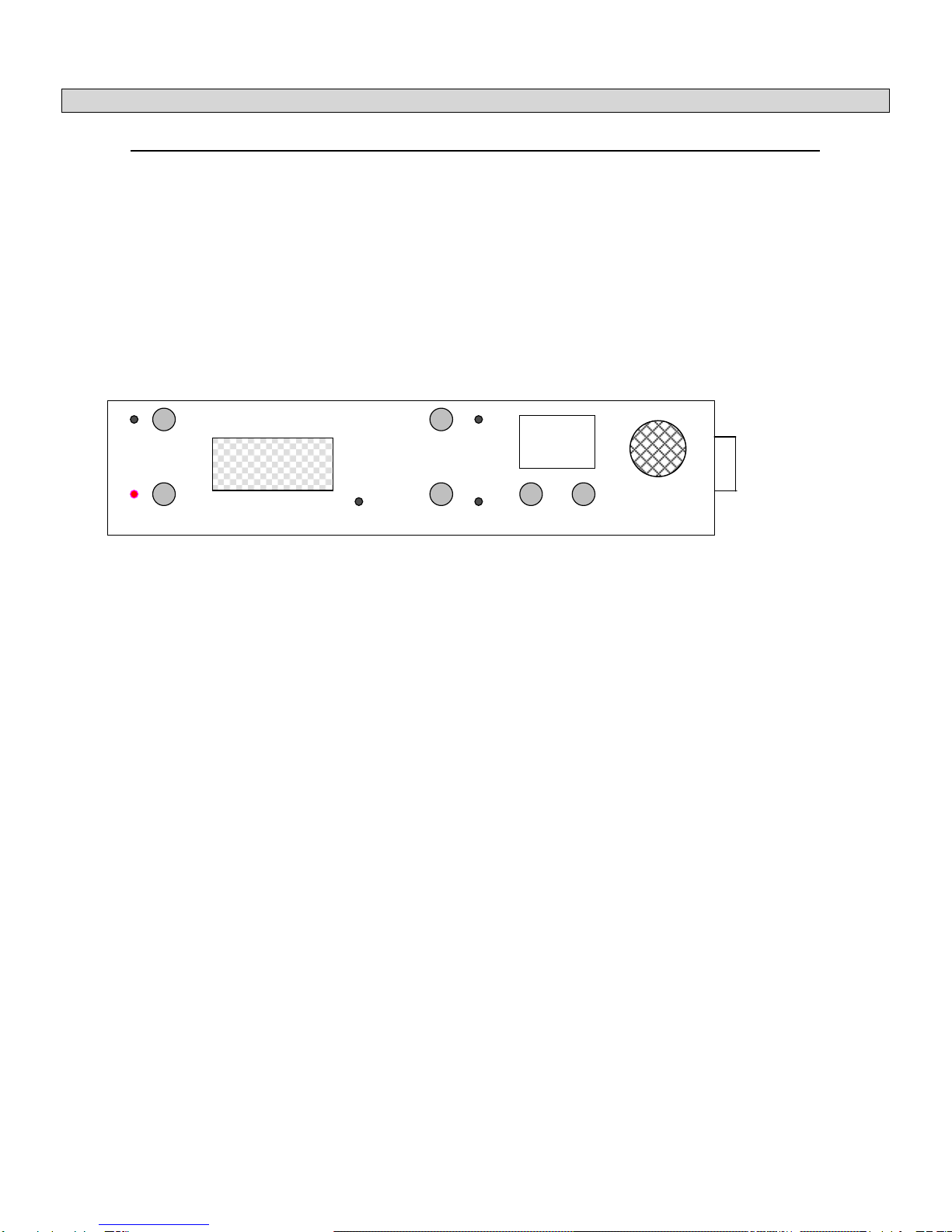

After a power failure or after first use only the red Off LED (number 12 on the first picture) will blink and display (13)
will show "--". For the safety reason the valve is closed and the stove remain turned off until user press the ON button
(1). Preset time is restored. The Stove Guard keeps this user setting even if there is a loss of power.
The Stove Guard has 3 operating modes to control the stove: AUTO, TIMER and OFF.
AUTO mode
Green ON (7) and AUTO indicators (10) light. The AUTO mode allows the passive infrared detector to automatically
shut down the stove (close the valve) if user is out of the sensing area for longer than the preset time (factory default
is 1 minute). Green movement indicator (8) lights every time when movement is detected and resets clock to the
preset time. When the user enters the sensing area, the Stove Guard will turn the Stove Guards timer back onto the
preset time. Display (13) shows number of minutes left before Stove Guard turns off the stove if no movement is
detected. If no movement is detected (user lights stove and left the kitchen) for the preset time Stove Guard will turn
off the stove, display will show "00", red Off LED (12) will blink and the buzzer in the electronic monitor unit will make
two short beeps every minute. If user presses the OFF button (2) the buzzer stops beeping, but the Stove Guard
keeps the valve closed and the stove remains turned off. If ON button is pressed, the stove has gas supply again. To
prevent fire/explosion, turn stove burner knob to OFF position before turning Stove Guard ON. This will prevent gas
from permeating the room. The user must restart the ignition of the stove’s burner manually; Stove Guard will not
restart the stove burners.
DANGER:
ENSURE THAT ALL TOP BURNERS ARE SHUT OFF
BEFORE PRESSING THE ON BUTTON.
TIMER mode
Green ON (7) and TIMER indicators (9) light. In the TIMER mode stove will operate for the preset time (default is 1
minute), which can be adjusted to the cooking time of specific dish. Display shows number of minutes left before
Stove Guard turns off the stove. Once the preset time is over, the Stove Guard will turn the stove off. The movement
detection does not work in the TIMER mode. When display does not show decimal point, time is displayed in minutes.
When decimal point lights between digits on display, remaining time is displayed in hours and tenth of hours.
From 1.7 hours, display goes back to 99 minutes. When countdown timer reach 00 Stove Guard will turn off the stove,
red Off LED will blink and the buzzer beeps every minute until OFF button is pressed.
