straightcurve Flexline Manuale utente
www.straightcurve.com All fixings and accessories not to scale. All accessories
are available in weathering and galvanised steel finish.

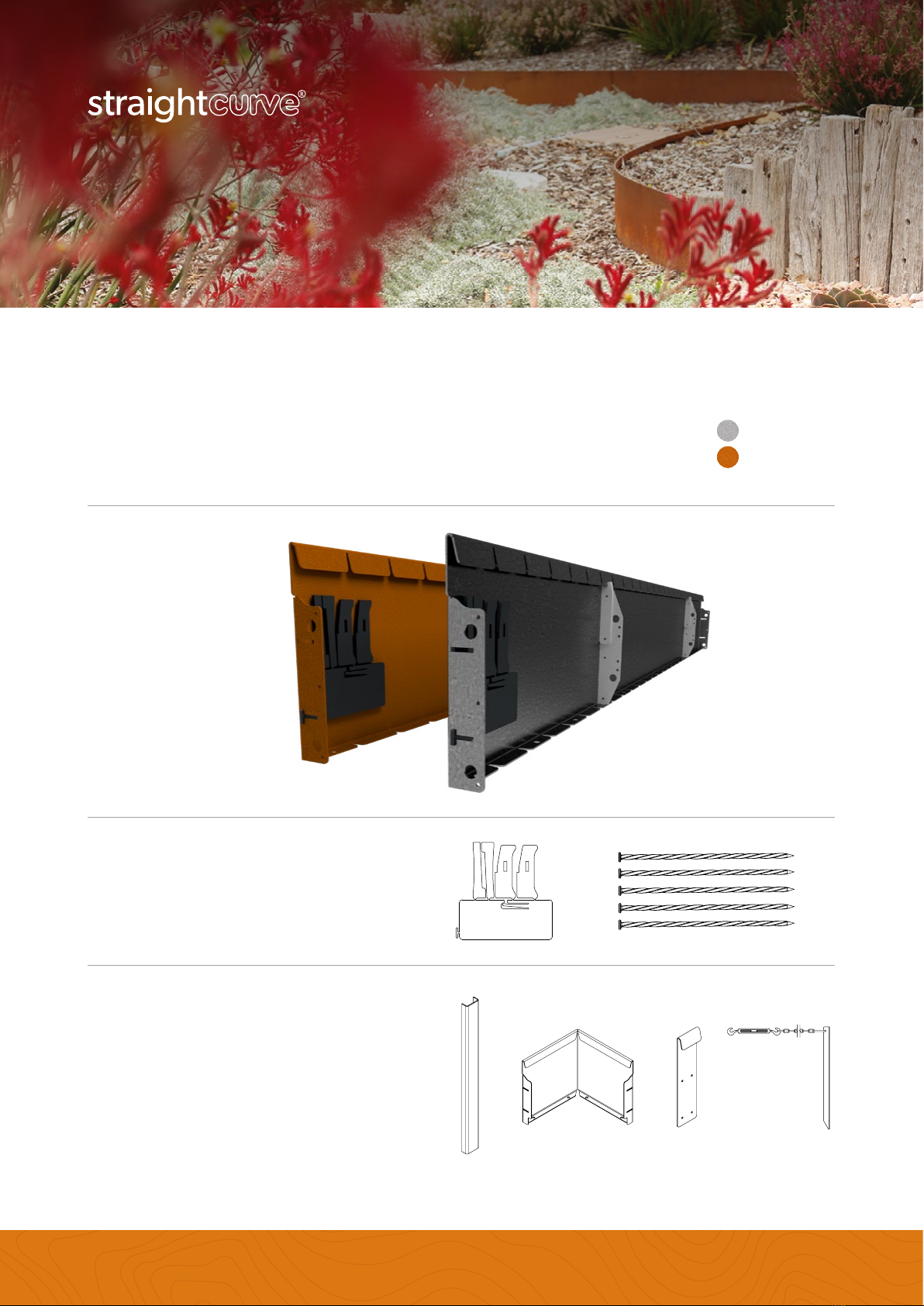

Specifications
240mm Flexline™
LENGTH 2160mm | TOP THICKNESS 8mm
SOLD AS SET INCLUDING
1 x Joining set (2 x wedge, 2 x slider,1 x joint bracket)
5 x galvanised spikes, 300mm long
2 x bracing ribs (attached to edge)
Steel plate thickness 2mm
ADDITIONAL ACCESSORIES
REQUIRED
Small anchor post (2 x Tek screws 12G x 16mm)
OPTIONAL
Corner piece (arm lengths: 255mm)
Joining sleeve (6 x Tek screws 12G x 16mm)
Universal bracing set (turnbuckle/chain/stake)
FINISHES
Weathering Steel
Galvanised Steel
www.straightcurve.com
B01.V7
PREPARATIONS
Mark line and level or trench as required ready for install.
Note: This edge allows gentle sloping
CORNERS
Pre-made corners* are available for purchase, these include
the standard joining set. These can be opened or closed
further with forceful bending to achieve different angle
corners. You can also choose to make your own. To do this
score a line down the back of the edge and create a sufficient
opening (5-7mm) in the folded lip at the top and cut out one
foot tab at the bottom with your angle grinder to allow space
for bending. Bend strongly by hand; using a block of wood
close to the fold to form bend against.
STAKING THE EDGE
Anchor posts are driven in as a stake behind the edge
adjacent to a bracing rib, which is then screwed onto with
screws. It is recommended to use two of these per edge. If
you’re making a tight 1.37m diameter ring with two lengths,
it is self supporting and doesn’t need any anchor posts.
HARD SURFACE FIXING
If you need to secure the edge to hard surfaces, the universal
bracing set can be used. To secure to a concrete surface
remove stake and use bolt down method instead (purchase
bolts separately).
JOINING SLEEVES
Shortening a length is sometimes a requirement. The Joining
sleeve is used to connect the two edges when this occurs.
These are fixed to the panel front with screws through the
guide holes in the sleeve.
TIP
The pre-attached bracing ribs can be moved. Knock
sideways at top to dislodge then pop out from bottom and
do opposite to re insert them where needed.

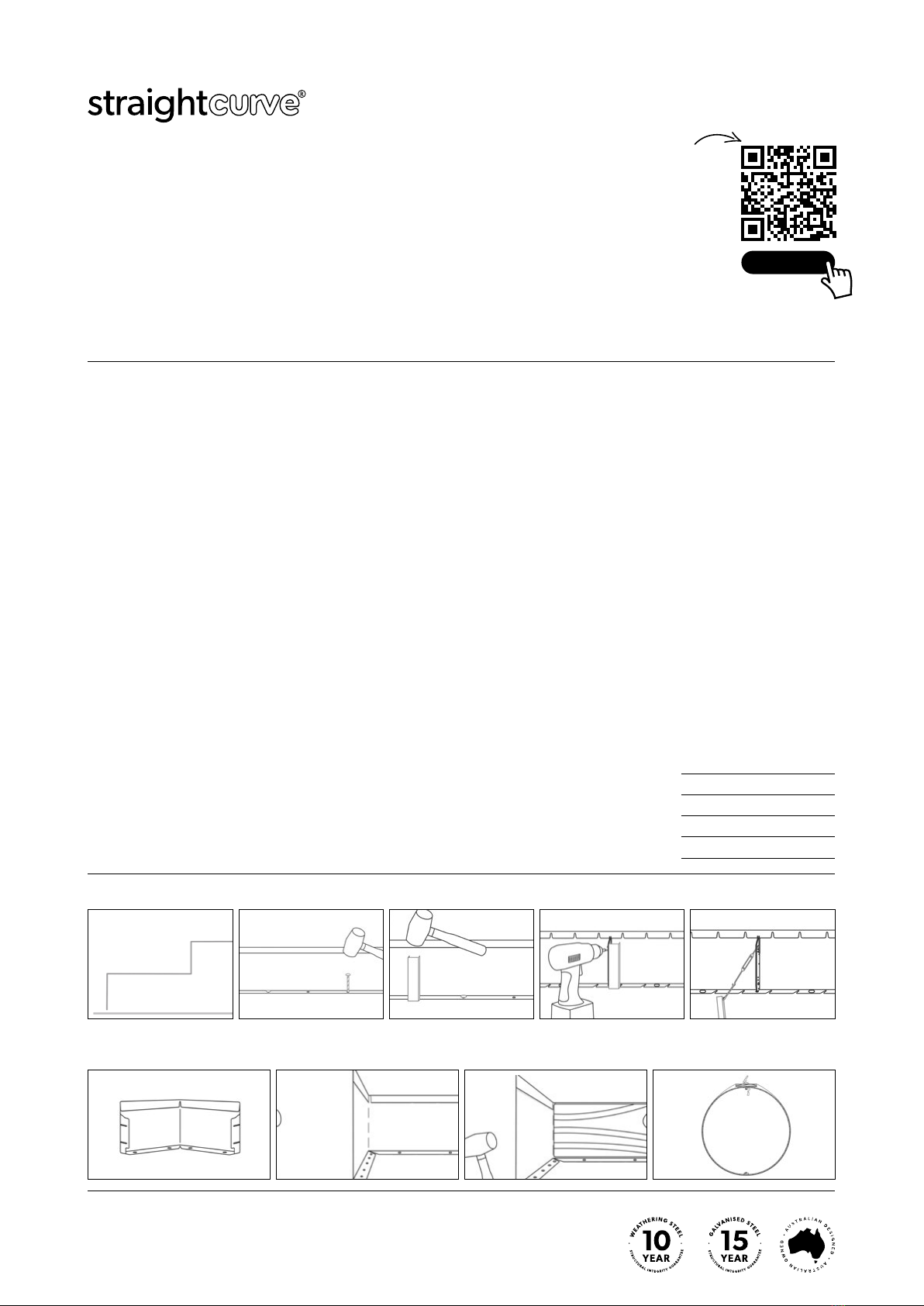

Installation guide
240mm Flexline™
STEP 1 - JOIN
TIGHT RADIUS - STRAP
STEP 3 - PEG STEP 4A - STAKE (OR) STEP 4B - BRACESTEP 2 - FLEX
MAKE CORNER - NOTCH/SCORE WITH GRINDER
Lengths Diameter
2 1.37m
3 2.06m
42.75m
5 3.44m
STANDARD RING SIZES
Connecting edge lengths
makes standard ring sizes, use
join sleeve for non-standard
diameters greater than 1.5m
PRE-MADE CORNER*
Scan code for installation video
or follow the link below
www.straightcurve.info/028
Scan me for
installaon video!
VIEW VIDEO
