ATV Log Skidding Arch with Winch
Owner’s Manual
WARNING: Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTIONS before operating. Failure to follow the safety rules and other basic safety
precautions may result in serious personal injury.
Item #51962
Page 2 of 15
Thank you very much for choosing a Strongway™product!
For future reference, please complete the owner’s record below:
Serial Number/Lot Date Code: ________________________________
Purchase Date: ____________________________________________
Save the receipt, warranty, and this manual. It is important that you read
the entire manual to become familiar with this product before you begin
using it.
This ATV Log Skidding Arch with Winch is designed for certain
applications only. Northern Tool & Equipment is not responsible for
issues arising from modification or improper use of this product such as
an application for which it was not designed. We strongly recommend
that this product not be modified and/or used for any application other
than that for which it was designed.
For technical questions, please call 1-800-222-5381.
Page 3 of 15
Table of Contents
Intended Use..........................................................................................................................................4
Technical Specifications......................................................................................................................4
Important Safety Information...............................................................................................................4
Specific Operation Warnings...............................................................................................................5
Main Parts of Log Skidding Arch ........................................................................................................7
Assembly Instructions..........................................................................................................................8
Before Each Use..................................................................................................................................10
Operating Instructions........................................................................................................................10
After Each Use.....................................................................................................................................11
Maintenance ........................................................................................................................................11
Parts Diagram......................................................................................................................................12
Parts List..............................................................................................................................................13
Replacement Parts..............................................................................................................................13
Limited Warranty.................................................................................................................................14
Page 4 of 15
Intended Use
The Strongway ATV Log Skidding Arch with Winch handles logs up to 18 inches diameter. It’s ideal
for use on the back of an ATV. It allows for minimal snagging while keeping logs mud-free during
transport.
Technical Specifications
Property
Specification
Log Diameter (in.)
18
Log Weight (lbs.)
1,000
Tires (in.)
16.5"x 4.8"-8"
Construction
Steel
Important Safety Information
⚠WARNING
Read and understand all instructions. Failure to follow all instructions may result in serious injury
or property damage.
The warnings, cautions, and instructions in this manual cannot cover all possible conditions or
situations that could occur. Exercise common sense and caution when using this logging dolly.
Always be aware of the environment and ensure that the log dolly is used in a safe and
responsible manner.
Do not allow persons to operate or assemble the logging dolly until they have read this manual
and have developed a thorough understanding of how it works.
Do not modify this logging dolly in any way. Unauthorized modification may impair the function
and/or safety and could affect the life of the product. There are specific applications for which the
product was designed.
Use the right tool for the job. DO NOT attempt to force small equipment to do the work of larger
industrial equipment. There are certain applications for which this equipment was designed. It will
be a safer experience and do the job better at the capacity for which it was intended. DO NOT use
this equipment for a purpose for which it was not intended.
Industrial or commercial applications must follow OSHA requirements.
⚠WARNING
This product may contain chemicals known to the State of California to cause cancer, birth defects
or other reproductive harm.
⚠WARNING
WORK AREA SAFETY
Inspect the work area before each use. Keep work area clean, dry, free of clutter, and well-lit.
Page 5 of 15
Cluttered, wet, or dark work areas can result in injury. Using the product in confined work areas
may put you dangerously close to other cutting tools and rotating parts.
Keep children and bystanders away from the work area while operating the logging dolly. Do not
allow children to handle the product.
⚠WARNING
PERSONAL SAFETY
Stay alert, watch what you are doing, and use common sense when operating the logging dolly.
Do not use the logging dolly while you are tired or under the influence of drugs, alcohol, or
medication. A moment of inattention while operating the log dolly may result in serious personal
injury.
Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair, clothing
and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving
parts.
Do not overreach. Keep proper footing and balance at all times.
Wear the proper personal protective equipment when necessary. Use ANSI Z87.1 compliant safety
goggles (not safety glasses) with side shields, or when needed, a face shield. Use a dust mask in
dusty work conditions. Also use non-skid safety shoes, hardhat, gloves, dust collection systems,
and hearing protection when appropriate. This applies to all persons in the work area.
Do not overreach. Keep proper footing and balance at all times.
⚠CAUTION
LOG ARCH & HOLDER USE AND CARE
Do not force the logging dolly. Products are safer and do a better job when used in the manner for
which they are designed. Plan your work, and use the correct product for the job.
Check for damaged parts before each use. Carefully check that the logging dolly will operate
properly and perform its intended function. Replace damaged or worn parts immediately. Never
operate the logging dolly with a damaged part.
Store the logging dolly when it is not in use. Store it in a dry, secure place out of the reach of
children. Inspect the tool for good working condition prior to storage and before re-use.
Use only accessories that are recommended by the manufacturer for use with your product.
Accessories that may be suitable for one product may create a risk of injury when used with
another tool.
Specific Operation Warnings
⚠WARNING
To prevent serious injury read and understand owner’s manual before use.
Page 6 of 15
Wear ANSI Z87.1 compliant safety goggles.
Do not exceed the rated load capacity and rated log dimensions.
Wear steel toed boots and heavy duty leather gloves while handling logs.
Do not exceed speeds of 10 MPH.
Do not over inflate skidding arch tires. Over inflation may cause tires to burst or the rim to
separate, causing serious personal injury.
Do not operate on steep inclines. Skidding arch may tip over.
Do not allow riders on the logging dolly.
This log skidding arch is not DOT certified. Not for public road use.
Check for damaged parts before each use. Do not use if parts are damaged.
Not for use by or around children.
Page 7 of 15

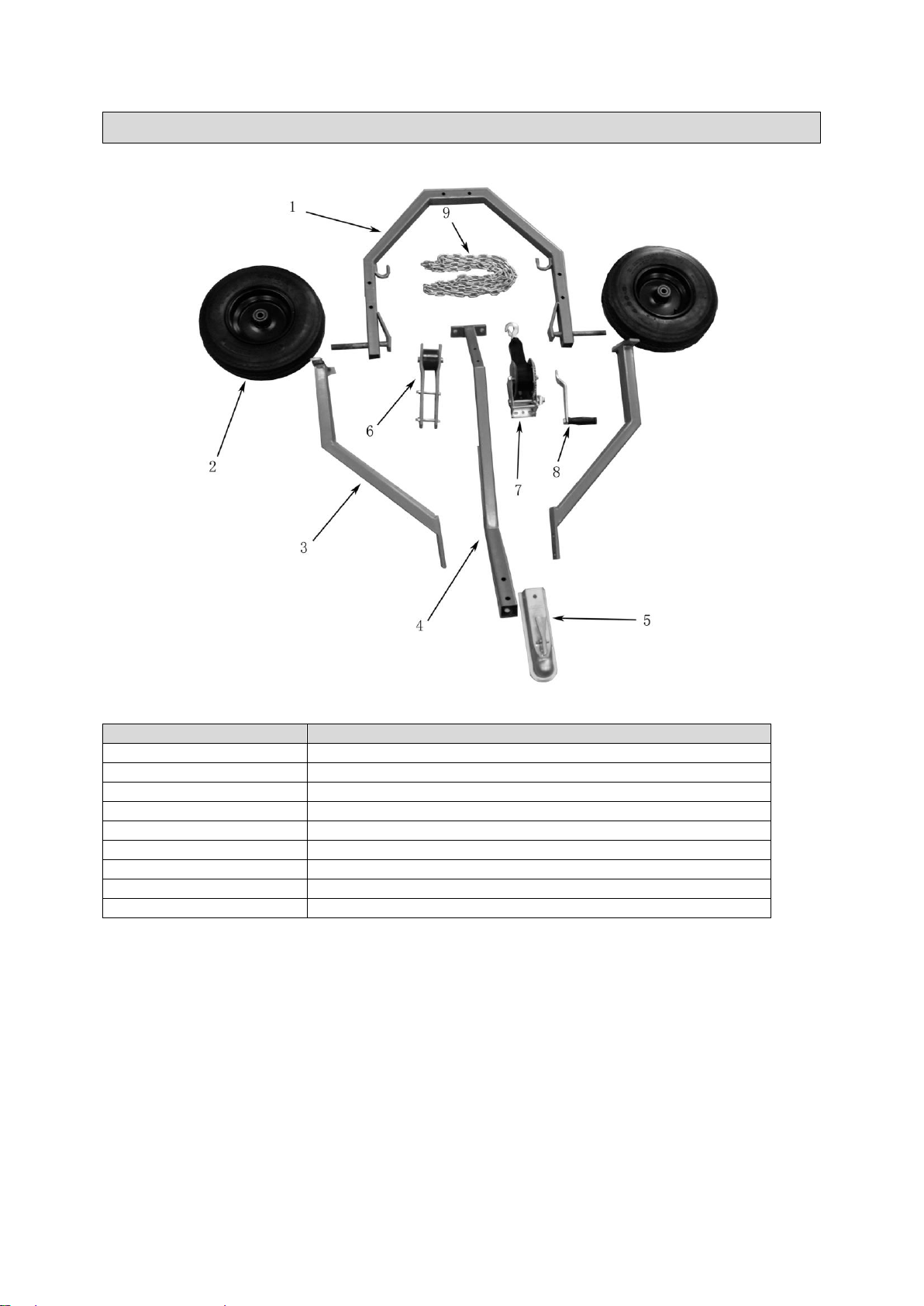

Main Parts of Log Skidding Arch
Reference Number
Subassembly
1
Vertical frame
2
Pneumatic rubber tire (left & right)
3
Frame dragging bar (left & right)
4
Dragging bar
5
Coupler
6
Roller plate
7
Manual winch
8
Winch handle
9
Chain
Hardware bag：
Page 8 of 15
Assembly Instructions
⚠WARNING
Do not allow persons to operate or assemble this log skidding arch until they have read this
manual and have developed a thorough understanding of how the product works.
Take all parts out of the shipping package and inspect components to ensure there are no
missing pieces before starting to assemble.

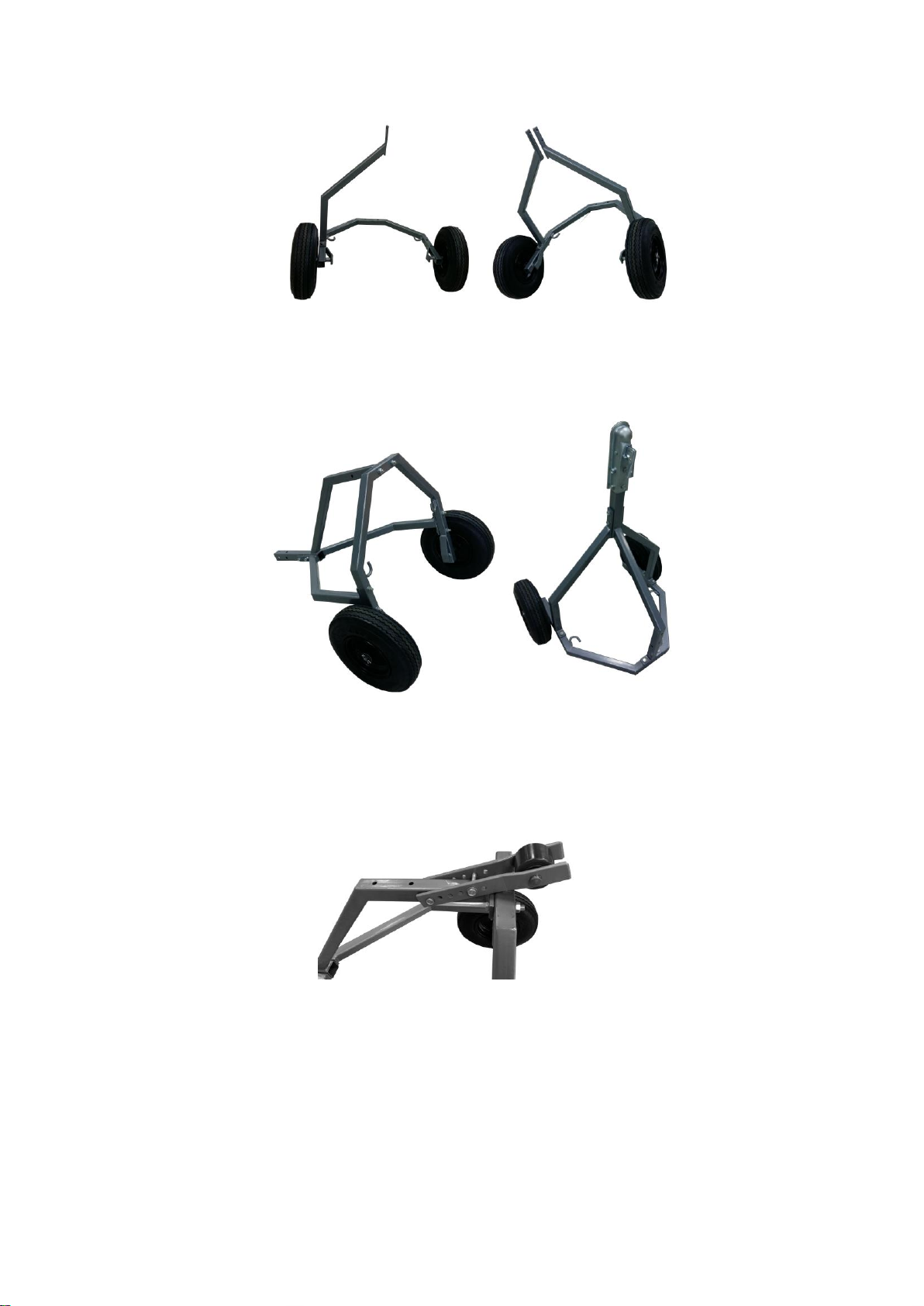

1. Place a wheel spacer onto one shaft end of the vertical frame (#1) and then install the pneumatic
rubber tire (#2) by sliding the wheel into place and fastening it with a wheel R pin. Place another
wheel spacer onto the other side shaft end to install another pneumatic rubber tire (#2) the same
way. Fasten with another wheel R pin.
2. Attach the frame dragging bar (#3) to the vertical frame (#1) with 4 sets of M12 x70 bolts, dia 12
washers, and M12 nuts. Do not completely tighten the nuts yet.
Page 9 of 15
3. Attach the dragging bar (#4) to the top of the vertical frame (#1) and attach them with 2 sets of
M12 x 70 bolts, dia 12 washers, and M12 nuts. Connect the left and right frame dragging bar (#3)
to the dragging bar (#4) with 2 sets of M12 x80 bolts, dia 12 washers, and M12 nuts. Tighten all
the nuts in steps 2 and 3.
4. Attach the coupler (#5) to the top of the dragging bar (#4) with 4 sets of M12 x80 bolts, dia 12
washers, and M12 nuts.
5. Use the bolt and nut at the end of the roller plate (#6) to fasten it to the top of the dragging bar
(#4).
6. Attach the manual winch (#7) onto the top of the dragging bar (#4) with 2 sets of M10 x50 bolts,
dia 10 washers, and M10 nuts. Firmly install the winch handle (#8) and make sure it’s on the left
side of the winch. Hang the chain (#9) on the 2 hooks of the vertical frame (#1).
Page 10 of 15

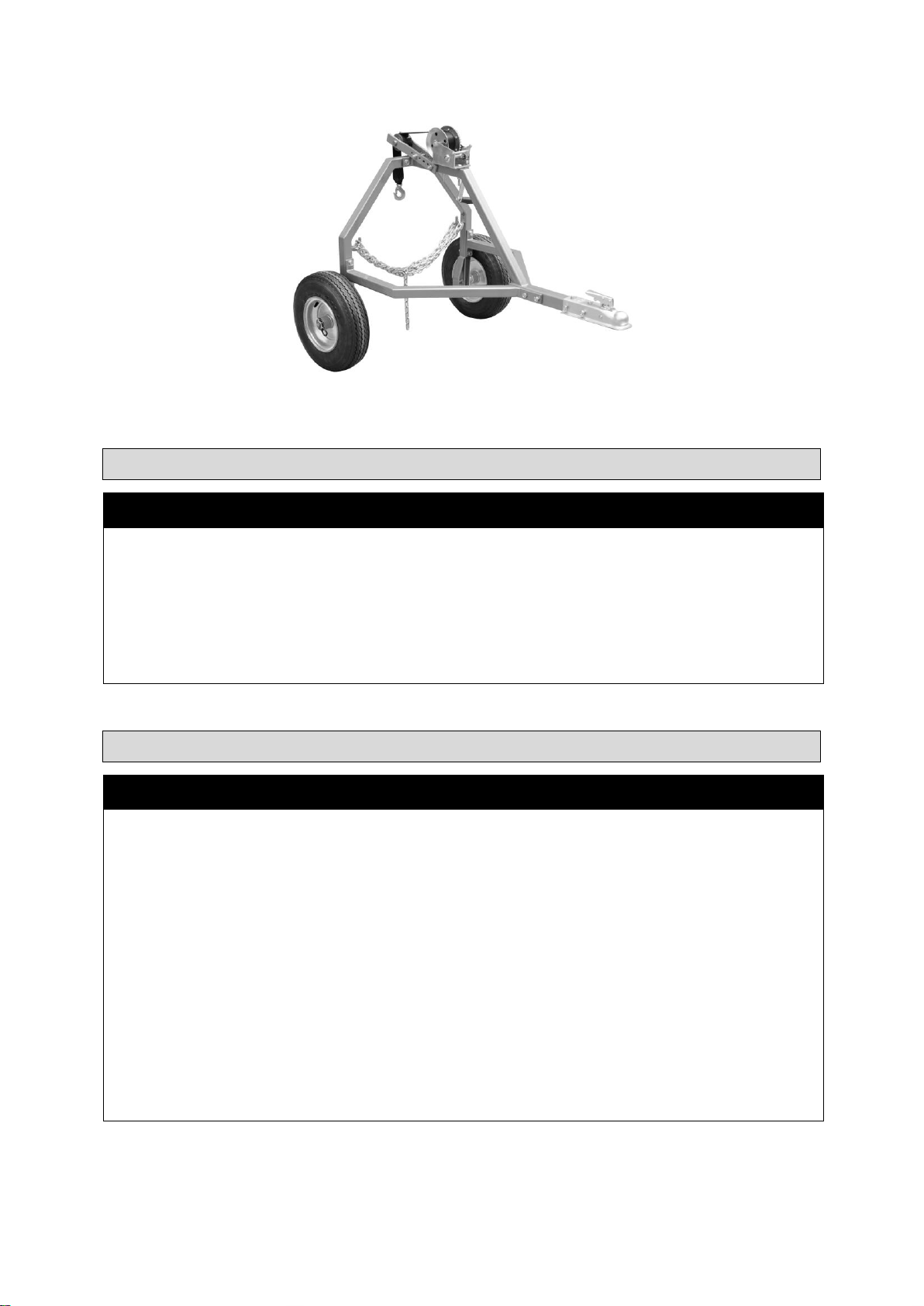

7. Connect the log skidding arch with the coupler (#5) provided.
Before Each Use
⚠WARNING
Wear ANSI Z87.1 compliant safety goggles.
Wear steel toed boots and heavy duty leather gloves while handling logs.
Do not over inflate skidding arch tires. Over inflation may cause tires to burst or the rim to
separate, causing serious personal injury.
Check for damaged parts before each use. Do not use if parts are damaged.
Operating Instructions
⚠WARNING
Wear ANSI Z87.1 compliant safety goggles.
Do not exceed the rated load capacity and rated log dimensions.
Wear steel toed boots and heavy duty leather gloves while handling logs.
Do not exceed speeds of 10 MPH.
Do not over inflate skidding arch tires. Over inflation may cause tires to burst or the rim to
separate, causing serious personal injury.
Do not operate on steep inclines. Skidding arch may tip over.
Do not allow riders on the logging dolly.
This log skidding arch is not DOT certified. Not for public road use.
Not for use by or around children.
1. Place the log under the log skidding arch and hold the end of log with a timber jack (not provided).
2. Rotate the winch (7#) backwards so the strap and hook go down along the wheel on the strap
holder assembly (#6) to the ground. Wrap the strap around the log end, use the strap hook to lock,
