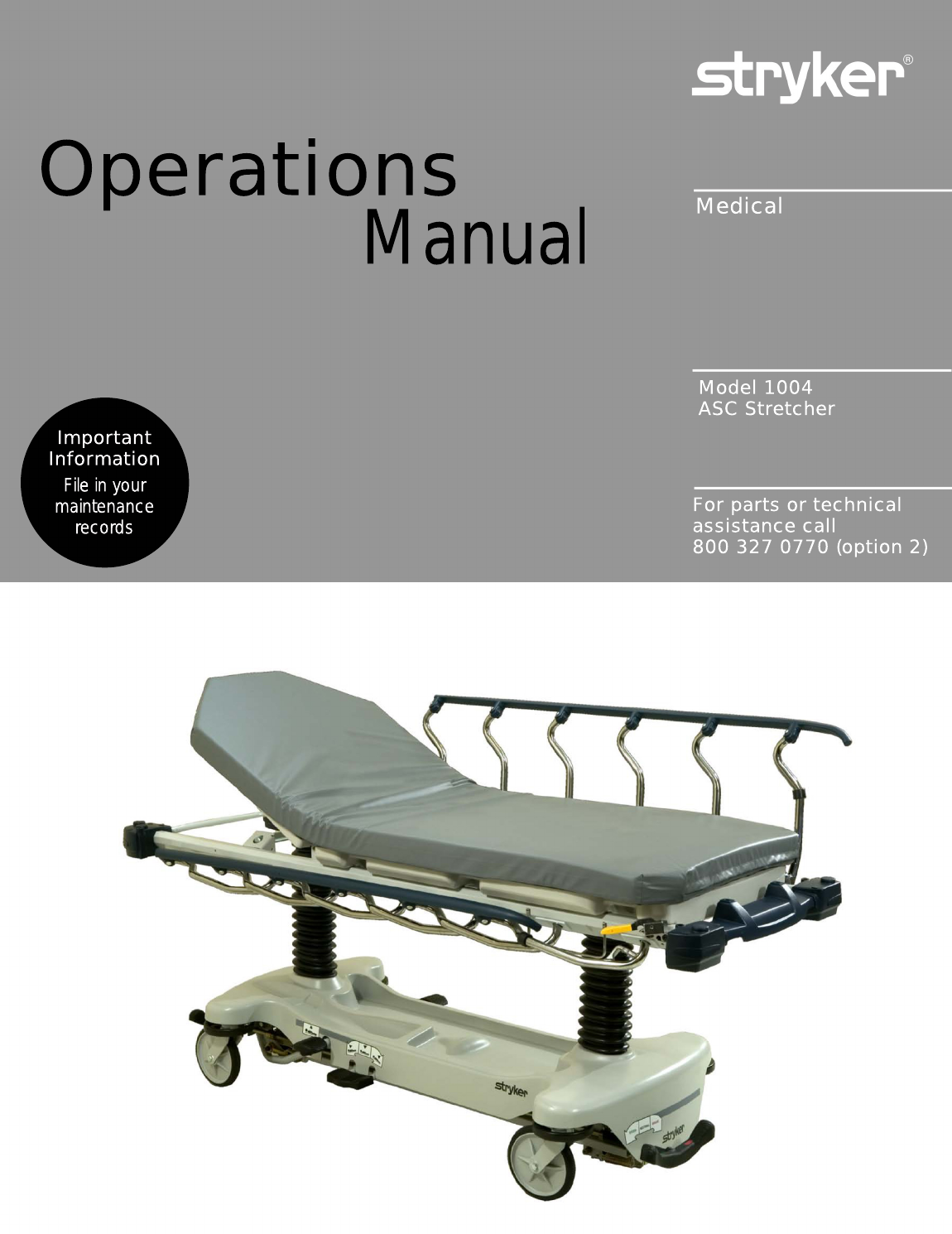

Stryker Model 1004 Manuale utente

Medical

For parts or technical

assistance call

800 327 0770 (option 2)

Model 1004

ASC Stretcher

Operations

Manual

Important

Information

File in your

maintenance

records

Return to Table of Contents

Table of Contents

Introduction 2−3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operating Base Controls 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Raising And Lowering Litter Height 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Trendelenburg/Reverse Trendelenburg Positioning 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Applying The Brake System 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operating the Fifth Wheel 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Using the Siderails 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operating the Pneumatic Fowler 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operating the Optional 2−Stage Permanently Attached IV Pole 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operating the Optional 3−Stage Permanently Attached IV Pole 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operating the Optional Foot Extension / Defibrillator Tray 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Using the Optional Serving Tray 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Preventative Maintenance Checklist 13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cleaning 14,15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Limited Warranty

Obtaining Parts and Service 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Supplemental Warranty Coverage 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Return Authorization 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Freight Damage Claims 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Return to Table of Contents

Introduction

INTRODUCTION

This manual is designed to assist you with the operation of the Model ASC Stretcher. Read it thoroughly be-

fore using the equipment or beginning any maintenance on it.

SPECIFICATIONS

Maximum Weight Capacity 500 pounds

Overall Stretcher Length 84” (.5”)

Overall Stretcher Width (Siderails Up) 33.5” & 37” (.5”)

Overall Stretcher Width (Siderails Down) 30.25” & 30.75” (.5”)

Minimum / Maximum Bed Height 21.5” / 36” (.5”)

Fowler Angle 0 to 90°( 3°)

Trendelenburg / Reverse Trendelenburg +16 / −16 °( 1°)

WARNING / CAUTION / NOTE DEFINITION

The words WARNING, CAUTION and NOTE carry special meanings and should be carefully reviewed.

WARNING

Alerts the reader about a situation, which if not avoided, could result in death or serious injury. It may also

describe potential serious adverse reactions and safety hazards.

CAUTION

Alerts the reader of a potentially hazardous situation, which if not avoided, may result in minor or moderate

injury to the user or patient or damage to the equipment or other property. This includes special care neces-

sary for the safe and effective use of the device and the care necessary to avoid damage to a device that

may occur as a result of use or misuse.

NOTE

This provides special information to make maintenance easier or important instructions clearer.

Return to Table of Contents

Back to Table of Contents

Introduction

Before operating this stretcher, it is important to read and understand all information in this manual. Carefully

read and strictly follow the warnings and cautions listed on this page.

WARNING

Always apply the caster brakes when a patient is getting on or off the stretcher. Push on the stretcher to en-

sure the brakes are securely locked. Always engage the brakes unless the stretcher is being moved. Injury

could result if the stretcher moves while a patient is getting on or off the stretcher. If brakes do not hold proper-

ly, refer to your stretcher maintenance manual for a brake adjustment procedure.

When lowering the siderail to the collapsed position, keep extremities of patients and staff away from the side-

rail spindles or injury could occur.

Keep fingers/hands clear of area around Fowler release handle and Fowler frame when lowering. Injury could

result if care is not taken when lowering the Fowler.

If the stretcher is equipped with the optional foot end IV pole, the IV pole must be in the raised position when

the foot extension/defibrillator tray is installed. If the IV pole is not raised, the foot extension will not function

properly and injury could occur.

CAUTION

To avoid damage, remove any equipment that may be in the way before raising or lowering the litter height.

To avoid injury or damage to the equipment, do not allow the siderail to lower on its own.

To avoid damage, the weight of the I.V. bags should not exceed 40 pounds.

To avoid damage while transporting the stretcher, verify the I.V. pole is at a low enough height to allow it to

safely pass through door openings and under light fixtures.

To avoid damage, do not put items weighing more than 30 pounds on the serving tray.

Return to Table of Contents

Back to Table of Contents

Stretcher Operation

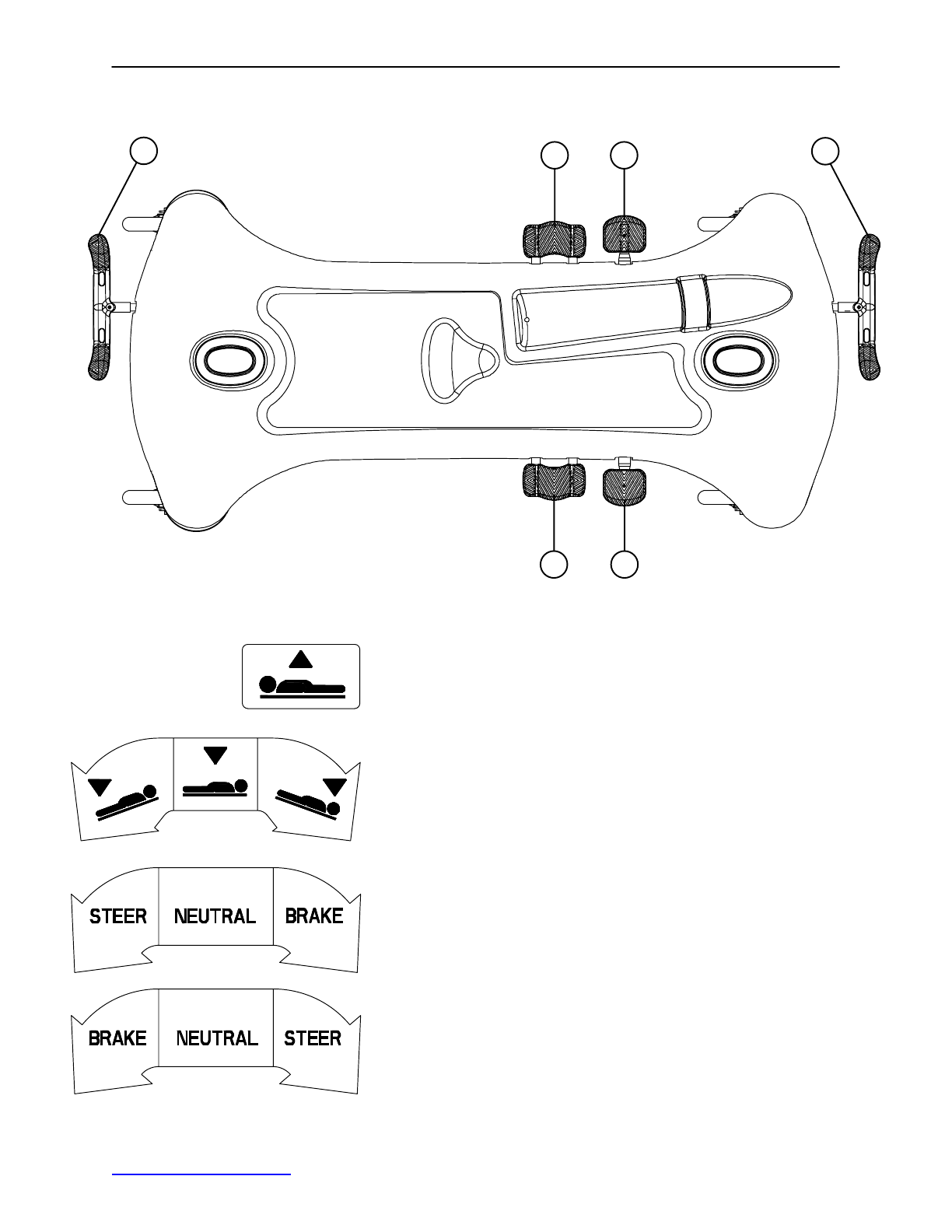

OPERATING BASE CONTROLS − SIDE CONTROL

Pump pedal (A) to raise the litter.

Depress in the center of pedal (B) to lower

Depress the side of pedal (B) closest to the

Pedal (C) − Brake and Steer functions (foot end)

Pedal (D) − Brake and Steer functions (head end)

both ends of the stretcher together.

foot end of the stretcher to lower the foot end.

Depress the side of pedal (B) closest to the

head end of the stretcher to lower the head end.

HEAD ENDFOOT END

Return to Table of Contents

Back to Table of Contents

Stretcher Operation

RAISING AND LOWERING LITTER HEIGHT − SIDE CONTROL

CAUTION

To avoid damage, remove any equipment that may be in the way before raising or lowering the litter height.

To raise the litter height, pump pedal (A) repeatedly until the desired height is achieved (see illustration on

page 4).

To lower both ends of the litter together, depress the center of pedal (B). To lower only the head end of the

litter, depress the side of pedal (B) closest to the head end. To lower only the foot end of the litter, depress

the side of pedal (B) closest to the foot end (see illustration on page 4).

TRENDELENBURG/REVERSE TRENDELENBURG − SIDE CONTROL

NOTE

Litter height must be raised first in order to achieve a trend. or reverse trend. position.

CAUTION

To avoid damage, remove any equipment that may be in the way before lowering the stretcher.

For Trendelenburg positioning (head down), depress the side of pedal (B) closest to the head end of the

stretcher (see illustration, page 4).

For Reverse Trendelenburg positioning (foot down), depress the side of pedal (B) closest to the foot end.

NOTE

The higher the litter is before pedal (B) is activated, the greater the trend. or reverse trend. angle will be.

(Maximum trend. angle is +16_. Maximum reverse trend. angle is −16_).

Return to Table of Contents

Back to Table of Contents

Stretcher Operation

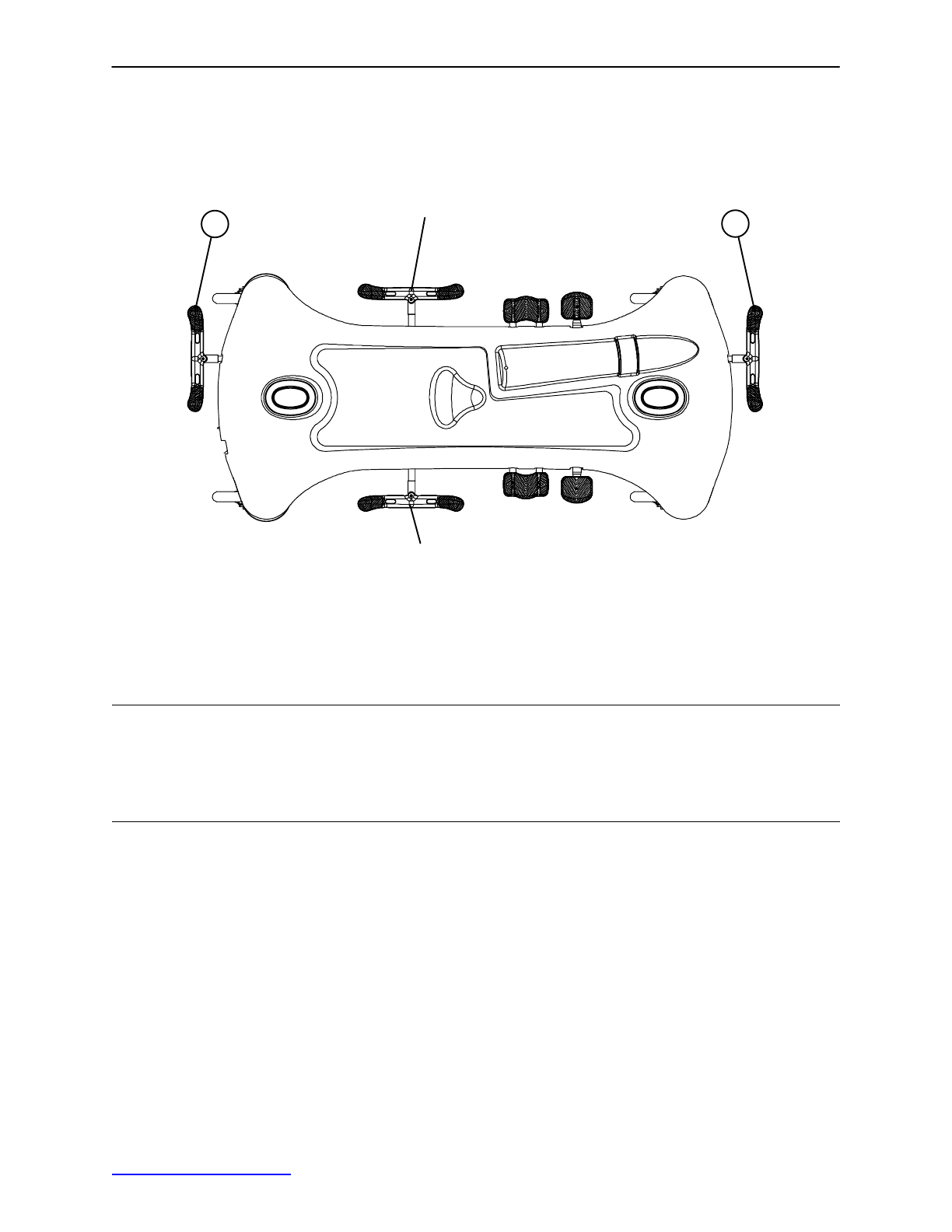

APPLYING THE BRAKE SYSTEM

Brake/Steer

Pedal

Brake/Steer

Pedal

(Optional)

FOOT END HEAD END

NOTE

For user convenience, a brake/steer control pedal is located on both ends of the stretcher.

WARNING

Always apply the caster brakes when a patient is getting on or off the stretcher. Push on the stretcher to en-

sure the brakes are securely locked. Always engage the brakes unless the stretcher is being moved. Injury

could result if the stretcher moves while a patient is getting on or off the stretcher. If brakes do not hold proper-

ly, refer to your stretcher maintenance manual for a brake adjustment procedure.

To engage the brakes on the head end, push fully down on the left side of pedal (A).

To engage the brakes on the foot end, push fully down on the right side of pedal (B).

NOTE

Your stretcher may be equipped with optional side control brake and steer functions in addition to the standard

head and foot end controls. The side control brakes operate the same as the head and foot end versions.

OPERATING THE FIFTH WHEEL

The purpose of the Fifth Wheel is to help guide the stretcher along a straight line during transport and to help

pivot the stretcher around corners.

To engage the fifth wheel, push the proper side of the brake/steer pedal to the full down position.

Return to Table of Contents

Back to Table of Contents

Stretcher Operation

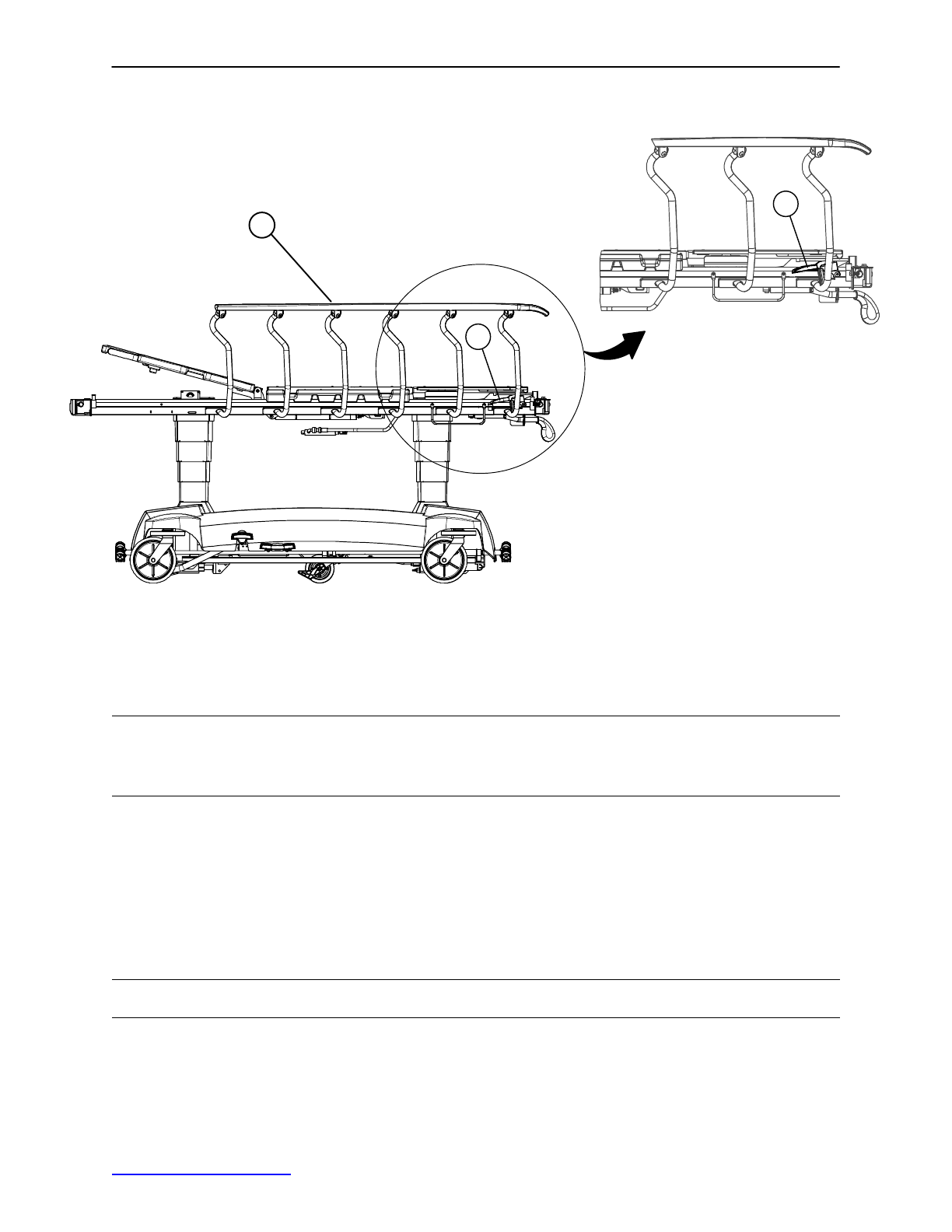

OPERATING THE GLIDEAWAYtSIDERAILS

FOOT END

NOTE

Raising and lowering the siderails safely is a two−handed operation. Use one hand to hold and position the

siderail and the other hand to operate the siderail latch.

WARNING

When lowering the siderail to the collapsed position, keep extremities of patients and staff away from the side-

rail spindles or injury could occur.

To raise the siderails: Pull up on the siderail (A) and raise it to the full up position until the latch (B) engages.

To lower the siderails: Pull up on the latch (B) and guide the siderail to the full down position.

NOTE

The latches (B) are colored yellow for easy identification.

The foot end of the siderail top rail can be used as a push/pull handle.

CAUTION

To avoid injury or damage to the equipment, do not allow siderail to lower on its own.

NOTE

There is a dual siderail latch option available with latches on both ends of the stretcher.

Return to Table of Contents

Back to Table of Contents

Stretcher Operation

OPERATING THE PNEUMATIC FOWLER

Squeeze either or both of the yellow Fowler handles (A) for pneumatic assist in lifting the Fowler to the desired

height. Remove hand(s) from handle when the desired height is achieved.

The optional drop seat/lift assist Fowler uses the weight of the patient for additional assistance with lifting the

Fowler. It also helps keep the patient from sliding toward the foot end of the stretcher when the Fowler is

raised.

WARNING

Keep hands/fingers clear of the area around the Fowler release handles and the Fowler frame when lowering.

Injury could result if care is not taken when lowering the Fowler.

Return to Table of Contents

Back to Table of Contents

Stretcher Operation

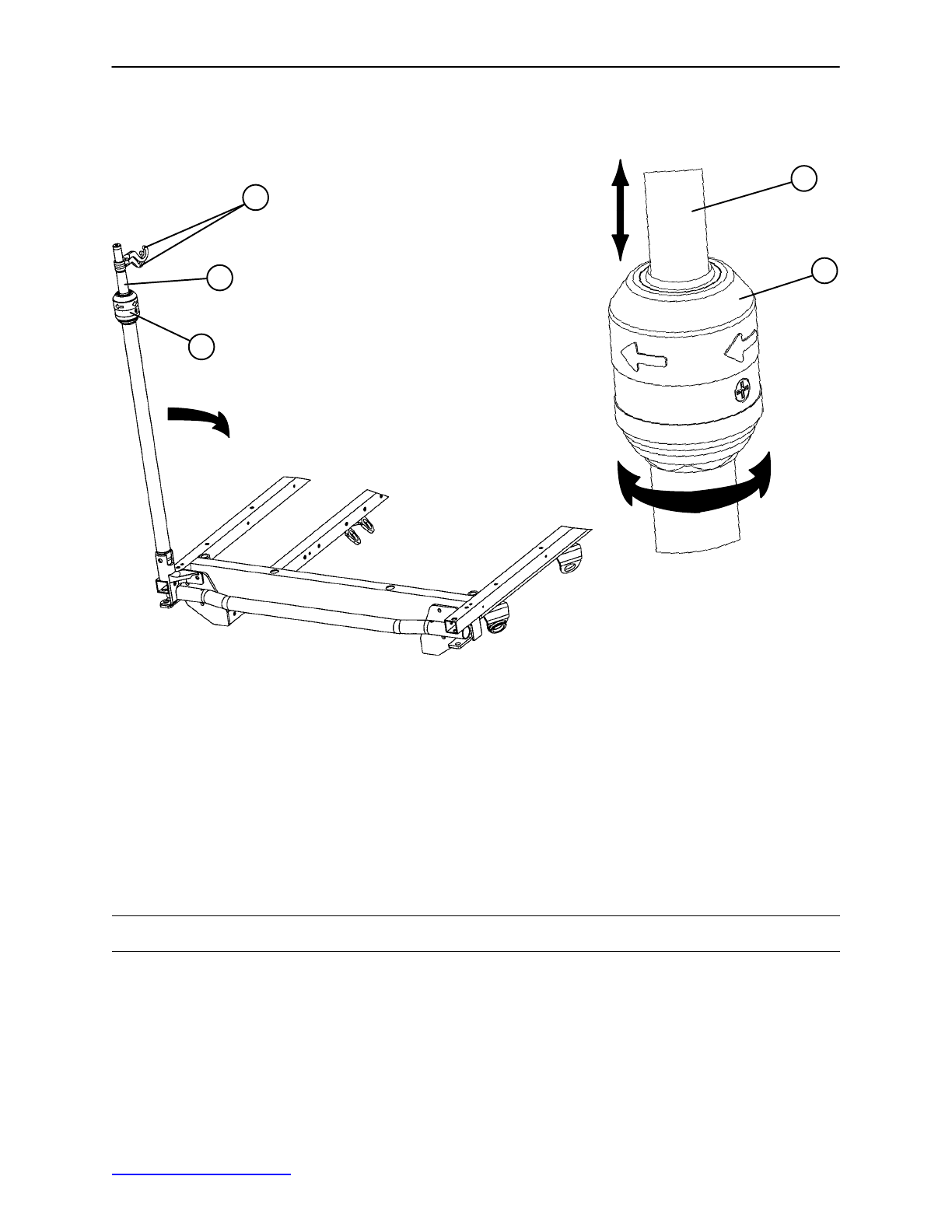

OPERATING THE OPTIONAL 2−STAGE PERMANENTLY ATTACHED IV POLE

DETAIL OF I.V. POLE LATCH

NOTE

The 2−stage permanently attached IV pole is an option and may have been installed at either the head, foot

or both ends of the stretcher. The choice was made at the time the stretcher was purchased.

To use the 2−stage permanently attached IV pole:

1. Lift and pivot the pole from the storage position and push down until it is locked into the receptacle.

2. To raise the height of the pole, pull up on the telescoping portion (A) until it locks into place at its fully raised

position.

3. Rotate the IV hangers (B) to desired position and hang the IV bags.

4. To lower the IV pole, turn the latch (C) until section (A) lowers.

CAUTION

To avoid damage, the weight of the IV bags should not exceed 40 pounds.

To avoid damage while transporting the stretcher, verify the IV pole is at a low enough height to allow it to

safely pass through door openings and under light fixtures.

Return to Table of Contents
