Studio Technologies M216 Manuale utente

Conﬁguration Guide

This Conﬁguration Guide is applicable

for the following serial numbers:

M216-00151 and later

Studio Technologies, Inc. www.studio-tech.com 50389-0714, Issue 2, Page 1 of 3

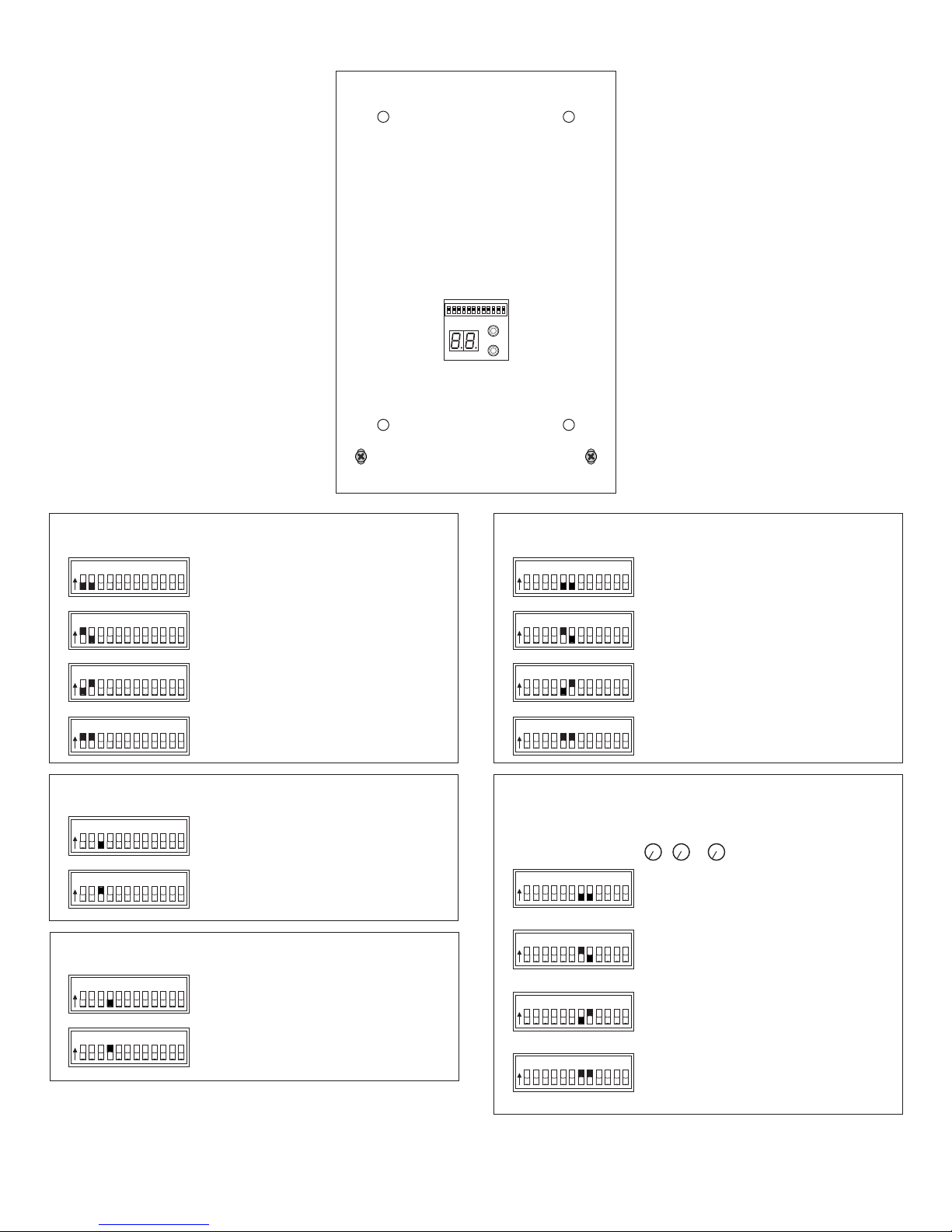

SW1-1 and SW1-2 – Main Button

Push to talk

Push to mute (“cough”)

SW1-3 – Talkback Buttons

Push to talk

Model 216 Bottom Panel

Latching (alternate action)

Hybrid (press and hold to enable,

tap to latch)

Hybrid (press and hold to enable,

tap to latch)

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

SW1-5 and SW1-6 – Sidetone

Main button controls sidetone

Off (no sidetone)

Talkback buttons control sidetone

Main and talkback buttons control

sidetone

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

SW1-7 and SW1-8 – Headphone Control

Assignment

C1: Channel 1

C2: Channel 2

C3: Sidetone

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

C1: Channel 1 / Channel 2

C2: Balance

C3: Sidetone

C1: Channel 1 / Channel 2

C2: Channel 3 / Channel 4

C3: Sidetone

C1: Channel 1

C2: Channel 2

C3: Channel 3 / Channel 4

C1 C2 C3

Model 216 Configuration Guide, Studio Technologies, Inc., 50389-0714, Issue 2, Page 2 of 3

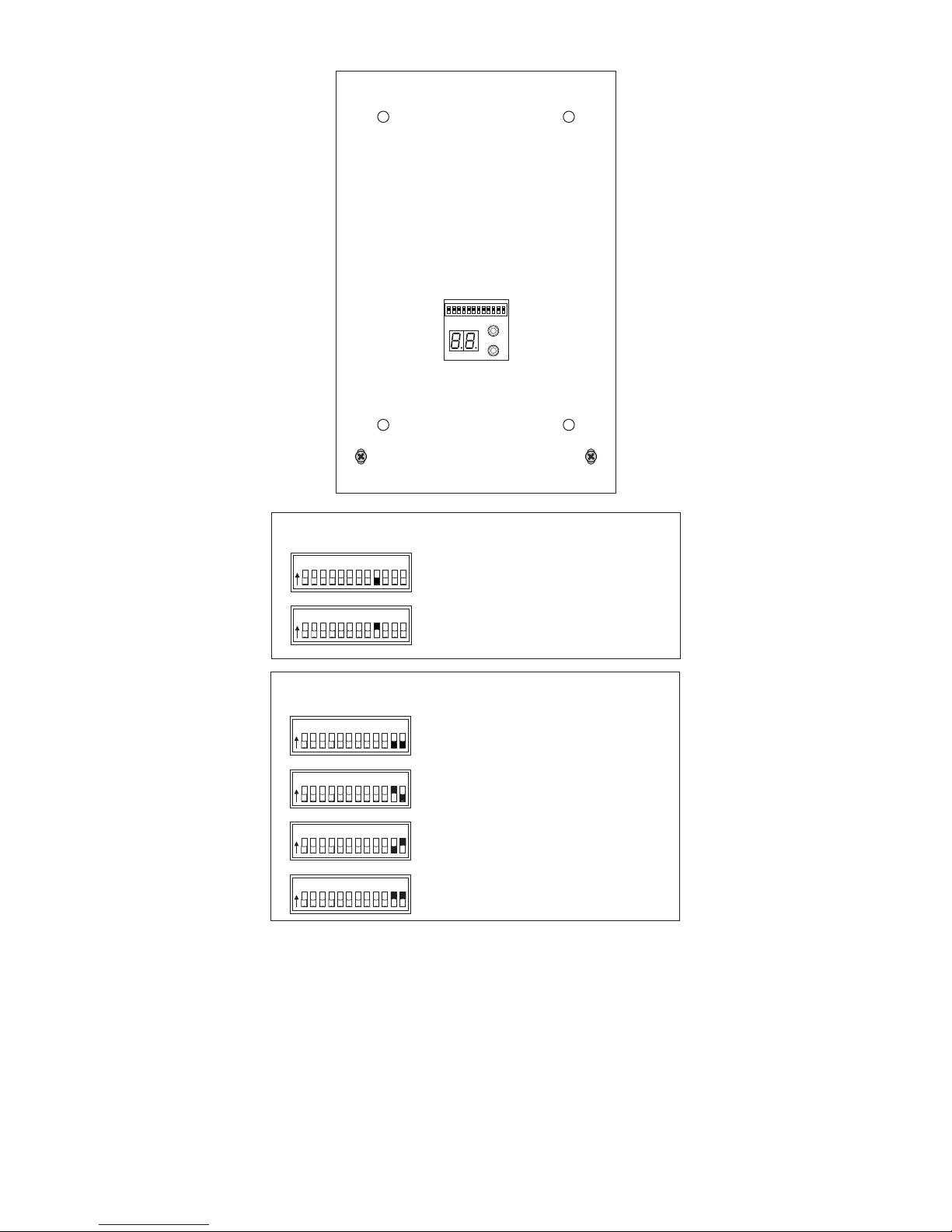

SW1-4 – Button Backlight Intensity

High

Low

1 2 3 456789 10 11 12

Model 216 Bottom Panel

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

SW1-9 – Headphone Minimum Level

Full mute

–40 dB

On-Air (talkback status impacts

main out status)

Production (talkback status

does not impact main out status)

SW1-11 and SW1-12 – System Mode

Reserved

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

Production with Dim (talkback status

does not impact main out status;

headphone out dims during talk)

Model 216 Configuration Guide, Studio Technologies, Inc., 50389-0714, Issue 2, Page 3 of 3

1 2 3 456789 10 11 12
