Studio Technologies 215 Manuale utente

Conﬁguration Guide

This Conﬁguration Guide is applicable

for the following serial numbers:

M215-02001

and later

with application ﬁrmware 2.3 and later and

Dante ﬁrmware 4.4.1 (UltimoX4 4.1.4.2) and later

Studio Technologies, Inc. www.studio-tech.com 50386-1118, Issue 4, Page 1 of 3

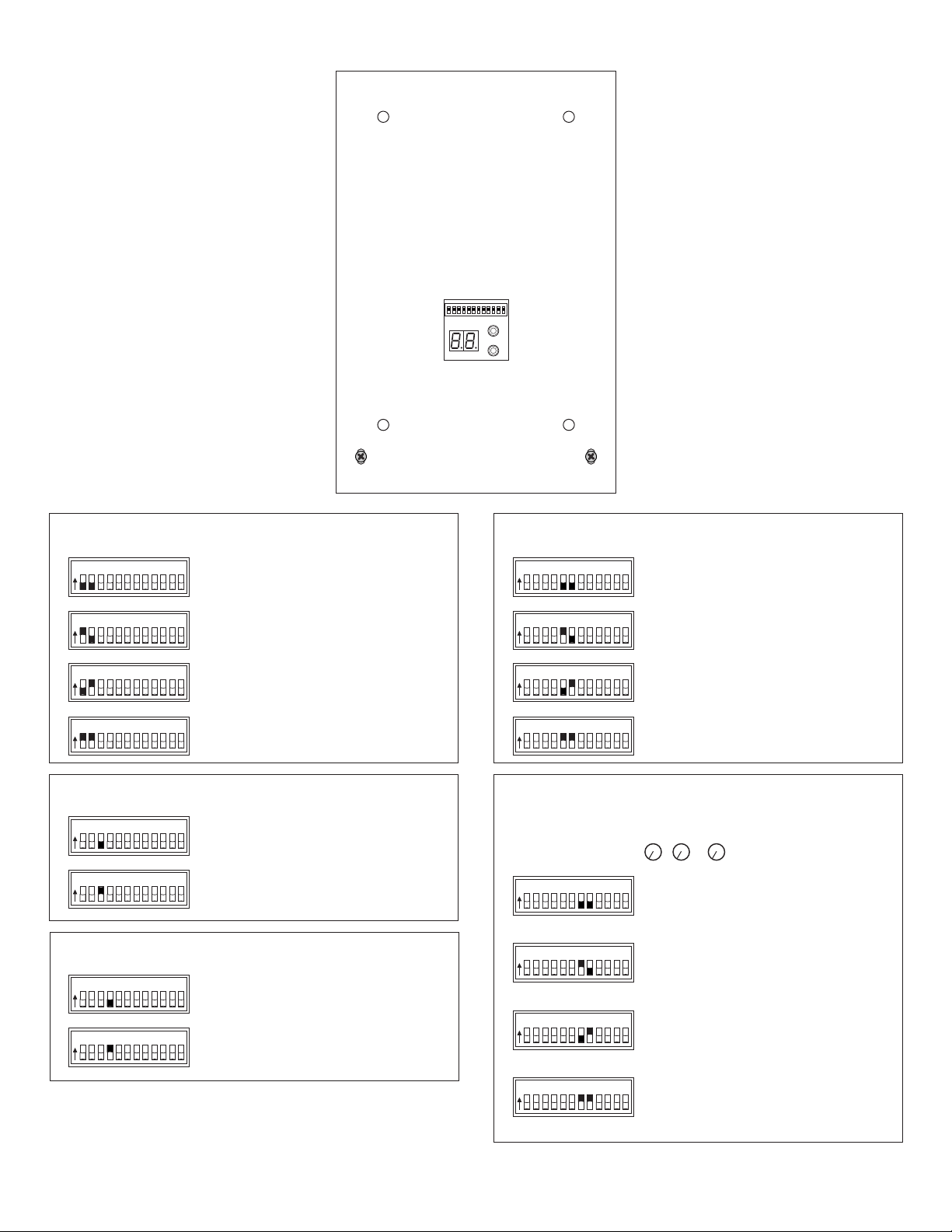

SW1-1 and SW1-2 – Main Button

Push to talk

Push to mute (“cough”)

SW1-3 – Talkback Buttons

Push to talk

Model 215 Bottom Panel

Latching (alternate action)

Hybrid (press and hold to enable,

tap to latch)

Hybrid (press and hold to enable,

tap to latch)

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

SW1-5 and SW1-6 – Sidetone

Main button controls sidetone

Off (no sidetone)

Talkback buttons control sidetone

Main and talkback buttons control

sidetone

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

SW1-7 and SW1-8 – Headphone

Operating Mode

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

C1: Ch 1 → L / Ch 2 → R

C2: L / R Balance

C3: Sidetone

C1: Ch 1 → L & R

C2: Ch 2 → L & R

C3: Ch 3 → L / Ch 4 → R

C1: Ch 1 → L

C2: Ch 2 → R

C3: Ch 3 → L / Ch 4 → R

C1 C2 C3

Model 215 Configuration Guide, Studio Technologies, Inc., 50386-1118, Issue 4, Page 2 of 3

SW1-4 – Button Backlight Intensity

High

Low

1 2 3 456789 10 11 12

C1: Ch 1 → L / Ch 2 → R

C2: Ch 3 → L / Ch 4 → R

C3: Sidetone

Model 215 Bottom Panel

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

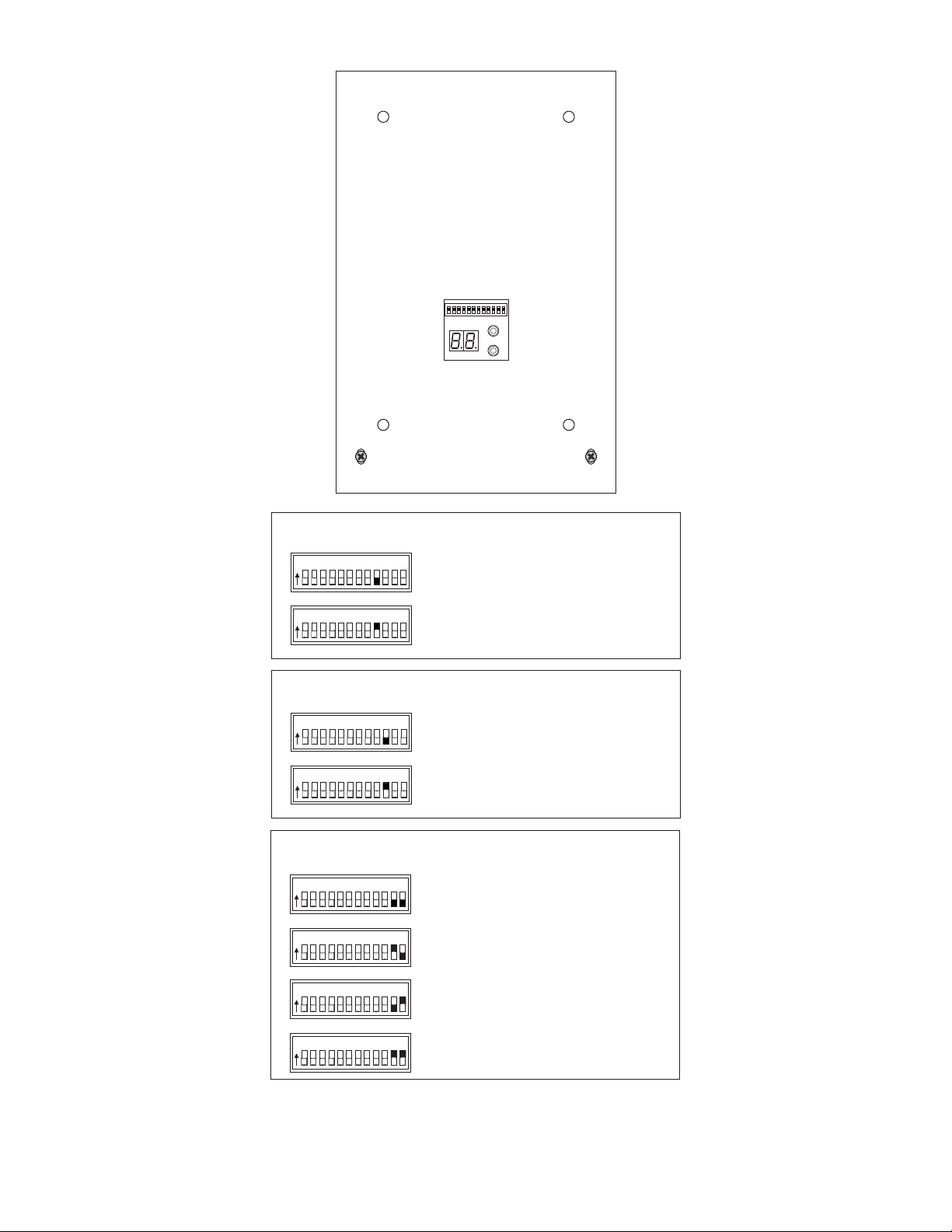

SW1-9 – Headphone Minimum Level

Full mute

–40 dB

On-Air (talkback status impacts

main out status)

Production (talkback status

does not impact main out status)

SW1-11 and SW1-12 – System Mode

Reserved

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

Production with Dim (talkback status

does not impact main out status;

headphone out dims during talk)

Model 215 Configuration Guide, Studio Technologies, Inc., 50386-1118, Issue 4, Page 3 of 3

1 2 3 456789 10 11 12

1 2 3 45 6 7 8

N9 10 1112

1 2 3 45 6 7 8

N9 10 1112

SW1-10 – Tally Tone / Hot Mic

Tally tone enabled

Hot mic enabled
