Studiomaster Professional FIRE 92 Manuale utente

Step into the amazing world

of Line Array Systems with the

Studiomaster Professional Advantage

FIRE 92 - LINE ARRAY

TABLE OF CONTENTS

1. ...................................................................................................................................................................................... 3IMPORTANT NOTES

2. ...................................................................................................................................................... 3IMPORTANT SAFETY PRECAUTIONS

3. ............................................................................................................................................................................................ 4INTRODUCTION

4. .......................................................................................................................................................................................................... 4FEATURES

5. .................................................................................................................................................................. 6INTERNAL WIRING DIAGRAM

6. ................................................................................................................................................................. 6REAR PANEL & CONNECTION

7. ....................................................................................................................................................................... 7SYSTEM CONFIGURATION

8. INSTALLATION (FLYING)

8.1 General ....................................................................................................................................................................................................... 8

8.2 Fly Bar assembly ........................................................................................................................................................................................ 9

8.3 Joining the Enclosure to the Fly Bar ………..................................................................................…………….............………................…. 10

8.4 Joining Enclosures ………………………………………………………….......................................................................................................….. 11

8.5 Variable Splay Angle adjustment ........................................................................................................................................................... 12

9. VERTICAL DIRECTIVITY (COVERAGE AREA)

1. All enclosures fitted with 0 deg splay angle – total vertical directivity 9° ............................................................................................. 13

2. All enclosures fitted with 3 deg splay angle – total vertical directivity 30° .......................................................................................... 13

3. All enclosures fitted with 6 deg splay angle – total vertical directivity 51° .......................................................................................... 14

4. All enclosures fitted with 9 deg splay angle – total vertical directivity 72° .......................................................................................... 14

10. .................................................................................................................................................................................. 15NOTES ON FLYING

11. ............................................................................................................................................................... 15TECHNICAL SPECIFICATIONS

1. IMPORTANT NOTES

•Before connecting and using this product, please read this instruction manual carefully.

•Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or cautions regarding safety.

•The manual is to be considered as integral part of this product and must accompany it when it changes ownership as a reference for

correct installation and use as well as for the safety precautions.

•Install in accordance with Studiomaster Professional's instructions and under the supervision of a licensed

Professional Engineer only.

•Studiomaster Professional shall not assume any responsibility for the incorrect installation/or use of this product.

Safety symbols and messages described below are used in this manual to prevent bodily injury and property damage which could result

from mishandling. Before operating your product, read this manual first and understand the safety symbols and messages so you are

thoroughly aware of the potential safety hazards.

SAFETY SYMBOL AND MESSAGE CONVENTIONS

1. Loudspeaker lines (amplifier outputs) can have sufficient high voltage to involve a risk of electrocution: never install or connect

speakers when the line is alive.

2. Make sure all connections have been made correctly & speaker impedances are suitable for amplifier.

3. Protect speaker lines from damage; make sure they are positioned in a such way that they can not be stepped on or crushed by any

object.

4. Make sure that no object or liquids can get in to the product as this may cause short circuit.

5. Never attempt to carry out any operations, modifications or repairs that are not expressly mentioned in this manual. Contact your

authorized dealer or qualified personnel if any of the following occur:

The system does not function or works in anomalous way.•

The cable has been damaged.•

Objects or liquid have got in to unit.•

The system has been damaged due to heavy impact or fire.•

6. Before placing, installing, rigging, or suspending any speaker product, inspect all hardware, suspension, cabinets, transducers,

brackets and associated equipment for damage.

7. Any missing, corroded, deformed, or non-load rated component could significantly reduce the strength of the installation, placement

or array. Any such condition severely reduces the safety of the installation and should be immediately corrected.

8. Use only recommended hardware, brackets, joining plates, locking pins etc which are supplied with the unit for

the installation. Never exceed the rating of the hardware or equipment.

Avoid installing or mounting the unit in unstable locations, such as on a rickety table or a slanted surface. Doing so may result in the9.

unit falling down and causing personal injury and/or property damage.

10. Refer all installation work to the dealer from whom the speaker was purchased. Installation for flying requires extensive technical

knowledge and experience. The speaker may fall off if incorrectly installed, resulting in possible personal injury.

2. IMPORTANT SAFETY PRECAUTIONS

Indicates a potentially hazardous situation which, if mishandled,

could result in moderate or minor personal injury, and/or property damage.

Indicates a potentially hazardous situation which, if mishandled,

could result in serious personal injury.

11. For Flying be sure to follow the instructions below. Otherwise, the suspension wires or belts may be off or snap & the speaker may

fall off, causing personal injury.

Check to confirm that the suspension wires and belts are strong enough to withstand the speaker load.•

The connectors of the suspension wires and belts must be securely linked with those of the speaker.•

12. Install the unit only in a location that can structurally support the weight of the unit and the mounting bracket. Doing otherwise may

result in the unit falling down and causing personal injury and/or property damage.

13. Owing to the unit's size and weight, be sure that two or more persons are available to install the unit. Failure to do so could result in

personal injury.

14. Do not use other methods than specified to mount the bracket. Extreme force is applied to the unit and the unit could fall off, possibly

resulting in personal injuries.

15. Tighten each nut and bolt securely. Ensure that the bracket has no loose joints after installation to prevent accidents that could result

in personal injury.

16. Do not mount the unit in locations exposed to constant vibration. The mounting bracket can be damaged by excessive vibration,

potentially causing the unit to fall, which could result in personal injury.

1. Do not operate the unit for an extended period of time with the sound distorting. This is an indication of a malfunction, which in turn

can cause heat to generate and result in a fire.

2. Do not stand or sit on, nor hang down from the unit as this may cause it to fall down or drop, resulting in personal injury and/or

property damage.

3. Should the unit emit any strange odours or smoke, remove it from line after having the amplifier switched off.

4. Exposure to high sound levels can cause permanent hearing loss. The acoustic pressure level that leads to hearing loss is different

from person to person and depends on the duration of exposure. To prevent it wear ear plugs or protective earphones.

3. INTRODUCTION

4. FEATURES

•High performance dual 12”LF & two High quality 2”HF transducers.

•Exceptional sound quality, powerful response & long throw.

•High grade & durable cabinet design.

•Easy carry handles & heavy duty protective grille.

•Fast, integral rigging system with variable splay angles.

•HF frequency attenuation for selection of throw.

Constant Curvature waveguide for unprecedented array coherence.•

Coverage Pattern: 120 degree x 9 degree nominal (horizontal x vertical), single unit.•

Extra textured anti-scratch paint finish.•

High-quality passive crossover network for maximum reliability.•

Studiomaster Professionals line-array systems set new standards in handling, flexibility and profitability by using most modern

technology and materials. The Fire 92 series is simple to use & understand, quick to rig up !

The Fire 92 is a specially designed loudspeaker module designed to form a vertical stack in varying numbers. This stack is usually

flown to provide superior sound coverage in the intended listening areas. Stacked Fire 92 modules form a line array for constructive

summing & increased coupling. Sound disperson of Fire 92 array has a very narrow vertical dispersion angle. Therefore sound can

be precisely directed where audience is present.

Fire 92 System Consists of:

•Fire 92: High performance dual 12’’ LF + 2”HF, 2 way passive, 1100 watts line array module.

•Fire 92 Kit: Fly bar & rigging hardware. (To be ordered separately).

Enclosure Features:

The Fire 92 incorporates 2 x 12’’ Mid-Bass transducers & 2 x 2’’ High Quality HF transducers with state of the art Waveguide horn, all

comprised into a sleek enclosure. This Array module has a horizontal coverage angle of 120 & vertical Coverage angle of 9 .° °

About Waveguides:

Sound Waves in open space propagate in all directions, this way they lose their power

significantly. In order to counter this problem the Fire 92 incorporates waveguide driver

to ensure maximum control on power & dispersion. This ensures pure performance and

negates the possibilities of phase cancellations.

Enclosure hardware:

LOCKING PIN BIG 25MM (SILSSSKR001)JOINING PLATE ( )SMLSSSKS003

Fire 92 Kit: The Fire 92 Kit is set of essential hardware required for rigging flying this line array system. It consist of ultra durable

Flybars / Array Frames & Quick Release Pins (Push-Pull Bullets). This kit makes flying the Fire 92 Series easy.

INNER JOINING

PLATE SMALL

(SMLSSSKS005)

INNER JOINING

PLATE BIG

(SMLSSSKS004)

LOCKING PIN

SMALL 20MM

(SSLSSSKP006)

SUSPENSION

BRACKET

(SMLSSSKS006)

FIRE 92

FLY BAR

(SSLSSSKP010)

Qty.:- 2 Nos.

Qty.:- 4 Nos. (Speaker Cabinet Packing)

Qty.:- 1 No. Qty.:- 4 Nos. Qty.:- 2 Nos. Qty.:- 2 Nos. Qty.:- 8 Nos.

0°

3°

6°

9°

Note: Flybar & rigging hardware is not part of enclosure hence it need to be ordered separately as per requirement.

LOCKING PIN

BIG 25MM

(SILSSSKR001)

Qty.:- 8 Nos.

5. INTERNAL WIRING DIAGRAM

INPUT

HF HI/LO SWITCH

LF 12’’

HF 2’’

6. REAR PANEL & CONNECTION

Advantages of a using the Fire 92 line array:

Studiomaster Professional Fire 92 has several advantages over the horizontally stacked speaker systems normally used for covering large

events. These are:

•Higher direct to reverberant ratio due to directional nature of the system and therefore better intelligibility.

•Increased feedback rejection due to increased directionality in vertical plane and therefore more acoustic gain available.

•Frequency response is uniform over the coverage area.

•Because of increased HF throw of the system, need for delay stacks is eliminated or reduced.

•Even sound pressure level can be achieved over the entire listening area by proper articulation of the vertical array formed by Fire 92.

•More stage space available as Fire 92 arrays are flown.

The Fire 92 system can be configured in any of the following vertical formations:

•Straight Array - all modules are without tilt.

•Curved Array - upper modules are curved up towards ceiling and lower ones are curved down.

•J Array - upper modules are without any tilt and lower ones are curved down.

•Spiral Array - The topmost module/ modules is/ are without tilt and the subsequent modules have increasing tilt with the lowest having

maximum tilt with varying splay angles 3 6 9 .

°, °, °

WARNING: To prevent risk of electric shock, do not connect the speaker with the amplifier

switched on. Before using the speaker, make sure that all connections are made correctly

to prevent accidental short circuit from giving rise to electric sparks.

Speakon Connectors: There are two Speakon connectors. One socket is used for audio signal input from amplifier output and other

socket can be used as output for parallel connection of another speaker.

HF Switch: HF switch is used to long throw or short throw on the application. In HI position HF is increased by about 2dB compared LO

position.

Pin1+ =Signal (+)

Pin1 =Ground (-)-COLD

HOT

FIRE 92

IMPEDANCE 8Ω

RMS POWER : 1100W

PEAK POWER : 2200W

MADE IN P.R.C.

SERIAL No.

LINE ARRAY

Designed & Engineered in INDIA

NORMAL

0°

3°

6°

9°

You can configure Line array system with amplifiers as shown below.

7. SYSTEM CONFIGURATION

Configuration 1:- Individual speaker loading (8 Impedance).Ω

Configuration 2:- Two speakers in parallel (4 Impedance).Ω

Configuration 1

PA 3.0 / DPA 3200

8Ω

CH 2

8Ω

AMP 1

AMP 2

AMP 3

AMP 4

FIRE 92

CH 1

Configuration 2

PA 4.5 / DPA 4500

4Ω

CH 2

4Ω

Link

FIRE 92

CH 1 AMP 1

AMP 2

8. INSTALLATION (FLYING)

8.1 General

Use Fly bar for flying the Line Array speakers. With the use of the Fly bar, up to 8 Line Array speakers can be arranged in flying

configuration. When joining two or more speakers, or joining the Fly bar and the speaker, use the Joining Plates supplied with the

system.

The vertical directivity angle of the Line Array speaker is 9 degrees. The horizontal directivity angle is fixed at 120 degrees.

To transmit sound over long distances, you can adjust splay angles as 0, 3, 6 & 9 degrees. The splay angle can be adjusted by means

of the Inter Joining Plates used to join the speakers. It is very easy to do by just quick release locking pins.

Fig. 1

30°

Fig. 3

Inner Joining

Plate Small

(SMLSSSKS005)

30°

Fig. 2

Speaker Inter

Joining Plate

(SMLSSSKS003)

Inner Joining

Plate Big

(SMLSSSKS004)

9°

Inner Joining

Plate Small

(SMLSSSKS005)

Long Throw

Medium &

Short Throw

4.5°

Fly Bar

For assembling, refer to the figure & procedure below.

Tighten 4 supplied M12X60 bolts with plain washers, spring washers and nut securely to fix each Suspension Bracket to the Fly bar.•

Fix Inner Joining Plate Small (SMLSSSKS005) on front side & Inner Joining Plate Big (SMLSSSKS004) on back side to Suspension brackets•

by 20mm Locking pin (SSLSSSKP006). Inner joining plate small can also used on rear. It gives 4.5° vertical inclination (downward).

FINISHED ASSEMBLY DIAGRAM OF FLY BAR

8.2 Fly bar Assembly

Use only shackle holes for suspension of array!

A :- M12x60 HEX BOLT SMLSSSKS010 (4 NOS.)

B :- SUSPENSION BRACKET SMLSSSKS006 (4 NOS.)

C :- LOCKING PIN SMALL (20MM) SSLSSSKP006 (4 NOS.)

D :- INNER JOINING PLATE BIG SMLSSSKS004 (2 NOS.)

E :- INNER JOINING PLATE SMALL SMLSSSKS005 (2 NOS.)

F :- FLY BAR SSLSSSKP010 (1 NO.)

G :- M12x10 HEX NUT SMLSSSKS007 (4 NOS.)

H :- M12 SPRING WASHER SMLSSSKS008 (4 NOS.)

I :- M12 PLAIN WASHER SMLSSSKS009 (8 NOS.)

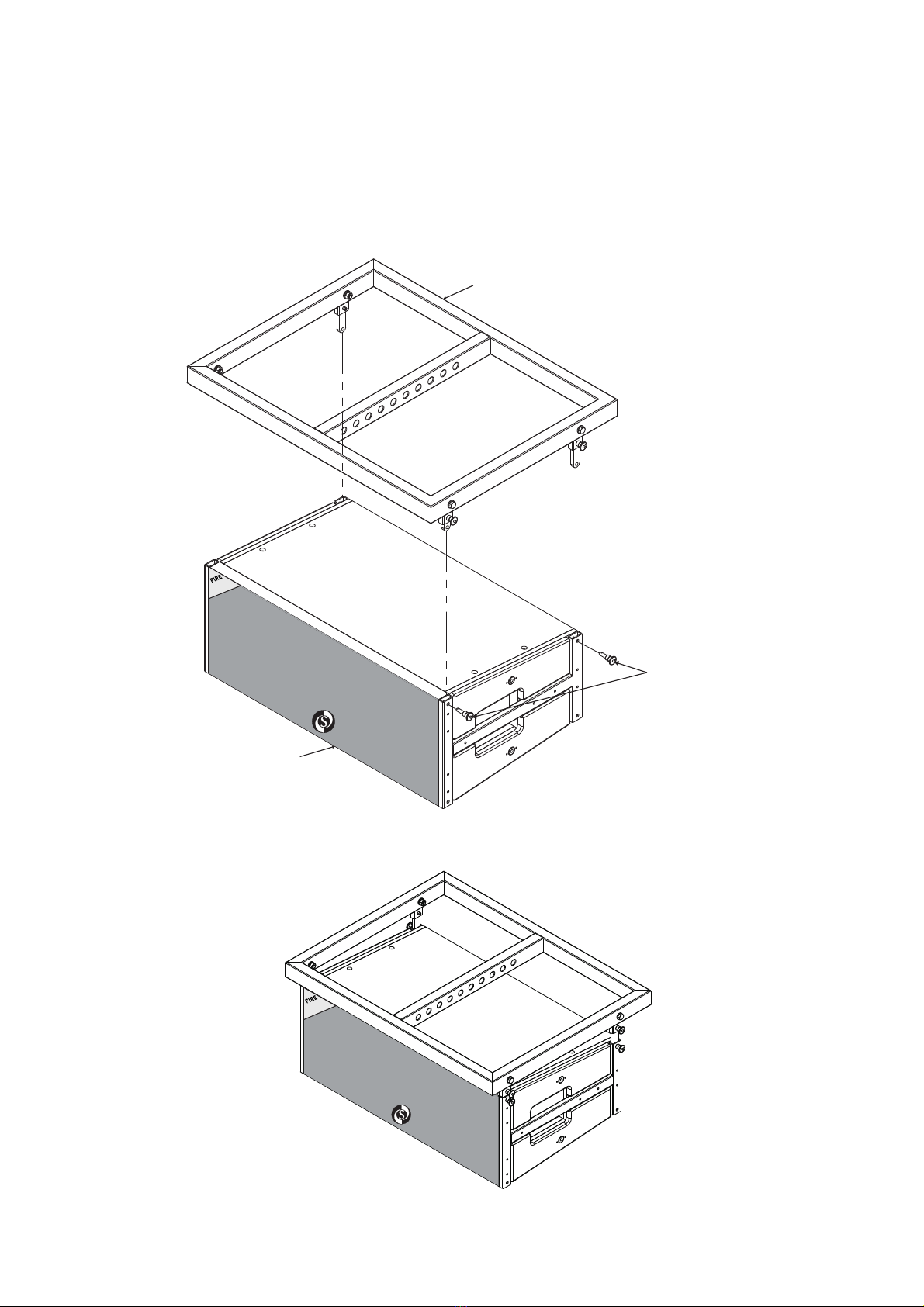

8.3 Joining the Enclosure to the Fly bar

Follow the procedure below to mount the enclosure to the Fly bar, as shown in the assembly diagrams below.

Use Fly bar assembly as mentioned in 8.2.•

Place speaker box in line with Fly bar.•

Please ensure that speaker direction is correct (“Studiomaster Professional”Logo on bottom side).•

Insert Inner Joining Plates to side channel of speaker box as shown in figure below.•

Fix quick release 20mm Locking Pin (SSLSSSKP006).•

FINISHED SPEAKER CABINET ASSEMBLY DIAGRAM

FLY BAR ASSEMBLY

LOCKING PIN SMALL (20MM)

SSLSSSKP006 (4 NOS.)

SPEAKER CABINET

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Studiomaster Professional Sistema di altoparlanti

Studiomaster Professional

Studiomaster Professional SLA 30 Manuale utente

Manuali Sistema di altoparlanti popolari di altre marche

JVC

JVC CA-MXK5R Manuale utente

LG NB4532B Manuale utente

JVC

JVC CA-FSH100 Manuale utente

5Core

5Core Pro Series Manuale utente

EAW

EAW MQV1394e Manuale utente

Lynx

Lynx GXR-LA10A Manuale utente

iLive

iLive ITB066B Manuale utente

RDX

RDX QuickStation 4 Manuale utente

Electro-Voice

Electro-Voice S-122 Manuale utente

Sven

Sven SPS-619 GOLD Manuale utente

Pioneer

Pioneer CS-7070 Manuale utente

EAW

EAW UB82e Manuale utente

Sondpex

Sondpex Active Speaker System and Digital Music... Manuale utente

JVC

JVC NX-PN7 Manuale utente

Marshall Amplification

Marshall Amplification AR-DM61-BT Manuale utente

Yamaha

Yamaha NX-A01 - Speaker Sys Manuale utente

SE Audiotechnik

SE Audiotechnik I-LINE Manuale utente

Gemini

Gemini WRX-843 Series Manuale utente
