Planning Information
Wine Storage Model 424FS
Free-Standing
1
Dimensions in parentheses are in
millimeters unless otherwise specified.
11/06
Front venting with
removable kickplate
Roller-assembly
shelves
Lighted electronic
control panel
Stainless steel
exterior
Full-view glass
door
Serial and model
number plate
Home security tie-in
Stationary shelf UV-resistant glass
Model 424FS
Free-Standing
Divider gasket
Agreat addition to Sub-Zero's complete line of
residential refrigeration is the Wine Storage equipment.
But it is more than just wine storage in the conven-
tional sense. It is wine storage as only Sub-Zero could
make it. The ultimate in beauty, engineering, attention
to detail and smart thinking.
If you do not have the space to build anything into the
cabinets, the 424FS free-standing unit is perfect for
those applications. It is offered in classic stainless steel
wrapped door and the entire unit is clad in stainless
steel to complement any décor whether it be traditional
or contemporary.
You can even develop a custom top for the unit and
make it a functioning cutting board or serving tray.
The Sub-Zero Model 424FS free-
standing Wine Storage unit is available in
the classic stainless steel finish. A unit
with high altitude glass may be special
ordered for installations at or above
5,000' (1524 m) in elevation.
With the installation of a harness kit, these appliances
are Star-K compliant to meet strict religious regulations
in conjunction with specific instructions found on
star-k.org. You may purchase this harness kit through
your Sub-Zero dealer. To obtain local dealer information,
visit the Locator section of our website, subzero.com.
Planning Information
Wine Storage Model 424FS
2
FEATURES
Free-standing Wine Storage unit does not
require any panels or surrounding cabinetry
46 (750 ml) bottle capacity
Classic stainless steel exterior, door frame
and tubular handle
Refrigeration system allows individual
temperature control of the two wine
compartments and ideal humidity
Sturdy, rustproof wire shelves accommodate
standard 750 ml bottles, half-bottles, as well
as magnums
Roller-glide shelves faced with natural cherry
wood have a three-quarter extension for
easy access

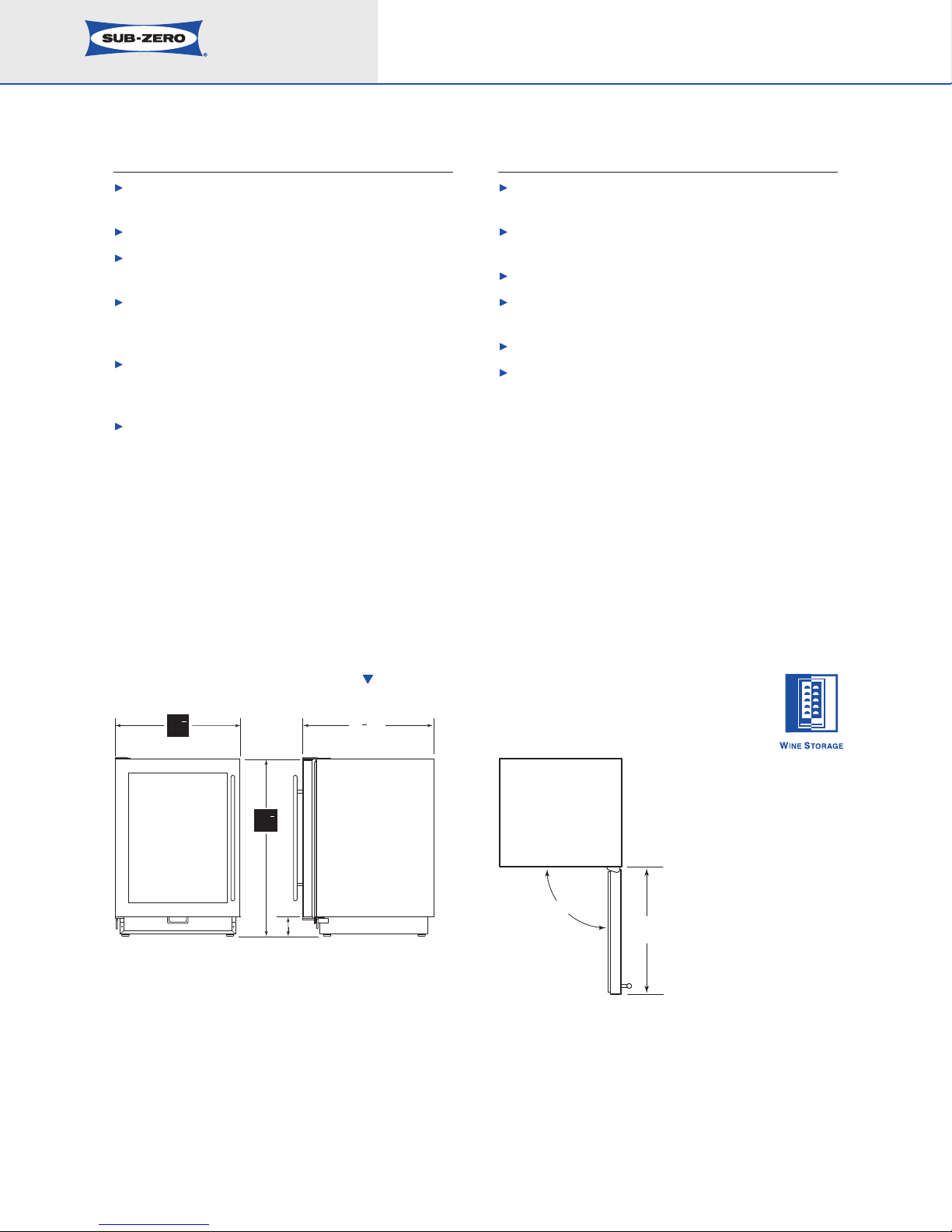

FRONT VIEW SIDE VIEW
(CABINET DIMENSION)
TOE KICK
24
1
4
(616)
4
(102)
(625)
5
8
24
M
*34
3
16
(868)
*
1/2"(13) +
_ADJUSTMENT IN LEVELING LEGS
OVERALL DIMENSIONS
Full-view glass door with UV-resistant glass
protection
High altitude glass door unit can be special
ordered
Discreet low voltage interior lighting
Service light indicator, optional lock and
tie-in to home security system
ULapproved for US and Canada
Two, five and twelve year residential
warranty—exclusions apply; warranty
information can be found on our website,
subzero.com
90˚
253/8"
(645)
TOP VIEW
Dimensions may vary by ±1/8"(3).
Dimensions in parentheses are in
millimeters unless otherwise specified.
Planning Information
Wine Storage Model 424FS
Dimensions in parentheses are in
millimeters unless otherwise specified. 3
SPECIFICATIONS
Model 424FS Free-Standing Wine Storage Unit
Overall Width 241/4"(616)
Overall Height 34 3/16"(868)
Overall Depth 24 5/8"(625)
Wine Storage Capacity 46 Bottles (750 ml)
Door Swing Clearance 25 3/8"(645)
Electrical Requirements 115 V AC, 60 Hz, 15 amp circuit
Shipping Weight 220 lbs (100 kg)
Special Note High altitude glass door is available
for elevations 5,000' (1524 m) or above
Specifications are subject to change without notice.
DOOR OPTIONS
Full-View Glass Door 424FSG
High Altitude Glass
Door 424FSHAG
You must allow 90 days from order to
delivery for high altitude glass door unit.
ACCESSORIES
UL approved door lock kit
Accessories are available through your
Sub-Zero dealer. To obtain local dealer
information, visit the Locator section of
our website, subzero.com.
Planning Information
Wine Storage Model 424FS
Dimensions in parentheses are in
millimeters unless otherwise specified. 4
MODEL 424FS – FREE-STANDING
The free-standing Model 424FS does not require any
panels or surrounding cabinetry. It has a beautiful classic
stainless steel exterior. For additional specifications and
installation information specific to Model 424FS, refer to
pages 2–3.
IMPORTANT NOTE: The anti-tip bracket must be installed
to prevent the unit from tipping forward.
WOOD FACING – WINE SHELVES
Sub-Zero has provided a natural cherry wood facing to
each of its wine shelves in each model. If, however, you
would like to replace these strips with wood more comple-
mentary to your design and surrounding cabinetry, you
can.
The Wine Shelf Wood Facing Dimensions illustration on
page 5, can be used as a full-scale template. You must
follow the layout of this format to accommodate the
shelves properly.To remove the cherry strips, take the
shelves out and merely remove the screws. Reverse the
procedure to affix the new wood.
If you choose to stain or seal the wood facing, be aware
that some of these substances are hazardous and will
damage stored wine.
Asolid panel must not be
installed on a glass door unit, as
this may cause moisture to form
behind the panel.
Planning Information
Wine Storage Model 424FS
Dimensions in parentheses are in
millimeters unless otherwise specified. 5
191/2"(495) WIDTH
Maximum Thickness
FRONT VIEW SIDE VIEW
11/2"(38)
5/8"
(16)
7/64"
(3)
5/64"
(2)
23/64"
(9)
9/16"(14)
27/32"
(21)
WINE SHELF WOOD FACING
FULL-SCALE TEMPLATE
Use the full-scale illustration above as a template if you
choose to replace the natural cherry wood facing with
wood more complementary to your design and surround-
ing cabinetry.
