This service manual has been prepared to provide

SUBARU service personnel with the necessary infor-

mation and data for the correct maintenance and

repair of SUBARU vehicles.

This manual includes the procedures for maintenance,

disassembling, reassembling, inspection and adjust-

ment of components and diagnostics for guidance of

experienced mechanics.

Please peruse and utilize this manual fully to ensure

complete repair work for satisfying our customers by

keeping their vehicle in optimum condition. When

replacement of parts during repair work is needed, be

sure to use SUBARU genuine parts.

All information, illustration and specifications con-

tained in this manual are based on the latest product

information available at the time of publication

approval.

FUJI HEAVY INDUSTRIES LTD.

2001 LEGACY SERVICE MANUAL QUICK REFERENCE INDEX

SUPPLEMENT FOR 6 CYLINDER

ENGINE MODEL

G2281GE

2001 LEGACY SERVICE MANUAL QUICK REFERENCE INDEX

SUPPLEMENT FOR 6 CYLINDER

ENGINE MODEL

G2281GE

REAR SUSPENSION

Page

1. General Description.....................................................................................2

2. Wheel Alignment .........................................................................................8

3. Rear Stabilizer...........................................................................................14

4. Rear Arm ...................................................................................................15

5. Link Upper .................................................................................................19

6. Rear Shock Absorber ................................................................................21

7. Link Front ..................................................................................................25

8. Link Rear ...................................................................................................26

9. Rear Sub Frame........................................................................................28

10. Helper........................................................................................................29

11. General Diagnostic Table ..........................................................................30

1. General Description S201001

A: SPECIFICATIONS S201001E49

Item Sedan Wagon OUTBACK

Camber (tolerance: ±0°45′)−0°30′−0°20′−0°10′

Toe-in 0±3mm(0±0.12 in)

Each toe-in angle: ±0°15′

Wheel arch height

[tolerance:

+12

−24

mm (

+0.47

−0.94

in)]

371 mm

(14.61 in)

381 mm

(15.00 in)

421 mm

(16.57 in)

Thrust angle 0°±30′

Diameter of stabilizer 2.0 L Wagon model 15 mm (0.59 in)

Except 2.0 L Wagon model 14 mm (0.55 in)

NOTE:

쐌Front and rear toe-ins and front camber can be

adjusted. If toe-in or camber tolerance exceeds

specifications, adjust toe-in and camber to the

middle value of specification.

쐌The other items indicated in the specification

table cannot be adjusted. If the other items

exceeds specifications, check suspension parts

and connections for deformities; replace with new

ones as required.

B4M2250C

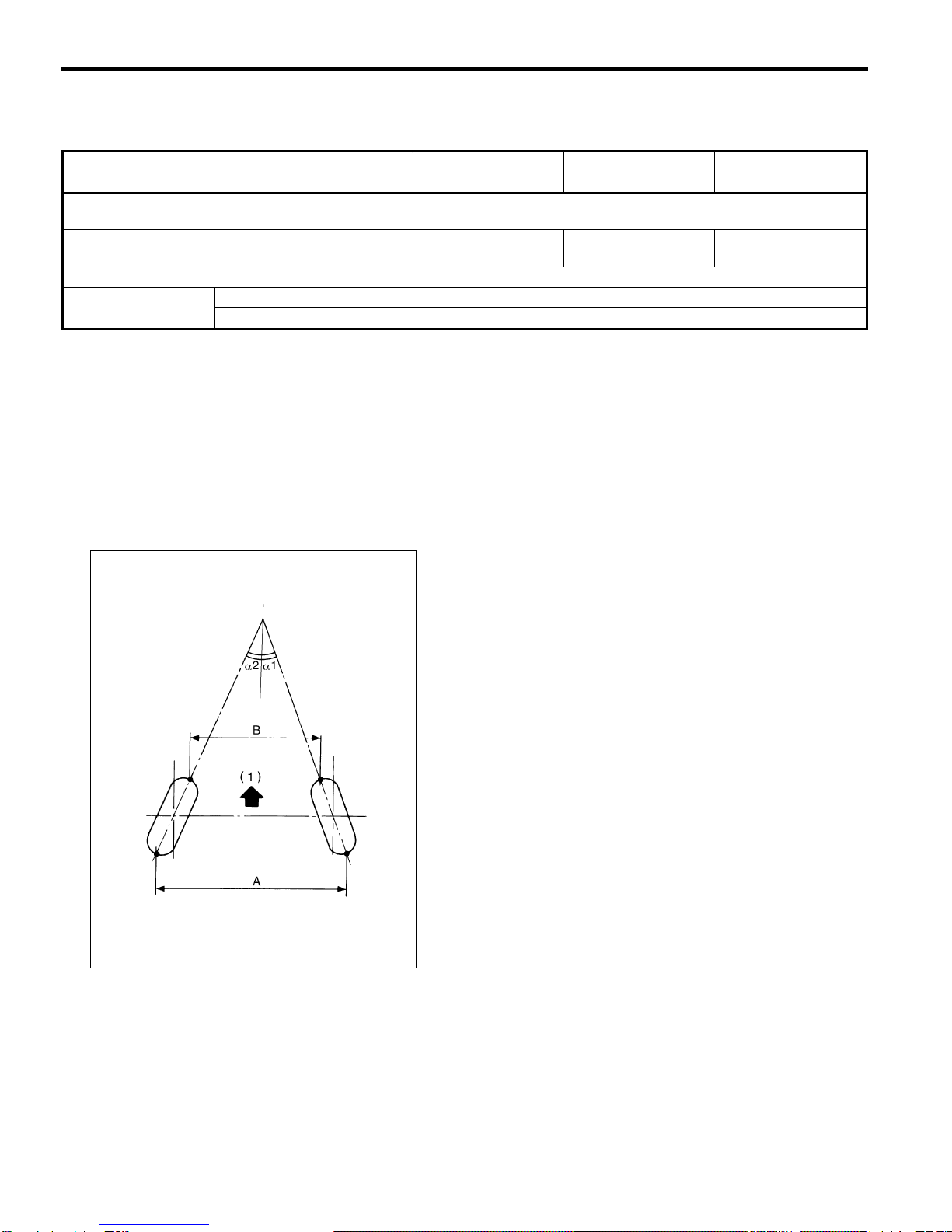

(1) Front

A−B = Positive: Toe-in, Negative: Toe-out

α1, α2: Each toe-in angle

RS-2

GENERAL DESCRIPTION

Rear Suspension

B: COMPONENT S201001A05

1. REAR SUSPENSION S201001A0501

B4M1782B

(1) Shock absorber

(2) Self-locking nut

(3) Stabilizer

(4) Stabilizer bushing

(5) Clamp

(6) Stabilizer link

(7) Link rear

(8) Adjusting bolt

(9) Link rear bushing

(10) Adjusting washer

(11) Rear arm

(12) Rear arm rear bushing

(13) Rear arm front bushing

(14) Rear arm bracket

(15) Hub bearing unit

(16) Helper

(17) Link upper

(18) Link upper bushing (Inside)

(19) Link upper bushing (Outside)

(20) Link front

(21) Rear sub frame

(22) Support sub frame (RH)

(23) Support sub frame (LH)

(24) Stopper upper (Except OUT-

BACK model)

(25) Stopper upper (OUTBACK

MODEL)

(26) Stopper lower

Tightening torque: N·m (kgf-m, ft-lb)

T1: 30 (3.1, 22.4)

T2: 40 (4.1, 30)

T3: 44 (4.5, 32.5)

T4: 65 (6.6, 48)

T5: 110 (11.2, 81)

T6: 120 (12.2, 88)

T7: 150 (15.3, 111)

T8: 160 (16.3, 118)

T9: 175 (17.8, 129)

RS-3

GENERAL DESCRIPTION Rear Suspension

2. SHOCK ABSORBER S201001A0502

B4M1860A

(1) Mount

(2) Rubber seat upper

(3) Dust cover

(4) Coil spring

(5) Shock absorber

(6) Self-locking nut Tightening torque: N·m (kgf-m, ft-lb)

T1: 30 (3.1, 22.4)

T2: 35 (3.6, 26)

T3: 160 (16.3, 118)

RS-4

GENERAL DESCRIPTION

Rear Suspension

C: CAUTION S201001A03

쐌Wear working clothing, including a cap, protec-

tive goggles, and protective shoes during opera-

tion.

쐌Remove contamination including dirt and corro-

sion before removal, installation or disassembly.

쐌Keep the disassembled parts in order and pro-

tect them from dust or dirt.

쐌Before removal, installation or disassembly, be

sure to clarify the failure. Avoid unnecessary

removal, installation, disassembly, and replace-

ment.

쐌Use SUBARU genuine grease etc. or the

equivalent. Do not mix grease etc. with that of

another grade or from other manufacturers.

쐌Be sure to tighten fasteners including bolts and

nuts to the specified torque.

쐌Place shop jacks or safety stands at the speci-

fied points.

쐌Apply grease onto sliding or revolution surfaces

before installation.

쐌Before installing O-rings or snap rings, apply

sufficient amount of grease to avoid damage and

deformation.

쐌Before securing a part on a vise, place cushion-

ing material such as wood blocks, aluminum plate,

or shop cloth between the part and the vise.

쐌Before disposing shock absorbers, be sure to

bleed gas completely. Also, do not throw away in

fire.

RS-5

GENERAL DESCRIPTION Rear Suspension

D: PREPARATION TOOL S201001A17

1. SPECIAL TOOLS S201001A1701

ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS

B4M2378A

927380002 ADAPTER Used as an adapter for camber & caster gauge

when measuring camber and caster.

(1) 28199AC000 PLATE

(2) 28199AC010 BOLT

B4M2379

20099AE000 INSTALLER &

REMOVER

Used for replacing link rear bushing.

B4M2380

20099AE010 INSTALLER &

REMOVER

Used for replacing link upper bushing.

B4M2381

20099AE020 INSTALLER &

REMOVER

Used for replacing rear arm front bushing.

RS-6

GENERAL DESCRIPTION

Rear Suspension

ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS

B4M2382

20099AE040 INSTALLER &

REMOVER

Used for replacing rear arm rear bushing.

B4M2383

20099AE030 HELPER SOCKET

WRENCH

Used for replacing helper.

B4M2384

927760000 STRUT MOUNT

SOCKET

Used for disassembling and assembling strut

and shock mount.

2. GENERAL PURPOSE TOOLS S201001A1702

TOOL NAME REMARKS

Alignment Gauge Used for wheel alignment measurement.

Turning Radius Gauge Used for wheel alignment measurement.

Toe-in Gauge Used for toe-in measurement.

Transmission Jack Used for suspension assembly/disassembly.

Bearing Puller Used for removing bushings.

RS-7

GENERAL DESCRIPTION Rear Suspension

2. Wheel Alignment S201116

A: INSPECTION S201116A10

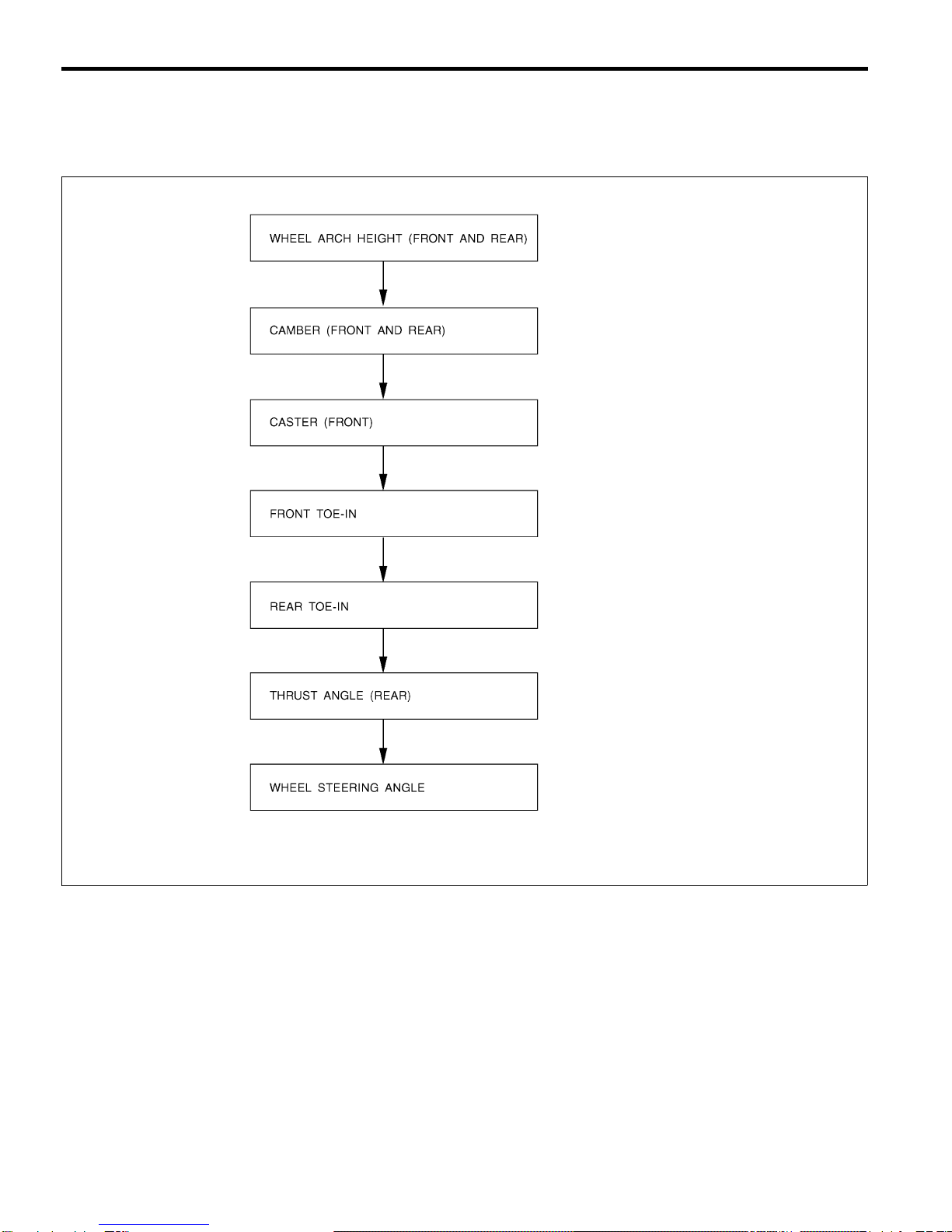

Check, adjust and/or measure wheel alignment in accordance with procedures indicated in figure:

B4M1088A

RS-8

WHEEL ALIGNMENT

Rear Suspension
