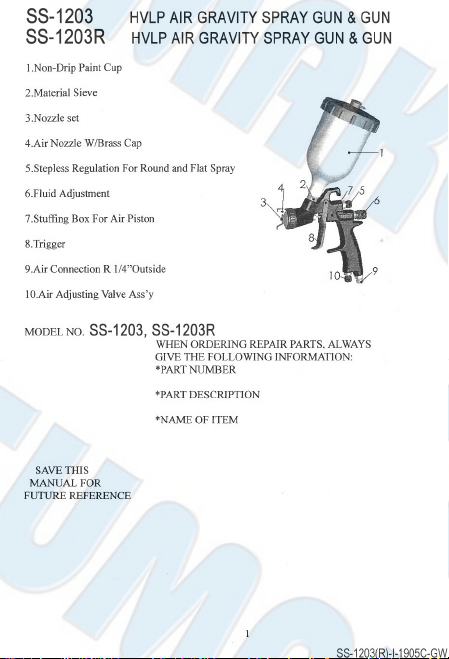

SUMAKE PNEUMATIC TOOLS

HVLP Air Gravity Spray Gun

SS-1203A

SUMAKE INDUSTRIAL CO., LTD

4F,NO.351,Yangguang St.,Neihu District TAIPEI, TAIWAN, ZIP:114-91

Specification:

Free Type Gravity

Standard Nozzle 1.5 mm

Optional Nozzle 1.3, 1.4, 1.8, 2.0 & 2.5mm

Capacity Of Cup 0.6 L

Air Consumption 6.7 CFM (192 L/min)

Air Inlet (NPS) 1/4” (6.35 mm)

Air Hose (NPS) 3/8” (10 mm)

Air Pressure 29psi (2kg/cm²) (2Bar)

Net Weight 2.4 lbs (1.1 kg)

Noise and Vibration:

Vibration Noise Remark

0.095 m/s²

Sound Pressure Level

: 71 dB(A) Please always

wear ear

protector at

environment

noise level > 80

dB(A) due to

risk of impaired

hearing!

Sound power level

: 82 dB(A)

Uncertainty

K= 1.5 m/s²Uncertainty

K= 3dB

SS-1203A-S-1805D-GWF

EC DECLARATION OF CONFORMITY

We: SUMAKE INDUSTRIAL CO., LTD.

4F, No. 351, Yangguang St., Neihu District, Taipei City, Taiwan

declare in sole responsibility that the equipment

Equipment：HVLP AIR GRAVITY SPRAY GUN

Model/ Serial No.：SS-1203A

to which this declaration applies, complies with these normative documents:

Machinery Directive: 2006/42/EC

and conforms to the following EN standard,

EN ISO 12100: 2010

EN 1953:2013

Name and Signature/Position Date and Place

2022/12/1

Mike Su –Managing Director Taipei, Taiwan

SS-1203A-D-2304D-GWF

SS-1203A

PARTS LIST

No. Parts No. Description Q'ty No. Parts No. Description Q'ty

1 1203-01 Air Cap 1 1203-16A Fluid Needle 1.3 1

1203A-02A Fluid Nozzle 1.3 1 1203-16B Fluid Needle 1.4 1

1203A-02B Fluid Nozzle 1.4 1 1203-16C Fluid Needle 1.5 1

1203A-02C Fluid Nozzle 1.5 1 1203-16D Fluid Needle 1.8 1

1203A-02D Fluid Nozzle 1.8 1 1203-16E Fluid Needle 2.0 1

1203A-02E Fluid Nozzle 2.0 1 1203-16F Fluid Needle 2.5 1

1203A-02F Fluid Nozzle 2.5 1 17 1203-17 Needle Spring 1

3A 18 1203-18 Fluid Adj. Knob 1

3A-1 19 1203-19 Air Inlet Nipple 1

4A 20 1203-20 Air Adj. Set 1

5 1203-05 Body Set 1 21 1203-21 Trigger 1

6 1203-06 Fluid Nipple 1 22 1203-22 Gasket 1

7 1203-07 Pattern Adj. Set 1 23 1203-23 Trigger Stud 1

8 1203-08 Air Valve Shaft 1 24 1203-24 E-Ring 1

9 1203-09 Packing Holder 1 25 1203-25 Spanner 1

10 1203-10 O-Ring 1 26 1203-26 Filter 1

11 1203-11 Gasket 1 29 1203-29 Plastic Grip Brush 1

12 1203-12 Air Valve Seat With O-Ring Set [Incl. 12-1] 127

13 1203-13 Air Valve Seat With O-Ring Set [Incl. 13-1] 128

14 1203-14 Air Valve Spring 1 31

15 1203-15 Fluid Adj. Guide Set 1

SS-1203A-P-2201G-GW

1203-27S

600C.C. Plastic Cup Assembly

[Incl. 27, 28, 31]

1

HVLP AIR GRAVITY SPRAY GUN (REPLACEABLE SPRAY GUN)

2A

16

1203-03AS

Needle Packing Seat Set [Inc. 3A,

3A-1, 4A]

1
