SUMERAIN S2082CM Manuale utente
MODEL: S2082CM
Version: 1.1
LED THERMAL WATERFALL BATHTUB FAUCET
Dear Valued Customer,
SUMERAIN would like to take this opportunity to thank you for
purchasing SUMERAIN products. It is our sincere hope that you are
completely satisfied with your new purchase. We welcome any
questions or comments you may have and look forward to assisting you
in the future.
Sincerely,
SUMERAIN customer service department
1. Unpack your new product and ensure that all the parts are contained
in the packaging. Keep the product in its original box until you ready
to install it.
2. Shut off the water supply if replacing a previously-installed faucet.
3. Observe all plumbing and building codes in your area.
4. It is recommended that installation of the product be done by a
professional plumber.
5. SUMERAIN reserves the right to make revisions in the design of
faucets without notice, as specified with the price book.

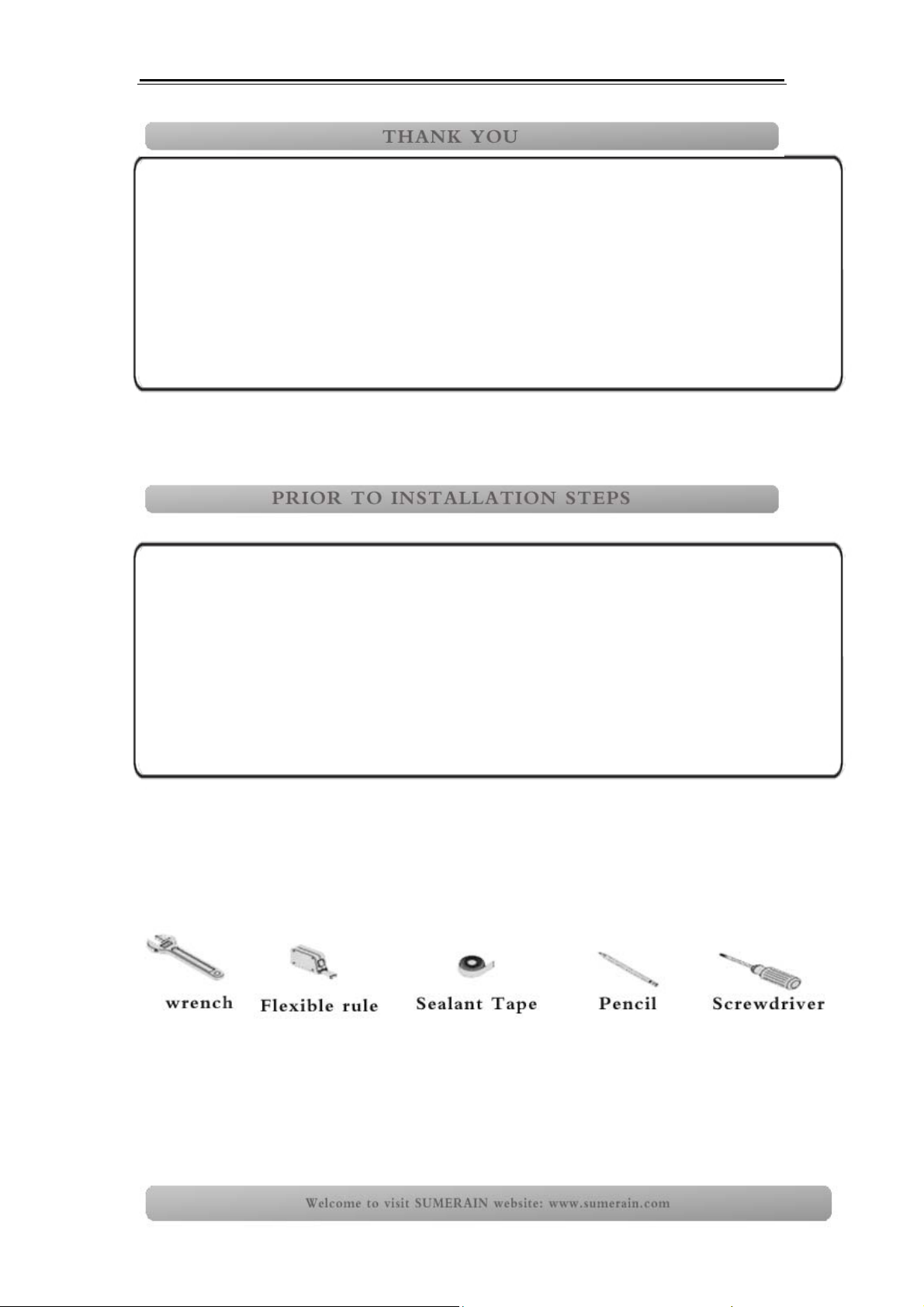

Tools you may need when installing the faucet
Specification
Function Bathtub Faucets
Feature LED Thermal, Waterfall
Style Contemporary
Finish Chrome
Installation Holes Three Holes
Handle type Lever
Number of Handles One
Faucet Total Height 210mm [8.27 Inch]
Spout Reach 90mm [3.54 Inch]
Spout Width 175mm [6.85 Inch]
Spout Height 150mm [5.91 Inch]
Max deck thickness 32mm [1.26 Inch]
Valve Type Ceramic disc Valve
Faucet Body Material Brass
Faucet Spout Material Glass
Hand shower Material ABS plastic
Hand shower length 1500mm [59 Inch]
Spout Net Weight 2.6 KG [5.73 lbs]
Gross Weight 3.4 KG [7.49 lbs]
Glow rate 5.7L/M [1.5 GPM ]
Working water press 0.2 ~0.8 Mpa
LED power supply Water flow generator
LED Color changing
Water temperature < 28 ℃Blue color
Water temperature 28 ℃~ 38 ℃Green color
Water temperature > 38 ℃Red color
Packing box 315mm[12.4”] x 280mm[11”] x 300mm[11.8”]

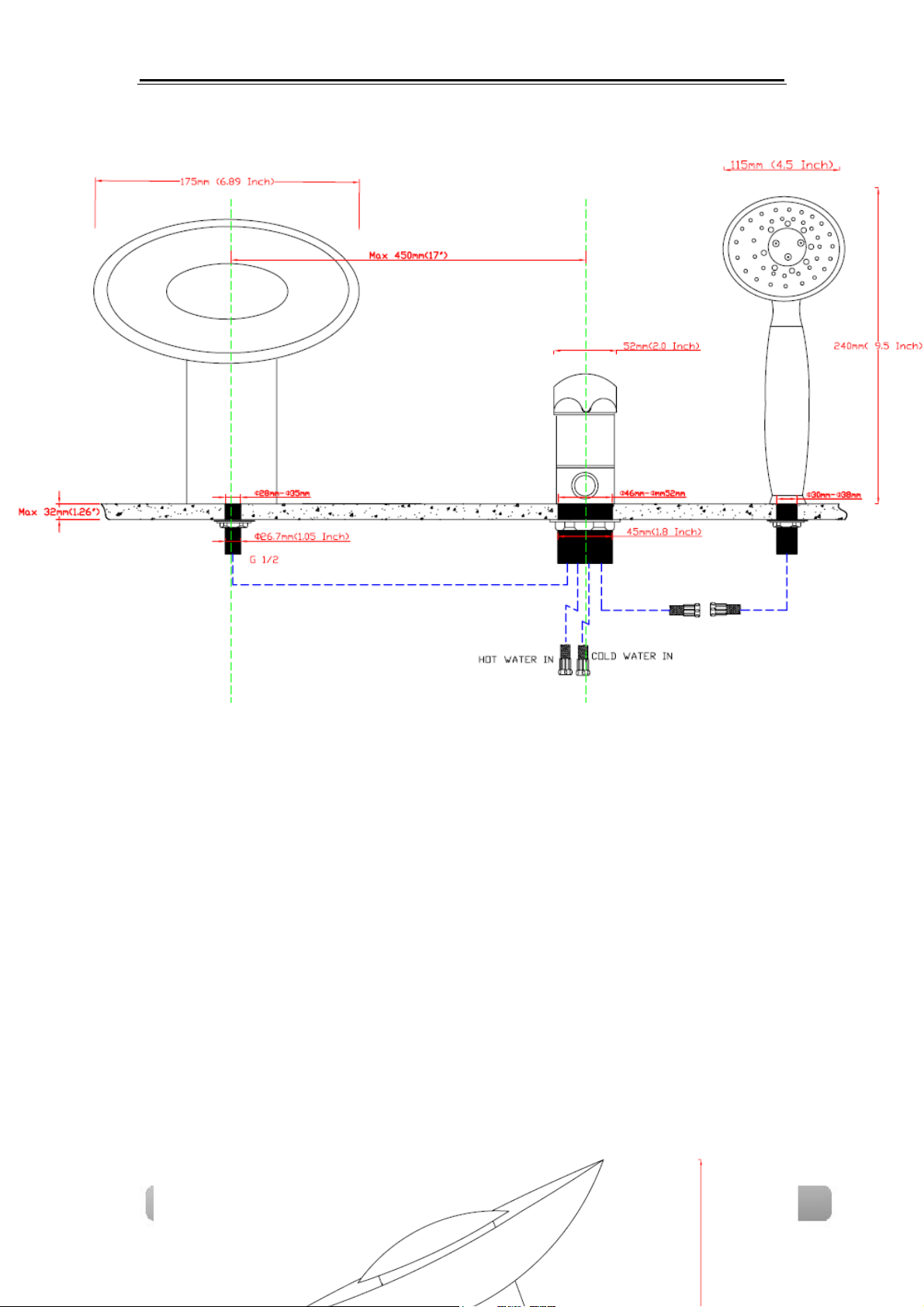

Dimension
Frontview
Sideviewofspout

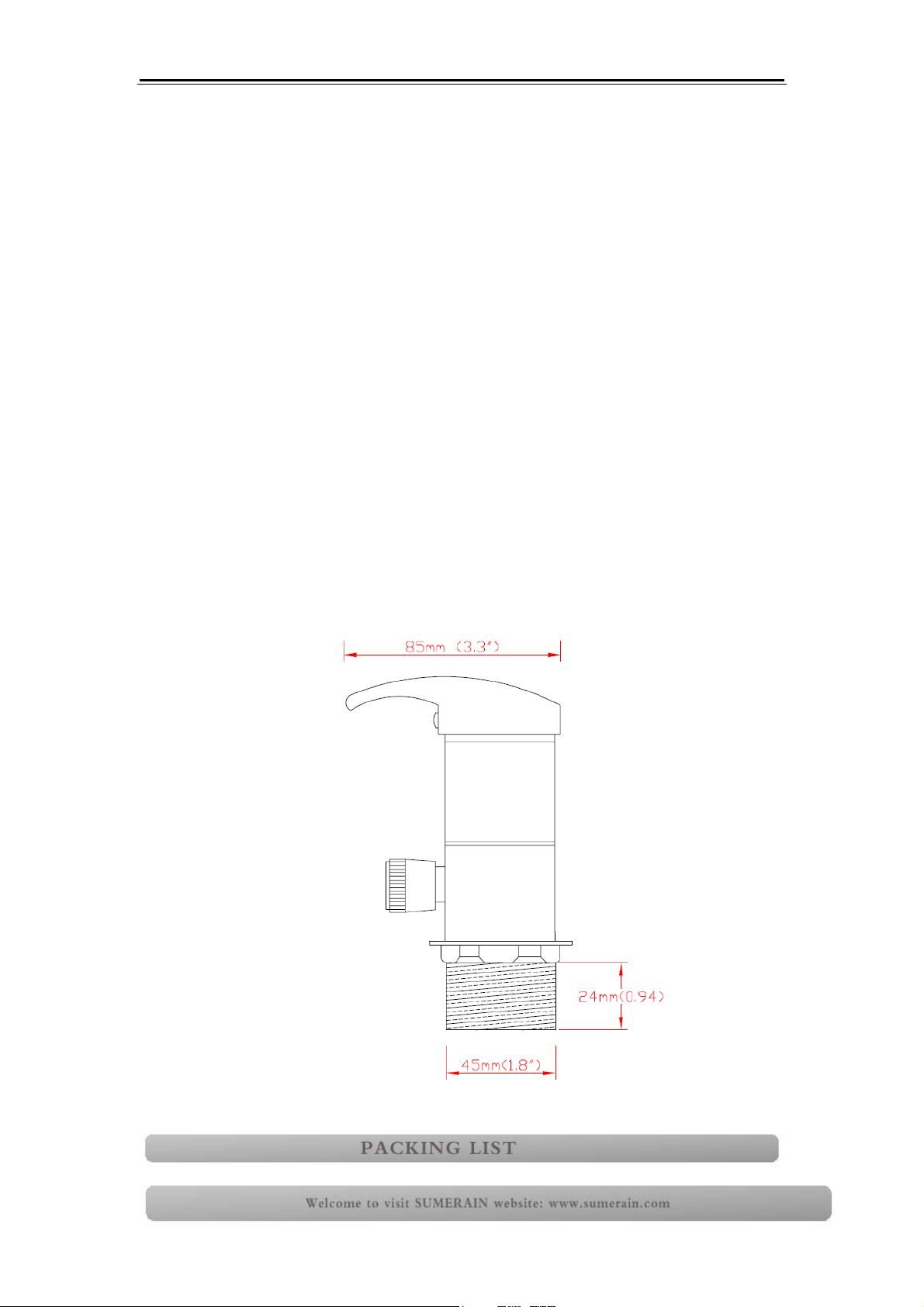

Sideviewofcontrolvalve

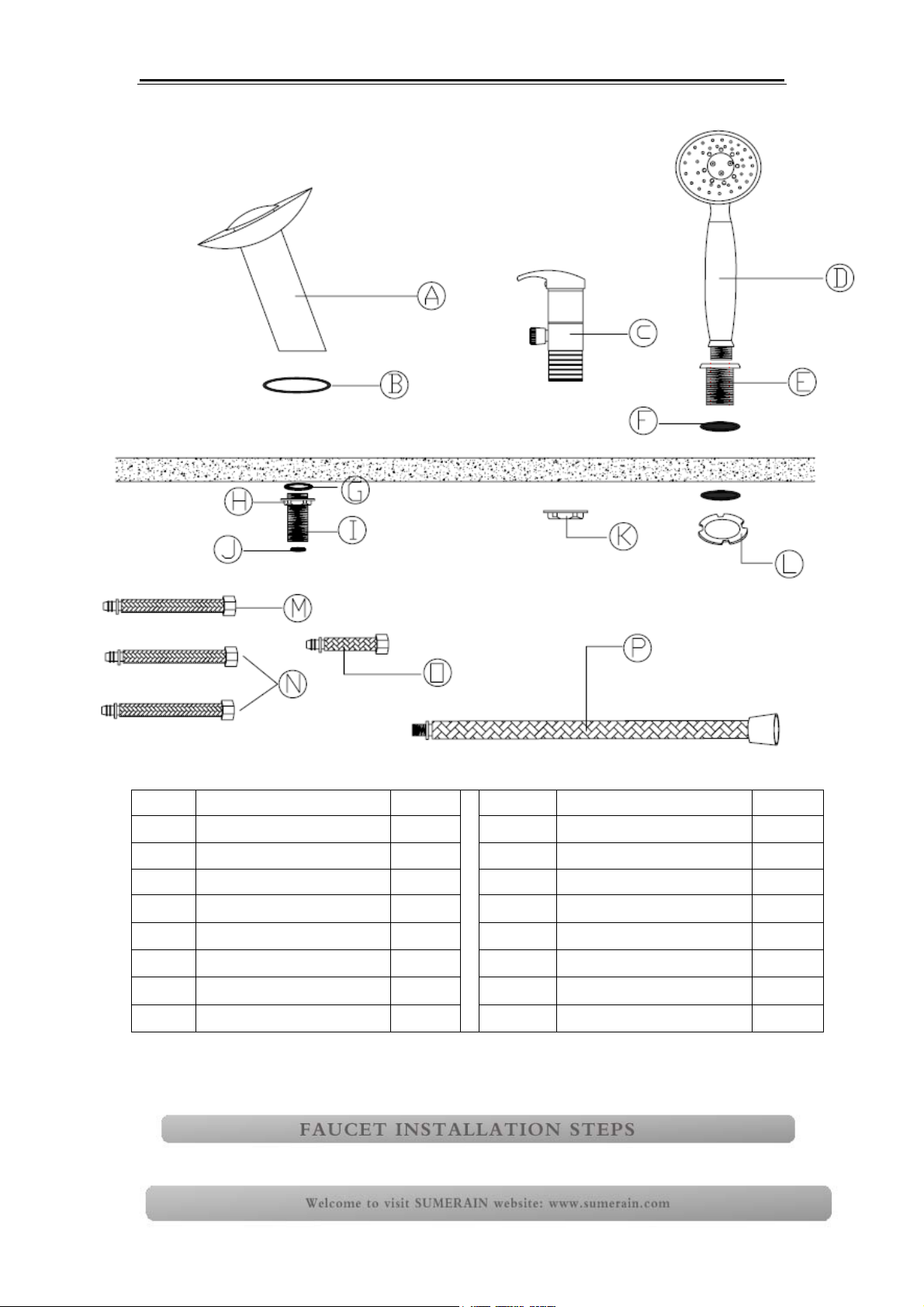

CODE ITEM NAME QTY CODE ITEM NAME QTY
A Faucet Body 1PCS B O-Ring 1PCS
C control valve 1PCS D Hand shower 1PCS
E Sprayer holder 1PCS F Rubber gasket 2PCS
G Rubber washer 1PCS H Shank Nut 1PCS
I Shank 1PCS J Strainer 1PCS
K Lock Nut 1PCS L Plastic nut 1PCS
M G1/2’’ hose 1PCS N G1/2” (G3/8) hose 2PCS
O Extended hose 1PCS P 1.5m Sprayer hose 1PCS
Step 1:

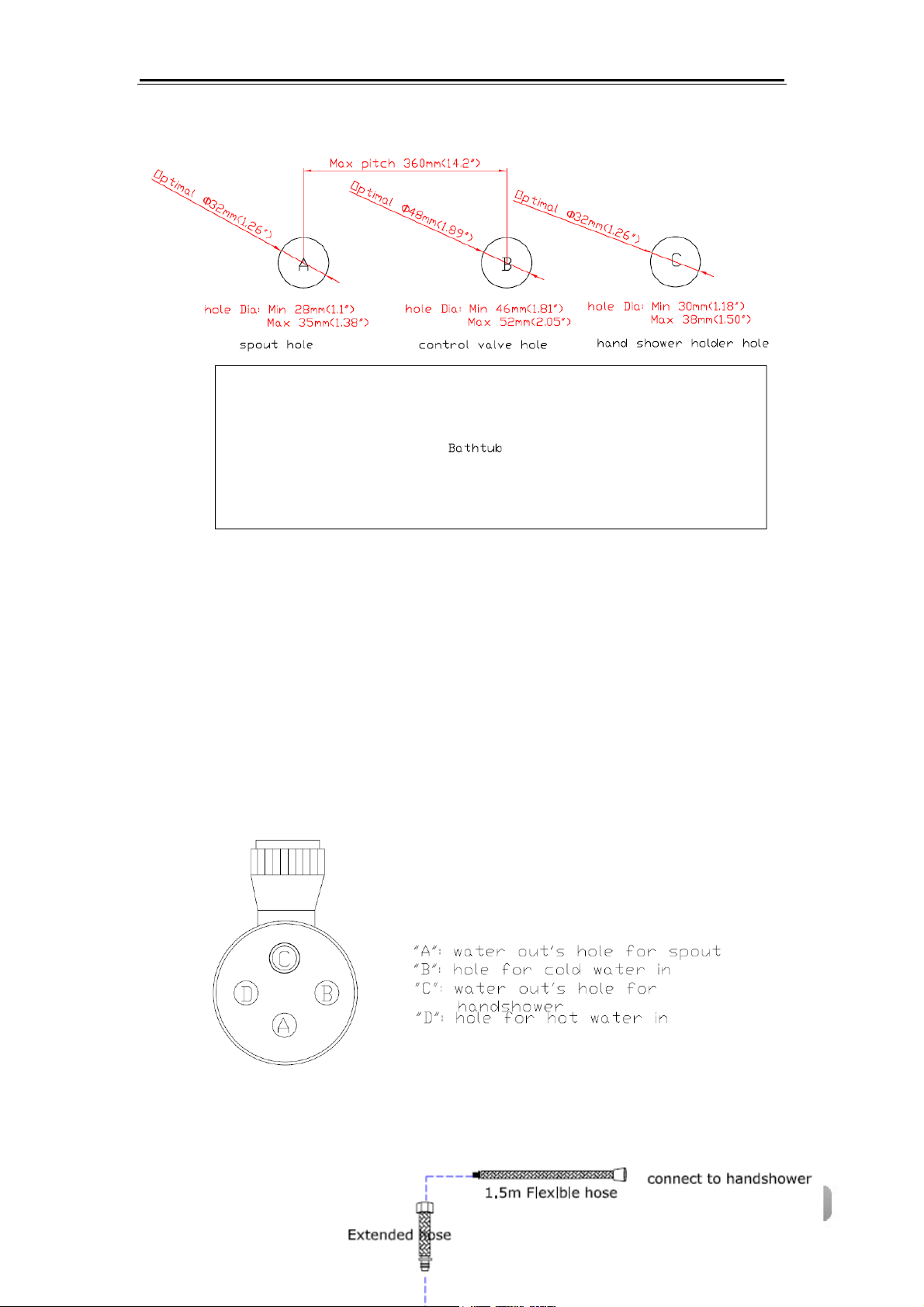

Dig hole “A”, hole “B” and hole “C” according to below dimension.
Step 2:
Screw the Shank ”I” with the faucet body “A” on the bathtub through
the O-Ring ”B” ,screw nut ”H” and Rubber gasket “G” in order to
fasten the faucet body to your bathtub.
Step 3:

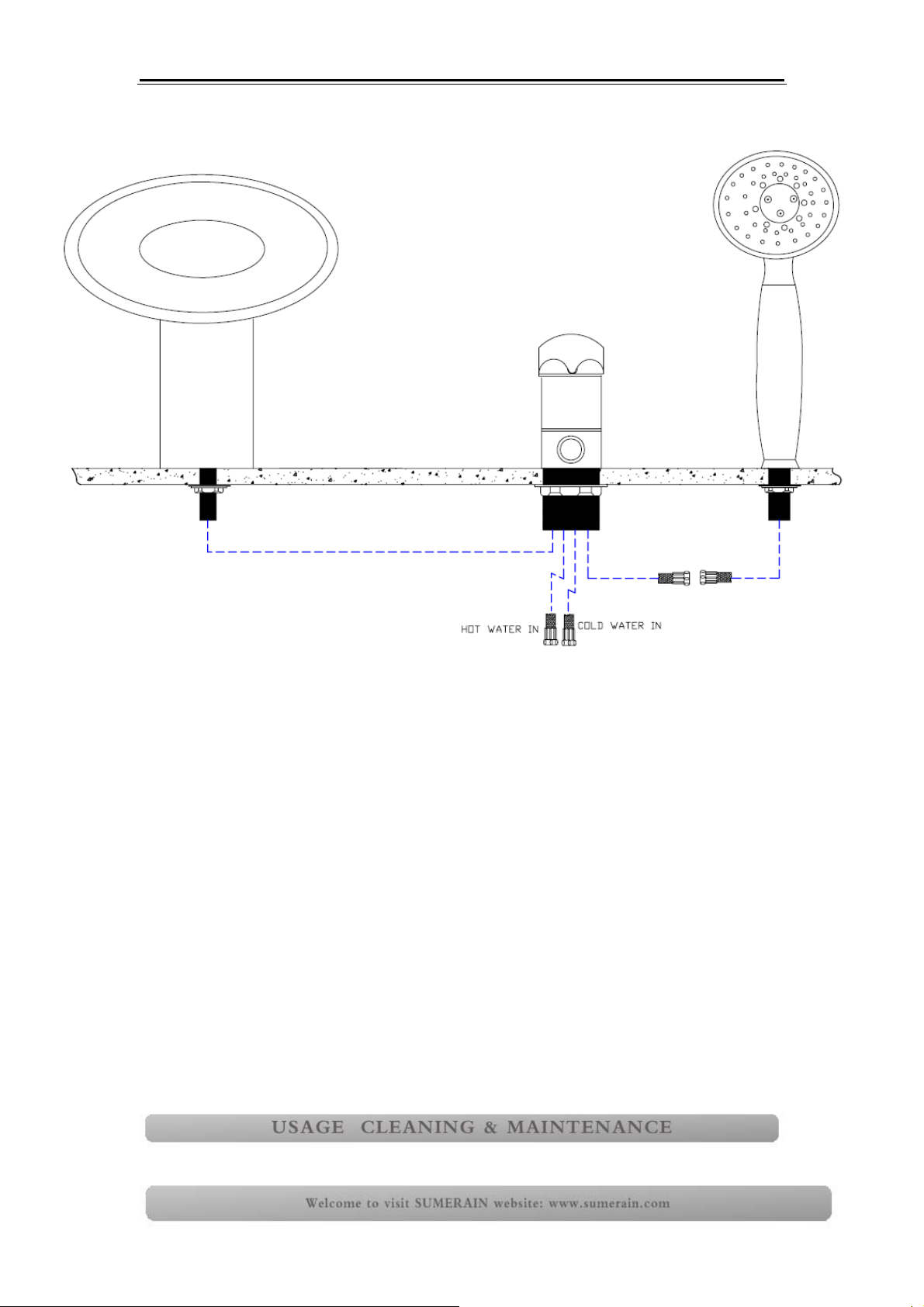

Connect the hoses to the connecter of thermostatic valve base as below
drawing
Bottom view
Step 3:
Through the thermostatic valve body with hoses into the hole “B” of
bathtub and screw it with nut “K”
Step 4:
Put the rubber gasket into sprayer holder and through into the hole “C”
of bathtub and screw it to bathtub with another rubber gasket and
plastic nut “L”.
Step 5:
5.1 Connect thermostatic valve with spout water inlet connecter.
5.2 Connect sprayer hose ” P” to extended hose ”O ” and then
connect to sprayer water inlet connecter
Step 6:
Inspect hot and cool water supply tube, please clean it at first if
necessary.
Step 7:
Connect your house hot water supply tube and cool water supply tube
with thermostatic valve body’s hot water inlet connector and cold
water inlet connector separately.
:
Clean the faucets and sh■owers as and when required. Regular
cleaning can prevent calcification.
Never use cleaning materials contain hydrochloric, formic,■
phosphoric or acetic acid, which may cause considerable damage.
Never use cleaning materials or appliances with an abrasive■effect,
such as unsuitable cleaning powders, sponge pads, or micro fiber
cloths.
After cleaning, rinse thoroughly■the faucet with clean water to
remove any cleaner residue.
■Unscrew and clean the aerator regularly.
TROUBLESHOOTING
Symptom Solution
Faucet leaks from
the handle
A. Tighten the packing nut
B. Replace the "O" ring or packing
The water
pressure is too
low
A. Make sure the water supply valves under the sink are
turned on all the way
B. Clean or replace the aerator
C. Check plumbing system for water pressure problems
The spout sprays
water all over A. Clean or replace the aerator
B. Replace the aerator washer
Water is leaking
from the faucet
under the sink
A. Check the water supply connections to the faucet
B. Inspect the water supply lines or hoses for leaks
Handle is loose
A. Remove the cap and tighten the screw
B. Locate and tighten the hex set screw
C. Remove the handle and check for stripped teeth on the
stem.
LED does not
illuminate A. Increase the water press
B. Clean the strainer of hot and cold water inlet
