Sun StorEdge L25 Tape Library

and Sun StorEdge L100 Tape Library

Installation Guide

Introduction 3

Site Requirements 3

Space Requirements......................................................................................3

Cooling Considerations................................................................................4

Environmental Requirements......................................................................5

Power and Grounding..................................................................................5

Installing a Desktop or Deskside Library 6

Installing a Desktop L25 Library.................................................................6

Installing a Deskside L100 Library .............................................................6

Installing a Rack Mount Library 7

Determining the Position of the Shelves in the Rack ...............................7

Installing the Rack Mount Shelves..............................................................8

Installing the Library in the Rack..............................................................15

Installing Drives in the Library 18

Installing Tape Drives in an L25 ...............................................................18

Installing Tape Drives in an L100 .............................................................19

Sun StorEdge™ L25 Tape Library and Sun StorEdge™ L100 Tape Library Installation Guide

Document 6423015-01, Ver. 1, Rel. 0

June 2002

2 6207947-04fN 20

Preparing and Inserting Tape Cartridges 22

Labeling Tape Cartridges .......................................................................... 22

Setting the Write-Protect Switch............................................................... 23

Placing Cartridges in the Library ............................................................. 25

Connecting the Library to AC Power 29

L25 Power Requirements........................................................................... 29

L100 Power Requirements......................................................................... 32

Connecting the Library to the Host Computer 34

SCSI Cabling Guidelines............................................................................ 34

Terminator Power ....................................................................................... 34

SCSI Cabling Diagrams.............................................................................. 35

Powering Up the Library 36

Disabling Unused Drive Bays 39

Sun StorEdge™ L25 Tape Library and Sun StorEdge™ L100 Tape Library Installation Guide

Document 6423015-01, Ver. 1, Rel. 0

June 2002

Introduction 3

Introduction 0

This document explains how to install a stand-alone Sun StorEdge™

L25 Tape Library or Sun StorEdge™ L100 Tape Library. Hereafter in

this document, these libraries will be referred to as the L25 and the

L100, respectively.

Site Requirements 0

When selecting an installation site for the library, consider the

following requirements:

•Space Requirements

•Cooling Considerations

•Environmental Requirements

•Power and Grounding

Space Requirements 0Table 1 lists the dimensions of the L25 and L100 libraries.

Table 1 Library

Dimensions

Note: To install an L25 or L100 library module in a multiple library

stack, refer to the StackLink Installation Instructions

(PN 6423029).

Caution: Allow at least 5 inches (12.7 cm) of space behind the

library to allow proper ventilation.

L25 L100

Height 6.9 in. (176 mm) 23.4 in. (595 mm)

Width 19 in. (482 mm) 19 in. (482 mm)

Depth 28.6 in. (726 mm) 28.6 in. (726 mm)

Sun StorEdge™ L25 Tape Library and Sun StorEdge™ L100 Tape Library Installation Guide

Document 6423015-01, Ver. 1, Rel. 0

June 2002

4 Site Requirements

Cooling

Considerations 0

Cooling is one of the most important factors to consider when selecting

a location for the library. The L25 and L100 libraries are force-cooled:

air is drawn into the library through vents at the lower edge of the

front bezel and exhausted through vents at the back of the library. To

ensure that the library is adequately ventilated:

• Place the library on a hard, level surface, or in a standard 19-inch

rack.

• If the library will be placed in a rack, the rack must be open or

ventilated so that the air temperature behind the library at the air

outlets is less than 104°F (40°C).

• Verify that no cables obstruct the vents at the back of the library

(see figure 1 and figure 2).

• Verify that nothing obstructs the vents at the lower edge of the

front bezel.

• Allow at least 5 inches (12.7 cm) of space behind the library or rack.

• Do not install the library near a heater or radiator which could

warm the air drawn into the library.

Figure 1 Vent Locations,

L25

Sun StorEdge™ L25 Tape Library and Sun StorEdge™ L100 Tape Library Installation Guide

Document 6423015-01, Ver. 1, Rel. 0

June 2002

Site Requirements 5

Figure 2 Vent Locations,

L100

Environmental

Requirements 0

The installation site (desktop or deskside library) or the interior of the

rack (rack mount library) must meet the following environmental

requirements:

• Humidity: 20% to 80%, non-condensing

• Temperature: 50°F to 104°F (10°C to 40°C)

• Altitude: -100 to +10,000 feet (-30 to +3,000 meters)

Power and

Grounding 0

The L25 and L100 power supplies accept 88 VAC to 264 VAC input

power at 47 Hz to 63 Hz.

The library must be connected to a grounded power outlet. If the

library is mounted in a rack, the rack must also be grounded.

Vents

Sun StorEdge™ L25 Tape Library and Sun StorEdge™ L100 Tape Library Installation Guide

Document 6423015-01, Ver. 1, Rel. 0

June 2002

6 Installing a Desktop or Deskside Library

Installing a Desktop or Deskside Library 0

This section explains how to install a desktop L25 library or a deskside

L100 library. To install a rack mount library, see Installing a Rack

Mount Library.

Installing a Desktop

L25 Library 0

To install a desktop L25:

1Convert the L25 to a desktop unit by performing the procedures

detailed in the Sun StorEdge™ L25 Tape Library Rack Mount to

Desktop Conversion Instructions (PN 6421032).

This document is provided with the Sun StorEdge™ L25 Tape

Library Rack Mount to Desktop Conversion Kit.

2Place the library in the installation location, preferably on a sturdy

desk or tabletop.

3Proceed to Installing Drives in the Library on page 18 to continue

the installation procedure.

Installing a Deskside

L100 Library 0

To install a deskside L100:

1Convert the L100 to a deskside unit by performing the procedures

detailed in the Sun StorEdge™ L100 Tape Library Rack Mount to

Deskside Conversion Instructions (PN 6423027).

This document is provided with the Sun StorEdge™ L100 Tape

Library Rack Mount to Deskside Conversion Kit.

2Place the library in the installation location.

3Proceed to Installing Drives in the Library on page 18 to continue

the installation procedure.

Note: The procedures in this section assume that you have already

unpacked the library. If you have not, do so now, referring to

the Sun StorEdge™ L25 Tape Library Unpacking Instructions

(PN 6421029) or the Sun StorEdge™ L100 Tape Library

Unpacking Instructions (PN 6423014).

Sun StorEdge™ L25 Tape Library and Sun StorEdge™ L100 Tape Library Installation Guide

Document 6423015-01, Ver. 1, Rel. 0

June 2002

Installing a Rack Mount Library 7

Installing a Rack Mount Library 0

This section explains how to install an L25 or L100 library in a

standard 19-inch rack.

Determining the

Position of the

Shelves in the Rack 0

Before starting the rack mount installation:

1Determine the proper position of the shelves in the rack:

• An L25 library uses 4U of vertical space.

• An L100 library uses 13.5U of vertical space.

• The StackLink mounting hardware uses 1U of vertical space at

the top of the rack, and either 1U or .5U at the bottom of the

rack (see the StackLink Installation Instructions, PN 6423029, for

more information).

2Use a pencil to mark the desired shelf position on the rack rails.

Note: The procedures in this section assume that you have already

unpacked the library. If you have not, do so now, referring to

the Sun StorEdge™ L25 Tape Library Unpacking Instructions

(PN 6421029) or the Sun StorEdge™ L100 Tape Library

Unpacking Instructions (PN 6423014).

Caution: Take rack stability into account when determining

where to place the library in the rack.

Note: 1U equals 1.75 inches (44.45 millimeters).

Sun StorEdge™ L25 Tape Library and Sun StorEdge™ L100 Tape Library Installation Guide

Document 6423015-01, Ver. 1, Rel. 0

June 2002

8 Installing a Rack Mount Library

Installing the Rack

Mount Shelves 0

This section explains how to install the rack mount shelves. You will

need a no. 1 POZIDRIV®screwdriver for this procedure.

Checking the Contents of the Rack Mount Kit 0

Table 2 lists the contents of the rack mount kit.

Table 2 Rack Mount Kit

Contents

Installing the Shelves in a Half U Position 0

To install the rack mount shelves in a half U position:

1Position the left shelf in the rack, aligning the bottom of the shelf

with the pencil marking you made in step 2 on page 7.

2Use six screws (PN YS42086) and washers (PN 217406) to secure

the shelf to the rack rails as shown in figure 3.

3Repeat steps 1and 2to install the right shelf.

Part No. Description Qty.

217395 Shelf, right 1

217396 Shelf, left 1

217397 Front shelf clamp 4

217405 Clamp strip 2

217406 Clamp washer 12

YS40986 M4 x 10 countersink screw 8

YS42086 No. 10 UNF x 3/8" countersink screw 12

Note: In half U position, the bottom of the rack mount shelf lines

up with the middle of a U.

Note: Do not tighten these screws fully; you will finish

tightening them later in this procedure.

Sun StorEdge™ L25 Tape Library and Sun StorEdge™ L100 Tape Library Installation Guide

Document 6423015-01, Ver. 1, Rel. 0

June 2002

Installing a Rack Mount Library 9

Figure 3 Securing the

Shelf in the Half Position

4Install the front shelf clamps (see figure 4):

aPosition a front shelf clamp (PN 217397) on the front left rack

rail.

bSecure the shelf clamp to the rack rail using two countersink

screws (PN YS40986).

cRepeat these steps to install a shelf clamp on the front right

rack rail.

Sun StorEdge™ L25 Tape Library and Sun StorEdge™ L100 Tape Library Installation Guide

Document 6423015-01, Ver. 1, Rel. 0

June 2002

10 Installing a Rack Mount Library

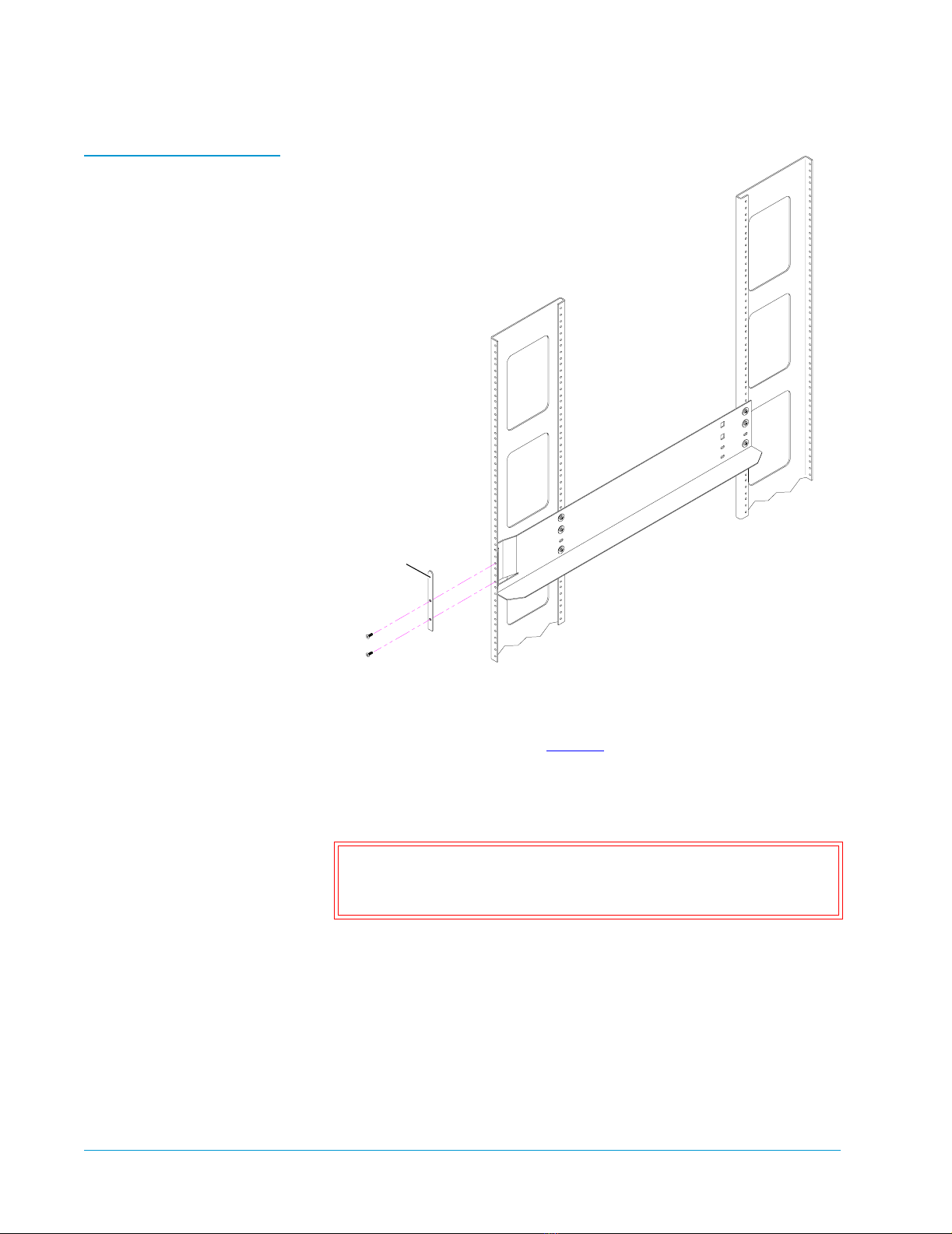

Figure 4 Installing the

Front Shelf Clamps

5Fully tighten the screws securing the right and left shelves to the

rack rails.

6Install the clamp strips (see figure 5):

aPosition a front shelf clamp (PN 217397) at the front of the front

left rack rail, with the bottom of the clamp approximately 9U

above the bottom of the rack mount shelf.

Caution: The top of the front shelf clamp must be no more

than 22.75 in. (580 mm) above the bottom of the rack

mount shelf.

Front

shelf clamp

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Sun Microsystems Magazzinaggio

Sun Microsystems

Sun Microsystems StorageTek SL500 Manuale utente

Sun Microsystems

Sun Microsystems StorageTek 9985V Manuale utente

Sun Microsystems

Sun Microsystems StorEdge 3900 Series Istruzioni operative

Sun Microsystems

Sun Microsystems STOREDGE A5000 Manuale utente

Sun Microsystems

Sun Microsystems StorageTek T10000 Manuale

Sun Microsystems

Sun Microsystems Sun StorEdge 5310 NAS Istruzioni utente

Sun Microsystems

Sun Microsystems StorageTek T9840 Istruzioni per il montaggio

Sun Microsystems

Sun Microsystems StorageTek 2500 Series Come usare

Sun Microsystems

Sun Microsystems Sun Fire B1600 Administration Manuale elenco delle parti

Sun Microsystems

Sun Microsystems StorageTek SL48 Manuale utente

Sun Microsystems

Sun Microsystems Sun Fire E25K Manuale utente

Sun Microsystems

Sun Microsystems StorEdge Series Manuale utente

Sun Microsystems

Sun Microsystems StorEdge N8600 Filer Manuale di installazione e funzionamento

Sun Microsystems

Sun Microsystems StorageTek 6140 Manuale utente

Sun Microsystems

Sun Microsystems StorEdge 6130 Manuale utente

Sun Microsystems

Sun Microsystems StorEdge D2 Guida all'installazione

Sun Microsystems

Sun Microsystems StorEdge MultiPack Series Manuale utente

Sun Microsystems

Sun Microsystems Sun StorEdge 5210 NAS Manuale di servizio

Sun Microsystems

Sun Microsystems Sun Storage J4200 Manuale elenco delle parti

Sun Microsystems

Sun Microsystems StorEdge T3+ Manuale utente

Sun Microsystems

Sun Microsystems Ultra Enterprise 6000 Systems Istruzioni operative

Sun Microsystems

Sun Microsystems Sun StorEdge T3 Manuale utente

Sun Microsystems

Sun Microsystems STOREDGE A5000 Manuale

Sun Microsystems

Sun Microsystems Sun StorageTek T9840D Manuale utente

Manuali Magazzinaggio popolari di altre marche

QNAP

QNAP TS 32PXU Series Manuale utente

LaCie

LaCie RUGGED RAID Manuale utente

Freecom

Freecom CLS DOCK Manuale utente

PNY

PNY Attache P-FD64MBATT3 Manuale utente

HP StorageWorks MSL2024 Manuale utente

OLT

OLT 6x6 Maximizer Manuale utente

Transcend

Transcend JetFlash 160 Manuale utente

LaCie

LaCie RUGGED MINI Manuale utente

Thunderbolt

Thunderbolt 600 Manuale utente

Panasonic

Panasonic LB-DH8 series Manuale

Intel

Intel RAID High Availability Manuale utente

LaCie

LaCie 12big Thunderbolt 3 Manuale utente

Spectra Logic

Spectra Logic T-Series Spectra T50e Manuale utente

Panasonic

Panasonic LKM-F931-1 Manuale utente

Tabernus

Tabernus Enterprise Erase E2400 Manuale utente

Rocstor

Rocstor COMMANDER 3F series Manuale utente

HP P9000 Manuale utente

Western Digital

Western Digital Ultrastar Data60 Manuale utente

Sun Microsystems storedge L25 Manuale utente

Manuali Magazzinaggio popolari di altre marche
