EM3600 Issue: A Page 1 of 16

SERVICE MANUAL

EM3600

Café Espresso

ISSUE: A

DATE: 7 April 2005

EM3600 Issue: A Page 2 of 16

SPARE PARTS LIST

Note: Not all parts are available as spare parts. Please check price list.

Item

Description

Qty

Supplier’s Code

Sunbeam Part

Number

001

Tank Cover

C1819-19A

EM38107

002

Water Tank

Water tank

003

VALVE RING

51160-04

assembly

004

DOWN TANK

(includes parts 1-4)

005

SPRING %%C0.6 外11.2*L14

38143-01-H

006

VALVE

12143-06-B

007

pipe_left

C1819-05A

008

pipe_right

C1819-04A

009

pipe_washey

C1819-24A

010

wan_plate

C1819-06A

011

FRONT HOUSING

C1819-01A

012

knob_ring

C1819-15A

013

OPERATING DIAL

C1819-14A

EM38103

014

button_seat

C1819-17A

015

LEFT HOUSING

C1819-03A

016

RIGHT HOUSING

C1819-02A

017

FRONT HOUSING COVER

C1819-12A

018

BACK HOUSING COVER

C1819-11A

019

Front_cover

C1819-08A

020

TOP-CONNECTOR

021

wan_plate

C1819-06A

022

PACKING

51143-03

023

ELBOW CONNECTOR

121H4-06-B

024

STRAIN RELIEF

12301-05

025

base_cover

C1819-23A

026

FEET

511H2-04-B

027

tray_base

C1819-21A

028

PAINTED DRIP TRAY

C1819-22A

EM36101

029

steam_block

C1819-16A

030

FLOAT –DISCONTINUED

121H0-12-R

031

DRIP TRAY GRILL

C1819-09A

EM38104

032

Switch

EM36102

033

ROCKER SWITCH

24000-01-

R13208CB1

EM36103

034

LENS (R)

11219-02-O

035

filter_holder

C1819-18A

036

UPPER HEATING PLATE

32143-01-A-2

037

STEAM RING

511H2-07-R

038

BOTTOM HEATING PLATE

32143-02-B2

039

HEATING ELEMENT

27143-01-B

040

WATER OUTLET TUBE

511H2-06-R

041

DRIP PLATE

32143-06-3A2

042

SUPPORT RACK

C1819-07A

043

BREW HEAD SEAL

51143-07-4

EM38108

EM3600 Issue: A Page 3 of 16

044

STEAM FILTER

381H2-07-H

045

BREW HEAD LOCK

19143-04-1104

EM38109

046

PACKING

51143-01-3

047

DIRECTIONAL VALVE A

94143-01-A-2

048

DIRECTIONAL VALVE B

94143-01-B-3

049

SLIDER

94143-02-2

050

DIRECTIONAL VALVE

30143-01

051

DIRCTIONAL FIXING PLATE

32143-04

052

DIRECTIONAL SHAFT

191H2-03-2

053

SWITCH FIXING PLATE

38143-02

054

SWITCH SEAT

19143-03

055

MICRO SWITCH

24000-VMN-

15L00D0B

056

STEAM SOCKET

301H2-03

057

O-RING

51133-03-2

058

STEAM LEVER

301H2-05

059

SILICONE CAP

51133-01-B

060

CONNECTOR

12112-11

061

SILICONE TUBE

51000-03(35mm)

062

SILICONE TUBE

51000-03(40mm)

063

DIFFUSER

12143-14-2

064

DIFFUSER COVER

12143-15-2

065

SILICONE TUBE

51000-03(60mm)

066

511HE09

067

PUMP SOCKET

30143-04-3

068

SOCKET NUT

30143-04-2

069

SOCKET

19143-11-H-M

070

SPRING NIP

381H109

071

BRESS SHEATH

301HE-04B

072

381P2-10

共用1501

073

O-RLNG

矽膠 70度

共用1123

074

PUMP SOCKET

C1819-25A

075

O-RLNG

矽膠 70度

共用151

076

PUMP

28000-11-ep5-

tuv5

077

THERMAT PROTECTOR

E802-068010A

078

PACKING

521HA-01-B

079

ELBOW CONNECTOR

FIXING PLATE

080

RIVET

32209-09-2

081

SILICONE TUBE

51000-03-05-9

082

TUBE

38143-09

083

111H4-04

084

PCB

085

FILTER BAFFLE

121H2-04-B

086

FILTER HOLDER

321A5-09-6

EM3600 Issue: A Page 4 of 16

087

Filter Hander

121A5-09-B

088

FILTER HANDLE SLIDER

121H2-18-B

089

Handle Cover

090

Filter A

381H2-12-A-2

091

Filter B

38143-12-2

092

SCREW

33000-112-5*7

093

SCREW

33000-114-4*10

094

SCREW

33000-05-3*6

095

SPRING WASHER

35000-04-1

096

SCREW

33000-01-4*6

097

FUSE HOLDER

31103-06

098

SCREW

33000-03-5*30

099

SPRING WASHER

35000-04-3-1

100

NUT

34000-03-3

101

THERMOSTAT

20000-01-98S

102

THERMOSTAT

20000-01-140S-2

103

NUT

33000-97-8*8

104

SCREW

33000-04-5*20

105

SCREW

33000-16-4*18

106

WASHER

35000-0308-

4090C

107

SCREW

33000-44-3*10

108

SCREW

109

SCREW

111

34000-05-1

112

SCREW

33000-44-3*15

113

SCREW

33000-44-3*10-1

114

SCREW

33000-64-3*8

115

SCREW

33000-44-3*12

116

WASHER

35000-0308-

3011C

117

SCREW

33000-14-3*10

118

SCREW

33000-64-3*6

119

SCREW

33000-44-3*10-01

120

POWER CORD

F1024A02

121

WIRE JOINTS

36000-14

122

123

124

SCREW

33000-55-3*10

125

SCREW

33000-55-3*12

126

SCREW

33000-01-4*6

PORCELAIN CUPS

EM38101

PORCELAIN SAUCERS

EM38102

1 CUP FILTER

EM58103

2 CUP FILTER

EM58104

FILTER HANDLE ASSEMBLY

EM38112

EM3600 Issue: A Page 5 of 16

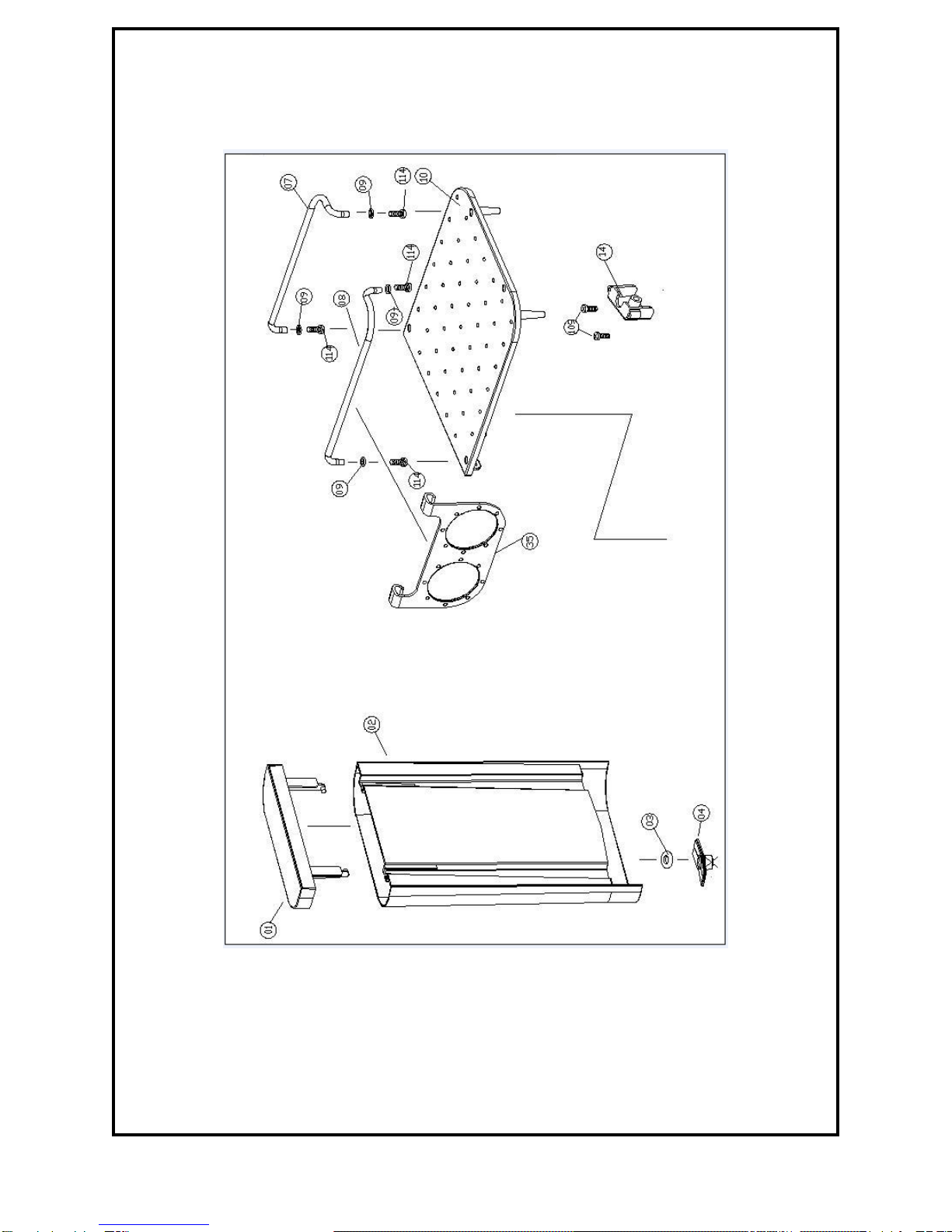

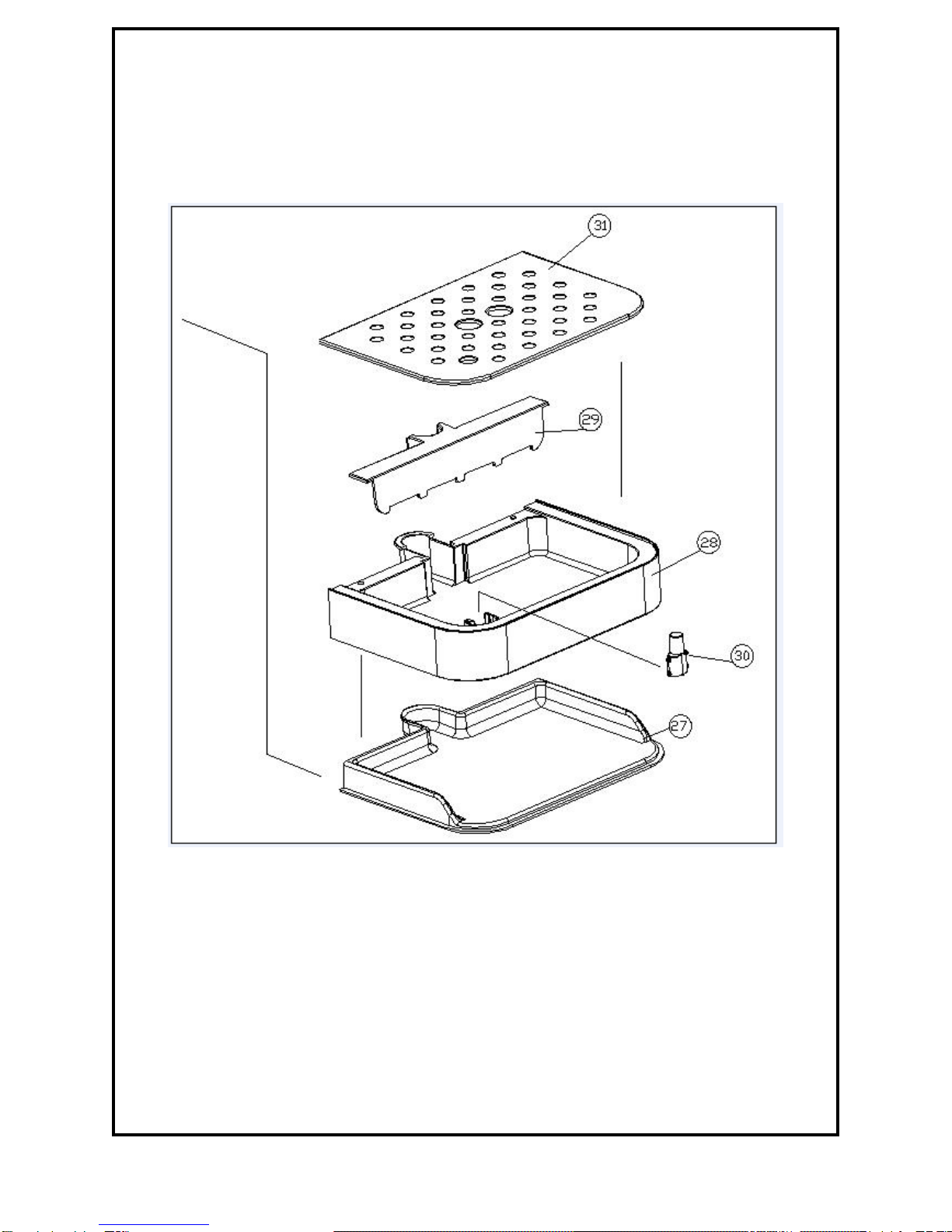

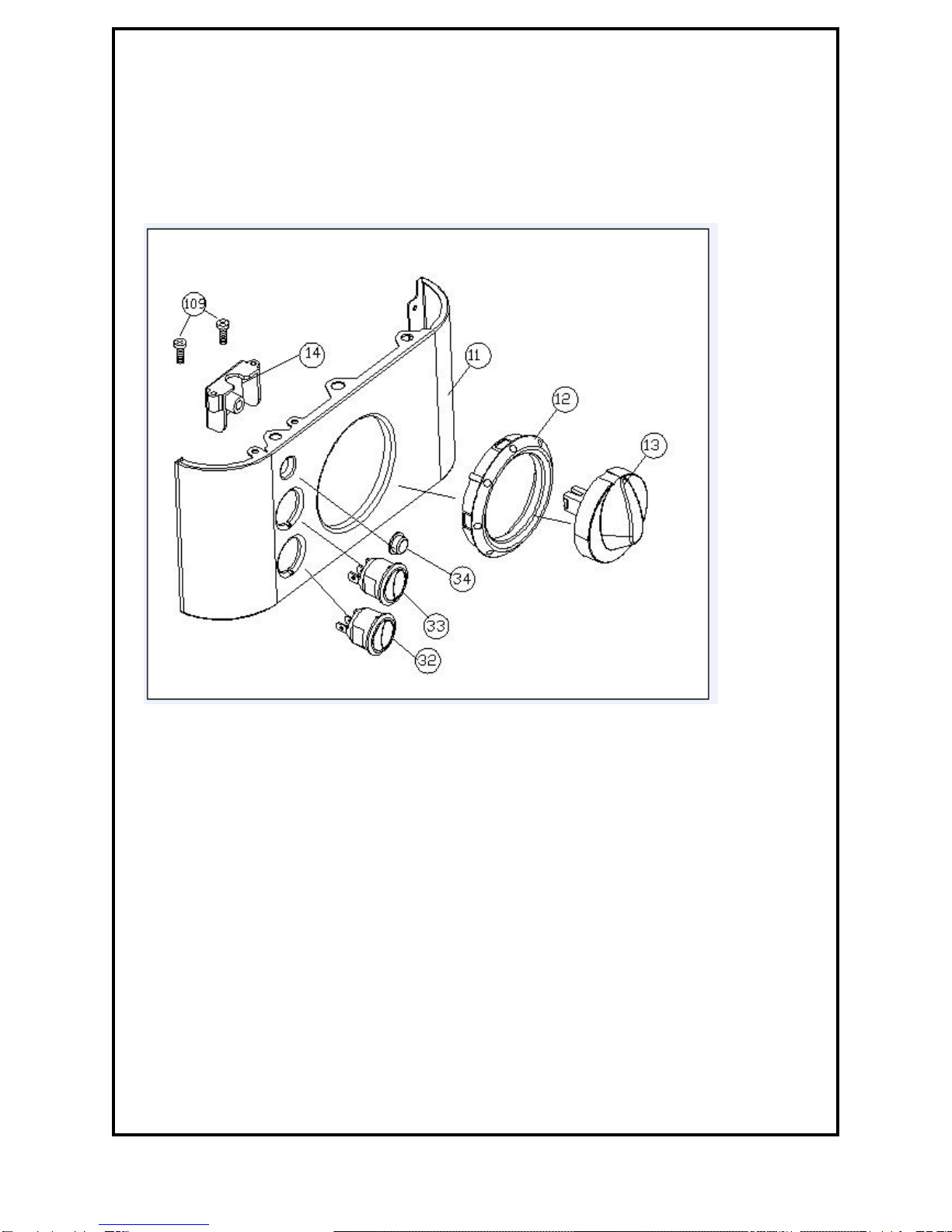

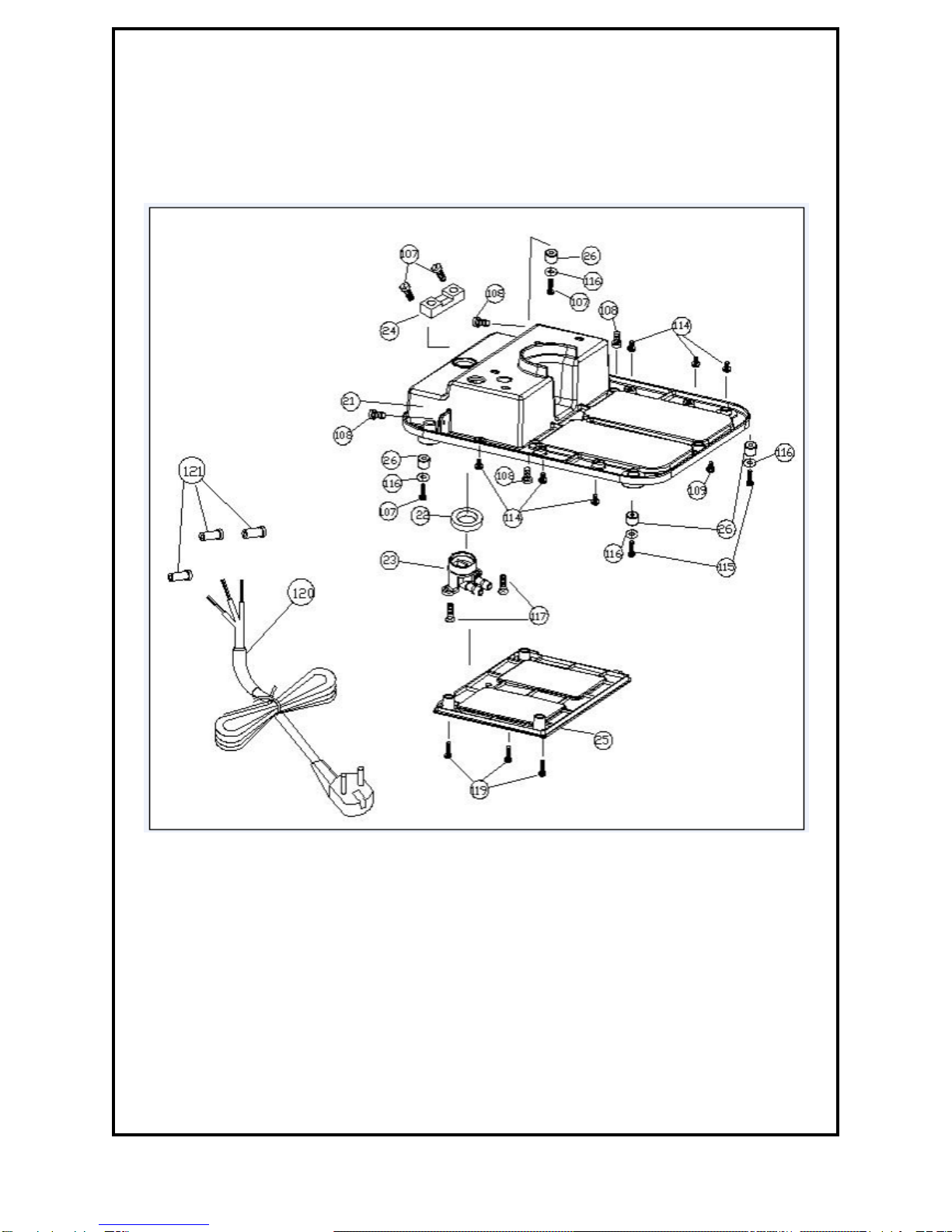

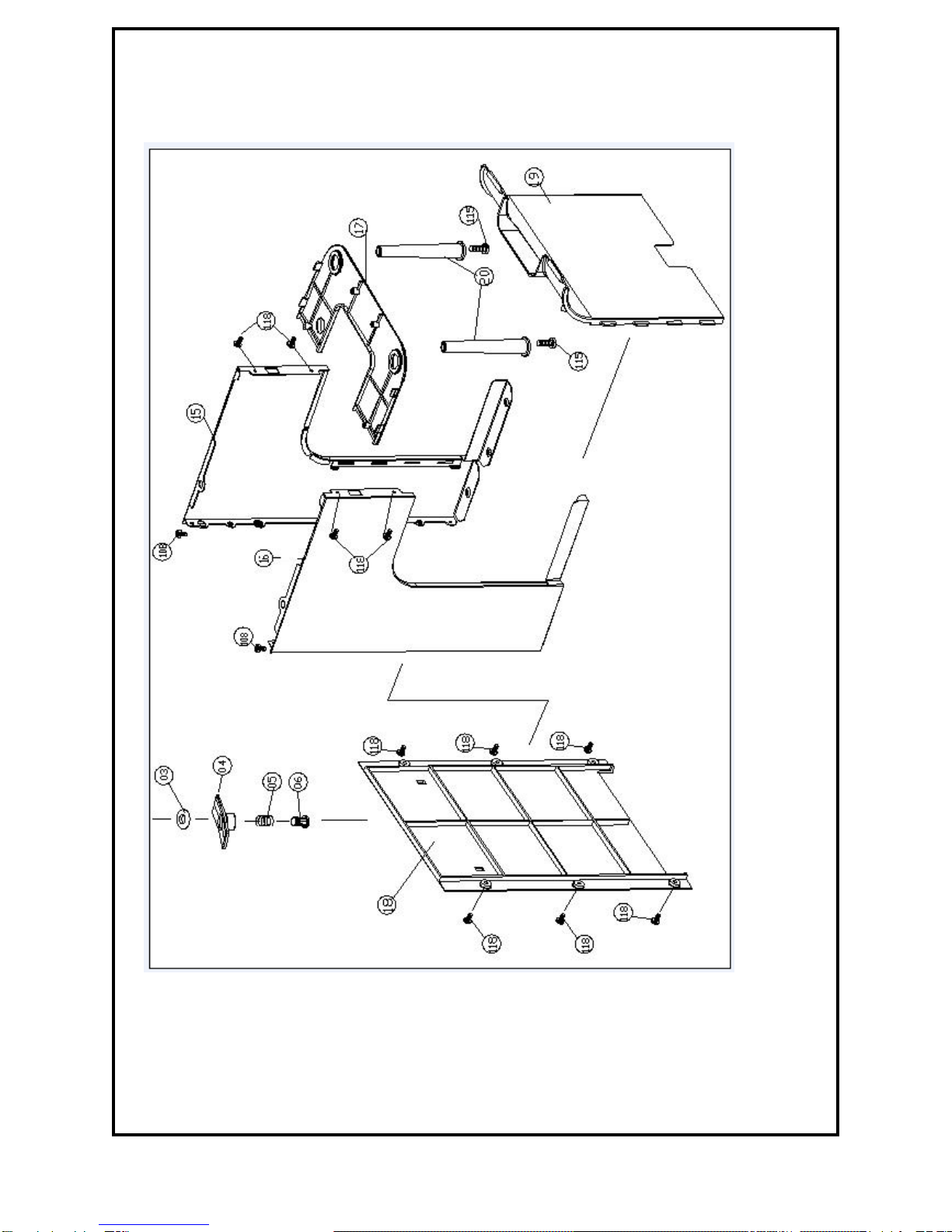

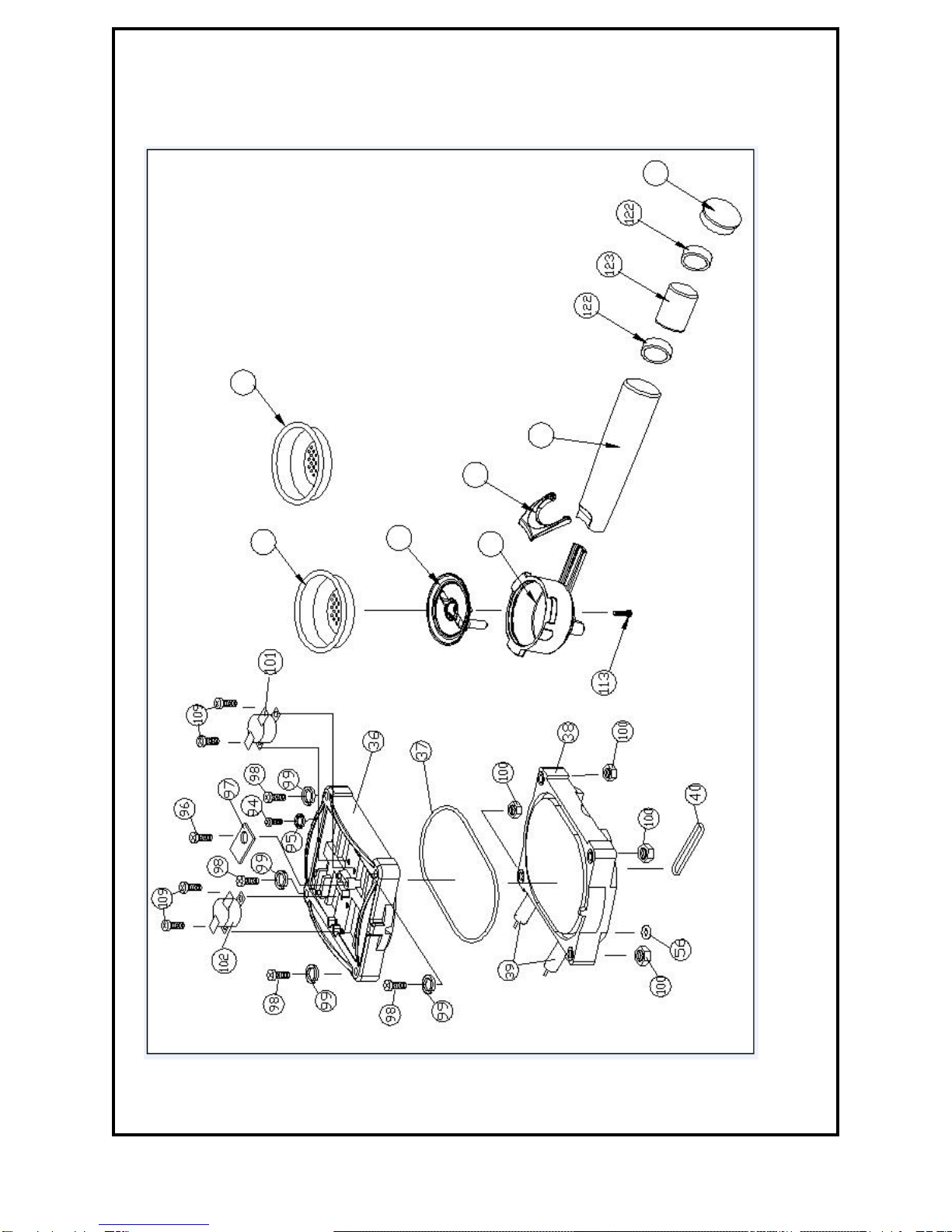

EXPLODED VIEW DRAWING

EM3600 Issue: A Page 6 of 16

EM3600 Issue: A Page 7 of 16

EM3600 Issue: A Page 8 of 16

EM3600 Issue: A Page 9 of 16

EM3600 Issue: A Page 10 of 16
