SunBriteTV Veranda SB-4374UHD-BL Manuale utente
Veranda Outdoor Television
Quick Start Guide SB-4374UHD-BL, SB-5574UHD-BL, SB-6574UHD-BL
Planning the Location
Place the Veranda only in a fully shaded area.
Sources/What to Watch
• Signals can be sent from any source using
an HDMI, Component, or digital antenna
connection.
• Refer to the operator’s manual for detailed
instructions.
Weather Proong
ETHERNET
RJ45 terminal for
service only
DIGITAL
AUDIO OUT
terminal
ANALOG
AUDIO OUT
terminal
ETHERNET OPTICAL COMPONENT/VIDEO DTV/TV
Y/Y Pb/Cb Pr/Cr L AUDIO RL R CABLE/AMTENNA
(10/100)
COMPONENT/
VIDEO IN terminal* 4
USB 1
Rear IR
USB 2
HDMI 1 terminal
HDMI 2 terminal
HDMI 3 terminal
ARC: Audio Return Channel
HDMI 4 terminal
MHL: Mobile High-Definition Link
CABLE/ANTENNA IN
HDMI HDMI HDMI HDMI
USB USB
• After all connections are made, all wires
must exit the media bay from the bottom.
• Up to 5 wires can exit the media bay while
still maintaining the weatherproof feature.
Note: Leave a drip loop as the wires enter the
compartment.
• Tighten the thumb screws completely to
weatherproof the TV.
Wires
Drip Loop
Media Bay
Thumb Screws
SETUP
• Use the TV remote to access the setup menu and run initial installation.
• Select Language, Location and Time Zone, and default TV settings for the TV location.
• Select the corresponding input source and follow on screen instructions to complete
setup.
• Refer to the operator’s manual for detailed instructions. Press “Menu”on the remote
control to access the internal operation manual or visit the product support page on
www.snapav.com or www.sunbritetv.com.
CONTROL

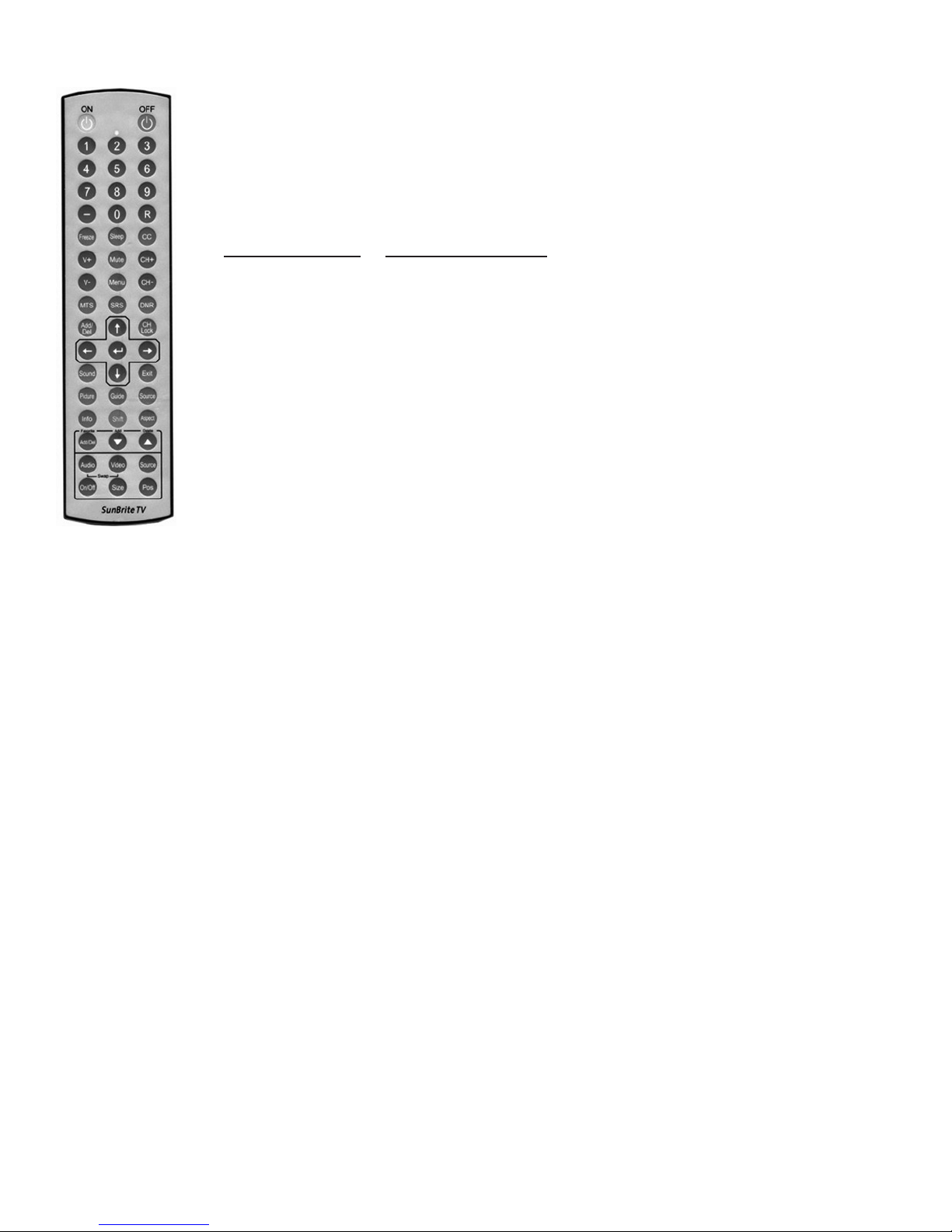

The Veranda can be controlled via the included remote or universal remote.
IR codes are available at: https://www.sunbritetv.com/support/product-support/product-faq.
© 2016 SunBriteTV Rev:161219-0250
