Sune Technology QHLI-LVTX-5CH-ECLIPSE Manuale utente

Installation Manual

HDMI Interface for Mitsubishi Eclipse

Compatibility: Eclipse/Outlander/Pajero/ASX/

Eclipse cross 2016~

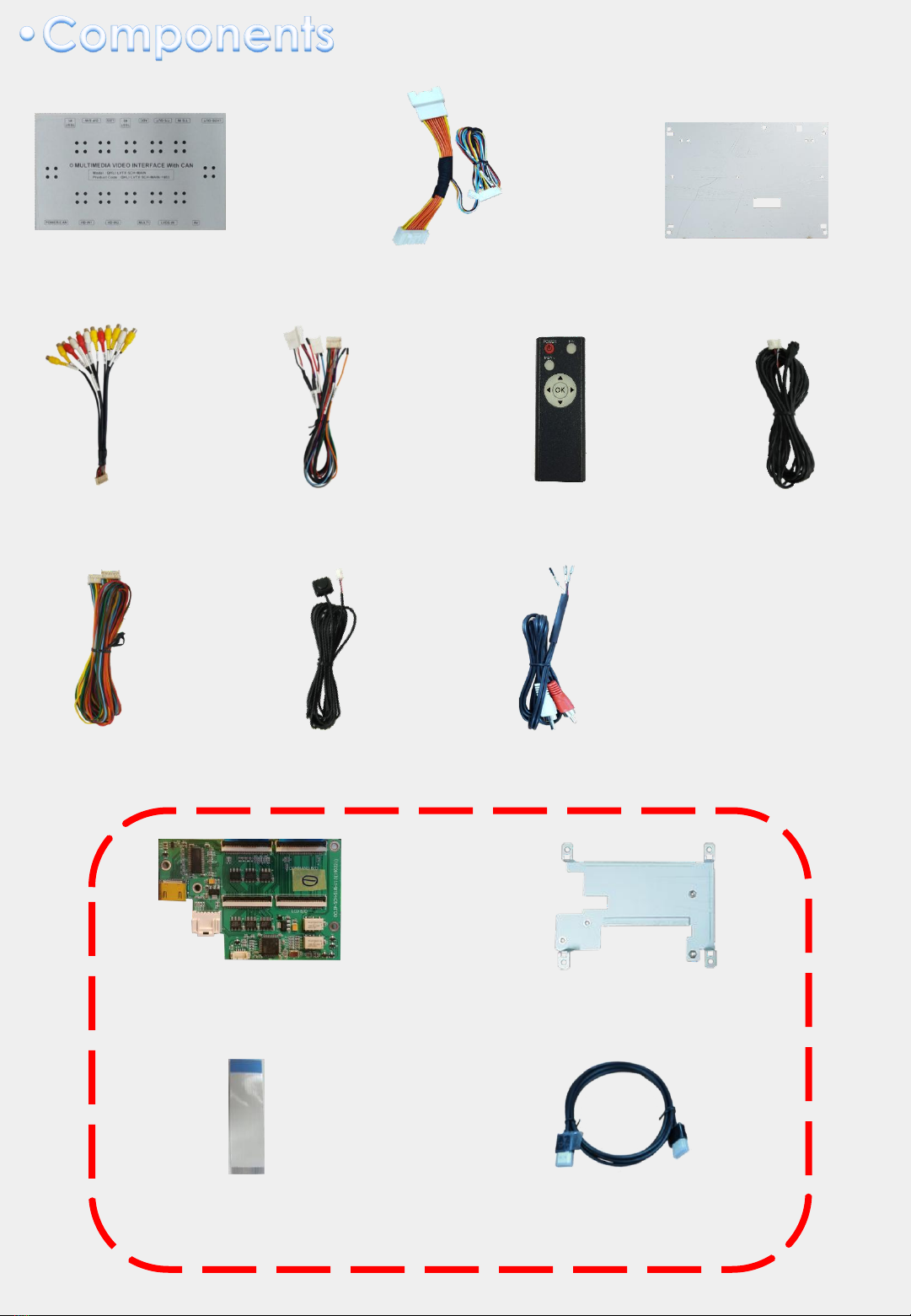

Components: Interface*1

Sub Board*1 and Ex Board*1

Interface Input / Output specification:

Input: HDMI*2

LVDS*1

A/V*2

CVBS(Rear camera)*1

CVBS(Front camera)*1

Output: To LCD*1

Power Spec:

Input Power: 8VDC ~ 18VDC

Consumption: 5WATT

Switch input mode:

1. External video sources skip function: Able to control input videos on and off

via Dip switches

2. Able to switch videos via the remote and button switch

3. Able to detect the rear view camera by CAN

1. High-resolution display through HDMI input

2. Control EXT devices(DVD/DTV) via Multi Media Touch GUI

3. Adjustable screen position of external device

4. Mode switching with OEM button

5. Power output for rear camera drive

6. Dynamic PAS(parking assistance system)

7. Able to use OEM Touch and support multi touch with our QROI2-RGB Android

Navigation Box

MAIN BOARD

QCPASS1347

POWER CABLE

HPOWER0229

AV CABLE

HAVCAB0056

MULTI CABLE

HARETC0240

REMOTE CONTROL

REMOTE0001

IR CABLE 4P

HIRCAB0002

EX CABLE

HARETC0249

S/W CABLE

HARETC0001

ECLIP-5CH-SUB

QCPASS1342

FFC CABLE

FFCABL0017

HDMI Cable

HARETC0067

ECLIPSE BD SUPP BRKT

PRESET0870

ECLIPSE BACK COVER

PRESET0869

AUX CABLE

HARETC0316

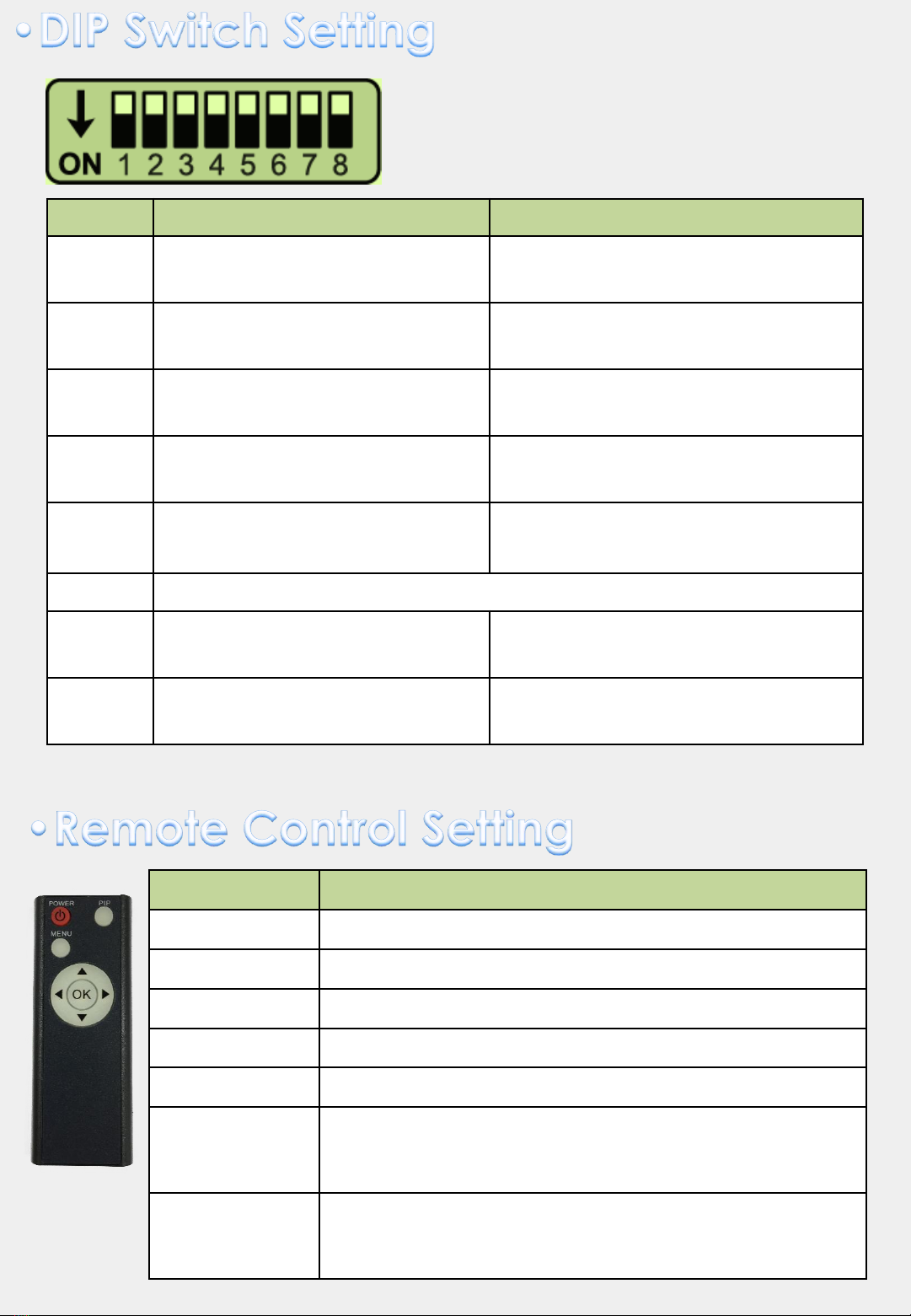

FUNCTION

Dip S/W SELECT

LVDS

OFF : LVDS MODE

ON : LVDS MODE SKIP

HDMI1

OFF : HDMI1 MODE

ON : HDMI1 MODE SKIP

AV1

OFF : AV1 MODE

ON : AV1 MODE SKIP

AV2

OFF : AV2 MODE

ON : AV2 MODE SKIP

FRONT CAMERA

OFF: EXT FRONT CAMERA

ON: OEM FRONT CAMERA

N/C

REAR CAMERA SELECT

OFF : OEM REAR CAMERA MODE

ON : EXT REAR CAMERA MODE

CAN IN/OUT MODE

OFF : CAN IN/OUT MODE

ON : CAN IN/OUT MODE SKIP

※ON : DOWN / OFF : UP

※Please make sure to disconnect the power cable of the interface and reconnect

the power cable again to apply the dip switch setting whenever changing DIP switch.

Key

FUNCTION

POWER & PIP N/C

MENU Activating OSD menu

OK Making a selection, changing image display

▲Moving upward

▼Moving downward

◀

Moving leftward

(If you press this button 2 seconds long, you can

access the factory mode)

▶

Moving rightward

(If you press this button 2 seconds long, you can reset

all the data about user environment)

To Sub board

(R)

(L)

(R)

(L)

(R)

(L)

A/V CABLE

LVDS NAVI BOX

ADC No Use

Plug & Play

harness

※Main IF + Sub board Connection

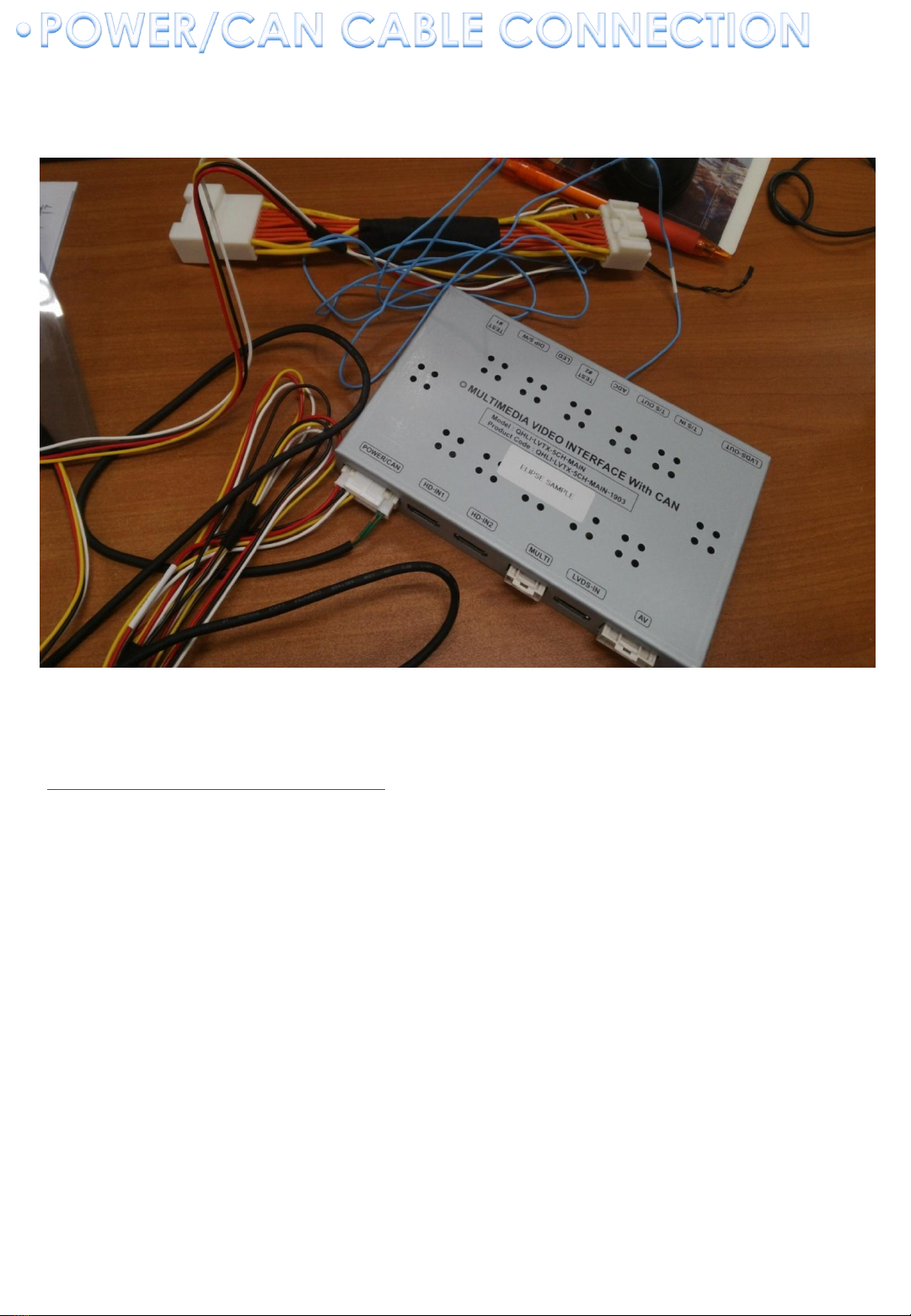

※Power / CAN J BY J cable Connection

One pair of CAN H / L wires are added on the cable, but please do not use it.

※Power / CAN cable connection

On this J by J cable, you can find ADC cable. Please plug it to ADC port on the

Interface.

①You can use End call button on the steering wheel for mode change

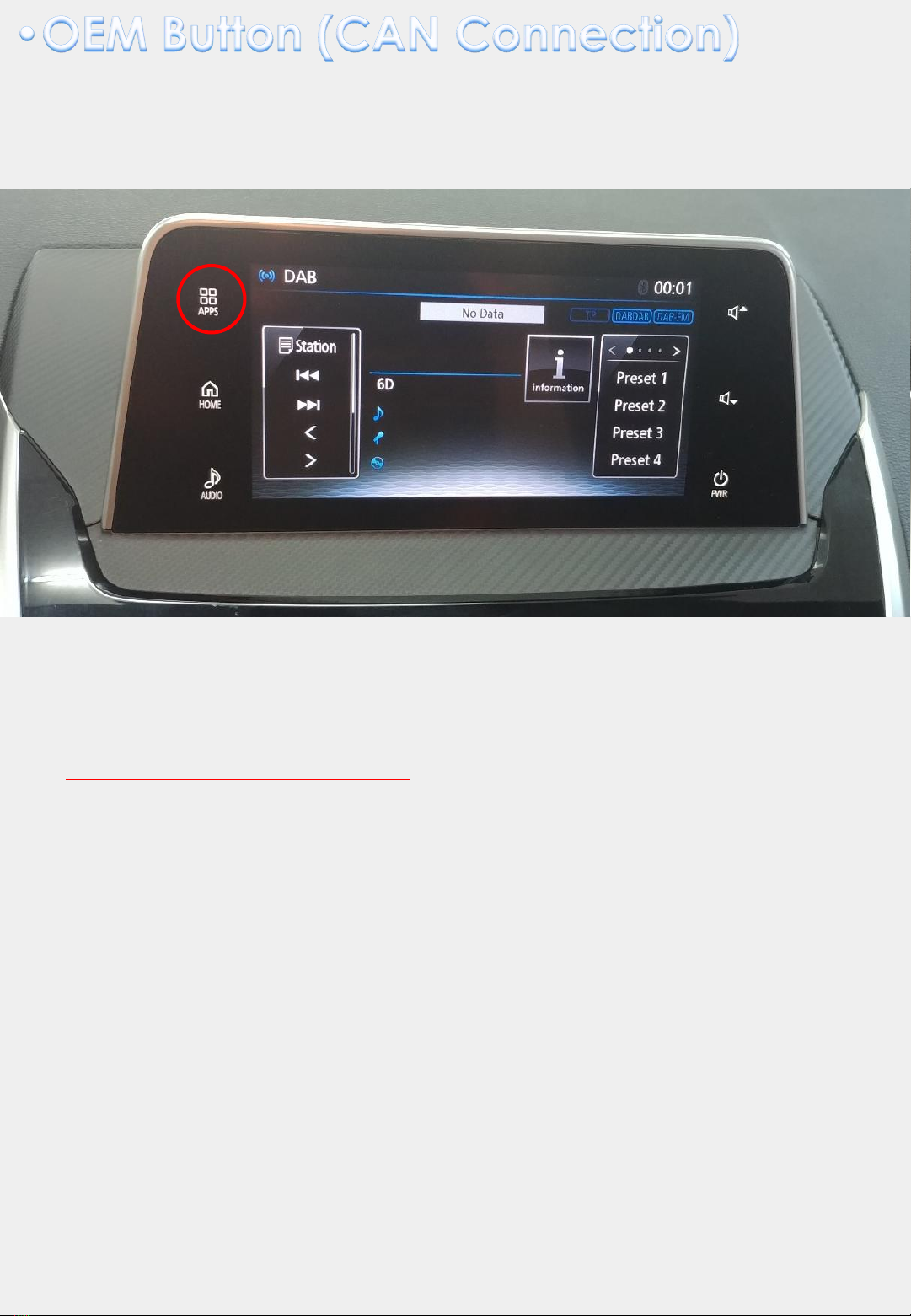

②Mode Change by OEM Button : App button on the monitor

Please disassemble the monitor as above

picture.

Please disconnect black OEM FPC cable

and connect supplied FPC cable as

above.

Please install supplied sub board

bracket as above.

Please connect another side of supplied FPC cable

to supplied sub board and install supplied sub board

above the bracket as above.

Please connect another side of black

OEM FPC cable as above.

Please connect supplied HDMI cable and

EX cable to sub board as above.

Please assemble supplied back cover

bracket as above.

It will be shown as above after assembly.

①②

③④

⑤⑥

⑦⑧

※Mode switch via long press on End Call button

After connecting ADC cable, it will be able to use the end call button for mode

switch.

※Use APPS button for mode switch

After connecting CAN J BY J cable, it will be able to use the APPS button for

mode switch.
