Sungale Cloud Frame Manuale utente
MODEL: CPF716
Cloud Frame
For ongoing product improvement, this manual issubject to modification without prior notice.
User's Manual
Before Operation
Product Introduction
Safety Precautions
2
3
5
Basic Operation
Insert a memory card
6
Connect to the computer
7
10
Advanced Operation
11
12
16
11
Customer Management
Support
FAQs
6
Connect Power
Status Icon Briefing
WiFi Setup
Google Account
Google Play Store
My Cloud Album
Online Videos
19
27
Social Media
27
28
Local Photos
Local Videos
Tips
9
15
Online Photos
17
Dropbox
33
Settings Menu Overview
33
33
Wireless
18
29
Troubleshooting
Instructions 5
Register your cloud frame
Link WIFI
8
Features
Specifications
Product Introduction
Before Operation
2
Use the internet to load,manage, and share your favoritephotos with family,
friends, and businesses, on this7" Cloud Frame.
Build up your own cloudalbums, manage slide shows remotely
Enjoy 20GB free cloud storagespace
View photos you stored inyour cloud storage
View photos stored in yourmicroSD cards
Store your most precious photosin internal memory and displaythem
Share photos with your familyand friends via internet
Support display multimedia
Intuitive touch screen give alloperations on your fingers
Wireless link to internet automatically
Display size: 7 inch LED
TouchScreen: Yes
Multimedia support: Photo /Video / Audio
Built-in Wireless: 802.11b/g/n
Built-in Battery: Yes
Memory Card: microSD
USB type: 1x MicroUSB OTG
Power Adaptor Input: 110~240V; Output: 5V
Before Operation
3

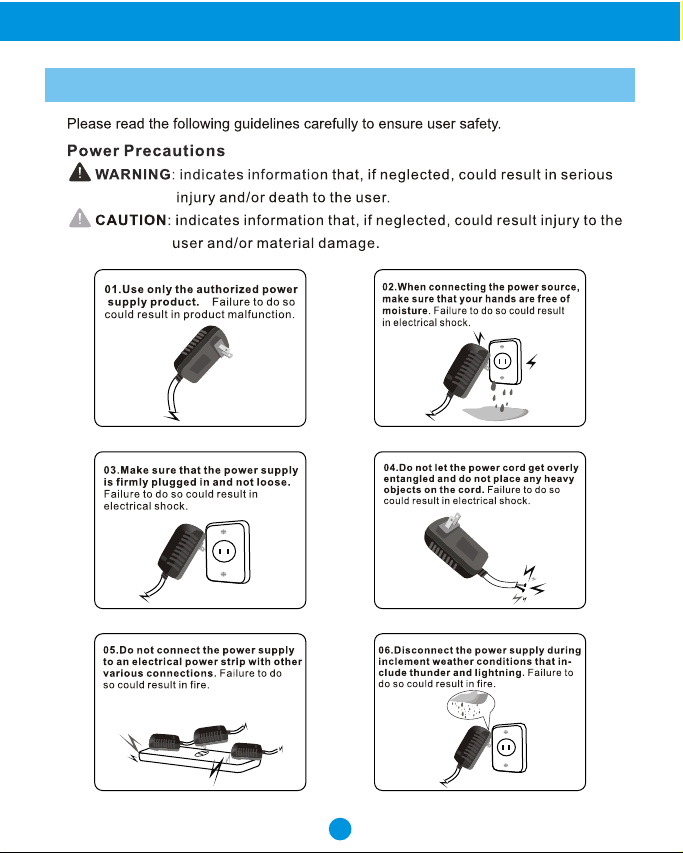

Safety Precautions
Before Operation
4

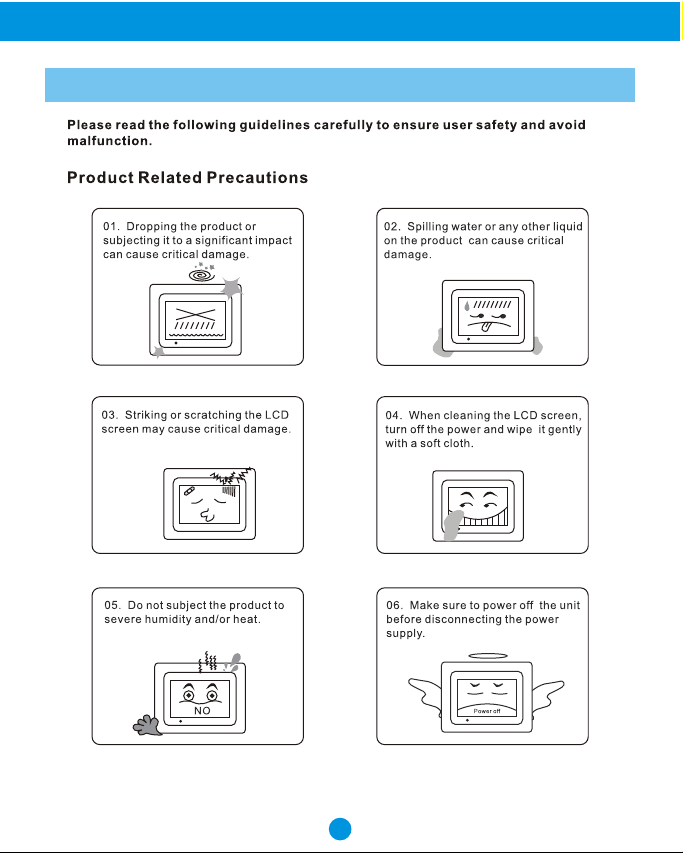

Safety Precautions
Befor Operation
Instructions
5
Plug the Power Adaptorinto the micro USB portand also into a Power Outlet.
1. MicroSD card solt: Insert one of the microSD cardseach time.
2. Back: Return to the previous page.
3. Micro USB port: Connect this unit to your computerby USB cable, and read
U-disk by USB cable.
4. Earphone jack: Insert the earphone, then can enjoyyour personal time.
5. Power: Press and hold on for morethan 3 seconds to turn onor turn off the unit.
One quick press to turn thescreen on and off.
6. Speaker
MicroSD card slot
Micro USB port
Earphone jack
Back
Power on/off
Speaker
1
2
3
4
5
6
Connect Power
MicroSD card is compatible withthis unit.
Insert a memory card
6
Connect the Cloud DPF to the computer
Use the USB cable toconnect the Cloud Frame toa computer.
Basic Operation
MicroSD
Card
7
Basic Operation
Link Wi-Fi
After power-on, the screen will appeara prompt to ask you tolink to Wi-Fi, follow
below instructions to link your frameto the internet.
Step 1. Step 2.
Select the WiFi button to the"ON" position.
Select your network, put in your
password, and then click "connect".
Step 3.
Note: AWiFi internet connection is
required in order to registerand use
your frame as well as accessthe online
features available.
Tap "Settings"button on the prompt.
Not connected to internet, please click
"Settings"to link to internet.
Settings
Not connected to internet, please click
"Settings"to link to internet.
Settings
Before Operation
8
Now you need to registeryour frame by going tothe website
"https://cloud.sungale.com" on your computer, tablet or smart phone.
After Wi-Fi is connected, tap"My Cloud Album" on home screen, below message
will appear to remind youto use the Serial Numberin the block to register
your cloud frame.
Register Your Cloud Frame
Thanks for purchasing. This is a cloud
device, please use your mobile phone or
computer to register your cloud frame.
Your device's Serial Number is
SK00A-00000-XXXX-XXXX-XXXX
OK
From the website, Click "SignUp", then click "Activate your Cloud Product".
You willbe prompted to register theframe by providing the serialnumber from
your frame as well assome basic personal information, then click "register" button.
You needto go to the emailbox you used for registrationto pick up your activating
code and enter into onyour computer, then, the screen will notify you that you
have registered successfully.
9
Status Icon Briefing
Basic Operation
1
4
2 3
5
6
9
8
7
2
3
4
5
6
7
8
9
My Cloud Album: Toload and manage photos in cloudstorage space.
1
Online Photos: Toreview or download photos from online providers.
Local Photos: Display or review the photos storedin internal memory or SD card.
Online Videos: Access videos from onlinevideo providers.
Local Videos: Play or view the videos storedin internal memory or SD card.
Social Media: Access Social Media from online socialproviders.
Wireless: Under wireless surrounding, the photoscan be transferred to this
frame from other wireless compatibledevices.
Settings: Choose from four icons including Browser, all Apps, Files,and
Settings to adjust frame's featuresand functions.
Dropbox: Share your photos.
