Sungale PF1501 Manuale utente
PF1501
14
Set-Up ....................................................................... 9
Selecting Which Media to View ................................. 9
Viewing Photos .......................................................... 9
Adjust Speed of Slideshow ........................................ 10
Adjust the Slide Transition Effect .............................. 10
Listen to Music ........................................................... 11
Music Play Mode ....................................................... 11
View Videos ............................................................... 12
Video Play Mode ........................................................ 12
Copy Files Between Memory Cards / Internal Memory 13
Delete Files From Memory Cards / Internal Memory 13
Change the Display Language .................................. 14
Set the Date and Time .............................................. 14
Set the Alarm ............................................................. 15
Setup Power On / Off Timer ...................................... 15
Display Mode Setup .................................................. 16
Color Setup ............................................................... 16
Before Operation
Basic Operation
Operating Instructions
17
17
18
FCC and Safety information ......................................
Limited Warranty .......................................................
19
20
8
7
6
6
2
3
3
Connect to PC
7

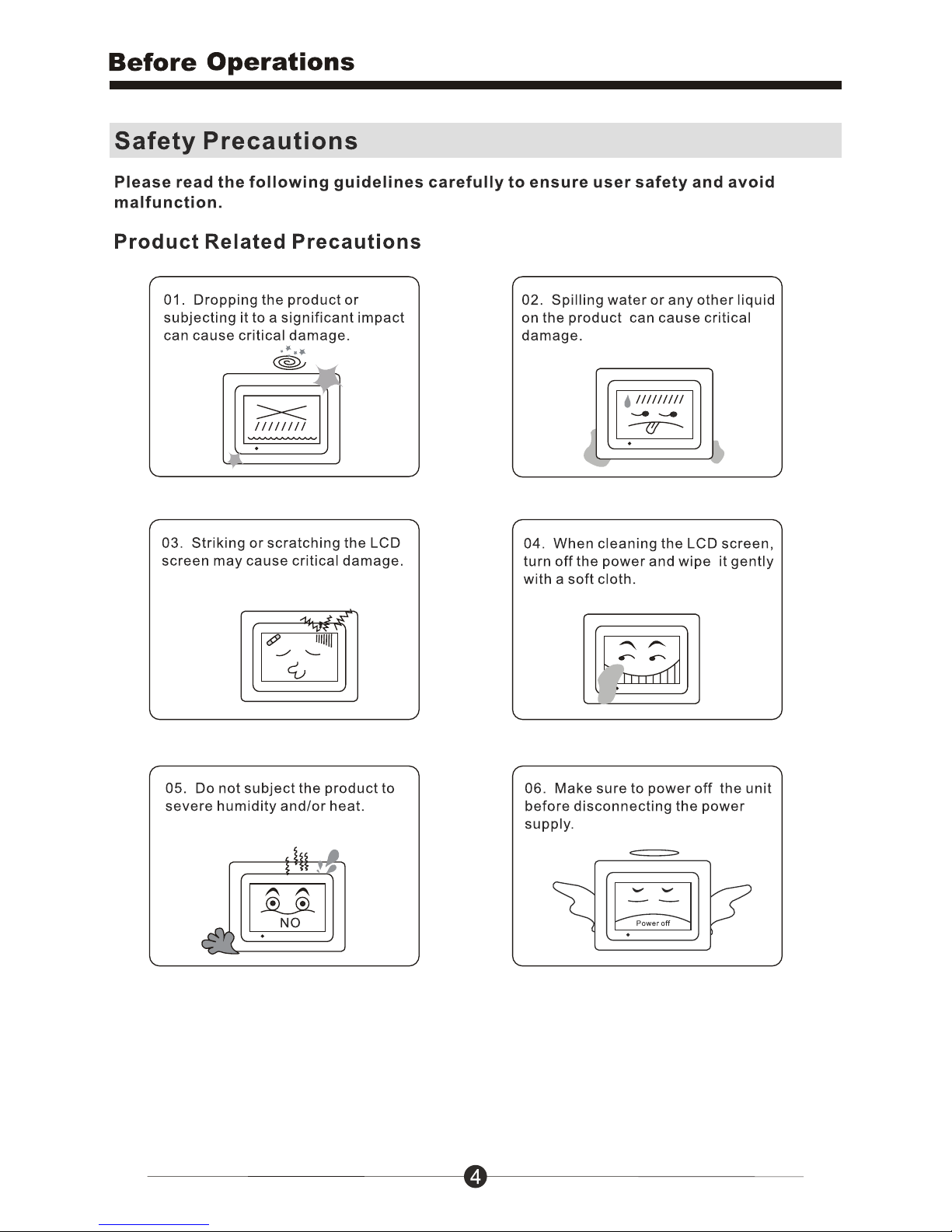

Safety Precautions
Menu Buttons
14” LCD Screen
Quality Glossy Black Frame Power Button
Frame Stand
Speakers
LED SD / SDHC Card Slot
USB 2.0 Ports
Power Adapter Port
Remote Control
MUSIC
EXIT
MENU
ENTER
OSD
VIEW
ROTATE
16:9/4:3
STEP
SHOW
SLIDE
SHOW
1
9
2
3
12
4
10
8
13
14
11
5
7
1. Power On / Off
2. SlideShow
3. Enter
4. Up, Down, Left, Right Arrows -
Use arrow keys to navigate your way
throught various menus
5. Exit - Returns to the previous menu
6. Zoom
7. OSD - On Screen Display
8. View
9. Aspect Ratio - 16:9 / 4:3
10. Music
11. StepShow - Advance to next photo
12. Rotate
13. Volume + / Volume -
14. Menu - Takes you to the main menu
2. Plug in the power socket.
Connect to PC
Connect the device to computer with the USB cable. Copy and paste the files
to the storage of unit. After the file transferring, please safely remove hardware
from the PC. Then directly unplug the USB connection. Then find and enjoy the
files from the Memory menu.
Note: For the first time you connect this device to your computer, you might
be asked to install driver of your device so that it can be recognized by your
computer. Please follow the installation guide or contact your computer
service provider for help.
1
2
7

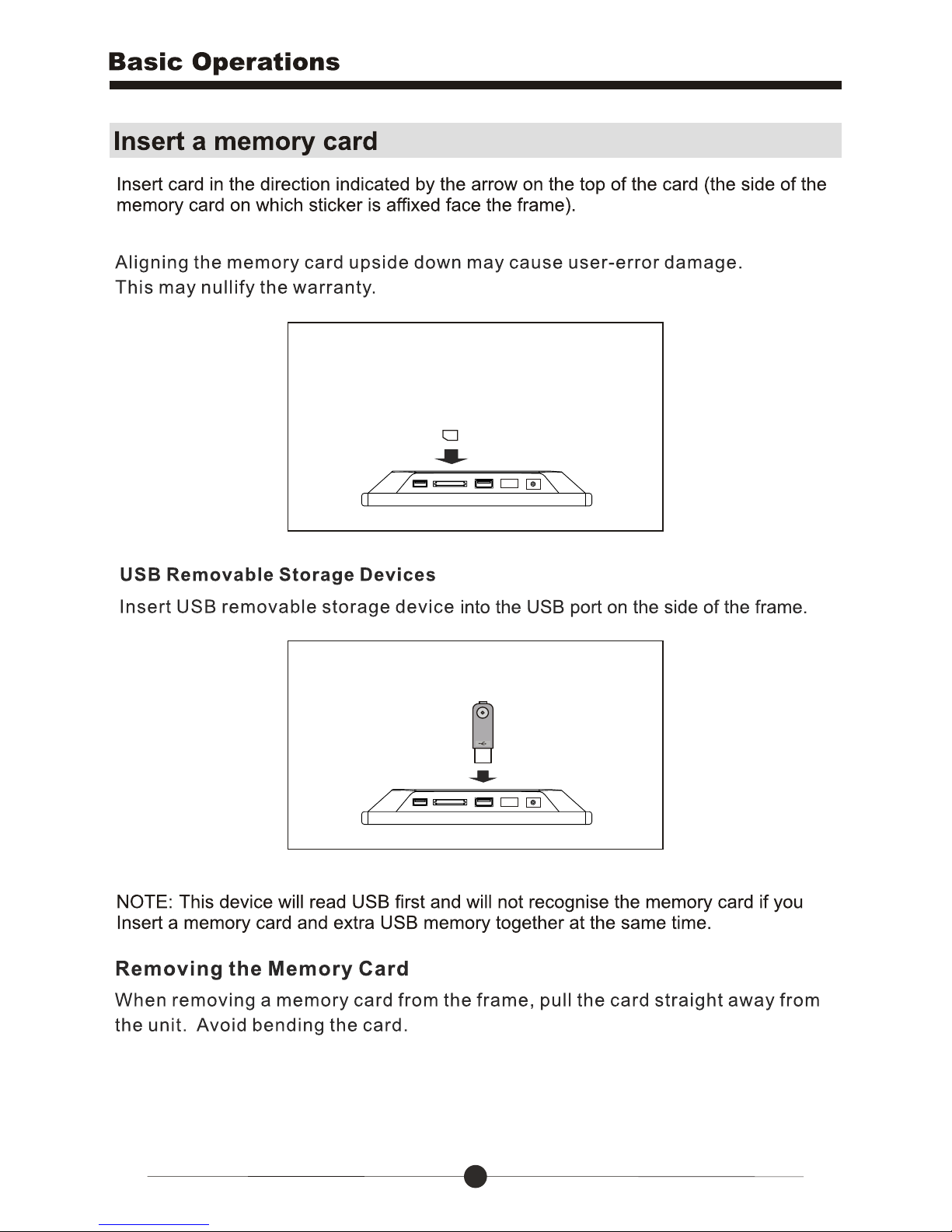

SD/SDHC card is compatible with this unit.
SD/SDHC
8
Operating Instructions
Set-Up
STEP 1: Plug the power adapter in then turn the power switch on.
STEP 2: Please insert your memory card (SD / SDHC) at this time. You may
also insert a USB thumb / flash drive into the on-board USB 2.0 port which will
be detected automatically. Slideshow will start automatically when the card is
inserted. (The slideshow will start from the internal memory if no memory card
is detected)
Selecting Which Media to View
Press the “Menu” button until you can view the media you have inserted into
your picture frame or the included memory in the main menu.
To create a custom slideshow with pictures in a particular order, please copy
one picture at a time to the memory card as the order is determined by the
time stamp of the file when it is copied.
Viewing Photos
1. Select the “Photo” icon on the screen.
2. Select the photo you desire by using the up and down keys on your remote
control.
3. Once you have selected your photo press “Enter”.
4. You may zoom in on your photos by pressing the “Zoom” button on the
remote. You may also reposition the photo using the up, down, left and right
buttons on the remote once you zoom in for detailed viewing. You may also
rotate the picture by pressing the “Rotate” button on the remote.
5. You can also press the “OSD” button for more viewing options.
9
Note: You must disconnect the USB cable from your computer after transferring. You
will not be able to scroll with the remote while the USB connection is established.
