Sunshower SOLO White Manuale utente
2
SOLO
WHITE / BLACK
ARTICLE NO.
80076 (WHITE)
80066 (BLACK)
INSTALLATION GUIDE
3
INSTALLATION GUIDE SOLO | P1327 REV E
GENERAL INSTRUCTIONS
Sunshower B.V.
Hoogoorddreef 63-65
1101 BB Amsterdam
The Netherlands
T +31 (0)20 462 14 60
www.sunshower.nl
info@sunshower.nl
!
BE SURE TO READ THIS INSTRUCTION CAREFULLY BEFORE
INSTALLATION. INSTALLATION ONLY CAN ONLY BE
CARRIED OUT BY QUALIFIED INSTALLERS. THE ELECTRICAL
CONNECTION OF SUNSHOWER COMPONENTS CAN
ONLY BE CARRIED OUT BY QUALIFIED ELECTRICIANS.
SUNSHOWER IS NOT LIABLE FOR DAMAGE CAUSED BY
INCORRECT INSTALLATION.
GENERAL
!
THE ELECTRICAL CONNECTION OF SUNSHOWER
COMPONENTS MAY ONLY BE CARRIED OUT BY A
QUALIFIED ELECTRICIAN. THE INSTALLATION AND
ELECTRICAL CONNECTION OF THE SUNSHOWER
INSTALLATION MUST BE CARRIED OUT IN ACCORDANCE
WITH THE APPLICABLE INTERNATIONAL AND NATIONAL
STANDARDS AND GUIDELINES. THE SUNSHOWER MUST
BE PROTECTED BY A SEPARATE EARTH LEAKAGE CIRCUIT
BREAKER (RCD) (SEE ELECTRICAL CONNECTION).
ELECTRICITY
4
INSTALLATION GUIDE SOLO | P1327 REV E
CERTIFICATE OF CONFORMITY
Sunshower B.V., Hoogoorddreef 63-65, 1101 BB Amsterdam, The Netherlands
hereby declares that:
• These Sunshower products are IPX5 approved and specially designed for use
and installation in zone 1.
• The notified body DARE!! Measurements, an ISO17025 accredited institution
for performing product certifications with registration number C447.
• These products are in conformity with the Low-Voltage Directive 2014/35/
EU and the Directive 2014/30/EU for Electromagnetic compatibility of the
European Parliament.
• These products are tested and meet the following norms/directives for CE
markings:
• EN60335-1:2012 + AC:2014 + A11:2014
• EN60335-2-27:2013
• EN61000-6-3:2007 + A1:2011 + AC:2012
• EN61000-6-1:2007
• EN61000-3-3:2013
• EN61000-3-2:2014
The Netherlands, Amsterdam, 1 jan 2019
M. Wegdam, Technical Director
Sunshower B.V.
Hoogoorddreef 63-65
1101 BB Amsterdam
The Netherlands
T +31 (0)20 462 14 60
www.sunshower.nl
info@sunshower.nl
5
NOT INCLUDED
SOLO
CABLE +
BRACKETS +
CONNECTION SLEEVE
INSTALLATION GUIDE SOLO | P1327 REV E
PREPARATION
BOX CONTENT
□Measuring tape
□Screwdriver ( + )
□Spirit level
□Sealant
□Pencil
INSTALLATION
BAG
6
A
B
C
D
E
450 MM
185 MM
1000 MM
1000 MM
520 MM
AB
D
C
E
C
D
E
REQUIRED TOOLS
INSTRUCTIONS
This overview indicates the
relevant dimensions for mounting
the Sunshower.
A bracket height of 52 cm is
suitable for users up to a height of
190 cm.
For taller users, dimension E should
be calculated as follows;
Body height - 125 cm
INSTALLATION GUIDE SOLO | P1327 REV E
PREPARATION
DIMENSIONS
□Measuring tape
□Pencil
7
A
19 MMA
1
2
INSTRUCTIONS

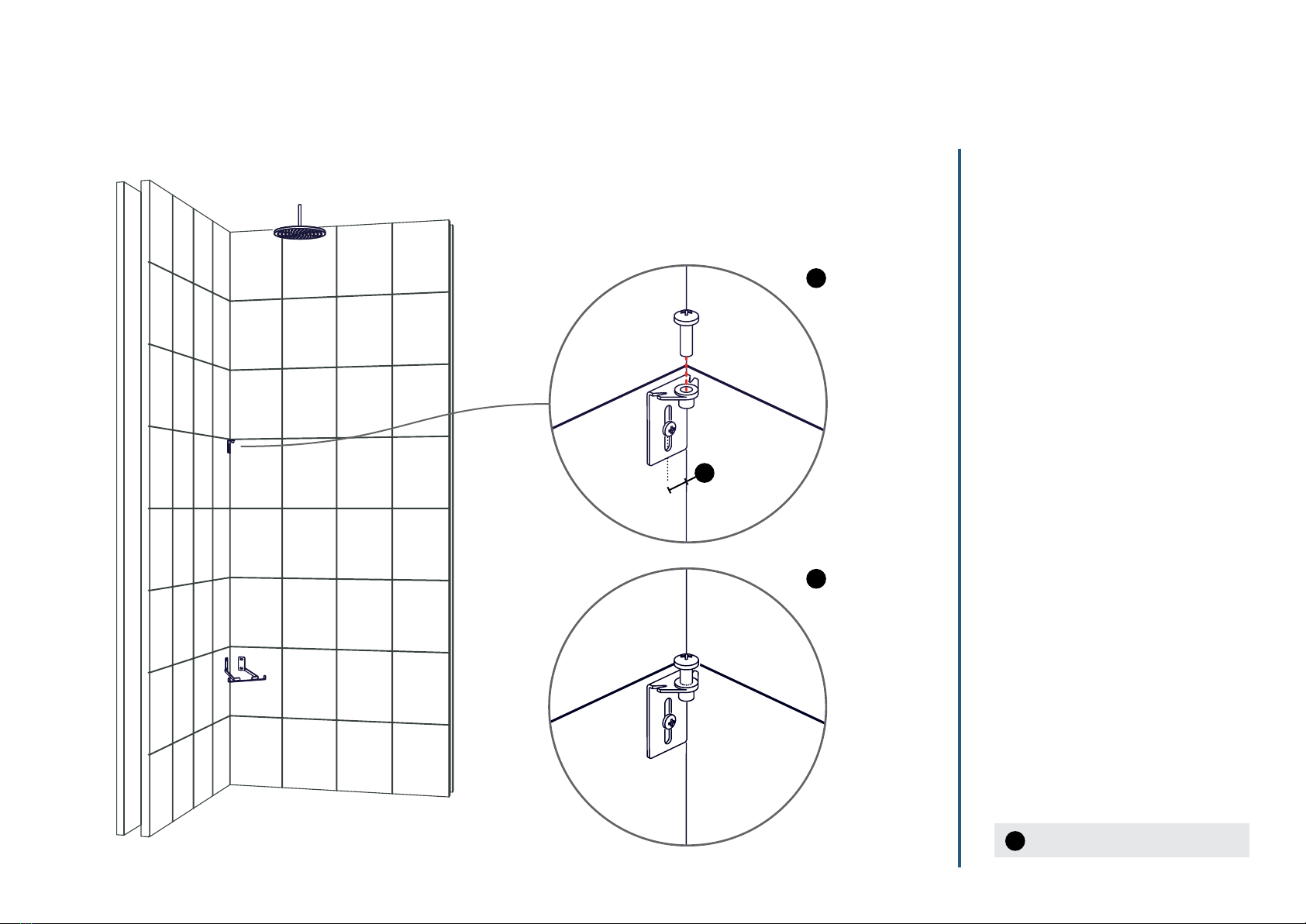

Mount the bottom bracket and the
top bracket using the markings you
made previously when deciding the
Sunshower’s height.
Check that the underside of the
bracket is level and attach both
brackets using the plugs and screws
provided. The upper bracket can be
mounted on either the right-hand
or left-hand wall. After assembly,
screw the nut into the bracket as
shown in (2).
To prevent moisture problems in
the wall, apply sealant between the
brackets and the wall.
INSTALLATION GUIDE SOLO | P1327 REV E
INSTALLATION
FIT BRACKETS
REQUIRED TOOLS
□Spirit level
□Sealant
□Screwdriver( + )
□Plugs
□Screws
5x
5x
8
A
B
INSTRUCTIONS
This manual shows two options for
connecting the Sunshower:
Routing the cable through the
wall to which the Sunshower is
mounted.
Routing the cable from the top
to the Sunshower via a cable
duct.
In all cases, you must use a YMVK
cable with a maximum diameter of
10 mm. The Sunshower is supplied
with 4 metres of cable.
Refer to the table below for the
two different connection methods.
INSTALLATION GUIDE SOLO | P1327 REV E
INSTALLATION
ELECTRICAL CONNECTION
A
B
PAGE 9
PAGE 10
A
B
9
A
B
B
40 MM
1000 MM
A
B
INSTRUCTIONS
You can achieve the best finish by
feeding the fixed wiring through a
hole in the wall.

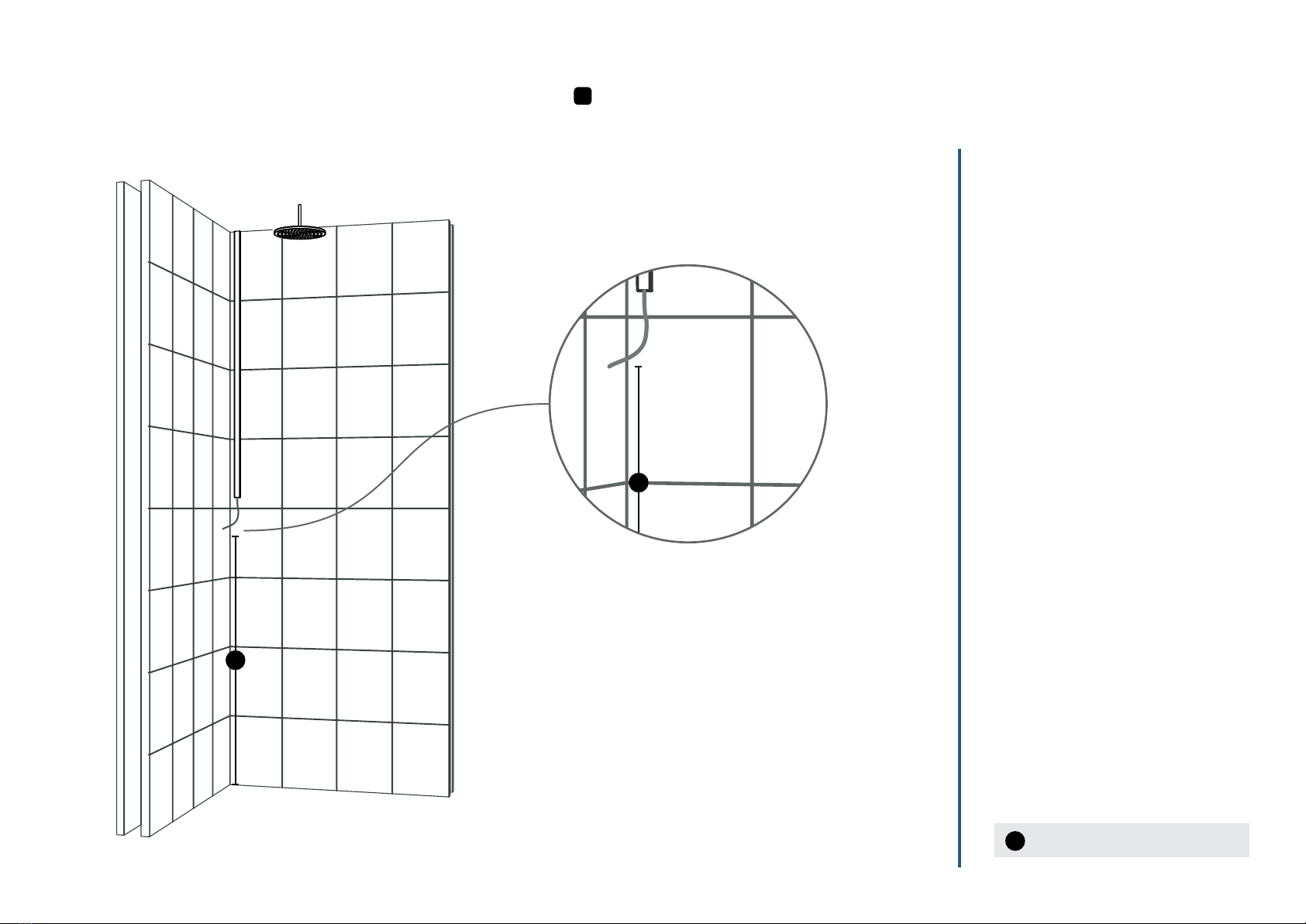

When using this method, you
can run a connecting cable from
outside the shower cubicle or
use the cable supplied with the
Sunshower.
Drill a 10 mm hole in the wall at
the height shown. You can choose
the right-hand or left-hand wall.
Feed the cable through the hole
and seal it carefully to ensure a
watertight seal.
Allow at least 60 cm of cable from
the wall to the Sunshower.
INSTALLATION GUIDE SOLO | P1327 REV E
INSTALLATION
FEED CABLE THROUGH
REQUIRED TOOLS
□Sealant
A
10
A
A
1000 MMA
INSTRUCTIONS
When using this method, you
can run a connecting cable from
outside the shower cubicle or
use the cable supplied with the
Sunshower.
Attach the cable duct on/in the
wall and feed the cable through it.
Make sure that the cable duct is
not trapped between the wall and
the Sunshower.
Allow at least 60 cm of cable from
the wall to the Sunshower.
INSTALLATION GUIDE SOLO | P1327 REV E
INSTALLATION
CABLE DUCT
REQUIRED TOOLS
□Cable duct
B
