Sunstech TAB107QCBT Manuale utente
TAB107QCBT
Tablet PC
Android 4.2
User Manual
Tablet of Contents
Specifications………………………………………………………………….1
What’s Inside The box………………………………………………………….1
Tablet Parts…………………………………………………………..…………2
Getting started…………………………………………………………………3
How to use TF card ………………………………………………………..……7
How to connect with computer………………………………………………..8
Connection to Internet………………………………………..………………..9
Camera………………………………………………………………………….11
Trouble Shooting…………………………………………...………………….12
Specifications
Display: 10.1 inch 1024X600 Capacitive multi-touch screen
CPU: A31S Quad-Core A7 1.2GHZ
RAM: 1GB DDR III
GPU SGX544
Internal Storage: 8 GB
Expansion Memory: Micro SD card up to 32GB (not supplied)
Built-In Wireless: 802.11b/g/n
Bluetooth
TV Port: mini HDMI 1.4
Micro USB 2.0 / OTG
Front camera 0,3 Mpixels
Rear Camera 2 Mpixels
Battery 6000 Mah
ACAdapter: DC 5V-2A
Operating System:Android 4.2.2“Jelly Bean”
Made in China
What’s Inside The box
Tablet – 1pc
Power Adapter -1pc
USB Cable-1pc
OTG Cable-1pc
Instruction manual - 1pc
Warranty card 1pc
1
Tablet Part
Name function
1--Power Keep pressed to turn on/off the tablet; shortly
press to activate standby
2--VOL+ Press the button to increase the volume
3--VOL- press the button to decrease the volume.
4—Micro USB OTG
Port
PC connection/peripheral connection through
OTG cable (for example keyboard, USB
device)/battery charge through the supplied
adaptor
5--Power jack(DC in –
Put)
Connect to a 5V output adaptor as included in
the accessories
6--TV HD output Mini HDMI TV output to connect an external
screen.
7--Earphone jack Connect earphone to this standard 3.5mm jack
8--Micro SD input
9 Reset button
Insert a micro SD card (up to 32GB)
Push Reset Button to restore the unit.
2
Getting Started
Battery Charging
The tablet has a built-in rechargeable Li-polymer battery.
1. To charge the unit, connect the AC power adapter to the micro USB / Jack
on the right side of the tablet.
2. The battery icon shows the battery status and charging status
3. The tablet can be used even if the battery is being charged.
the above icons indicate the different level of electricity left in the battery
4. Do not replace of battery without authorization, or the battery explode.
5. Recharge the unit for at least half hour if it has been idle for long time and
fails to start itself.
6. Regularly recharge it at least once a month
7. Between 5°- 40° is the optimum temperature for recharging the battery or
the battery performance may slightly deteriorate
Disposal
The battery might contain the polluting material, please give it to the official
recycling-station before disposal of the tablet pc, and do not litter.
3
Power ON/OFF
ON:
press the button for continuous 5 seconds until the tablet turns “ON”.
OFF:
1.Press the button for continuous 5 seconds and it will appear
2.Select OK to power off the tablet
Screen Lock
This feature locks the screen, at the same time turn OFF the screen’s backlight
after a few seconds.
Screen locks when:
1. System is idle.
2. Manually activate it by pressing the Power button once.
Screen unlock :
Home screen
The Home screen will look similar to the picture below. It is actually five
screens, each of which can have a different layout of icons. To switch between
screens, simply slide your finger left or right across the display.
The status bar and navigation buttons are always visible, no matter which
Home screen you can currently viewing.
4
The Desktop contains shortcuts to your most-used applications and widgets
Touch the screen icon to quickly search the World Wide Web using Google.
The icon will launch the Application menu.
The status bar displays system information, such as current time, wireless
connectivity and battery.
Touch to Expand the status bar for more detailed information.
The button moves back one step to the previous menu/page.
The buttons returns immediately to the Android desktop.
The button display a menu of recently opened applications.
Settings Menu
The settings menu allows you to adjust Tablet system configuration.
5
To change settings:
1. Touchthe"Settings" menuiconontheApplicationmenu.The
Settings menu will open.
2. Guide your finger up or down the left side of the screen to scroll through
the list of available categories.
3. Touch a category title to view further options on the right side of the
screen.
Wi-Fi - Connect to /disconnect from wireless networks, view connection status
Bluetooth: To connect or disconnect from devices to send photos / music…
Data usage - Enable / disable mobile data, view current usage, set mobile data
limit (note: this function is available only on devices supplied with 3G card)
Sound - Change volume, touch sound, screen lock sounds etc
Display - Change brightness, wallpaper, sleep settings, font size etc
Storage - Manage NAND and Micro SD card, view available capacity etc
Battery - See battery status and powered-on time
Apps - Manage applications, running services etc
Accounts - Manage accounts etc
Location services - Change approximate location detection, improve search
results
Security - Change screen lock type, encryption, password, credential storage
etc
Language & input Select language, add to the dictionary, edit on-screen
keyboard settings, vocal search, etc
Backup & reset - Backup & restore data, perform factory reset, etc
Date & time - Set date, time zone, time, clock format etc
Accessibility - Set up large text, auto-rotate screen, speak password etc
Developer options - Advanced functions for Android developers - debugging,
HDCP check etc
About tablet - Information about your Android device
6
How to Use TF card
1. Insert the TF card into the TF card slot. Gently push TF card into slot until it
clicks into place.
2. A prompt will be seen on the screen saying “ Preparing SD card“
Removing TF card
1. Close all applications and documents which have been opened from the TF
card.
2. Select“Setting”and find “ Storage”then click “Unmount SD card”.
3. A prompt will be seen on the screen saying“ SD card safe to remove”
4. Gently press the TF card to remove and pull out the TF card.
Note: Insert the TF card in correct position, otherwise it will damage the card
and the slot.
7
Software Keyboard
The tablet has a software keyboard which automatically pop up when you
tap the place on screen where text or number are to be entered.
Touch Screen
The touch screen responds to finger touch.
Note: Do not place any object on the touch screen because it may damage or
crush the screen.
Single Click: single click one icon to choose the icon or option you want.
Long Press: press and hold one icon to make appear a menu related to the
executed function (if available).
Drag: drag on the screen and you can move between magic cube sides or
drag the application icons into the shortcut bar.
How to connect with computer
Note: Turn on your Tablet before connect the Tablet to PC by USB cable.
1Use USB cable to connect MID with computer. System will notice USB
connected on bottom of screen.

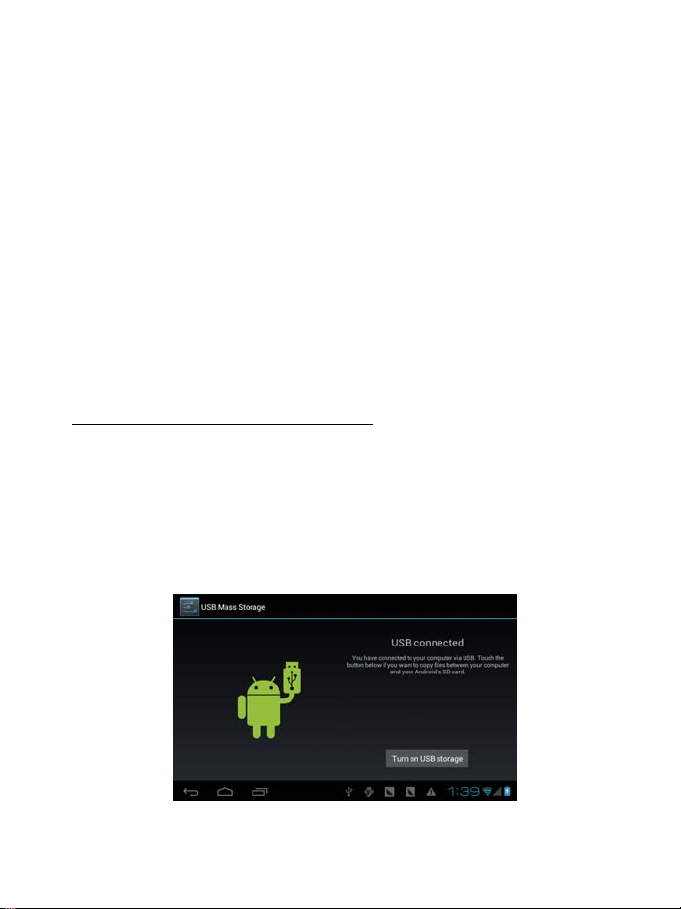

2Press USB connected on the top bar, then click Turn on USB storage, click
OK.
3. Then the USB connection has been successfully.
8
