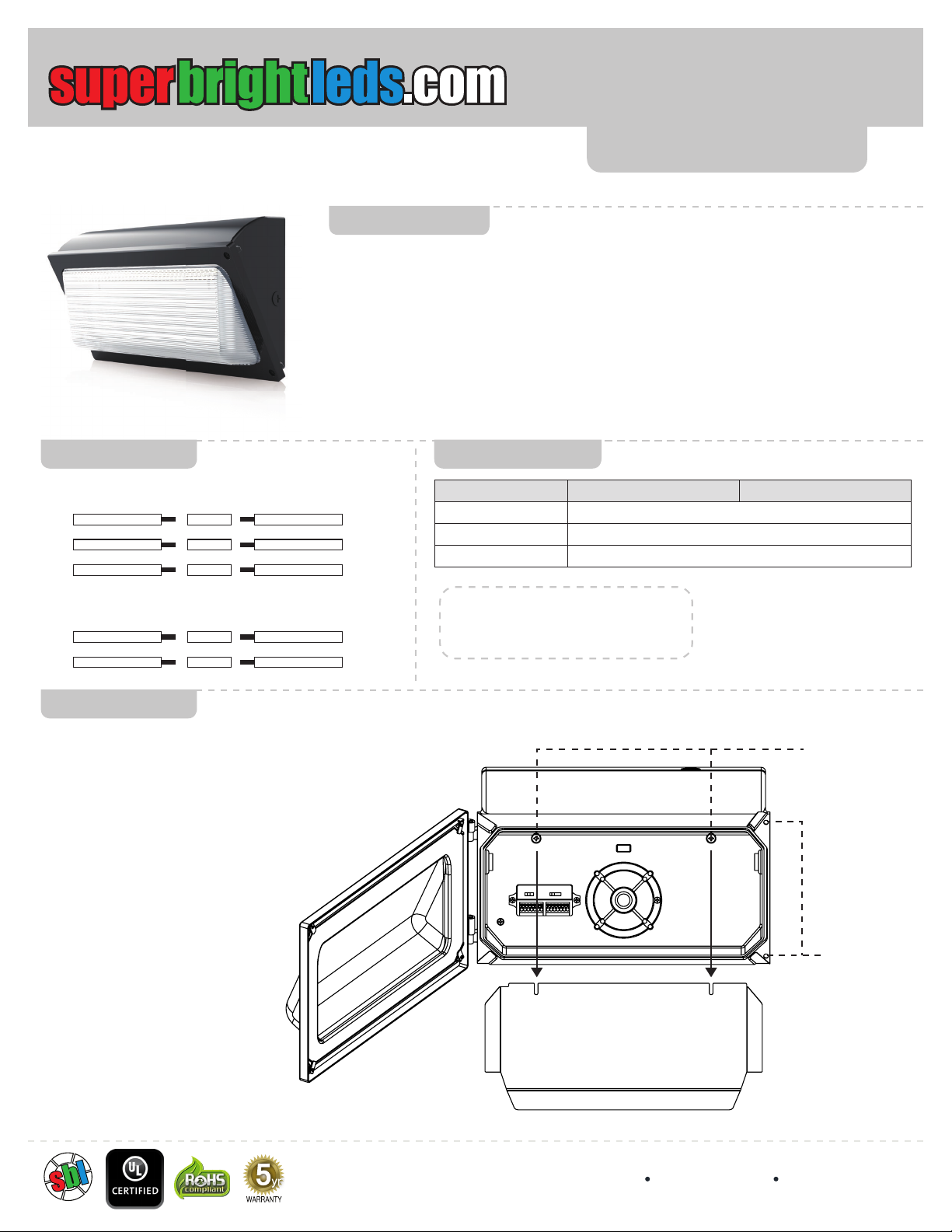

Superbrightleds WPGL2 Series Manuale utente

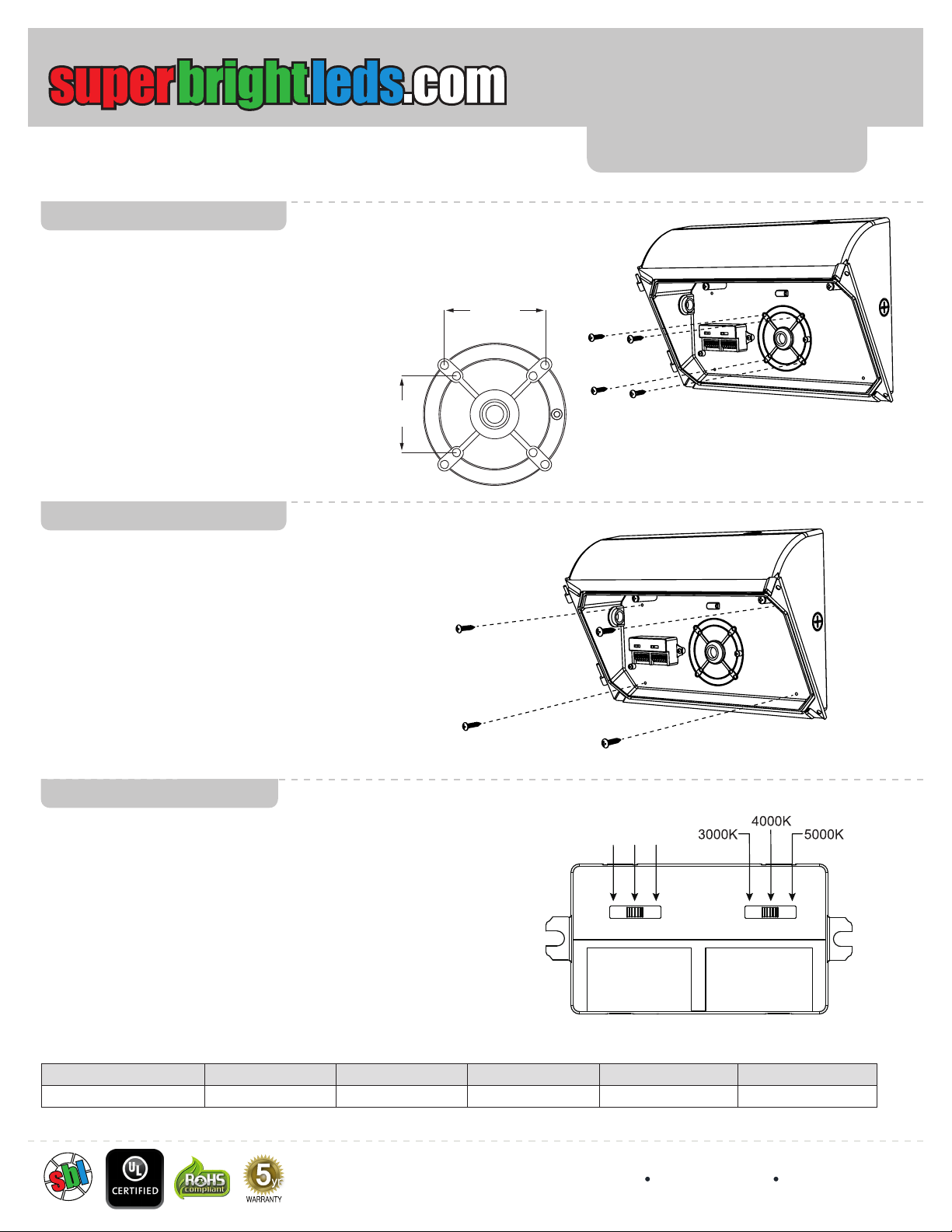

Slim LED Wall Pack

Important: Read all instructions prior to installation. WPGL2 Series

4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com

Rev Date: V1 11/30/2021

User Manual

5yr

120–277 VAC Input

0–10 V Dimming

Safety and Notes

SpecicationsWiring Diagram

Line

Neutral

Ground

Black

L L

N N

GND GND

White

Dim (+)

Dim (-)

Purple

+ +

- -

Pink / Grey

Green

Line

Neutral

Ground

Black

L L

N N

GND GND

White

Dim (+)

Dim (-)

Purple

+ +

- -

Pink / Grey

Green

• Product should be installed and serviced by a certied electrician in accordance

with applicable national, state, and local building and electrical codes.

• To reduce the risk of electric shock, ensure that the main power source and circuit

breakers are switched o󰀨 before performing any installation or wiring procedures.

• Avoid looking directly into lamp when illuminated.

• Ensure all mounts are securely attached and will support the weight of the xture.

Failure to properly support xture may result in damage or injury, for which the

manufacturer does not assume responsibility.

• Photocell sensor can be disabled by unplugging it and capping the connector that

was attached to the sensor.

Model WPGL2-50Kx-H WPGL2-SW3Bx-HPC

Operating Temperature -40°–113° F (-40°–45° C)

IP Rating IP65

Dimming 0–10 V

Check product label for specific electrical

specifications related to installation.

Improper installation will void warranty.

Opening Fixture

WPGL2-50K100-H

reector

retaining screws

front cover

retaining screws

1. Remove front cover retaining screws and swing front

housing open.

2. Loosen reector retaining screws and slide rector down

and out of the housing. The reector has a hanging cable

to allow it to hang in place during installation.

Note: Be careful handing the reector as the edges of the

reector as it can be sharp in places.

Slim LED Wall Pack

Important: Read all instructions prior to installation. WPGL2 Series

4400 Earth City Expy, St. Louis, MO 63045 866-590-3533 superbrightleds.com

Rev Date: V1 11/30/2021

User Manual

5yr

Installation (Junction box)

Installation (Conduit / Wall)

CCT / Wattage Adjustment

1. Remove supply power, open xture, and remove reector.

2. Drill holes in rear housing for mounting and remove

pipe plug for junction box wiring.

3. On eld-selectable CCT/wattage models, select desired

CCT/wattage using internal switch.

4. Connect wiring.

5. Reinstall reector and tighten two retaining screws.

6. Reattach front housing to rear.

1. Remove supply power, open xture, and remove reector.

2. Drill holes in rear housing for mounting and remove one

of the side pipe plugs.

3. Measure and create mounting holes on wall if needed.

4. On eld-selectable CCT/wattage models, select desired

CCT/wattage using internal switch.

5. With supply power o󰀨, connect wiring and conduit.

6. Reinstall reector and tighten two retaining screws.

7. Reattach front housing to rear.

Field-selectable CCT / wattage can be set using the internal switch as shown.

Make certain supply power is o󰀨 when performing this procedure.

WPGL-SW3Bx-HPC are the only part numbers with this adjustment available.

3.6 in.

(91 mm)

2.7 in.

(68 mm)

H M L

Model WPGL2-SW3B35-HPC WPGL2-SW3B50-HPC WPGL2-SW3B75-HPC WPGL2-SW3B100-HPC WPGL2-SW3B120-HPC

Selectable Wattage (H / M / L) 35 W / 28 W / 21 W 50 W / 40 W / 30 W 75 W / 60 W / 45 W 100 W / 80 W / 60 W 120 W / 96 W / 72 W
