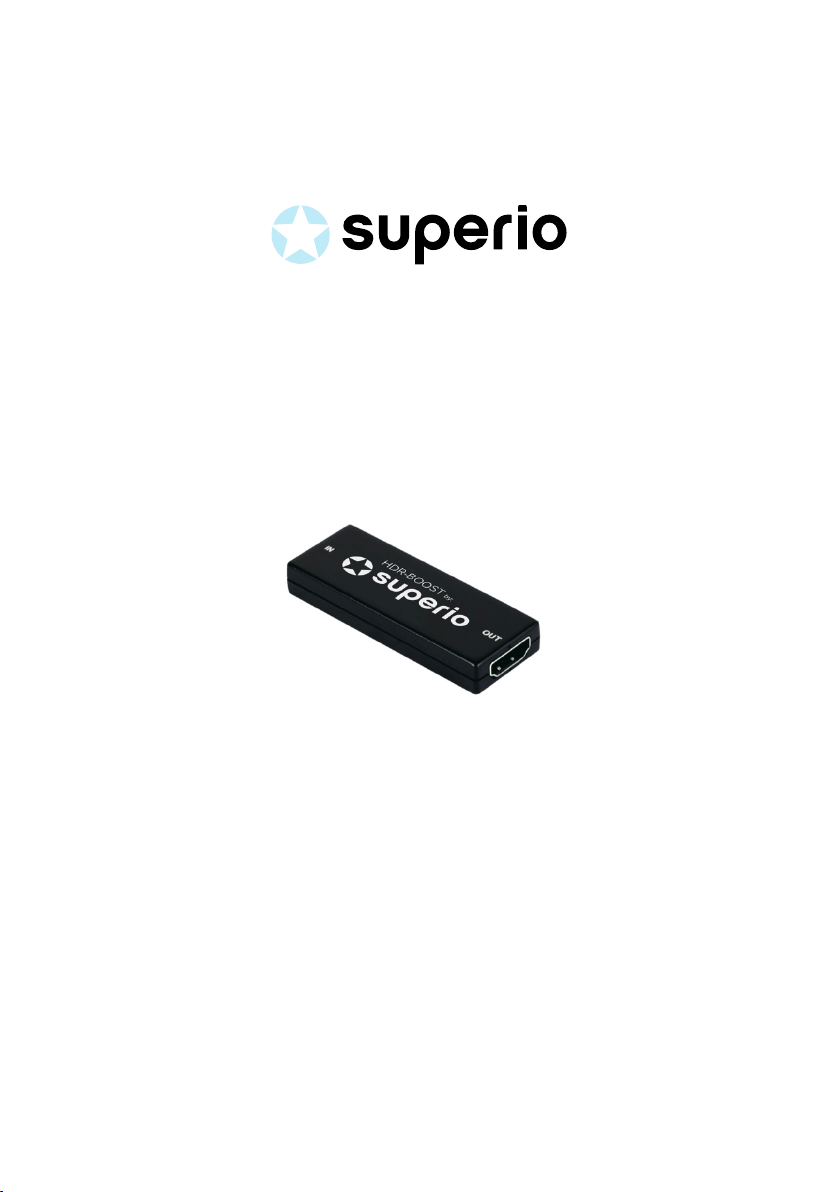

Superio HDR-BOOST Manuale utente

HDR-BOOST

4K/60Hz 4:4:4 HDR UHD+ HDMI Enhancer with 5V

Power Injection

DISCLAIMERS

The information in this manual has been carefully checked and is

believed to be accurate. Superio assumes no responsibility for any

infringements of patents or other rights of third parties which may

result from its use.

Superio assumes no responsibility for any inaccuracies that may be

contained in this document. Superio also makes no commitment to

update or to keep current the information contained in this

document.

Superio reserves the right to make improvements to this document

and/or product at any time and without notice.

No part of this document may be reproduced, transmitted,

transcribed, stored in a retrieval system, or any of its part translated

into any language or computer file, in any form or by any means—

electronic, mechanical, magnetic, optical, chemical, manual, or

otherwise—without express written permission and consent from

Superio.

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document are

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or

operate this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

•Always follow basic safety precautions to reduce the risk of fire,

electrical shock and injury to persons.

•To prevent fire or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

•Never spill liquid of any kind on or into this product.

•Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts

inside the unit.

•Do not attach the power supply cabling to building surfaces.

•Use only the supplied power supply unit (PSU). Do not use the PSU if

it is damaged.

•Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

•To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sufficient space for air to circulate around the unit.

•Please completely disconnect the power when the unit is not in

use to avoid wasting electricity.

VERSION HISTORY

REV. DATE SUMMARY OF CHANGE

RDV1 2019/04/29 Preliminary release

CONTENTS

1. Introduction ..........................................................5

2. Applications .........................................................5

3. Package Contents ...............................................5

4. System Requirements ..........................................5

5. Features ................................................................6

6. Operation Controls And Functions .....................7

6.1 Front Panel.......................................................7

6.2 Side Panel........................................................7

7. Connection Diagram...........................................8

8. Specifications .......................................................9

8.1 Technical Specifications ............................... 9

8.2 Video Specifications.................................... 10

8.3 Audio Specifications....................................12

8.3.1 Digital Audio ........................................12

8.4 Cable Specifications ................................... 12

9. Acronyms............................................................13

1. INTRODUCTION

This 4K UHD HDMI to HDMI Enhancer with 5V Power Injection is an

advanced solution for HDMI signal extension and cascading. This unit

is designed to enhance and stabilize high-bandwidth HDMI signals for

cleaner transmission over long distances using multiple HDMI cables

without the need for external power. 4K signals may be extended

over distances up to 5M per cable segment with support for

cascading up to 4 times. This unit is powered by the 5V that

accompanies standard HDMI signals, however in situations where

additional 5V power is required (such as when cascading) it can be

added with the simple connection of an external USB power source.

This repeater complies with the advanced HDCP 2.2 and HDMI 2.0

standards, as well as supporting the legacy HDCP 1.x and HDMI 1.x

standards. 4K UHD video sources, up to and including 4K@60Hz (4:4:4,

8-bit) as well as 10/12-bit sources with HDR are fully supported. Up to 8

channel LPCM digital audio as well as Bitstream and HD Bitstream

audio formats are supported as well. All functionality is automatic,

requiring no external controls.

2. APPLICATIONS

•HDMI Signal Extension

•HDMI Cable Cascading

•Adding 5V Support to Legacy HDMI Sources

3. PACKAGE CONTENTS

•1× 4K UHD+ HDMI Enhancer

•1× Operation Manual

4. SYSTEM REQUIREMENTS

•HDMI source equipment such as a media player, video game

console, PC, or set-top box

•HDMI receiving equipment such as an HDTV, monitor, or audio

amplifier

•The use of Premium High Speed HDMI cables is highly

recommended.

5. FEATURES

•HDMI input and output supports 18Gbps 4K UHD with HDR signals

•HDCP 1.x and 2.2 compliant

•Supports UHD resolutions up to 4096×2160@60Hz (4:4:4, 8-bit)

•Supports 12-bit Deep Color up to 1080p@60Hz

•Supports pass-through of audio formats including LPCM (Up to 8

channels), Bitstream, and HD Bitstream

•Supports CEC and ARC bypass

•Retiming capability allows for clean regenerated signals for

transmission.

•Supports external 5V power injection via Micro-USB power supply

(Optional)

•Supports up to 4 layers of cascading (5 cable segments)

Note: It is strongly suggested to use power injection on the first and

last unit when cascading.

•Compact design

Note: High quality 24AWG HDMI cable was used to verify cable

distance and cascading support limits. Different cable qualities

can result in different cable distance and cascading

performance.

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Front Panel

(1) HDMI IN Port: Connect to HDMI source equipment such as a

media player, game console, or set-top box.

Note: This unit is directly powered by the 5V included with

standard HDMI signals. In some rare cases, an HDMI source may

not provide enough power. In those cases, external power must

be provided via the Micro-USB port.

(2) HDMI OUT Port: Connect to HDMI TVs, monitors, or amplifiers for

digital video and audio output.

6.2 Side Panel

(1) USB Port: Plug a 5V Micro-USB power supply into this port to inject

additional 5V power into the HDMI signal. (Optional)

Note: It is strongly suggested to use power injection on the first

and last unit when cascading.

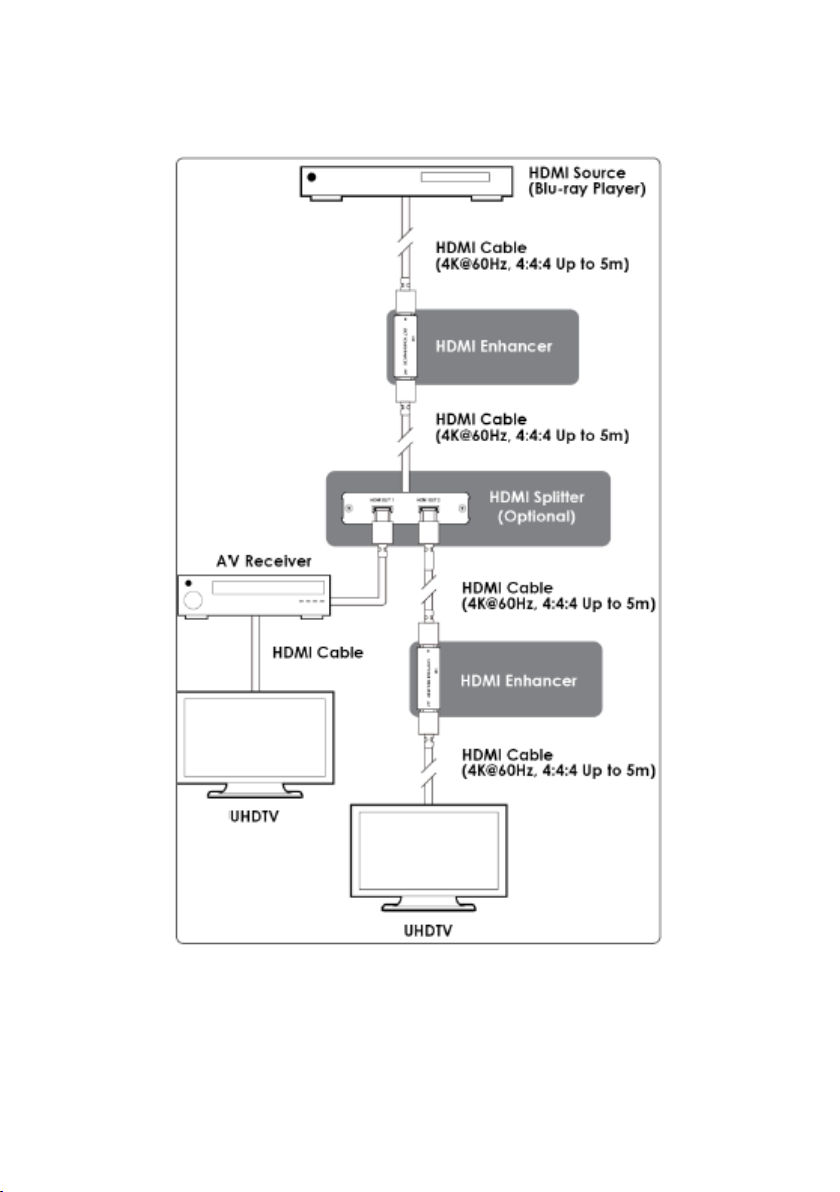

7. CONNECTION DIAGRAM

8. SPECIFICATIONS

8.1 Technical Specifications

HDMI Bandwidth 18Gbps

Input Ports 1×HDMI (Type-A)

Output Ports 1×HDMI (Type-A)

Voltage Injection Port 1×USB 2.0 (Micro-B)

ESD Protection (HBM) ±8kV (Air Discharge)

±4kV (Contact Discharge)

Dimensions (W×H×D) 65mm×10mm×24mm [All Inclusive]

Weight 15g

Chassis Material Plastic

Chassis Color Black

Operating Temperature 0˚C – 40˚C/32˚F – 104˚F

Storage Temperature -20˚C – 60˚C/-4˚F – 140˚F

Relative Humidity 20 – 90% RH (Non-condensing)

Power Consumption 0.75W

8.2 Video Specifications

Supported Resolutions (Hz)

Input Output

HDMI HDMI

720×400p@70/85 

640×480p@60/72/75/85 

720×480i@60 

720×480p@60 

720×576i@50 

720×576p@50 

800×600p@56/60/72/75/85 

848×480p@60 

1024×768p@60/70/75/85 

1152×864p@75 

1280×720p@50/60 

1280×768p@60/75/85 

1280×800p@60/75/85 

1280×960p@60/85 

1280×1024p@60/75/85 

1360×768p@60 

1366×768p@60 

1400×1050p@60 

1440×900p@60/75 

1600×900p@60RB 

1600×1200p@60 

1680×1050p@60 

1920×1080i@50/60 

1920×1080p@24/25/30 
