Supoin S20 Series Manuale utente

User Manual

Supoin S20 Series Products

Addr：Room2401-2408,Block A, World Trade Square,

No.9 Fuhong Rd, Futian District, Shenzhen, China

Tel：+0086-755-25828560 82178516 Fax：+0086-0755-82281509

www.supoin.net

Shenzhen Supoin Technology Corp.

Page 01

Rights Reserved.

This guide is prepared by Shenzhen Supoin

Technology Corp., according to the existing

information. The content in this document is

subject to update without notice.

Without written approval of Shenzhen

Supoin Technology Corp., no one shall copy,

extract, back up, modify, spread, or translate

any part of this document in any form or

method or use the whole or part of this

document for business purposes.

If you have any question, you are free to

send an email to [email protected]

Table of Contents

www.supoin.net

User Manual of S30 Series Products

Chapter 1 Introduction

1.1 Overview 02

1.2 Scope of Application 02

1.3 Technical Specifications 03

1.4 Battery Life (hours) 05

Chapter 2 Appearance and Hardware

2.1 Appearance 06

2.2 Functions of Button 08

2.3 TF Card Slot and SIM Card Slot 09

Chapter 3 Use Instructions

3.1 PDA Desktop 09

3.2 Use Instructions for PDA Tools 10

3.2.1 Main Menu of PDA Device 11

3.2.2 Wi-Fi Setting 11

3.2.3 3G and GPRS Test (Optional) 12

3.2.4 Bluetooth Setting 13

3.2.5 Camera Setting(Optional) 14

3.2.6 Barcode 1D Setting 15

3.2.7 Barcode 2D Setting 16

3.2.8 USB Setting 17

3.2.9 Serial Port Setting 17

3.2.10 Screen Setting 18

3.2.11 Sound Setting 19

3.2.12 Dormancy Setting 20

3.2.13 Lock Setting 21

3.2.14 On and off Setting of the Modular 22

3.2.15 Autorun Setting 23

3.2.16 Input Method Setting 24

3.2.17 Setting Information 25

3.2.18 Restore Factory 25

..................................................................................................

................................................................................

............................................................................

...................................................................................

..............................................................................................

..................................................................................

................................................................

............................................................................................

.................................................................

....................................................................

..........................................................................................

.................................................................

..................................................................................

.....................................................................

...............................................................................

...........................................................................................

..................................................................................

.....................................................................................

......................................................................................

................................................................................

........................................................................................

......................................................

...................................................................................

..........................................................................

.............................................................................

....................................................................................

Chapter 4 Precautions and Troubleshooting

4.1.1 To ensure that the Supoin S20 does not fail, follow the following

precautions during use of the Supoin S20: 26

4.1.2 Pay attention to the following during use of the battery. 27

4.1.3 Cleaning the Supoin S20 27

4.2 Troubleshooting 28

.......................................................

.......................

.........................................................................

..........................................................................................

Page 03Page 02

Chapter 1 Introduction to S10 Series Products

S20 series products are industrial grade handheld terminals independently

researched, developed, designed and produced according to the characteristics

of each industry, and feature ergonomic design, compact size, anti-shock and

anti-fall design, long standby time and stable operation. Moreover, the S20

series boasts IP65-rated robustness against adverse environments because it is

waterproof, dustproof, shatter-resistant, electrostatic prevention and anti-high

and low temperature.

1.1 Overview

Hello!

Thanks for choosing our S10 series products.

Before use, please read the user manual carefully to learn

more about our products' features. The products are subject

to upgrade from time to time, so please contact us for the

latest version. This manual is for reference only.

Mainly used in the fields of shoes, clothes, channels, logistics, drug supervision

and etc.

1.2 Scope of Application

1.3 Technical Specifications

www.supoin.net

Currently, we have two solutions available: 2416 and PXA.

Product Model S20

CPU Samsung S3C2416 ARM9 400MHz Marvell PXA310 XScale 533MHz

Operating System Windows Embedded CE 5.0 Windows Embedded CE 6.0

Memory 128MB ROM 128MB RAM 256MB ROM 256RAM RAM

Display 3.2-inch QVGA (240x320),

TFT-LCD

3.2-inch QVGA (240x320),

TFT-LCD

Camera(Optional) 5.0 mega pixels, auto focus

Scanner 1D Laser Scanner 2D CMOS laser scanner

Symbologies All major 1D barcode All major 2D barcodes

Reading Accuracy ≥3mil ≥4mil

Scan Depth of Field 3.81 cm - 60.98 cm 7.4 cm - 20.3 cm

Scan Angle 47°± 3° (Standard) Omnidirectional

Scan Speed 114 ± 10 scans/sec. 300 scans/sec.

Communication

Transmission Wi-Fi 802.11b/g WCDMA Bluetooth 2.0

Operating Environment Operating Temp. -15℃ ~ 45℃；5 ~ 95% RH；

Drop Spec. 2.5-meter drops to concrete ground

Dimensions (LxWxD) 191.8mm x 72 mm x 37.7 mm；

Page 05Page 04

www.supoin.net

USB Port 1 ( Mini USB port)

Charger Port 1 (Charging interface at the bottom)

Keypad 26-key

Accessories Universal adapter Battery, USB Cable, Touch pen,

Hand strap, MicroSD (TF) Card of 4G

Programming

Environment

Microsoft Visual Studio 2005/2008；

Language：C++ / C# / VB.NET

Qualification CE, RoHS IP65, ISO9001

Weight 320 g (standard battery included)

Battery 3.7V 3200 mAh polymer lithium batteries

Expansion Slot Mini SD card, up to 32 GB, Micro SD slot

Vibration Motor Built-in programmable vibration motor

1.4 Battery Life (hours)

Test Item S3C2416 PXA310

Continuous 1D scan+sound

Continuous 1D scan +WI-FI（powermode=1）

upload +sound

Continuous 1D scan +WI-FI（powermode=0）

upload +sound

Continuous 1D scan +GPRS upload +sound

Continuous 1D scan +EVDO upload +sound

Continuous 1D scan +WCDMA upload +sound

Continuous 2D scan+sound

Continuous 2D scan +WI-FI（powermode=1）

upload +sound

Continuous 2D scan +GPRS upload +sound

Continuous 2D scan +EVDO upload +sound

Continuous 2D scan +WCDMA upload +sound

Dormancy and standby (GPRS Off)

Dormancy and standby (GPRS On)

12

11.24

7.5

12.7

11.5

9.5

About 300

About 100

12.04

10

6.5

9.83

8.85

7.1

11.66

9.41

10.2

8.23

10.13

About 300

About 100

Page 07Page 06

www.supoin.net

Chapter 2 Appearance and Hardware

S20 handheld mobile terminal

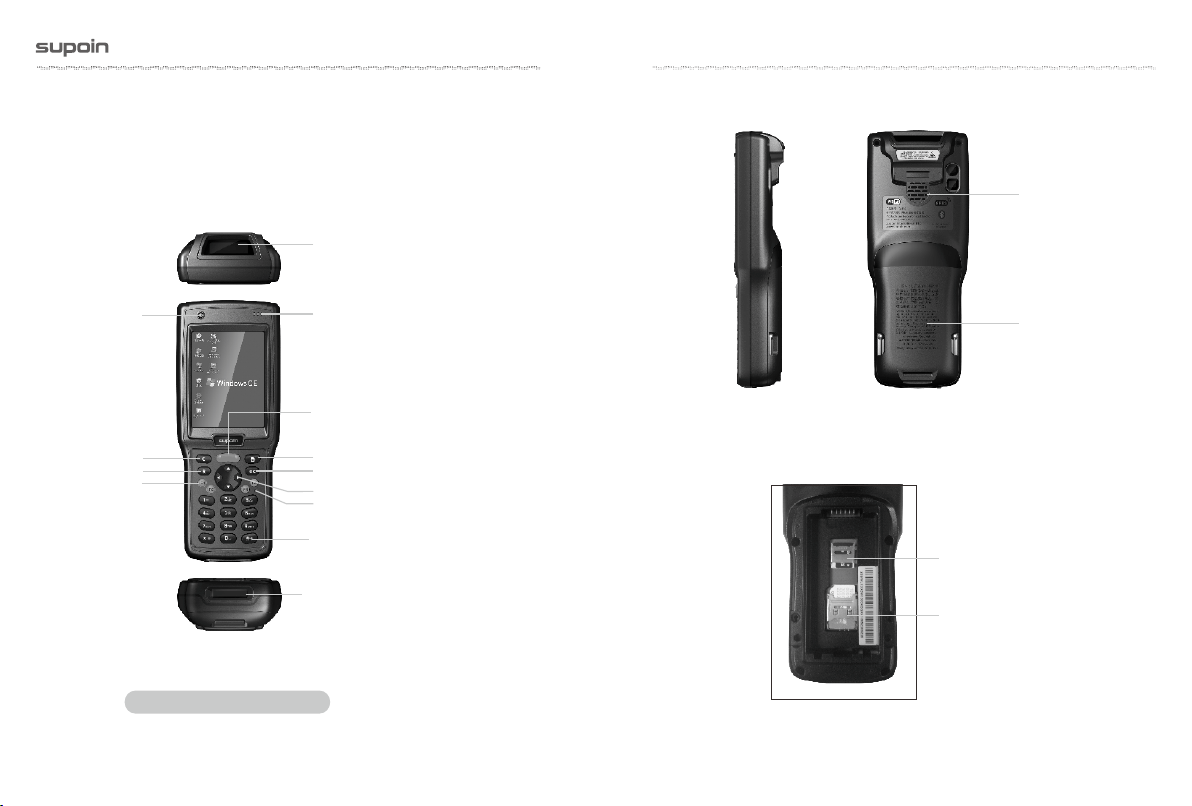

2.1 Appearance

Scanning key

Direction key

Esc key

Power key

OK key

Function key

Special function key “*”“#”

Function key

Reset key

Components inside after removing rear

cover: charge jack and USB interface

Power key

From left to right, The first light:

indicator for terminal initiation;

The second light:

indicator for GPRS module initiation;

The third light:

indicator for battery charging;

Scanning head

Top view、Front view、Bottom view

SCAN

Battery cover lock

Speaker

TF card slot

SIM card slot

Figure 1-1 Front view of Supoin S20

Figure 1-2

Lateral view of Supoin S20

Figure 1-3

Lateral view of Supoin S20

Figure 1-4 Inserting an SD card/ a SIM card

Page 09Page 08

www.supoin.net

Power key: Long press the ON/OFF button to power the terminal on or off. If you

want to leave your terminal unused but powered on for a long time, tap the red

ON/OFF button in the upper left corner of the display area. Then, the screen will

turn black, indicating that the terminal has been in a standby state (shallow

dormancy). To make it standby, tap the red button again.

Reset key: If you want a program, circuit, etc. to run in its initial state, press the

Reset button, which is a small red button on the lower left of the Arrow button..

Note: Pressing the Reset button of PXA 310 will reset the terminal, while

pressing this button of S3C 2416 series will turn it off.

Scan key: Press the Scan button to scan barcodes.

Enter key: Press OK to execute the selected function. It is equal to the ENTER key,

with the decimal key value of 13.

Return key: Press this button to return or exit the current interface. It is equal to

the ESC key, with the decimal key value 27

Delete key: It functions the same as the Backspace button when you are typing a

barcode and characters. Its decimal key value is 8.

Arrow key: Press the Arrow buttons to move up, down, left, and right.

Up: Decimal key value 38

Down: Decimal value 40

Left: Decimal key value 37

Right: Decimal key value 39

User-defined function keys: Function buttons, which can be defined as shortcut

buttons by user programs.

F1: Decimal key value 112

F2: Decimal key value 113

F3: Decimal key value 114

F4: Decimal key value 115

* and # (special function keys): Press the * button to enter ”.”, and the #

button to change an input method.

USB and Charging Port: Through this port, you can use a USB cable to connect

the terminal and a computer for data transmission, or connect the terminal to a

charger for charging.

Loudspeaker Orifice: The loudspeaker will make a warning sound and tone

towards an operation error or barcode scan.

Battery Cover: Fix the battery cover.

2.2 Functions of Buttons

Installing a TF Card:

Open the batter y cover and remove the battery, and insert the TF card into the slot

on a lower part of the back and push it inward. Then you can connect the terminal

with a computer via the USB port to store information in the TF card.

Installing a SIM Card:

The installation of a SIM card is similar to that of a TF card, but you should make

sure that the SIM card is properly loaded and it has been registered. After

installing the SIM card, install the batter y and make the terminal read the SIM card

for dial-up access and download, which will be detailed below.

2.3 TF Card Slot and SIM Card Slot

Chapter 3 Use Instructions

The terminal will be turned on by pressing the power button for 3 to 5 seconds

after putting in the battery; the following interface will be displayed:

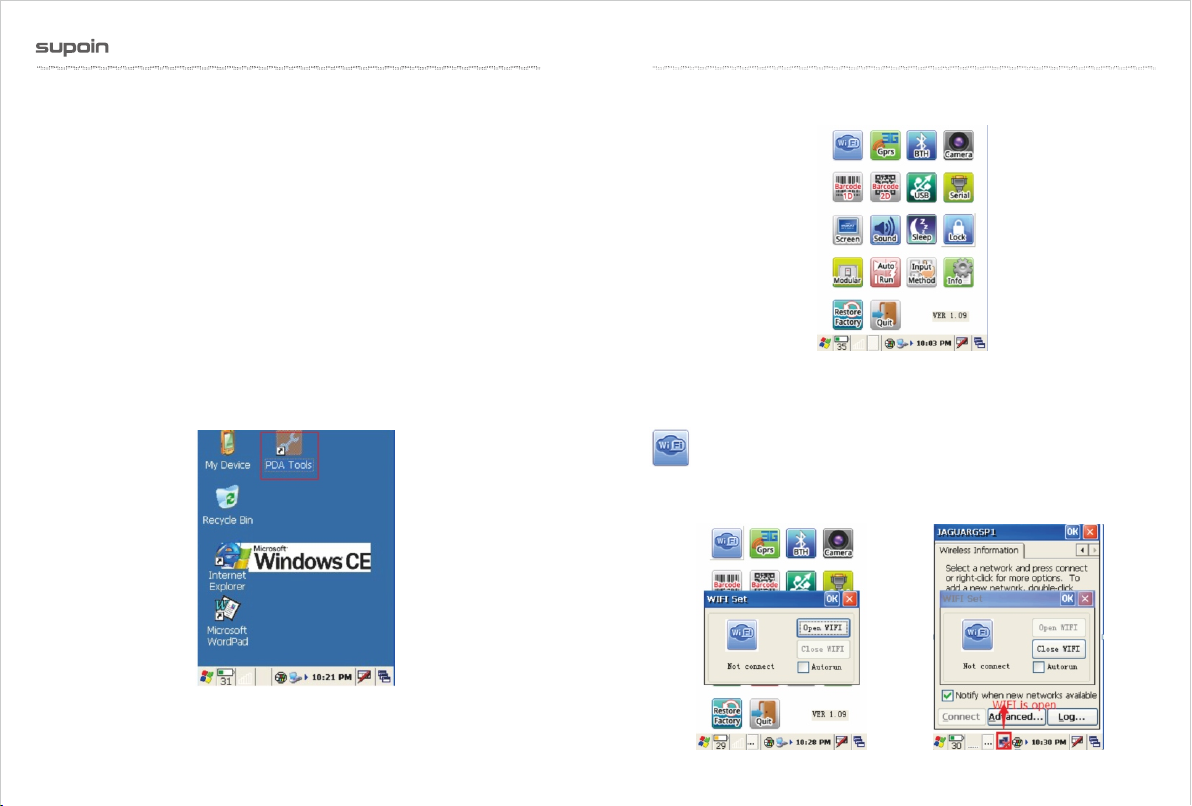

3.1 PDA Desktop

Then we will introduce the software function of S20 series devices in detail, mainly

on the use of PDA configuration tool.

Page 11Page 10

www.supoin.net

Of all the three indicating lights in the top right corner, the one in the leftmost

will light after turning on, the middle one will turn to red after plugging in

power, and turn to green after the batter y is filled. For example, the red marker

box in the above picture displays battery level and signal strength. Battery level

indicate: Normal above 30%; insufficient 10%-30%; low power less than 10%.

Note: you shall charge at once at low power, please turn off the terminal if you

can’t charge immediately, otherwise it will cause the battery can’t be charged

then.

Choose Start > Programs, and the following shortcut will appear: IE browser,

Media Player, Microsoft WordPad, Windows Resource Manager, Command

Prompt, Synchronous and Remote Desktop Connection.

3.2 Use Instructions for PDA Tools

Turn on/off the Wi-Fi module: Set whether the Wi-Fi module runs on startup of

the terminal.

A) An icon will appear in the taskbar after Wi-Fi access is enabled.

B) If "Run on Startup" is selected, the Wi-Fi module will be loaded automatically in the

boot process of your terminal.

3.2.2 Wi-Fi Setting

3.2.1 Main Menu of PDA Device

Page 13Page 12

www.supoin.net

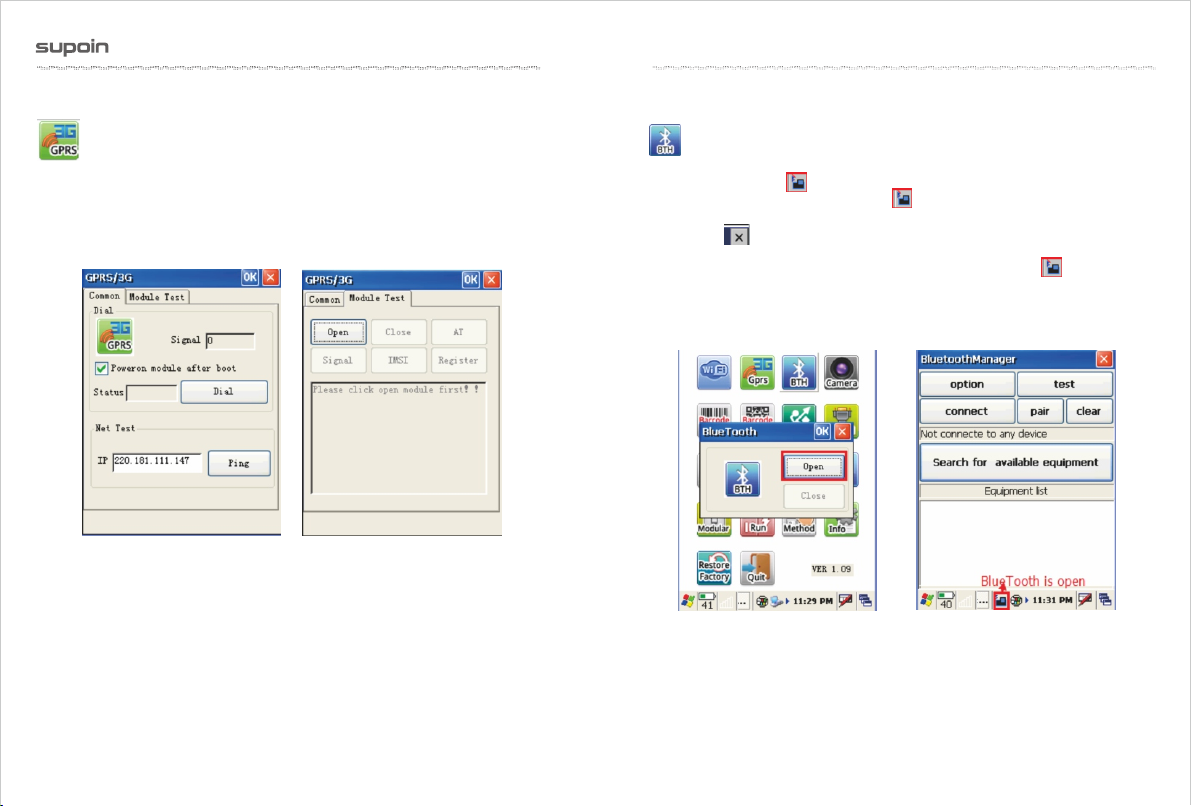

AT instruction test is usually used in 3G or GPRS module dial test.

A) Obtain current signal value

B) If “Run on Startup” is selected, the current 3G or GPRS module will be

started automatically in the boot process.(Note: Automatic dial-up access is

unavailable.)

3.2.3 3G and GPRS Test (Optional)

Turning On/Off Bluetooth

A) Open or close the window of Bluetooth Manager

B) The bluetooth icon will appear in the taskbar after opening.

C) Double click the icon in the taskbar ; the Bluetooth Manager window will

be activated.

D) Click the in Bluetooth Manager window, the window will be minimized to

the taskbar.

E) Click “close bluetooth”, quit Bluetooth Manager, the icon in the taskbar

will disappear.

3.2.4 Bluetooth Setting(Optional)

Page 15Page 14

www.supoin.net

Activate camera program

A) “Take OK”: Focus and take pictures.

B) “Show F3”: Preview the photos.

C) “Set F1”: set the path of the photos; flashlight open/close (closed in default);

brightness; resolution ratio and etc.

D) “Exit R”: close the camera.

3.2.5 Camera Setting(Optional)

Open/close and various parameter setting of barcode 1D auto scanning tools

A) “Open scan head”: open the autoscan function, input barcode in the focal position

of other application program. After opening this funtion, this function will be

automatically launched at each boot.

B) “Advance options”: set the code system and output model of Barcode 1D.

C) “The initialization of scan head”: restore factory setting of the scan head.

Note:

When you click “open the scan head”, the auto scan function will remain scan when

you exit the program, press the scan button, and the focus of the current input box will

output barcode.

If you want to call API in the program to achieve the barcode output, you must “shut

down the scan head”, otherwise it will have a impact on the program barcode output.

3.2.6 Barcode 1D Setting

Page 17Page 16

www.supoin.net

Open/close and various parameter setting of Barcode 2D auto scanning tools

A)“Open scan head”: open the autoscan function, input barcode in the focal position

of other application program. After opening this funtion, this function will be

automatically launched at each boot.

B)“Advance options”: set the code system and output model of barcode 2D.

C)“The initialization of scan head”: restore factory setting of the scan head.

Note:

When you click “open the scan head”, the auto scan function will remain scan when

you exit the program, press the scan button, and the focus of the current input box will

output barcode.

If you want to call API in the program to achieve the barcode output, you must “shut

down the scan head”, otherwise it will have a impact on the program barcode output.

an head”, otherwise it will have a impact on the program barcode output.

3.2.7 Barcode 2D Setting

Set the application mode of the serial, and it will come into force after

restarting.(note: the devices of PXA310 plan has no this function)

A) “Connect the BlueTooth devices”: connect buletooth printer.

3.2.9 Serial Port Setting

Set data synchronization or USB disc loading (note: this item is only existed in

2416 plan device, remember not to connect with the USB line before setting, or the

setting is invalid)

A) Synchronization: The PC shall install Microsoft ActiveSync, and the PC taskbar will

appear after connecting USB line, and then the data can be updated.

B) U Disc Mode

①Use FLASH as U disc: will be displayed as “local disc” in the PC.

②Use TF card as U disc: will be displayed as “movable disc” in the PC.

C) Operating Mode:

Step 1: Pull the USB line, and restart PDA.

Step 2: Set in the USB Set interface.

Step 3: Restart PDA.

3.2.8 USB Setting

Supoin S20 Series Manuale utente

Manuali Terminale mobile popolari di altre marche
