SUPREME Vivotek SD9361-EH Manuale utente

User’s Manual

Speed Dome

Network Camera

2MP • 20x / 30x Zoom • 60fps • NEMA 4x • IP68 •

Extreme Weatherproof

SD9362-EH/EHL

SD9361-EH/EHL

Rev. 1.0

VIVOTEK

2 - User's Manual

Table of Contents

Overview.......................................................................................................................................................4

Revision History ......................................................................................................................................4

Read Before Use.....................................................................................................................................5

Package Contents ...................................................................................................................................5

Symbols and Statements in this Document.............................................................................................5

Physical Description .............................................................................................................................6

Hardware Installation ...............................................................................................................................9

Network Deployment .............................................................................................................................20

Software Installation ..............................................................................................................................23

Ready to Use.........................................................................................................................................24

Accessing the Network Camera .................................................................................................................25

Using Web Browsers.............................................................................................................................25

Using RTSP Players..............................................................................................................................27

Using 3GPP-compatible Mobile Devices...............................................................................................28

Using VIVOTEK Recording Software ....................................................................................................29

Main Page ..................................................................................................................................................30

Client Settings ............................................................................................................................................36

Conguration ..............................................................................................................................................41

System > General settings ....................................................................................................................42

System > Homepage layout .................................................................................................................43

System > Logs ......................................................................................................................................46

System > Parameters ...........................................................................................................................47

System > Maintenance..........................................................................................................................48

Media > Image ....................................................................................................................................52

Media > Video .......................................................................................................................................61

Media > Audio........................................................................................................................................68

Network > General settings...................................................................................................................69

Network > Streaming protocols ...........................................................................................................77

Network > DDNS .................................................................................................................................81

Network > SNMP (Simple Network Management Protocol)..................................................................86

Security > User Account........................................................................................................................87

Security > HTTPS (Hypertext Transfer Protocol over SSL) ........................................................88

Security > Access List .........................................................................................................................95

PTZ > PTZ settings ............................................................................................................................100

Event > Event settings ........................................................................................................................107

Applications > Motion detection...........................................................................................................122

Applications > DI and DO ..................................................................................................................125

Applications > Audio detection ..........................................................................................................126

Applications > VADP (VIVOTEK Application Development Platform) ................................................128

Recording > Recording settings .........................................................................................................131

Local storage > SD card management................................................................................................136

Local storage > Content management ................................................................................................137

VIVOTEK

User's Manual - 3

Appendix ................................................................................................................................................................. 140

URL Commands for the Network Camera.......................................................................................................... 140

Technical Specications ..................................................................................................................................... 238

Technology License Notice................................................................................................................................. 239

Electromagnetic Compatibility (EMC)................................................................................................................. 240

VIVOTEK

4 - User's Manual

Overview

VIVOTEK’s SD9361/SD9862-EH/EHL is a high performance H.265 Full HD speed dome network

camera. Armed with a 20x or 30x optical zoom lens, the camera is able to capture ne details

at top-notch quality. By combining both H.265 and VIVOTEK’s Smart Stream II technology, it is

capable of reducing both bandwidth and storage consumption by up to 80%* while maintaining

the highest standard of image quality.

Offering extra smooth video quality with resolutions of up to 60 fps @ 1920x1080, the SD9361-

EH/EHL is also equipped with WDR Pro technology and IR-cut filter for seamless day/night

operation. This enables the camera to cope effortlessly with the challenging lighting conditions

faced in 24/7 surveillance. The SD9361/SD9362-EH/EHL also provides fast, precise movement

with continuous 360-degree pan and 110-degree tilt, and easy-control with up to 256 preset

positions when tracking any object of interest. To add to this impressive array of strengths,

built-in auto tracking provides instantaneous reaction to any suspicious moving objects, and

audio detection ensures an additional layer of intruder detection. Further, EIS (electronic image

stabilization) and defog features enhance video quality in windy or foggy conditions.

Finally, the water-proof IP68-rated, vandal-proof IK10-rated and NEMA 4X-rated housing of

the SD9361/SD9362-EH/EHL protects the camera body against rain, dust and corrosion and

provides a wide operating-temperature range of between -40°C and 65°C. This combination

of robustness and high performance ensures that the SD9361/SD9362-EH/EHL is especially

suitable for monitoring wide, open, harsh indoor or outdoor spaces such as airports, highways

and parking lots where high-level reliability and precision are called for.

* Depending on scene being monitored

Revision History

■ Rev. 1.0: Initial release

IMPORTANT:

Below are the requirements for powering the the speed dome:

Feature Power Consumption

Normal w/

heater

48W, requires a 60W PoE injector (AP-GIC-010A-060) or PoE switch (AW-

IHU-0100, -0200, -0600); AC24V (3.5A) also applies

w/ IR unit 95W, VIVOTEK's AW-IHU-0101 & AW-IHU-0201

DC 24V (3.5A) applies, AC 24V is not sufcient.

VIVOTEK

User's Manual - 5

Read Before Use

The use of surveillance devices may be prohibited by law in your country. The Network Camera is not

only a high-performance web-ready camera but can also be part of a exible surveillance system. It is

the user’s responsibility to ensure that the operation of such devices is legal before installing this unit for

its intended use.

It is important to rst verify that all contents received are complete according to the Package Contents

listed below. Take note of the warnings in the Quick Installation Guide before the Network Camera is

installed; then carefully read and follow the instructions in the Installation chapter to avoid damage due to

faulty assembly and installation. This also ensures the product is used properly as intended.

The Network Camera is a network device and its use should be straightforward for those who have basic

networking knowledge. It is designed for various applications including video sharing, general security/

surveillance, etc. The Configuration chapter suggests ways to best utilize the Network Camera and

ensure proper operations. For creative and professional developers, the URL Commands of the Network

Camera section serves as a helpful reference to customizing existing homepages or integrating with the

current web server.

Package Contents

■ SD9361 / 9362

■ Wall Mount Bracket / Screws

■ Screws / Alignment Sticker / T20 and T25 L-wrench / Desiccant Bags

■ Quick Installation Guide

■ Software CD / Warranty Card

■ Water-repellent / Smoked Dome Cover / IO Combo Cable (may come with one 1m combo cable or

Separately Purchased)

Symbols and Statements in this Document

INFORMATION: provides important messages or advices that might help prevent inconvenient

or problem situations.

NOTE: Notices provide guidance or advices that are related to the functional integrity of the

machine.

Tips: Tips are useful information that helps enhance or facilitae an installation, function, or

process.

WARNING: or IMPORTANT:: These statements indicate situations that can be dangerous or

hazardous to the machine or you.

Electrical Hazard: This statement appears when high voltage electrical hazards might occur

to an operator.

VIVOTEK

6 - User's Manual

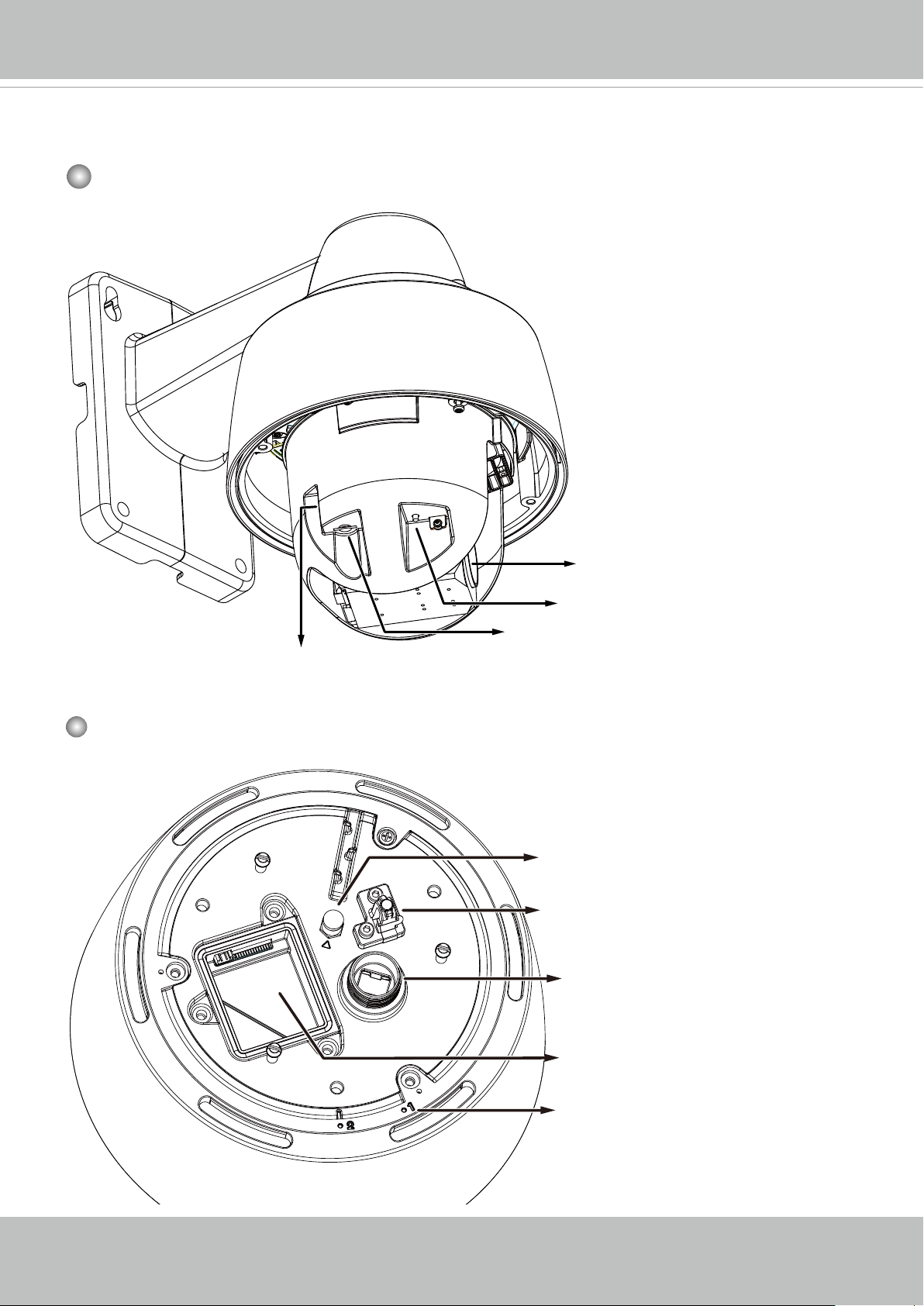

Physical Description

Outer View

Reset Button

Inner View

Lens

Status LED

This drawing shows a camera with its dome

cover removed.

MicroSD card slot

IR unit connector

LAN connector

Safety wire hook

I/O combo connector

Alignment marks

VIVOTEK

User's Manual - 7

Status LED

Item LED status Description

1 Steady red Power on and system booting

Red LED OFF Power off

2 Steady red & Green blinking every 1 sec. Network normal (heartbeat)

Steady red & Green LED OFF Network failed

3Red blinking every 0.15 sec. & Green blinking

every 1 sec.

Upgrading rmware

4Red blinking every 0.15 sec. & Green blinking

every 0.15 sec.

Restoring default

Hardware Reset

The reset button is used to reset the system or to restore the factory default settings. Sometimes

resetting the system can return the camera to normal operation. If the system problems remain

after reset, restore the factory settings and install again.

Reset: Press and release the reset button with a paper clip or thin object. Wait for the Network

Camera to reboot.

Restore: Press and hold the reset button for at least ten seconds to restore system defaults.

Note that all settings will be restored to factory defaults.

SD/SDHC/SDXC Card Capacity

This network camera is compliant with SD/SDHC/SDXC 32GB, 64GB, and other preceding

standard SD cards.

1. If you forget the root (administrator) password for the camera, you can restore the camera

defaults by pressing the reset button for longer than 5 seconds.

2. If DHCP is enabled in your network, and the camera cannot be accessed, run the IW2 utility

to search the network. If the camera has been congured with a xed IP that does not comply

with your local network, you may see its default IP 169.254.x.x. If you still cannot find the

camera, you can restore the camera to its factory defaults. The factory default is DHCP client.

3. If you change your network parameters, e.g., added a camera via a connection to a LAN

card, re-start the IW2 utility.

Tips:

VIVOTEK

8 - User's Manual

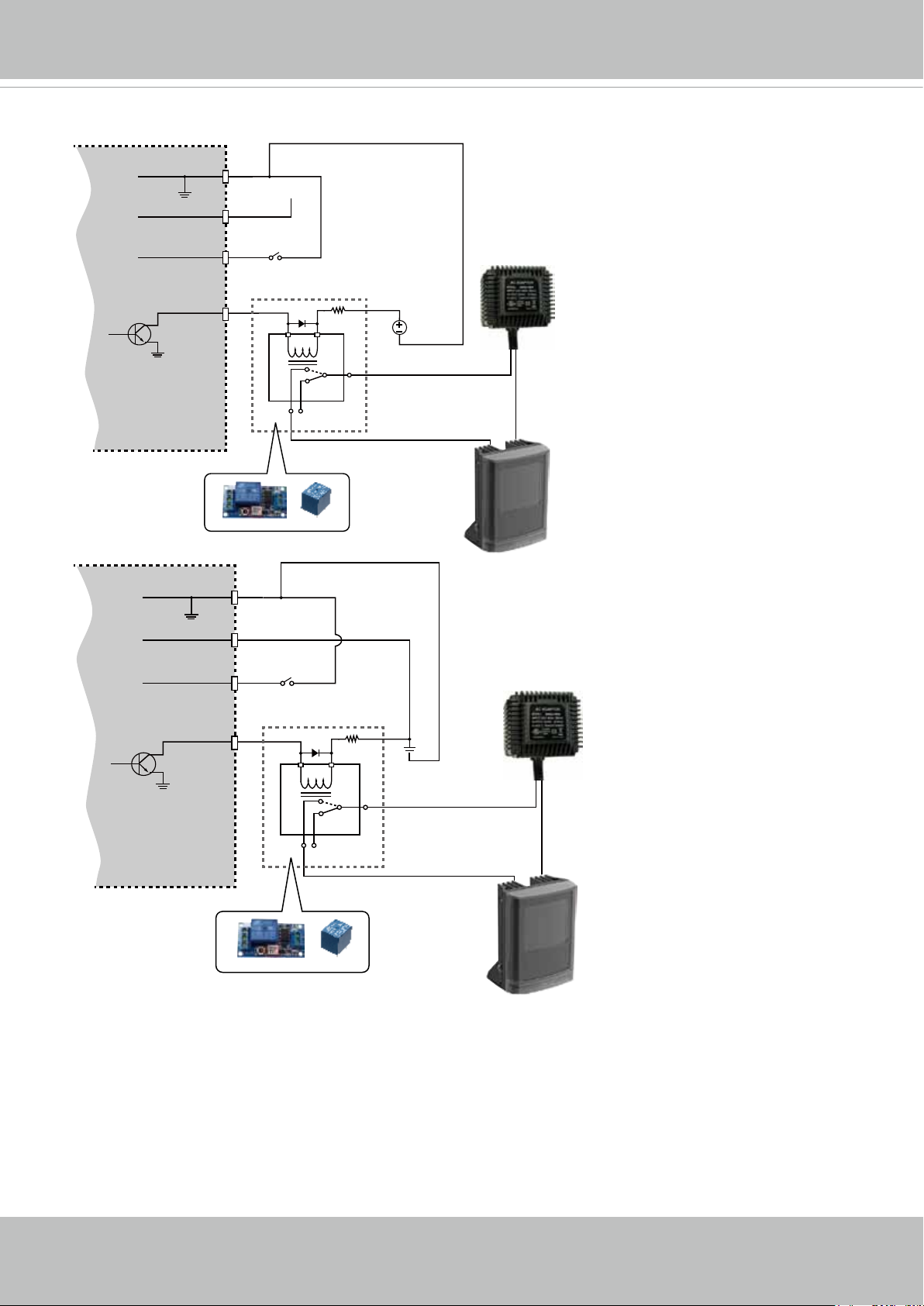

DI/DO Diagram

DI-

DO+

DI+

DO- External

power source

VDC

Switch

BJT transistor

Relay

Source

NO NC

External

device

DI-

DO+

DI+

DO-

VDC

Switch

BJT transistor

Relay

Source

NO NC

External

device

1. The DO+ pin provides 12V output voltage, and the max. load is 50mA.

2. The max. voltage for DO- pins is 80VDC (External power).

In order to control AC devices, the above diagram can be taken in consideration. The diagram

uses a relay to control the ON/OFF condition of the AC device.

3. An external relay can be triggered by using DO+ or by an external power source, depending

on the type of relay you use.

4. In case of using an individual relay (instead of using a relay module), for protection against

voltage or current spikes, a transient voltage suppression diode must be connected in parallel

with the inductive load.

VIVOTEK

User's Manual - 9

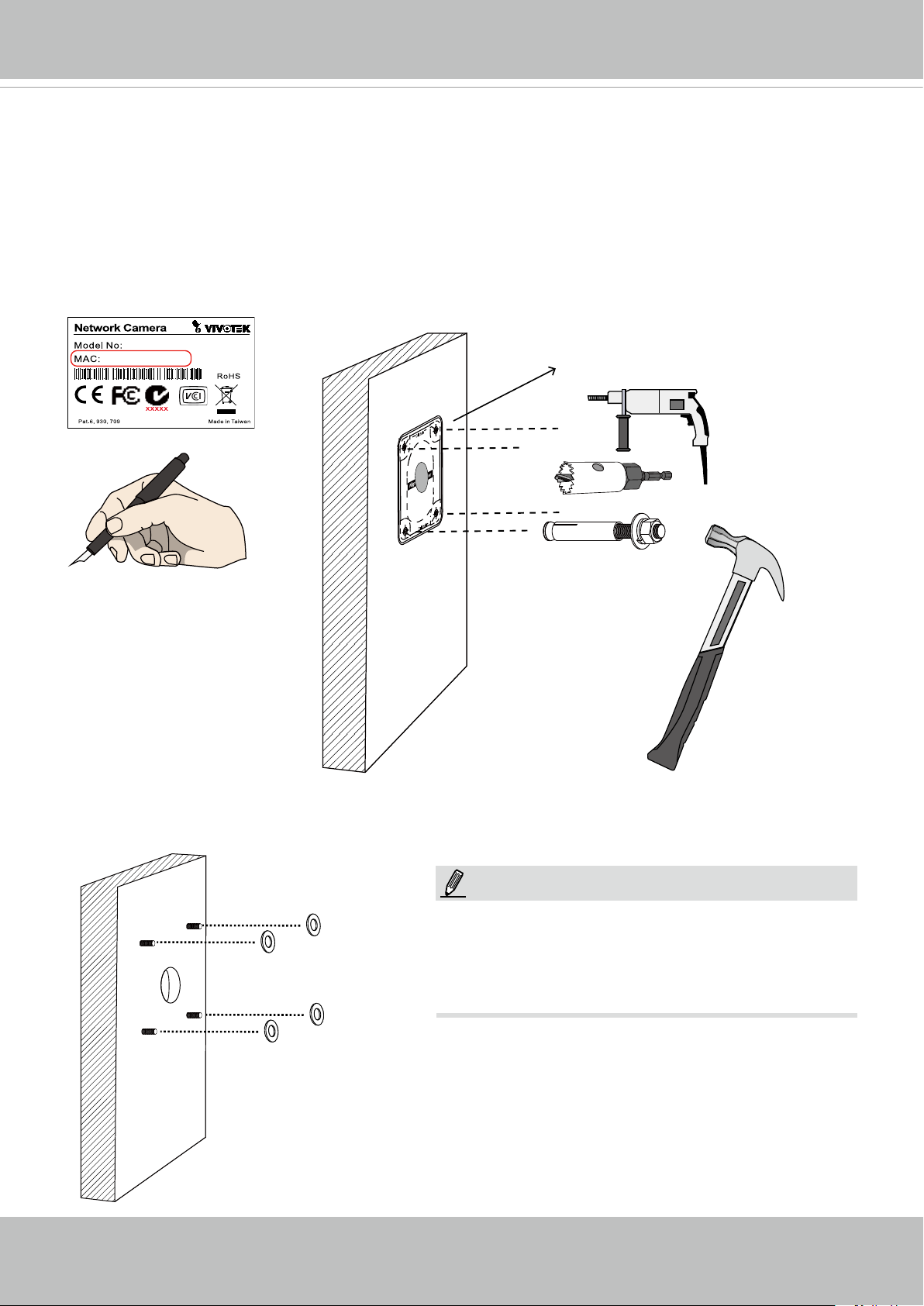

Hardware Installation

Ø 9.5mm or 3/8”

1. Jot down the camera's MAC address for later reference.

2. The camera weighs 3kg. Select a rigid mounting location to prevent vibration to the camera.

Attach the alignment sticker to the wall.

3. Drill 4 pilot holes (9.5mm in diameter and 4cm deep) into the wall, and then hammer in

threaded anchors. Note that you should hammer the anchors with hex nuts on them so that

the threaded poles will not be deformed! If preferred, drill another hole for routing cables.

4. Remove the hex nuts, washers, and leave one washer on each of the threaded poles.

0002D10766AD

SDXXXX

1. IO wires are user-supplied.

2. Avoid touching the circuit boards to prevent

damage by electro static discharge.

3. Use CAT5e, CAT6 cables only.

NOTE:

VIVOTEK

10 - User's Manual

LAN I/O combo

5. Connect power or I/O wires, and use foam tapes or seal foam to ensure the back-end

connection is waterproof.

6. Route your I/O combo and Ethernet cables along the routing guide poles to form drip loops.

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali SUPREME Telecamera di sicurezza

SUPREME

SUPREME VIVOTEK FE8391-V Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
