Suptek ML5074-2 Manuale utente
Panel x1
Short square
tube x2
Long square
tube x2
Hook x2 Plate for fixing
column x1
Castor x4
Screw package (for TV installation)
Screw package (for floor stand)
ML5074-2
WARNING!
32"-75" 165lbs
（75KG ）
VESA Pattern
Step 1 Step 2
Parts
Plastic fixing
cover X2
Column x1
F:M8x60
(X6)
H:M8 Nut
(X4)
I:M8x12
(X8)
J:S6 allen key
(X1)
K:bubble level & wrench(X1)
G:
φ
8xφ16x1.5
Washer
(X10)
M5x20 (x4)
(G1)
M6x20 (x4)
(G2)
M8x20 (x4)
(H1)
D8 Higher
spacer (x4)
(H2)
D5 Washer(x4)
(F)
D6 Washer(x4)
(O)
INSTALLATION MANUAL
Severe personal injury and property damage can result from improper
installation or assembly. Read the following warning carefully before begin-
ning.
●If you do not understand the instructions or have any concerns or ques-
tions, please contact a qualified local installer.
●Do not install or assemble if the product or hardware is damaged or miss-
ing. If you require replacement parts, please contact your local distributor for
assistance.
●This product fits most 32"-75" LCD/plasma screen; load capacity up to 165
lbs/75kg;
●Do not use this product for anything other than the original purpose.
●This product contains moving parts, please use with caution.
MAX 600x400
Base x1

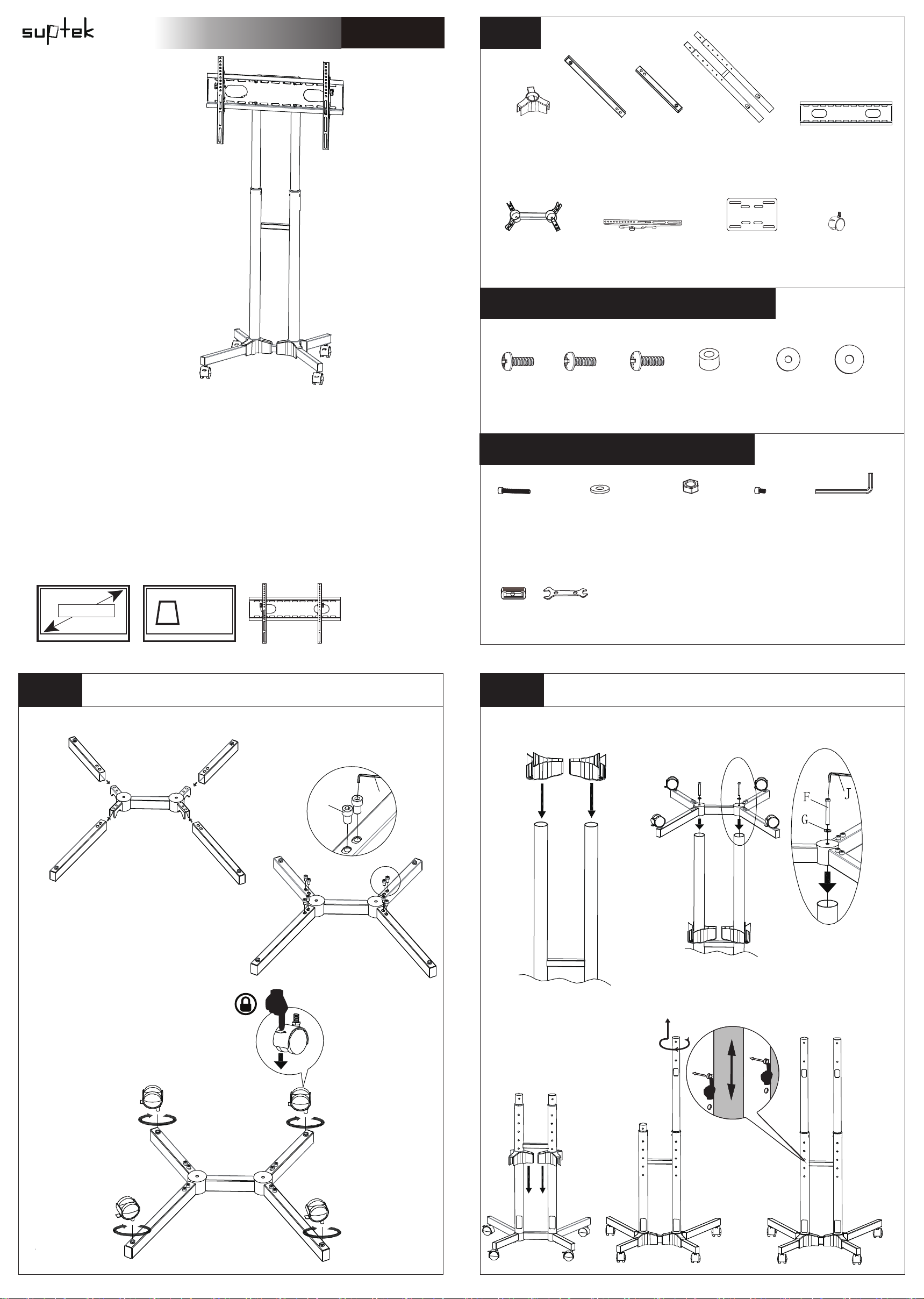

Installation of base and column and the adjustment of height
Base installation
Insert four square tubes
into the base as shown
Tighten screw I with wrench J
1.1
1.2
1.3
IJ
Tighten screw F with wrench J as shown.
2.1
2.3 2.4
2.5
2.2

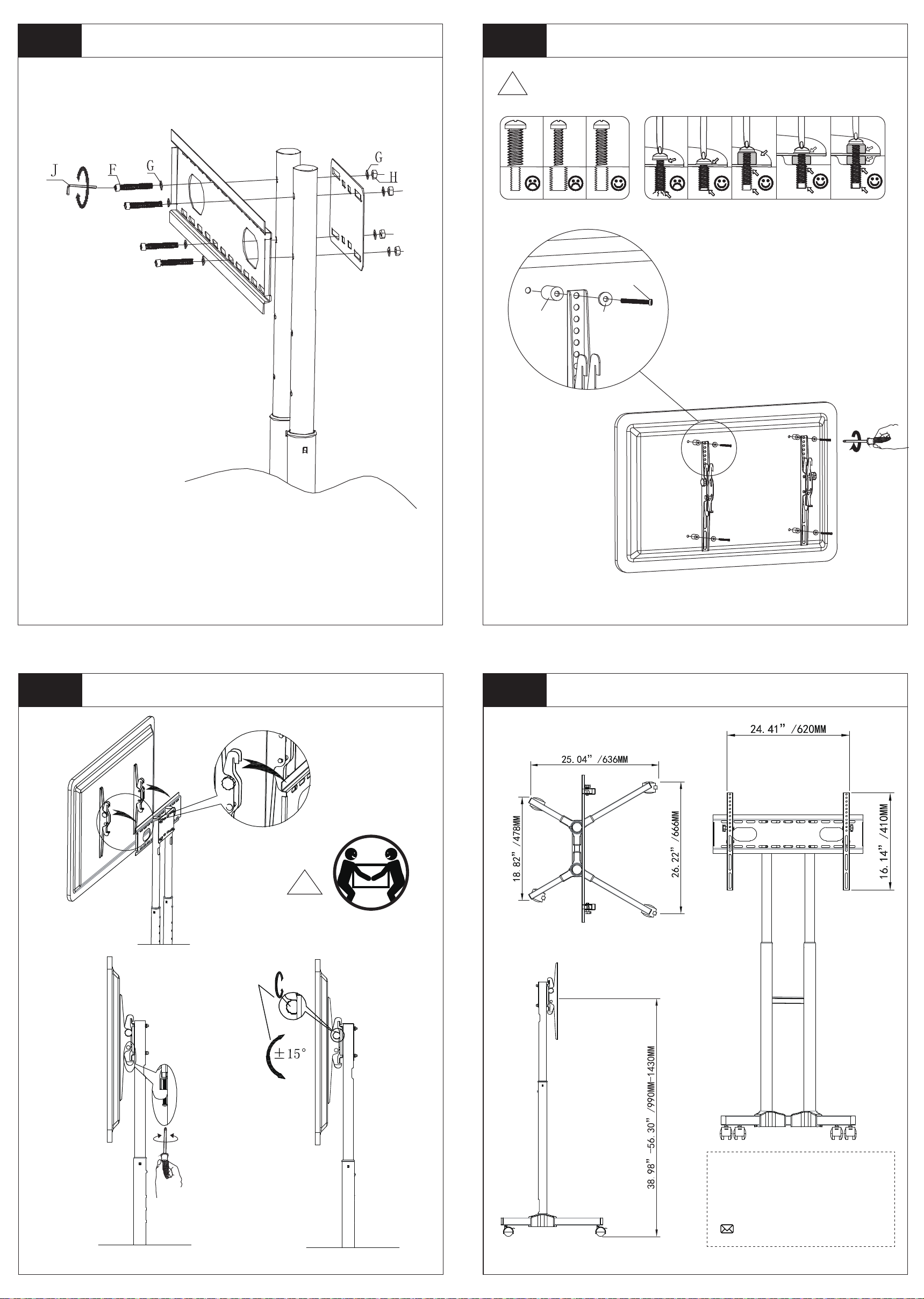

Connect panel and column Connect TV and hook
Connect TV and floor stand Specifications
!
Please use proper screws; leave room between tv and screw
(please use higher spacer for long screws in case of tv damage).
!
Step 3 Step 4
Step 5 Step 6
5.1
5.2 5.3
H2
F O
G1 G2 H1
