Suunto Tank POD Manuale utente

SUUNTO TANK POD

USER GUIDE

2021-01-19

1. Safety................................................................................................................................................................3

2. Important notices..........................................................................................................................................7

3. Getting started.............................................................................................................................................. 8

3.1. Installing Type A air restrictor.........................................................................................................8

3.2. Installing Type B air restrictor........................................................................................................8

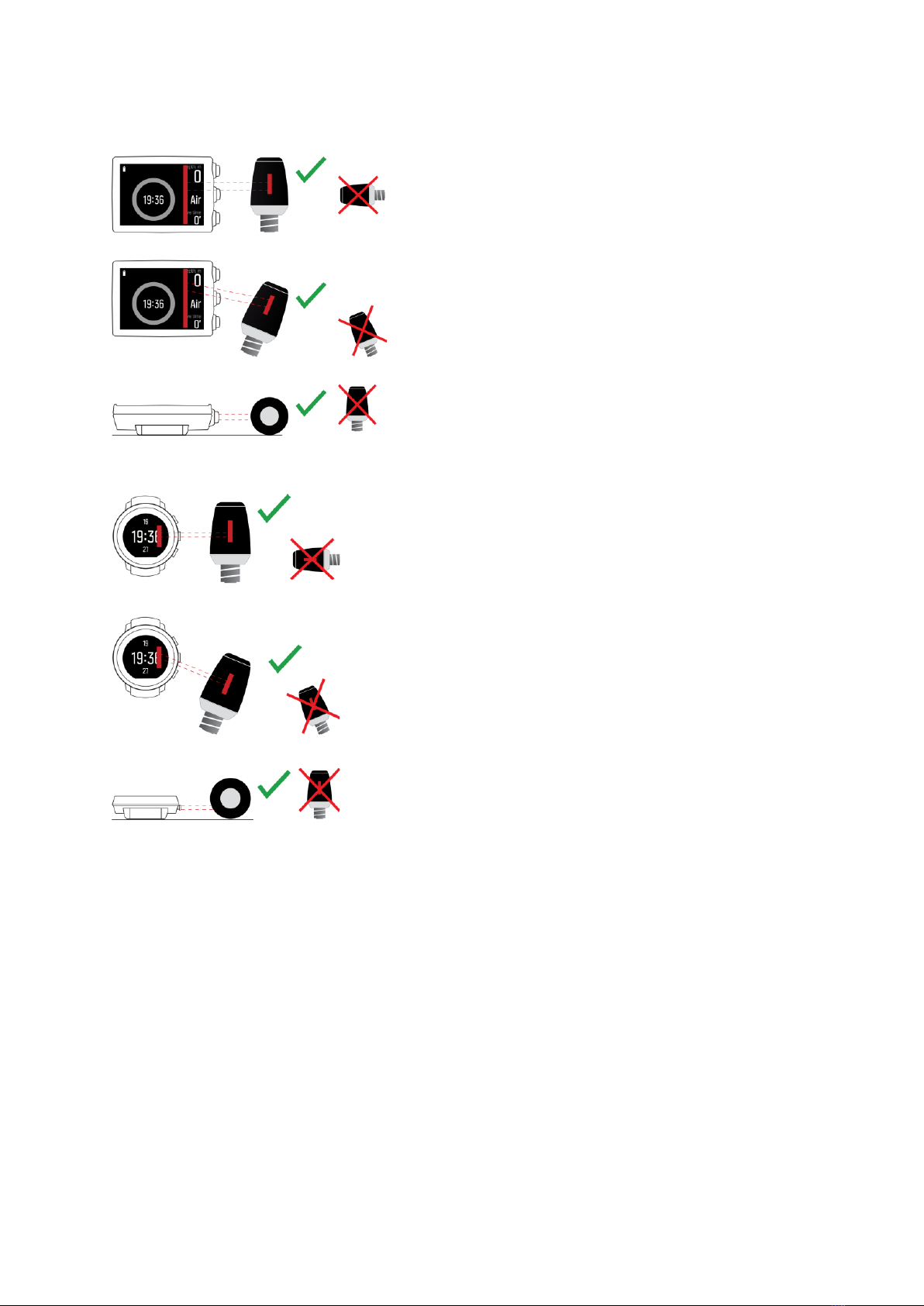

3.3. Tank POD alignment........................................................................................................................9

3.4. Pairing Suunto Tank POD............................................................................................................. 10

3.5. Unpairing Suunto Tank POD........................................................................................................12

3.6. Product compatibility..................................................................................................................... 14

3.7. Pre-checks.........................................................................................................................................14

4. Care and support........................................................................................................................................ 16

4.1. Handling guidelines........................................................................................................................ 16

4.2. Getting support............................................................................................................................... 16

4.3. Disposal and recycling.................................................................................................................. 16

5. Reference......................................................................................................................................................17

5.1. Technical speciﬁcations................................................................................................................. 17

5.2. Compliance...................................................................................................................................... 18

5.3. Trademark.........................................................................................................................................18

5.4. Patent notice....................................................................................................................................18

5.5. International Limited Warranty.................................................................................................... 18

5.6. Copyright.......................................................................................................................................... 19

Suunto Tank POD

1. Safety

Types of safety precautions

WARNING: - is used in connection with a procedure or situation that may result in

serious injury or death.

CAUTION: - is used in connection with a procedure or situation that will result in

damage to the product.

NOTE: - is used to emphasize important information.

TIP: - is used for extra tips on how to utilize the features and functions of the device.

WARNING: All computers experience failures. It is possible that this device may suddenly

fail to provide accurate information during your dive. Always use a backup dive device and

only dive with a buddy. Only divers trained in proper use of diving equipment should use this

dive device! YOU MUST READ the leaﬂet and user guide for your dive computer before use.

Failure to do so may lead to improper use, serious injury or death.

NOTE: Make sure your Suunto dive computer always has the latest software with

updates and improvements. Check before every dive trip from www.suunto.com/support, if

Suunto has released a new software update to your device. When it is available, you must

install it before diving. Updates are made available to improve your user experience and are

part of Suunto´s philosophy of continuous product development and improvement.

Before you dive

Make sure that you fully understand the use, displays and limitations of your dive instruments.

If you have any questions about this manual or dive instrument, contact your Suunto dealer

before diving. Always remember that YOU ARE RESPONSIBLE FOR YOUR OWN SAFETY!

Before leaving on a dive trip, inspect your dive computer thoroughly to make sure everything

is functioning properly.

At the dive site, perform your manual pre-checks on each device before entering the water.

Dive Computer Pre-check

Ensure that:

1. Suunto Tank POD is in the correct dive mode and the display is working as expected.

2. Altitude setting is correct.

3. Personal setting is correct.

4. Deep stops are set correctly.

5. Unit system is correct.

6. Compass is calibrated. Start the calibration manually in the menu under General »

Compass » Calibrate to also conﬁrm that the dive computer audible sounds are working.

After successful calibration, you should hear a sound.

7. The battery is fully charged.

Suunto Tank POD

8. All primary and backup gauges for time, pressure and depth, both digital and mechanical,

are showing correct, consistent readings.

9. If Suunto Tank PODs are in use, check that Suunto Tank POD is properly installed and the

tank valve is open. Please see the Suunto Tank POD User Guide for detailed information

and proper use.

10. If Suunto Tank PODs are in use, check that connections are working and gas selections

are correct.

NOTE: For Suunto Tank POD related information please see the instructions provided

with the product.

Safety precautions

WARNING: ONLY TRAINED DIVERS SHOULD USE A DIVE COMPUTER! Insucient

training for any kind of diving, including freediving, may cause a diver to commit errors, such

as incorrect use of gas mixtures or improper decompression, that may lead to serious injury

or death.

WARNING: You must read the printed quick guide and online user guide for your dive

computer. Failure to do so may lead to improper use, serious injury or death.

WARNING: THERE IS ALWAYS A RISK OF DECOMPRESSION SICKNESS (DCS) FOR ANY

DIVE PROFILE EVEN IF YOU FOLLOW THE DIVE PLAN PRESCRIBED BY DIVE TABLES OR A

DIVE COMPUTER. NO PROCEDURE, DIVE COMPUTER OR DIVE TABLE WILL PREVENT THE

POSSIBILITY OF DCS OR OXYGEN TOXICITY! An individual’s physiological makeup can vary

from day to day. The dive computer cannot account for these variations. You are strongly

advised to remain well within the exposure limits provided by the instrument to minimize the

risk of DCS. As an added measure of safety, you should consult a physician regarding your

ﬁtness before diving.

WARNING: YOU ARE ADVISED TO AVOID FLYING ANY TIME THE COMPUTER COUNTS

DOWN THE NO-FLY TIME. ALWAYS ACTIVATE THE COMPUTER TO CHECK THE REMAINING

NO-FLY TIME PRIOR TO FLYING! Flying or traveling to a higher altitude within the no-ﬂy time

can greatly increase the risk of DCS. Review the recommendations given by Divers Alert

Network (DAN). There can never be a ﬂying-after-diving rule that is guaranteed to completely

prevent decompression sickness!

WARNING: If you have a pacemaker, we recommend you do not scuba dive. Scuba

diving creates physical stresses on the body which may not be suitable for pacemakers.

WARNING: If you have a pacemaker, consult a doctor before using this device. The

inductive frequency used by the device may interfere with pacemakers.

WARNING: Allergic reactions or skin irritations may occur when product is in contact with

skin, even though our products comply with industry standards. In such event, stop use

immediately and consult a doctor.

Suunto Tank POD

WARNING: Not for professional use! Suunto dive computers are intended for recreational

use only. The demands of commercial or professional diving may expose the diver to depths

and conditions that tend to increase the risk of decompression sickness (DCS). Therefore,

Suunto strongly recommends that the device not be used for any commercial or professional

diving activities.

WARNING: USE BACKUP INSTRUMENTS! Ensure that you use backup instrumentation,

including a depth gauge, submersible pressure gauge, timer or watch, and have access to

decompression tables whenever diving with a dive computer.

WARNING: For safety reasons, you should never dive alone. Dive with a designated

buddy. You should also stay with others for an extended time after a dive as the onset of

possible DCS may be delayed or triggered by surface activities.

WARNING: PERFORM PRE-CHECKS! Always check that your dive computer is functioning

properly and has the correct settings before diving. Check that the display is working, the

battery level is OK, tank pressure is correct, and so forth.

WARNING: Check your dive computer regularly during a dive. If you believe or conclude

that there is any problem with any computer function, abort the dive immediately and safely

return to the surface. Call Suunto Customer Support and return your computer to an

authorized Suunto Service Center for inspection.

WARNING: THE DIVE COMPUTER SHOULD NEVER BE TRADED OR SHARED BETWEEN

USERS WHILE IT IS IN OPERATION! Its information will not apply to someone who has not

been wearing it throughout a dive, or sequence of repetitive dives. Its dive proﬁles must

match that of the user. If it is left on the surface during any dive, the dive computer will give

inaccurate information for subsequent dives. No dive computer can take into account dives

made without the computer. Thus, any diving activity up to four days prior to initial use of the

computer may cause misleading information and must be avoided.

WARNING: DO NOT EXPOSE ANY PART OF YOUR DIVE COMPUTER TO ANY GAS MIX

CONTAINING MORE THAN 40% OXYGEN! Enriched air with greater oxygen content presents

a risk of ﬁre or explosion and serious injury or death.

WARNING: DO NOT DIVE WITH A GAS IF YOU HAVE NOT PERSONALLY VERIFIED ITS

CONTENTS AND ENTERED THE ANALYZED VALUE INTO YOUR DIVE COMPUTER! Failure to

verify tank contents and enter the appropriate gas values where applicable into your dive

computer will result in incorrect dive planning information.

WARNING: Using a dive planner software such as in Suunto DM5 is not a substitute for

proper dive training. Diving with mixed gases has dangers that are not familiar to divers

diving with air. To dive with Triox, Heliox and Nitrox or all of them, divers must have

specialized training for the type of diving they are doing.

WARNING: Do not use Suunto USB Cable in areas where ﬂammable gases are present.

Doing so may cause an explosion.

Suunto Tank POD

WARNING: Do not disassemble or remodel Suunto USB Cable in any way. Doing so may

cause an electric shock or ﬁre.

WARNING: Do not use Suunto USB cable if cable or parts are damaged.

WARNING: You must only charge your device using USB adapters that comply with the

IEC 60950-1 standard for limited power supply. Non-compliant adapters are a ﬁre hazard and

a risk to personal injury and might damage your Suunto device.

CAUTION: DO NOT allow the connector pins of the USB cable to touch any conductive

surface. This may short circuit the cable, making it unusable.

Emergency ascents

In the unlikely event that the dive computer malfunctions during a dive, follow the emergency

procedures provided by your certiﬁed dive training agency to immediately and safely ascend.

Suunto Tank POD

2. Important notices

For your safety, use the Suunto Tank POD with the provided Suunto Flow Restrictor. The

restrictor should only be removed for cleaning or changing scuba gear. The restrictor must be

re-installed before using Suunto Tank POD again.

Suunto recommends that the installation or removal of Suunto Tank POD is done by a Suunto

authorized dealer or trained dive expert. Improper tool use and over tightening could damage

scuba equipment.

Ensure there are no other people in close proximity when you pressurize scuba gear.

If Suunto Tank POD does not connect to your dive computer, you must uninstall the Tank

POD. Do not leave a non-functioning Tank POD attached to your scuba gear. Bring the non-

functioning unit to your nearest authorized Suunto dive dealer for inspection.

This product can be used together with Suunto EON Steel, EON Core, and D5 for wireless

transmission of tank pressure to the dive computer. One or more Tank PODs can be paired

with the dive computer for multi-gas diving.

Suunto Tank POD is intended for use with compressed air only. Do not use it with any other

type of scuba diving. The compressed air supply must comply with EU standard EN12021:2014

requirements.

This product may only be installed to scuba gear that complies with the air supply

requirements of standard EN12021 and the Personal Protective Equipment requirements of

standard EN250.

Suunto Tank POD

3. Getting started

To set up your Suunto Tank POD, make sure you use the proper air restrictor, pair your Tank

POD, aligning it with your dive computer and make the appropriate settings in your dive

computer for using gases. Follow the instructions in this user guide for the best results.

3.1. Installing Type A air restrictor

Type A air restrictor:

To install Suunto Tank POD directly to a ﬁrst-stage high pressure port:

1. Write down the serial number on the metal base of the Tank POD (for pairing).

2. Insert the Type A ﬂow restrictor into the Tank POD.

3. Attach the Tank POD to the ﬁrst-stage high pressure port.

4. Slowly and steadily open the pressure valve. Look away as your gear is pressurized.

WARNING: The battery level indication shown when pairing the Tank POD is an

approximation only. The POD battery may deplete faster than the indication suggests.

3.2. Installing Type B air restrictor

Type B air restrictor:

To install Suunto Tank POD to high pressure hose extension to ﬁrst-stage high pressure port:

1. Write down the serial number on the metal base of the Tank POD (for pairing).

Suunto Tank POD

2. Insert the smooth end of Type B ﬂow restrictor into the Tank POD. The grooved end

should remain visible.

3. Attach the high pressure hose extension to the ﬁrst-stage high pressure port.

4. Attach the Tank POD to the end of the high pressure hose extension, ensuring the

grooved end of the restrictor is inserted into the hose.

5. Slowly and steadily open the pressure valve. Look away as your gear is pressurized.

WARNING: The battery level indication shown when pairing the Tank POD is an

approximation only. The POD battery may deplete faster than the indication suggests.

3.3. Tank POD alignment

When 3.4. pairing your Suunto Tank POD make sure you hold your dive computer and the

Tank POD in one of the following ways to achieve best results:

Suunto Tank POD

For EON Core and Steel

For D5

3.4. Pairing Suunto Tank POD

For EON Core and Steel

To pair a Suunto Tank POD:

1. After installing the Tank POD and opening the valve, wait for green LED on Tank POD to

ﬂash.

2. If your dive computer has a blank screen, press any key to activate it.

3. Use proximity pairing: Hold your dive computer close to the Tank POD. Make sure you

follow the instructions in 3.3. Tank POD alignment.

4. After a few seconds, a menu pops up on the screen showing the Tank POD serial number,

battery status and the tank pressure. From the menu, select the correct gas for that Tank

POD.

Suunto Tank POD

Altri manuali per Tank POD

Indice

Altri manuali Suunto Accessori

Suunto

Suunto SS022477000 Manuale utente

Manuali Accessori popolari di altre marche

Hillco

Hillco 2810 Manuale utente

Siemens

Siemens QSA2700D Manuale dell'operatore

Contours

Contours ZY024 Manuale utente

Saivod

Saivod VS621 Manuale utente

Virtuox

Virtuox VirtuCLEAN 2.0 Manuale utente

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuale utente

Z-Wave

Z-Wave HSD-200Z Manuale utente

turck

turck FMX-IM-2UPLI63FX Manuale utente

Decagon Devices

Decagon Devices 10HS Manuale utente

UPPAbaby

UPPAbaby Cup Holder Manuale utente

Elko

Elko SmartSensor Leakage Wireless Manuale utente

Grizzly

Grizzly H8371 Manuale utente

Panasonic

Panasonic HG-T Series Manuale utente

IFM Electronic

IFM Electronic Efector 250 Series Guida di riferimento

DigiDesign

DigiDesign 888/24 I/O Manuale utente

PROZIS

PROZIS QUAY Manuale utente

patagonia

patagonia PSI Vest Manuale utente

SFC Energy

SFC Energy EFOY GO! Manuale utente
