USER’S MANUAL

Portable Speaker System

with FM-radio

PS-65

ENG

Portable Speaker System

with FM-radio

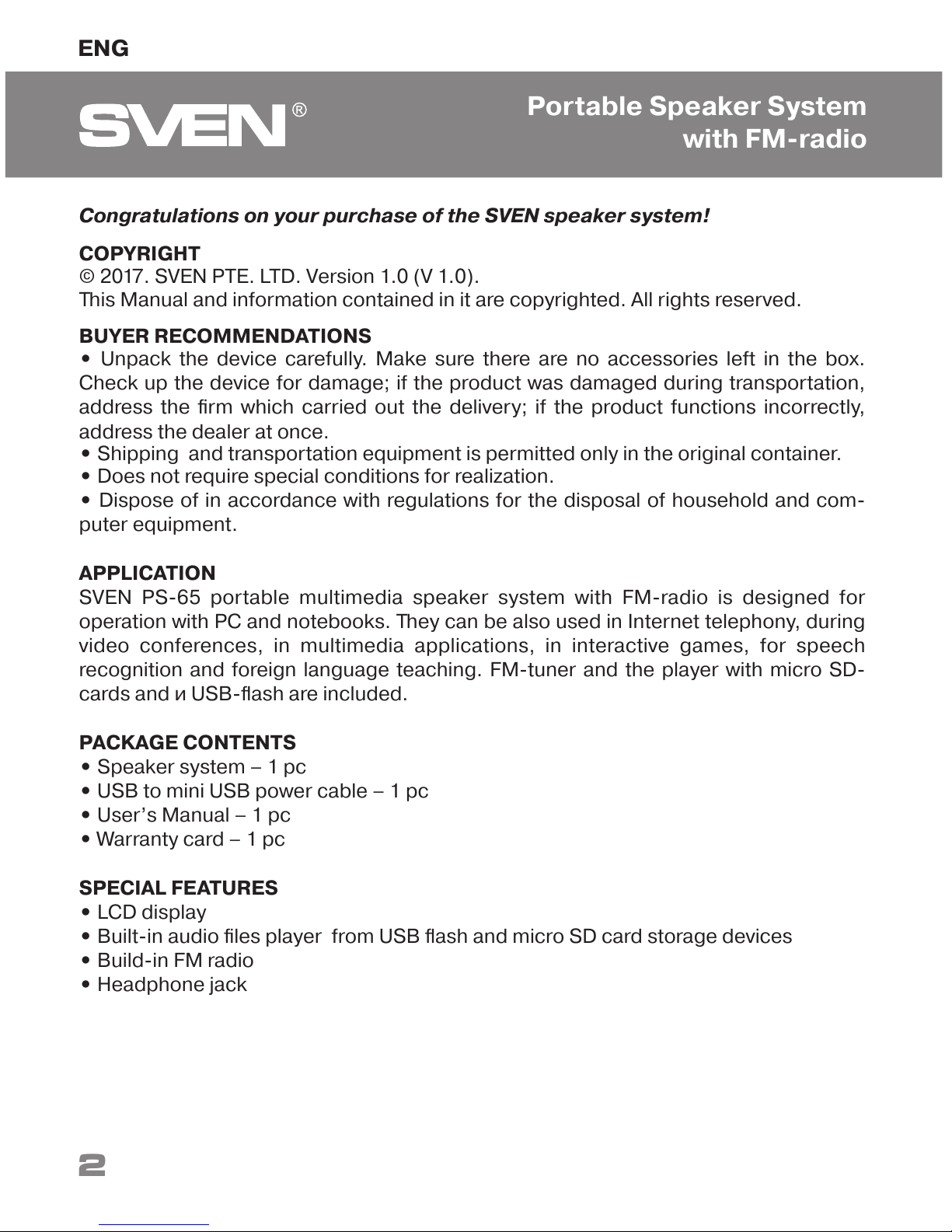

BUYER RECOMMENDATIONS

• Unpack the device carefully. Make sure there are no accessories left in the box.

Check up the device for damage; if the product was damaged during transportation,

address the ﬁrm which carried out the delivery; if the product functions incorrectly,

address the dealer at once.

• Shipping and transportation equipment is permitted only in the original container.

• Does not require special conditions for realization.

• Dispose of in accordance with regulations for the disposal of household and com-

puter equipment.

APPLICATION

SVEN PS-65 portable multimedia speaker system with FM-radio is designed for

operation with PC and notebooks. They can be also used in Internet telephony, during

video conferences, in multimedia applications, in interactive games, for speech

recognition and foreign language teaching. FM-tuner and the player with micro SD-

cards and и USB-ﬂash are included.

PACKAGE CONTENTS

• Speaker system – 1 pc

• USB to mini USB power cable – 1 pc

• User’s Manual – 1 pc

• Warranty card – 1 pc

SPECIAL FEATURES

• LCD display

• Built-in audio ﬁles player from USB ﬂash and micro SD card storage devices

• Build-in FM radio

• Headphone jack

Congratulations on your purchase of the SVEN speaker system!

Speaker system description

a M: switch modes button

b Menu button

c Volume control wheel

d Display

e Next track (in player mode); Next station / frequency (in radio mode);

Menu navigation mode

f POWER button (long pressing); Play/Pause (in player mode); Mute (short pressing

in radio mode); Exit Menu

g Previous track (in player mode); Previous station / frequency (in radio mode);

Menu navigation mode

h Micro SD card slot

a c

h (below)

ENG

User’s Manual PS-65

Fig. 1. Speaker system description

ENG

Portable Speaker System

with FM-radio

i mini USB connector to the AC charger, USB port of the laptop / PC

j Headphone jack

k USB connector to connect USB-ﬂash media or a USB cable (AM-AM)

CONNECTION AND OPERATION

Attention! The built-in battery must be charged completely prior to the

application.

Speaker system battery charging

• Insert the battery (included) into the speaker. Connect speaker system to a USB

port of PC or USB charger using mini USB to USB cable (included).

OPERATION MODES

Radio mode

• Turn on the speaker system – press button a several times until Speaker system

does not go to radio mode. Short press of a button b activates auto search mode.

After scanning completion, the ﬁrst scanned radio station will start to operate

automatically. With buttons e and g select a desired radio station. In the menu you

can change the function of the buttons e and g: switching radio frequency (step

0.1MHz) or save the number of stations. The menu has the ability to save / delete

a station from the memory.

МР3 player mode

Attention! The ﬁle system of a micro SD carrier is FAT32. Maximum volume is

32 GB. It is not recommended to use the micro SD Ultra Speed.

• Turn on the speaker system in the player mode – press the button a a few times

until the speaker system will go into player mode.

• Insert the micro SD carrier into appropriate slot. If the speaker system is in turned

on position, the playback will start automatically. Playback/Pause modes are switched

over with the help of the button f. Tracks can be controlled by buttons g (previous

track) and e (next track).

USB Line In mode

• Speaker system can be used as external speaker for the PC. To do this, connect the

speaker system to your PC via a cable USB AM-AM (not included). Open the menu

with button b and select USB Line In mode.

To exit the radio / players / USB Line In – press and hold button b.

TECHNICAL SPECIFICATIONS

Notes:

• Technical speciﬁcations given in this table are supplemental information and cannot

give occasion to claims.

• Technical speciﬁcations and package contents are subject to change without notice

due to the improvement of SVEN production.

Parameter, measurement unit

Frequency range, Hz

Output power (RMS), W:

Membrane, mm

Frequency range FM-tuner, MHz

Battery capacity, mA · h

Power supply, V

Weight, g

Dimensions, mm

Value

150 – 20 000

Ø 38

87.5 – 108

1000

USB/DC5

150

127 × 63 × 27

Technical support is on www.sven.ﬁ.

Fig. 2. Connection diagram

USB jack

Socket

USB to mini USB Power cable

PS-65

ENG

User’s Manual

Portable Speaker System

with FM-radio

Model: PS-65

Импортер в России: ООО «РЕГАРД», 109052,

РФ, г. Москва, ул. Нижегородская, д. 86, корп. Б.

Уполномоченная организация в России: ООО «РТ-Ф»,

105082, г. Москва, ул. Фридриха Энгельса, д. 75, стр. 5.

Условия гарантийного обслуживания смотрите

в гарантийном талоне или на сайте www.sven.ﬁ.

Гарантийный срок: 12 мес.

Срок службы: 2 года.

Производитель: «СВЕН ПТЕ. Лимитед»,

176 Джу Чиат Роуд, № 02-02, Сингапур, 427447.

Произведено под контролем «Свен Скандинавия

Лимитед», 48310, Финляндия, Котка,

Котолахдентие, 15. Сделано в Китае.

Manufacturer: SVEN PTE. LTD, 176 Joo Chiat Road,

№ 02-02, Singapore, 427447. Produced under the

control of Oy Sven Scandinavia Ltd. 15, Kotolahdentie,

Kotka, Finland, 48310. Made in China.

® Registered Trademark of Oy SVEN

Scandinavia Ltd. Finland. PS-65
