SVS-Vistek HR Series Manuale utente

1.31.2018

Manual HR series

hr120*CL

Manual HR series 1.31.2018

Company Information

SVS-VISTEK GMBH

Mühlbachstr. 20

82229 Seefeld

Germany

Tel.: +49 (0) 81 52 9985-0

Fax: +49 (0) 81 52 9985-79

Mail: info@svs-vistek.com

Web: http://www.svs-vistek.com

This Operation Manual is based on the following standards:

DIN EN 62079

DIN EN ISO 12100

ISO Guide 37

DIN ISO 3864-2

DIN ISO 3864-4

This Operation Manual contains important instructions for safe and

efficient handling of SVCam Cameras (hereinafter referred to as

„camera“). This Operating Manual is part of the camera and must be

kept accessible in the immediate vicinity of the camera for any person

working on or with this camera.

Read carefully and make sure you understand this Operation Manual

prior to starting any work with this camera. The basic prerequisite for safe

work is compliant with all specified safety and handling instructions.

Accident prevention guidelines and general safety regulations shoud be

applied.

Illustrations in this Operation Manual are provided for basic

understanding and can vary from the actual model of this camera. No

claims can be derived from the illustrations in this Operation Manual.

The camera in your possession has been produced with great care and

has been thoroughly tested. Nonetheless, should you have reasons for

complaint, then please contact your local SVS-VISTEK distributor. You will

find a list of distributors in your area under: http://www.svs-

vistek.com/company/distributors/distributors.php

(as per DIN ISO 16016:2002-5)

Forwarding and duplicating of this document, as well as using or

revealing its contents are prohibited without written approval. All rights

reserved with regard to patent claims or submission of design or utility

patent.

Contents

iii

Contents

Safety Messages ......................................................5

Legal Information.....................................................6

2.1

Camera Link Features............................................... 7

2.2

4IO adds Light and Functionality................................ 8

Getting Started ........................................................9

3.1

Contents of Camera Set............................................ 9

3.2

Power supply........................................................... 9

3.3

Camera Link Flashing LED Codes............................... 9

3.4

Software............................................................... 10

3.4.1 Installation of ConvCam5............................................ 10

3.4.2 Connecting the camera ............................................... 12

3.4.3 ConvCam5 ................................................................ 12

3.4.4 Viewer Software .......................................................... 12

3.5

Update firmware.................................................... 15

3.6

Driver Circuit Schematics ........................................ 16

Connectors ........................................................... 17

4.1

Camera Link™ ...................................................... 17

4.1.1 Camera Link Connector .............................................. 17

4.1.2 CameraLink Pinout ..................................................... 18

4.1.3 Camera Link timing.................................................... 20

4.2

Input / output connectors ........................................ 22

Dimensions ........................................................... 23

5.1

hr120*CL ............................................................. 24

5.2

M58 Mount .......................................................... 27

Feature-Set ........................................................... 28

6.1

Basic Understanding............................................... 28

6.1.1 Basic Understanding of CMOS Technology................... 28

6.1.2 Rolling Shutter ............................................................ 29

6.1.3 Frames per Second ..................................................... 32

6.1.4 Acquisition and Processing Time .................................. 32

6.1.5 Exposure .................................................................... 33

6.1.6 Auto Luminance.......................................................... 33

6.1.7 Bit-Depth ................................................................... 34

6.1.8 Color......................................................................... 36

6.1.9 Resolution – active & effective ...................................... 37

6.1.10 Offset ........................................................................ 38

6.1.11 Gain.......................................................................... 39

6.1.12 Image Flip.................................................................. 40

Contents

6.1.13 Binning ...................................................................... 41

6.1.14 Decimation ................................................................ 42

6.2

Camera Features................................................... 43

6.2.1 Trigger modes ............................................................ 43

6.2.2 Tap geometries........................................................... 44

6.2.3 Camera Link CMOS sensor tap config.......................... 45

6.2.4 System Clock Frequency .............................................. 45

6.2.5 Temperature Sensor .................................................... 45

6.2.6 Read-Out-Control....................................................... 45

6.2.7 Basic Capture Modes .................................................. 47

6.2.8 LookUp Table............................................................. 49

6.2.9 ROI / AOI.................................................................. 51

6.2.10 Shading Correction..................................................... 51

6.3

I/O Features ......................................................... 53

6.3.1 Assigning I/O Lines – IOMUX ...................................... 53

6.3.2 Strobe Control............................................................ 60

6.3.3 Sequencer.................................................................. 67

6.3.4 PWM ......................................................................... 69

6.3.5 Optical Input.............................................................. 70

6.3.6 PLC/Logical Operation on Inputs ................................. 72

6.3.7 Serial data interfaces................................................... 73

6.3.8 Trigger-Edge Sensitivity................................................ 76

6.3.9 Debouncing Trigger Signals......................................... 76

6.3.10 Prescale ..................................................................... 78

Specifications ........................................................ 79

7.1

Hr120*CL ............................................................ 80

Terms of warranty ..................................................83

Troubleshooting.....................................................85

9.1

FAQ .................................................................... 85

9.2

Support Request Form / Check List ........................... 86

IP protection classes ............................................ 88

Glossary of Terms ...............................................90

Index of figures ...................................................93

Index ................................................................. 95

SVS-VISTEK–

Camera

Link Features 5

1Safety Messages

The classification of hazards is made pursuant to ISO 3864-2 and ANSI

Y535.6 with the help of key words.

This Operating Manual uses the following Safety Messages:

Risk of death or serious injury

DANGER!

Danger indicates a hazard with a high level of risk which, if not

avoided will result in death or serious injury.

WARNING!

Warning indicates a hazard with a medium level of risk which, if

not avoided will result in death or serious injury.

CAUTION!

Caution indicates a hazard with a low level of risk which, if not

avoided will result in death or serious injury.

Risk of damage

PROHIBITION!

A black graphical symbol inside a red circular band with a red

diagonal bar defines a safety sign that indicates that an action

shall not be taken or shall be stopped.

CAUTION!

A black graphical symbol inside a yellow triangle defines a

safety sign that indicates a hazard.

MANDATORY ACTION!

A white graphical symbol inside a blue circle defines a safety

sign that indicates that an action shall be taken to avoid a

hazard.

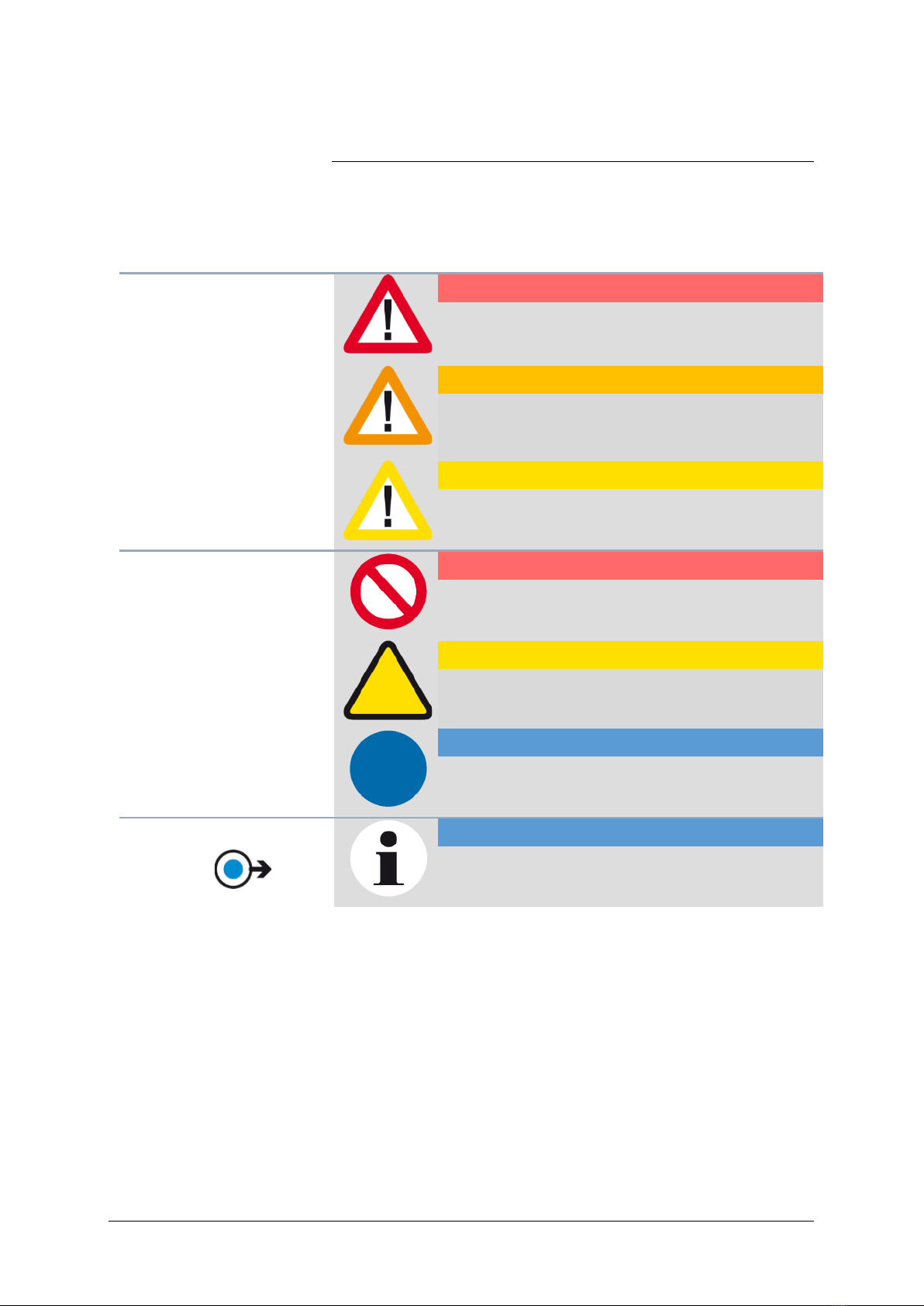

Cross-reference

NOTICE

Provides references and tips

Figure 1: Table of safety messages

SVS-VISTEK–Legal Information

Camera

Link Features 6

2Legal Information

Information given within the manual accurate as to: January 31, 2018,

errors and omissions excepted.

These products are designed for industrial applications only. Cameras

from SVS-Vistek are not designed for life support systems where

malfunction of the products might result in any risk of personal harm or

injury. Customers, integrators and end users of SVS-Vistek products might

sell these products and agree to do so at their own risk, as SVS-Vistek will

not take any liability for any damage from improper use or sale.

Europe

This camera is CE tested, rules of EN 55022:2010+AC2011 and

EN61000-6-2:2005 apply.

The product is in compliance with the requirements of the following

European directives:

2014/30/EU Electromagnetic compatibility (EMC)

2011/65/EU Restriction of the use of certain hazardous substances

in electrical and electronic equipment (RoHS)

All SVS-VISTEK cameras comply with the recommendation of the

European Union concerning RoHS Rules

USA and Canada

This device complies with part 15 of the FCC Rules. Operation is subject

to the following conditions: (1) This device may not cause harmful

interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

Warning: This equipment is compliant with Class A of CISPR 32. In a

residential environment this equipment may cause radio interference.

This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to part 15 of the FCC Rules.

It is necessary to use a shielded power supply cable. You can then use the

“shield contact” on the connector which has GND contact to the camera

housing. This is essential for any use. If not done and camera is destroyed

due to Radio Magnetic Interference (RMI) WARRANTY

is void

•

Power:

US/UK and European line adapter can be

delivered. Otherwise use filtered and stabilized DC power

supply.

•Shock & Vibration Resistance

is tested: For detailed

Specifications refer to Specification

SVS-VISTEK

Legal Information 7

2.1 Camera Link Features

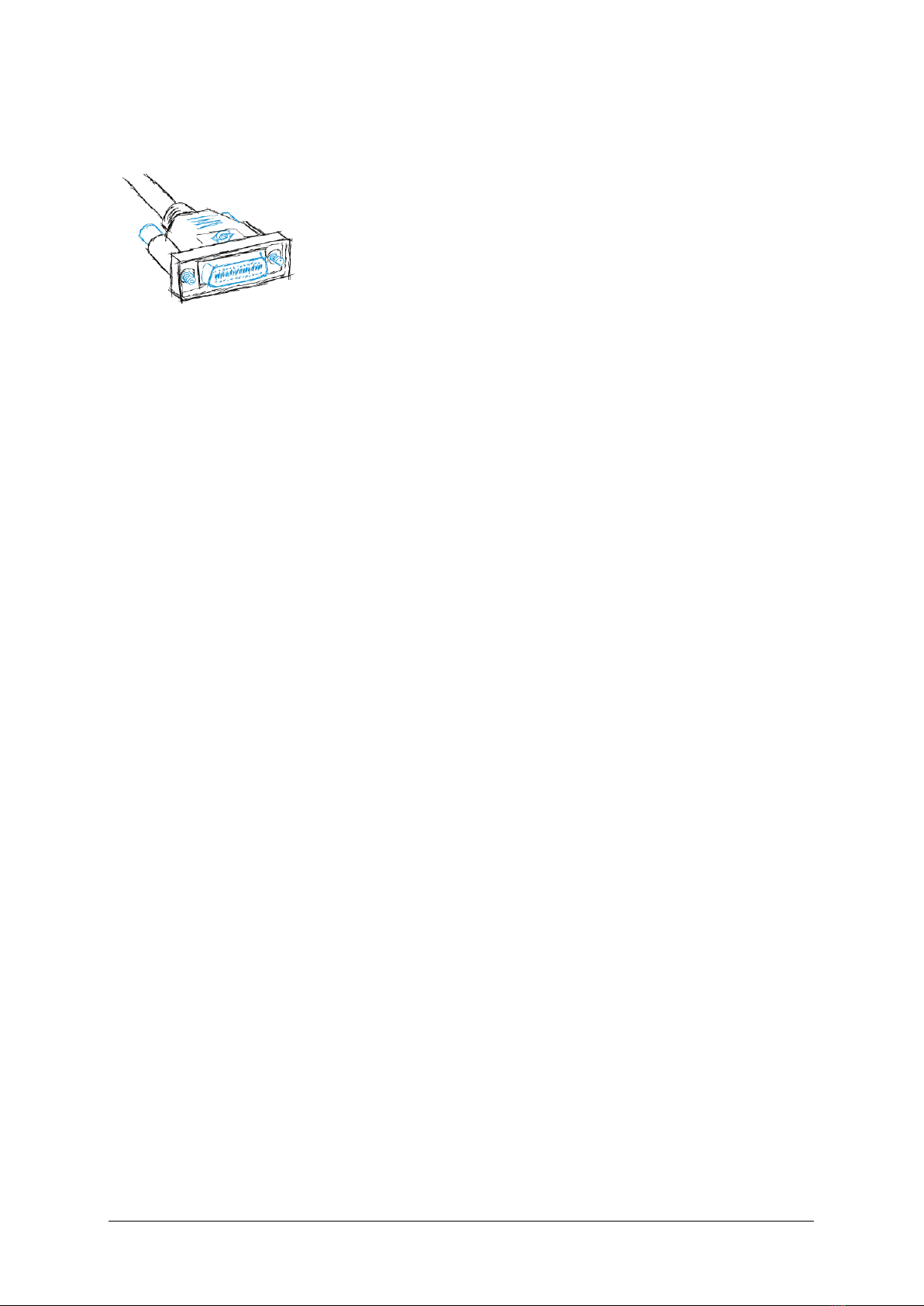

Camera Link is the most direct serial connection to the sensor and

preferred by integrators with high demands on bandwidth and integration

in existing systems.

Please note, as operating Camera Link always involves a frame grabber,

the specs given in the appendix might differ from your setup. Please

Some frame grabbers support 1x3 tap configuration. With this

configuration you might achieve framerates of more than 50% faster than

in specs. Again, contact us for recommended frame grabbers.

There are different transfer rates with different camera link types. Camera

Link full (80 bit technology) is also known as “Camera Link Deca”

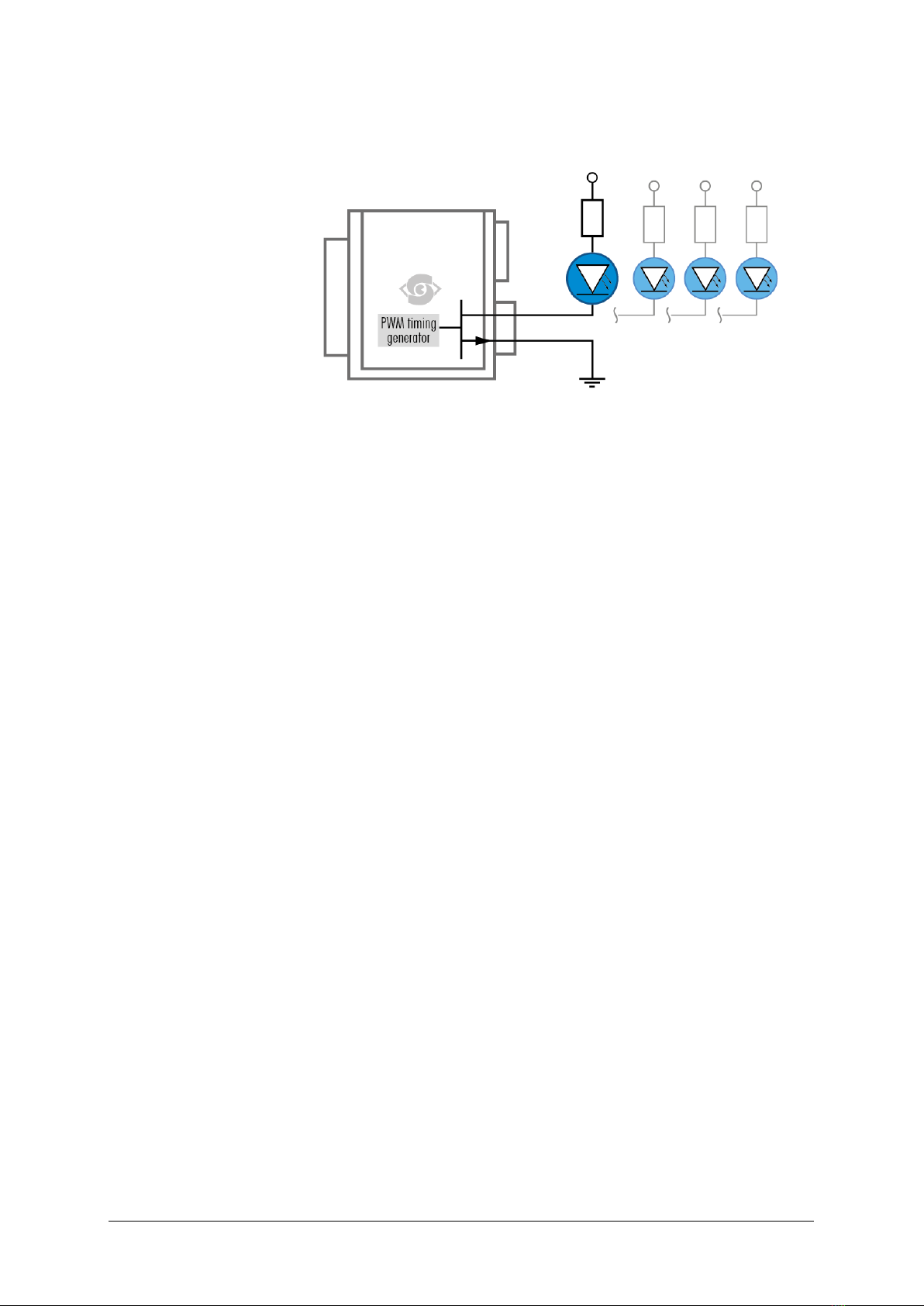

Some models support Power over Camera Link (PoCL). Please note, in

case you use the 4IO PWM outputs to drive your lights, you need an

external power supply as the PoCL is unable to deliver the high currents

requested.

SVS-VISTEK

Legal Information 8

2.2 4IO adds Light and Functionality

Your SVS-Vistek camera is equipped with the innovative 4IO-interface

allowing full light control, replacing external strobe controllers. Each of

the outputs can be individually configured and managed using pulse-

width modulation. With its high current output, the camera is able to drive

LED lights directly without external light controller.

If you attach any light to the camera, make sure the power supply has

enough power not to fail when the camera is putting light ON.

The integrated sequencer allows multiple exposures with settings to be

programmed, creating new and cost effective options. Logical functions

like AND / OR are supported.

>Up to 4 x open drain high power OUT

>Up to 4 x high voltage IN – TTL up to 25 Volts

>Power MOSFET transistors

>PWM strobe control

>Sequencer for various configurations

>PLC fuctionality with AND, OR and timers

>Safe Trigger (debouncer, prescaler, high low trigger)

Figure 2: 4IO concept with up to 4 switching LED lights

SVS-VISTEK–Getting Started

Contents

of Camera Set 9

3Getting Started

3.1 Contents of Camera Set

>Camera

>Power supply (if ordered/option)

>Quick guide

>User Manual

>Software installer – ConvCam

>Euresys camera file (optional)

3.2 Power supply

Connect the power supply.

CAUTION! –This camera does not support hotplugging

1. First, connect the data cable.

Then

connect power supply.

When using your own power supply (e.g. 10 -25 V DC) see also Hirose

12-pin for a detailed pin layout of the power connector. For power input

specifications refer to specifications.

3.3 Camera Link Flashing LED Codes

On power up, the camera will indicate its current status with a flashing

LED on its back. The LED will change color and rhythm.

The meaning of the blinking codes translates as follows:

Figure 3: Status LED flashing codes

Flashing

Description

Yellow quickly ( ≈ 8 Hz )

booting

Yellow permanent

ready

Red slow ( ≈ 1 Hz )

error

SVS-VISTEK

Getting Started 10

3.4 Software

Further information, documentations, release notes, latest software and

application manuals can be downloaded in the download area on:

https://www.svs-vistek.com/en/login/svs-loginarea-login.php

Depending on the type of camera you bought, several software packages

apply.

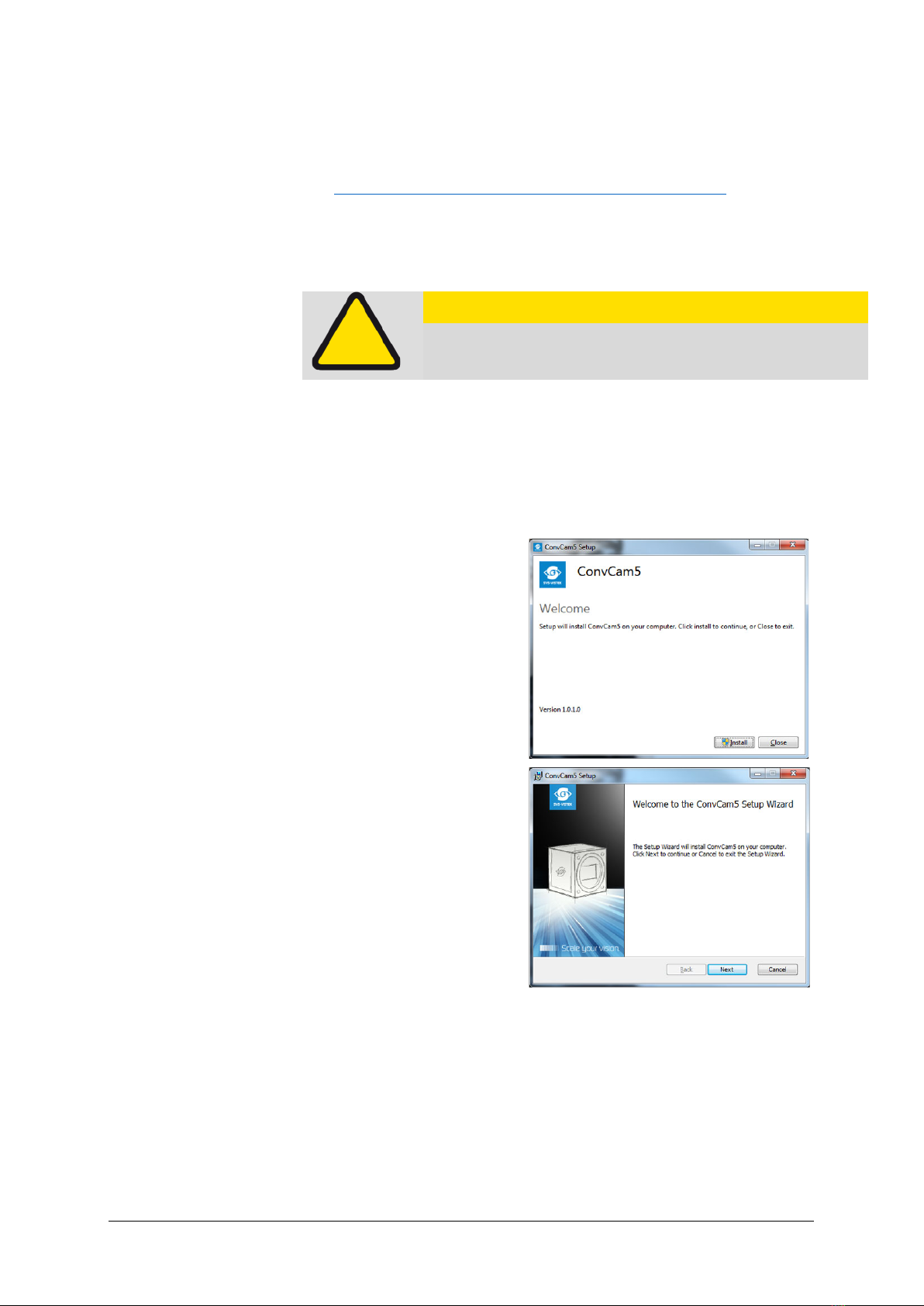

3.4.1 Installation of ConvCam5

Your SVCam combined software installer including:

>SVConvCam

(a controller app for SVCam Camera Link cameras)

>TL_Driver

(GenICam drivers and transport layer DDLs)

1st

Expand ZIP

Extract the zip archive

to your local hard

drive.

2st

Install

Run the executable

file.1*

Click “Install”

Click “Next”

CAUTION!

Make sure you have the latest ConvCam5. At time of

printing, this is version 1.0.13

Altri manuali per HR Series

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali SVS-Vistek Macchina fotografica digitale

SVS-Vistek

SVS-Vistek svs340 Manuale utente

SVS-Vistek

SVS-Vistek exo694 CL Manuale utente

SVS-Vistek

SVS-Vistek HR Series Manuale utente

SVS-Vistek

SVS-Vistek evo1050 Manuale utente

SVS-Vistek

SVS-Vistek HR 10GigE Manuale utente

SVS-Vistek

SVS-Vistek EoSens 25CXP+ Manuale utente

SVS-Vistek

SVS-Vistek exo183 Manuale utente

SVS-Vistek

SVS-Vistek hr11002 Series Manuale utente

SVS-Vistek

SVS-Vistek exo5000 U3 Series Manuale utente

SVS-Vistek

SVS-Vistek Camera Link SHR Series Manuale utente

SVS-Vistek

SVS-Vistek EVO Series Manuale utente

SVS-Vistek

SVS-Vistek GiGe EVO Series Manuale utente

SVS-Vistek

SVS-Vistek EXO Series Manuale utente

SVS-Vistek

SVS-Vistek Svs8050 Manuale utente

SVS-Vistek

SVS-Vistek svs11002 Manuale utente

SVS-Vistek

SVS-Vistek HR Series Manuale utente

SVS-Vistek

SVS-Vistek hr25000 CL Series Manuale utente

SVS-Vistek

SVS-Vistek EVO Tracer Series Manuale utente

SVS-Vistek

SVS-Vistek EC02 Series Manuale utente

SVS-Vistek

SVS-Vistek HR Series Manuale utente

SVS-Vistek

SVS-Vistek ECO Series Manuale utente

SVS-Vistek

SVS-Vistek GigE EXO Series Manuale utente

SVS-Vistek

SVS-Vistek hr11002 GE Series Manuale utente

Manuali Macchina fotografica digitale popolari di altre marche

Mercury

Mercury 350K Manuale utente

Pentax

Pentax Optio LS 465 Manuale utente

Sanyo

Sanyo VPC-S1085 Manuale utente

GE SMART A1255 Manuale utente

Point Grey

Point Grey Gazelle Manuale utente

Nikon

Nikon COOLPIX A Manuale utente

Pentax

Pentax P-5 Manuale utente

BlazeVideo

BlazeVideo A280 Manuale utente

Sony

Sony MCA-20 Manuale utente

Sony

Sony Alpha DSLR-A290 Manuale utente

ATIK Cameras

ATIK Cameras One Manuale utente

CohuHD Costar

CohuHD Costar 3930 Series Manuale utente

Leica

Leica M10-R Manuale utente

FujiFilm

FujiFilm FinePix A700 Manuale utente

Lorex

Lorex LNZ81P25 Series Manuale utente

GE J1470S Manuale utente

Sony

Sony A6700 Guida utente

Canon

Canon EOS ELAN7 Manuale utente
