PRODUCT SAFETY NOTICE
The SWAGTRON EB9 eBike has been designed with the utmost safety in mind for its riders. Extra precautions have been taken to
protect the user from product hardware malfunctions through our meticulous design, and engineering and product testing.
Like any mode of transportation, however, the SWAGTRON EB9 eBike has inherent hazards associated with its use (e.g., losing
control, falling off, or riding into hazardous situations). Be sure to read and follow all instructions and safety recommendations in
this user manual prior to ride your eBike.
Inspect your bike before each ride, especially if you plan to travel long distances.
• Checkthetiresforproperinationandcracksonthewallsofthetires.Keepingthetiresproperlyinatedandmaintainedwill
help prevent ats and damage and optimize performance (e.g., travel range on a single charge, max. speeds).
• Checkallcablesandcablehousingsforfraying,breaks,rust,orcorrosionandreplaceifnecessary.
• Inspectthebrakestomakesuretheyareworkingproperly.Besuretocheckthebrakepadsforanydamageastheywillwear
over time and eventually need replacement.
If a replacement of the brake pads or any other part is needed, please contact customer support for replacement service. In
general, make sure all nuts and bolts are taut and properly fastened to prevent injury and unnecessary wear and tear on your eBike.
Maximum Weight 264 lb. / 120 kg
Maximum Throttle Speed 16.5 mph / 26.5 km/h
Range per Charge Up to 28 mi / 45 km (mode 1)
Maximum Incline 25° (throttle only)
This device requires coordination, agility and balance. Always use your best judgment to determine if an individual can safely use
the SWAGTRON EB9 eBike.
2
ENGLISH SWAGTRON EB9 Electric Bike
SAFETY GEAR, CLOTHING,AND FOOTWEAR Please wear appropriate clothing and safety gear including
shoes, kneepads, elbow pads and an ASTM F1492 approved
helmet.
Avoid wearing anything that can drape over or get caught
into/under the wheels. Wear closed-toe, at shoes to maintain
exibility and stability.
MODIFICATIONS AND REPAIRS The SWAGTRON EB9 eBike is a highly sophisticated electronic
product that includes complex, technical circuitry. Attempting
to repair or modify your eBike can void all warranties. Only
authorized repair centers may service the SWAGTRON EB9
eBike.
OBEY LOCAL LAWS AND REGULATIONS Always check and adhere to local laws regarding personal
transportation devices, including pedestrian laws.
The eBike is considered a motor vehicle and should not be
ridden after consuming alcohol or drugs.
By riding the SWAGTRON EB9 eBike, the user acknowledges and accepts personal responsibility of all risks associated
with the use of the SWAGTRON EB9 eBike. These risks can include, but are not limited to, muscle injuries, broken bones,
lacerations, or serious injury that may be sustained while using the SWAGTRON EB9 eBike.
3ENGLISHSWAGTRON EB9 Electric Bike
Section 1. General Information
Before operating your eBike, please read all instructions. This manual will guide you through the functions, usage, and proper
care of your EB9. If you have any questions or cannot nd the information you need in the manual, please contact your place of
purchase or our customer service at 1-844-299-0625. Before contacting customer service, please have your purchase information
ready as this may be needed during the call.
When reading this manual, note these icons:
Notes with this icon MUST be read, understood and obeyed to prevent injury or damage.
Notes with this icon include relevant information.
1.1 About the SWAGTRON EB9 eBike
The EB9 is a robust, electric-powered, personal
transportation device that feels like a bike but rides like
a moped. It's environmentally-friendly and uses only the
highest quality components and industry-leading safety
features.
• Eco-friendly with zero emissions
• Offers throttle speeds up to 15.3mph (25 km/h)
• Rechargeable, portable and reliable
* Low step-through frame
4
ENGLISH SWAGTRON EB9 Electric Bike
1.2 What’s In the Box?
• 1 x SWAGTRON EB9 eBike
• 1 x Seat
• 2 x Pedals
• 1 x Charging Cable & Adapter
• 1 x Allen Key
• 2 x Keys
• 1 x Wrench
• 1 x User Manual
User Manual x 1Keys x 2Charging Cable & Adapter x 1
SWAGTRON EB-12 Electric Bike x 1 Seat x 1 Pedals x 2
USER MANUAL
Inorder to continue serving our customers and providing the best products, our product information including our user manuals
mayreceive updates from time to time. Please check our website for the latest user manuals and product materials.
Ver.1.0 9/29/19
EB9
Wrench x 1Allen Key x 1
5ENGLISHSWAGTRON EB9 Electric Bike

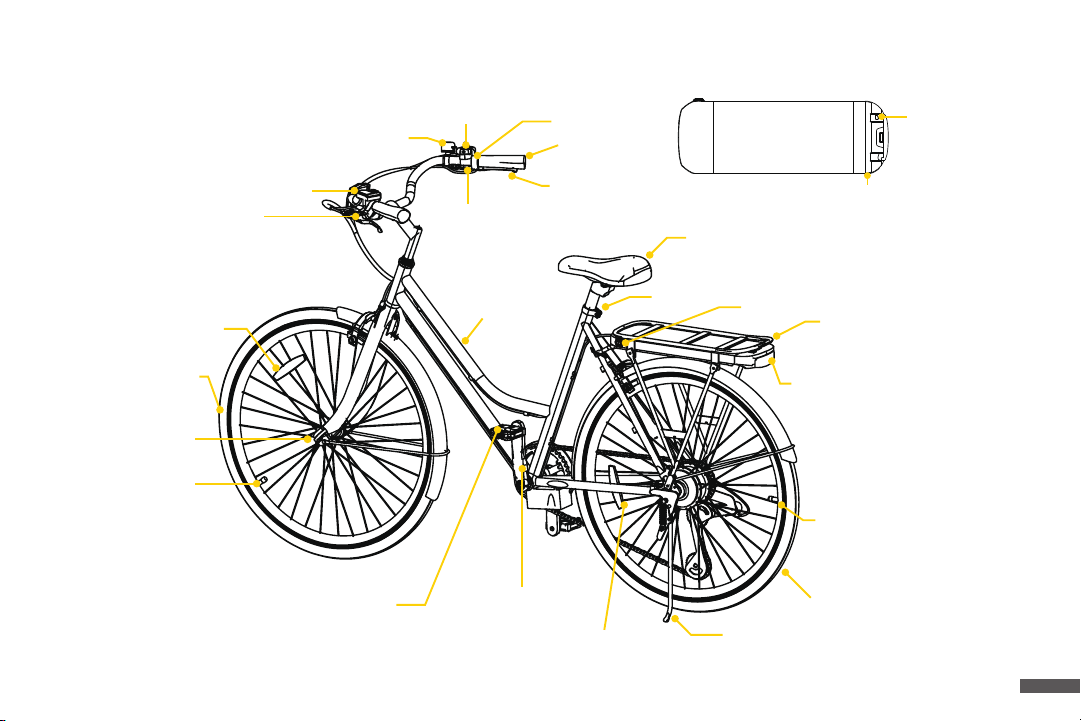

1.3 SWAGTRON EB9 eBike Diagram
REFLECTOR ON/
OFF BUTTON
CHARGING PORT
BATTERY
Bottom View of Battery
REAR WHEEL
FRONT WHEEL
QUICK LOCK
TIRE VALVE
TIRE VALVE
KICKSTAND
PEDAL CRANK ARM
SEAT
BACK SEAT
BATTERY LOCK
FRONT BRAKE
GEAR SWITCH
GEAR BUTTON
HANDLE
THROTTLE
FRAME
BELL
CLAMP
REFLECTOR
WHEEL REFLECTOR
WHEEL REFLECTOR
DISPLAY REAR BRAKE
