Swann RedAlert Single Channel Digital Security... Guida rapida

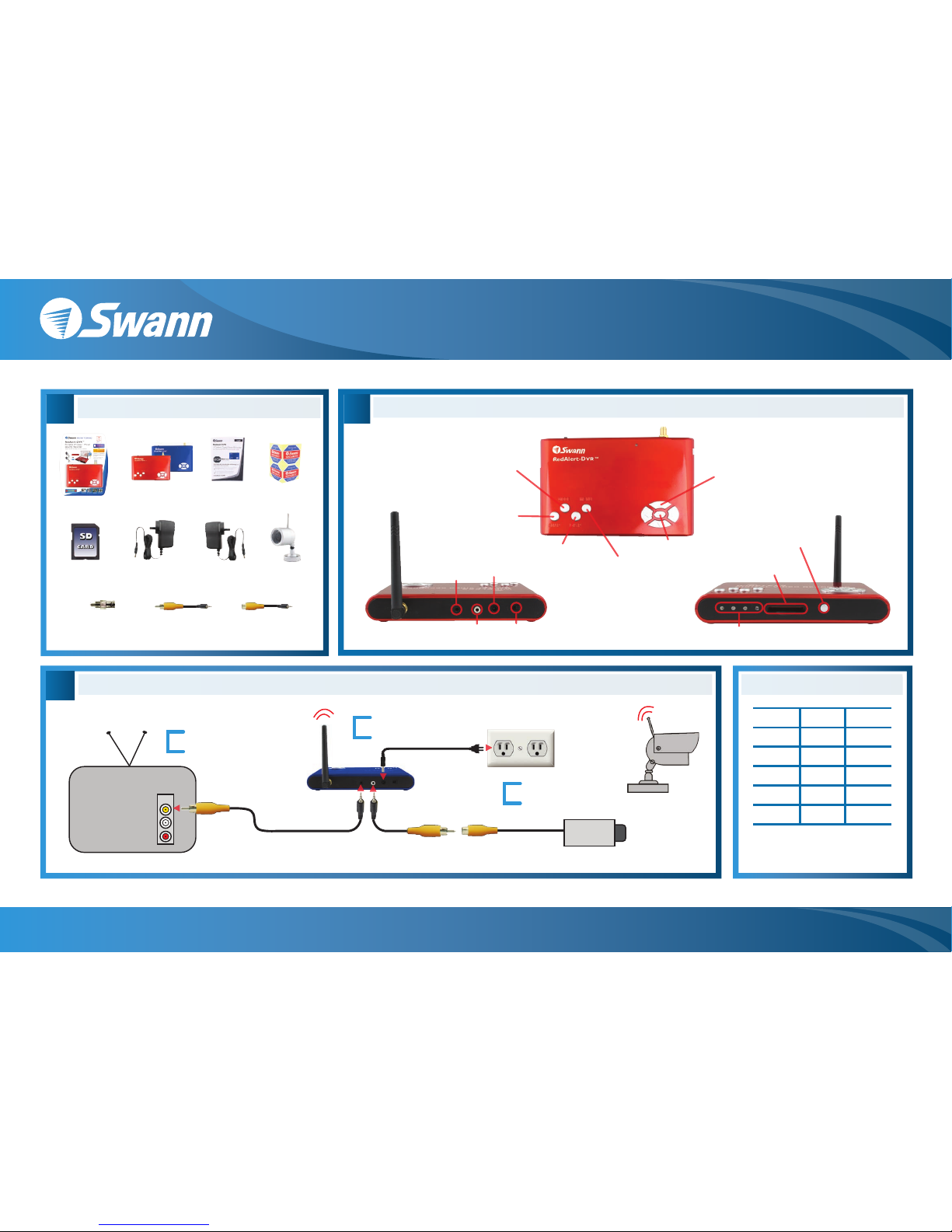

BGetting to Know Your DVR

Wireless Camera

Channel Indicators

SD Card Slot

On/Off

Switch *CH1 - 2414MHz, CH2 - 2432MHz

CH3 - 2450MHz, CH4 - 2468MHz

Camera

Input

Video

Output

to TV

Power

Input

Mode Button

- switch between live and

playback modes

Snap Button

- take a photo snapshot or

start a 10s video recording

OK Button

- confirm or choose

selection

Display Button

- change cameras and

turn PIP on/off Menu Button

- enter/exit menu or

return to previous

Directional Arrows

- highlight options or change selections

- UP Arrow toggles Motion on/off

- Down Arrow toggles Photo or Video modes

Wireless Camera Selector

- push to change wireless channel

- change between 1 - 4 wireless cameras

- operates in 2.4GHz range*

Package Contents

Red or Blue

Alert DVR

Packaging

Security

Stickers

Quick Start

Guide

DVR Power

Supply

Male Video Output

Cable to TV

Female Video Input

Cable for Camera

SD Card

(Optional)

Female BNC

to Male RCA

Camera Power

Supply

Wireless

Camera

RedAlert / BlueAlert DVR Easy Setup Guide

www.swannsecurity.com

Swann Communications • Toll Free Technical Support: USA - 1-800-627-2799,1-877-274-3695, Australia - 1300 13 8324 • Email: [email protected]

Monitor and Camera Connections Memory Usage Chart

Back of TV

INPUT Back of DVR

*INPUT may be labelled as A/V, Source, L1, L2, channel 0 etc. Consult TV manual/manufacturer for more information

Connect the AV cable

to back of TV and tune

TV to correct INPUT*

Connect the Power Cable

to the back of the unit and

an available power outlet

Connect your wired

camera to input or turn on

your wireless camera

Note: the above chart is for reference only -

the number of images and videos are

approximate and may vary based on image

complexity and amount of motion captured

Wireless

Camera SD Card Size

128MB 2000 250

256MB

512MB

1GB

2GB

4000

8000

16000

32000

500

1000

2000

4000

JPEG Images AVI Videos

Wired Camera

EViewing Recorded Images

6. Highlight Motion Detect Interval and

press OK to choose 1, 3 or 5. The

number indicates the pause in seconds

between two instances of motion detection

Time image

recorded

Date image

recorded

Press the MODE

button to enter

playback mode

Use the LEFT and

RIGHT arrows to

change images Image number

Type of capture

photo or video

Motion Detection Recording Setup

Manual Recording

1. In the menu highlight Setup

and press the OK button

Push the SNAP button

to record an image or

start a video recording

The Video mode will

will take approximately

10 seconds of video

The Camera mode will

take a still image

HINT: The Down arrow toggles between camera/video

mode when viewing your cameras

9. Finally, back in the main menu

change Capture Format to Photo

or AVI. Note the Interval and Count

options apply only to photo detection

2. Choose Motion Detect Area

and press the OK button

10. To activate motion detection, set

Motion Detect to ON in the menu

or when viewing your camera push

the UP arrow to toggle motion on/off

7. Next highlight Motion Detect

Sensitivity and press the OK

button

8. Within the rectangle is where

motion will be detected. The

lower the Target Value the

easier to sense/begin recording

3. Use the Left and Right arrows

to change the size of area to

detect and press the OK button

4. Next use the arrows to move the

rectangle to a region you want to

detect and hit the OK button

5. Hightlight Motion Detect Count and

press OK to change between 1, 3 or 5.

The number indicates how many

images will be captured per detection

RedAlert / BlueAlert DVR Easy Setup Guide

www.swannsecurity.com

Swann Communications • Toll Free Technical Support: USA - 1-800-627-2799,1-877-274-3695, Australia - 1300 13 8324 • Email: [email protected]
