3MP HD Dome

Security Camera

For use with Swann 7300 Series HD NVRs

EN INSTRUCTION MANUAL

Congratulations on your purchase of this

3Megapixel HD Security Camera. This is a state-

of-the-art dome security camera with digital im-

aging technology for 10x the picture sharpness

of traditional security systems. The 3 Megapixel

resolution is able to generate super clear video

images and the built-in microphone allows you

to hear what’s happening. See everything during

the night with the latest infrared cut filter for

amazing night vision up to 100ft/30m. It’s built to

suit any conditions with weather resistant rating

of IP66 for indoor & outdoor use.

Important note - All jurisdictions have specific

laws and regulations relating to the use of cam-

eras. Before using any camera for any purpose,

it is the buyer’s responsibility to be aware of all

applicable laws and regulations that prohibit or

limit the use of cameras.

Important safety instructions

1) Make sure the camera is fixed correctly and

stable if fastened in place.

2) Do not operate if wires and terminals are ex-

posed.

3) This camera can only be used in combination

with Swann’s NVR-7300 HD network video record-

ers.

4) The reset button is used to perform a factory

reset. Disconnect the Ethernet cable, hold down

the reset button then connect the Ethernet cable.

Keep holding the reset button for 20 seconds then

release. The NVR will take a short time to detect

and display the camera after it has been reset.

Warning - Modifications not approved by the party

responsible for compliance could void user’s au-

thority to operate the equipment.

Introduction

Choosing a location for your Camera

Some things to consider when choosing a location -

1) What you want to monitor and where you’ll get the

best view of it.

2) How you’re going to connect the camera to your

monitoring system; remember that cables and

connections should be kept out of the weather.

3) It’s recommended to mount your camera at an

elevated position to minimise harm.

4) Place your camera as close to the area of interest

as practicable. The best position is from about 4m

(13ft) above looking slightly down, keeping in mind

the details you are looking for.

5) Although the sky looks nice when you look at the

live view from your camera, it is an unlikely direction

for an offender to approach, make sure your camera

has minimal sky in it as the light in daylight can make

the foreground of the image darker.

6) Think about the most likely way a potential offender

may approach your home, use your cameras to give

you the best coverage of these areas.

7) The camera’s casing is resistant to water, different

weather conditions and tampering. It would take

an overwhelming event of this kind to damage the

housing of the camera. However, the cable and

connector are vulnerable and require protection.

8) Even though the camera is weather and water-

resistant, the cable and connectors are not always

as easy to protect. We recommend you cover the

connectors and the end of the cable with some

waterproof tape or similar for best results.

9) Avoid bending your cables at sharp angles.

10) Don’t put your cable near live electrical wiring.

AC electricity generates radio “noise” which can

interfere with the signal from your camera.

Connecting your Camera

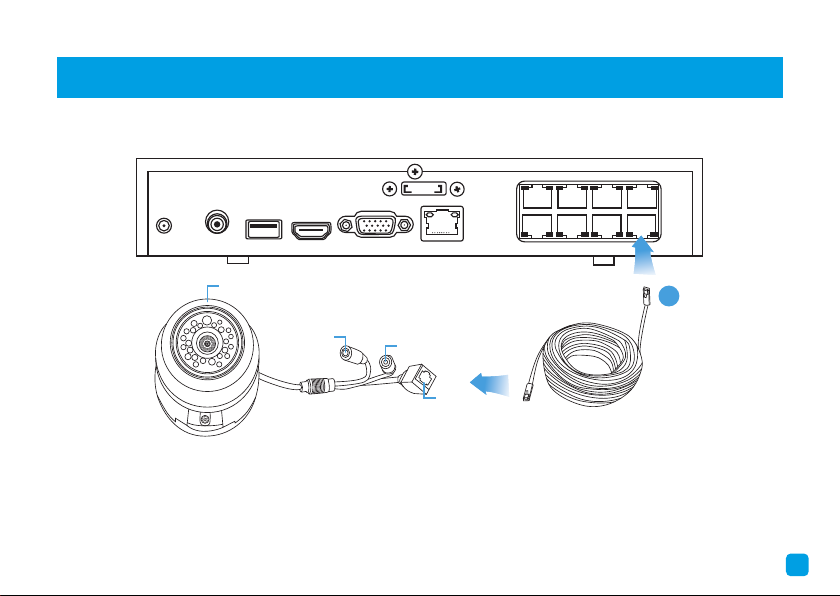

To connect your camera to the NVR, simply connect the supplied Ethernet cable to the LAN connection on the

camera then plug the other end of the cable (1) into one of the IP camera inputs on the back of the NVR.

Power Reset

LAN

Microphone

AUDIO

OUT

eSATA

LAN

VGA

HDMI

DC 48V USB

1 3 5 7

2 4 6 8

It doesn’t really matter which input you use as they are quite versatile and will be configured in a later step.

The Ethernet cable is the same at both ends so it doesn’t matter which end plugs into the camera or NVR.

Note: For more information on how to connect and setup your camera consult the quick start guides and manual

for your NVR.

Mounting your Camera

The camera can be mounted onto a flat vertical or horizontal surface and

must be of sufficient strength to hold the camera. To mount the camera -

• Using a Phillips head screwdriver, remove the screw (1) from the

mounting clip. Press down on the mounting clip and carefully remove

the dome cover lifting from the front edge first.

• You’re now free to remove the camera to gain access to the mounting

bracket (2). There are four mounting holes available.

• Position the camera in the location you want to mount to then mark

the mounting holes on the surface to position the screws. Using the

appropriate screws for the surface you are mounting to, screw the

camera into place. Place the camera back onto the mounting bracket.

• To reinstall the dome cover, there are two dome clips located on the

mounting base. Place the dome cover into the dome clips first then

press down on the cover until it locks into place. Place the screw back

onto the mounting clip and tighten.

• The dome cover can be rotated left or right and the camera can be

aimed in almost any direction from wherever you choose to mount it.

Dome Clips

Limited Warranty - Terms & Conditions

Swann Communications warrants this product

against defects in workmanship and material for

a period of one (1) year from its original purchase

date. You must present your receipt as proof of

purchase for warranty validation. Any unit which

proves defective during the stated period will

be repaired without charge for parts or labour

or replaced at the sole discretion of Swann. The

end user is responsible for all freight charges in-

curred to send the product to Swann’s repair cen-

tres. The end user is responsible for all shipping

costs incurred when shipping from and to any

country other than the country of origin.

The warranty does not cover any incidental, ac-

cidental or consequential damages arising from

the use of or the inability to use this product. Any

costs associated with the fitting or removal of this

product by a tradesman or other person or any

other costs associated with its use are the re-

sponsibility of the end user. This warranty applies

to the original purchaser of the product only and

is not transferable to any third party. Unauthor-

ized end user or third party modifications to any

component will render all warranties void. By law

some countries do not allow limitations on certain

exclusions in this warranty. Where applicable by

local laws, regulations and legal rights will take

precedence.

For Australia: Our goods come with guarantees

which cannot be excluded under Australian Con-

sumer Law. You are entitled to a replacement

or refund for a major failure and for compensa-

tion for any other reasonably foreseeable loss or

damage. You are also entitled to have the goods

repaired or replaced if the goods fail to be of ac-

ceptable quality.

FCC Verification

This equipment has been tested and found to comply with the limits for Class B digital device, pursu-

ant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against

harmful interference in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful

interference to radio or television reception, which can be determined by turning the equipment off and

on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and the receiver

• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-

nected

• Consult the dealer or an experienced radio/TV technician for help

These devices comply with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) These devices may not cause harmful interference.

(2) These devices must accept any interference received, including interference that may cause unde-

sired operation.

M816CAM040815E | © Swann 2015

Helpdesk/Technical Support

Technical Support E-mail: [email protected]

Telephone Helpdesk

USA Toll Free 1-800-627-2799

USA Parts & Warranty 1-800-627-2799

(M-F, 9am-5pm US PT)

AUSTRALIA 1800 788 210

NEW ZEALAND Toll Free 0800 479 266

UK 0808 168 9031
