Swann SW344-DWD Manuale utente
1
www.swannsecurity.com SR344-DWD-60100-V011209E
Advanced Digital Wireless
Camera and Receiver
Operating Instructions
™
™
Advanced security made easy
ADW-400
SW344-DWD
222
FCC Verification:
NOTE: This equipment has been tested and found to comply with the limits for
Class B digital device, pursuant to part 15 of the FCC Rules. These limits are de-
signed to provide reasonable protection against harmful interference in a residen-
tial installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encouraged to try to cor-
rect the interference by one or more of the following measures:
· Reorient or relocate the receiving antenna
· Increase the separation between the equipment and the receiver
· Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected
· Consult the dealer or an experienced radio/TV technician for help
IMPORTANT NOTE: Prohibition against eavesdropping
Except for the operations of law enforcement officers conducted under lawful
authority, no person shall use, either directly or indirectly, a device operated pursu-
ant to the provisions of this Part for the purpose of overhearing or recording the
private conversations of others unless such use is authorized by all of the parties
engaging in the conversation.
WARNING: Modifications not approved by the party responsible for compliance
could void user’s authority to operate the equipment.
IMPORTANT SAFETY INSTRUCTIONS:
· Make sure product is fixed correctly and stable if fastened in place
· Do not operate if wires and terminals are exposed
2
Before You Begin
3
3
ADW-400 Camera with Stand
Receiver
A/V Cable
2 X Antennas
Power Extension Cable for Camera
Power Adapters
Operating Instructions
Security Stickers
Mounting Hardware
SD Memory Card (Optional)
Table of Contents
Package Contents
Before you Begin 2
Table of Contents 3
Package Contents 3
Overview 4
Layout of Camera 5
Layout of Receiver 6
Pairing 7
Using the Menus 8
Recording Modes 9
Connection Guide 10 - 11
Settings 12 - 13
Playback and Backup 14 - 15
Additional Features 16 - 17
Troubleshooting Guide 18
Technical Specifications 19
Technical Support Rear Cover
Warranty Information Rear Cover
444
Overview
Congratulations on your purchase of the ADW-400! You’ve chosen a reliable and
exceptionally convenient monitoring solution for your home or business. Here’s a
quick rundown on some of the great features the ADW-400 has to offer:
Digital Wireless Technology
No more interference! Unlike older analog wireless technologies which suffer
greatly from signal distortion and interference, digital wireless technology provides
clean, crisp images, even in environments with other wireless devices active.
This is in addition to all the other conveniences of wireless systems, such as not
having to install cables, and offers increased flexibility for modifications to your
camera placement at a later date!
Up to four channels (Quad View)
Unlike older wireless systems which require a separate wireless receiver for each
camera, the ADW-400 receiver is capable of receiving and displaying up to four
cameras at once!
Night Vision
With twenty-four infrared LEDs built into the camera, the ADW-400 can see up
to 8m/26ft even in complete darkness, providing you with a 24 hour security
solution.
SD Card Recording
Thanks to the built in SD card recording capabilities, it can be used as a convenient
stand-alone monitoring and recording device. It features support for SD cards up
to 32GB in capacity which, when combined with it’s motion recording abilities,
allow the ADW-400 to work for months at a time.
Note: for the best results, always use high-speed, high-quality SD cards which
conform to either the SD or SDHC standards. Many lower quality SD cards with
slower read/write speeds will not produce desirable results, as they cannot ‘keep
up’ with the video being captured by the ADW-400.
5
Layout of Camera
Lens: The business end of the camera. For a reliable and clear image, ensure that
the lens stays clean and unobstructed. To clean, use a dedicated lens cleaning
solution and cloth, available from all good photography stores.
Infrared LEDs: These give the camera its limited night vision capabilities. These
LEDs act like a floodlight, but use light that human eyes cannot see, but which the
camera can.
Stand: This stand can be pivoted to face any direction. Additionally, it can be
attached to the camera via the screw thread on the rear of the camera, allowing
for attachment high on a wall or to a ceiling.
Antenna: Used to transmit the wireless signal to the receiver. For the best results,
the antenna should be as unobstructed as possible - ideally having a clear line of
sight to the receiver.
Lens
Infrared LEDs
Stand
Antenna
666

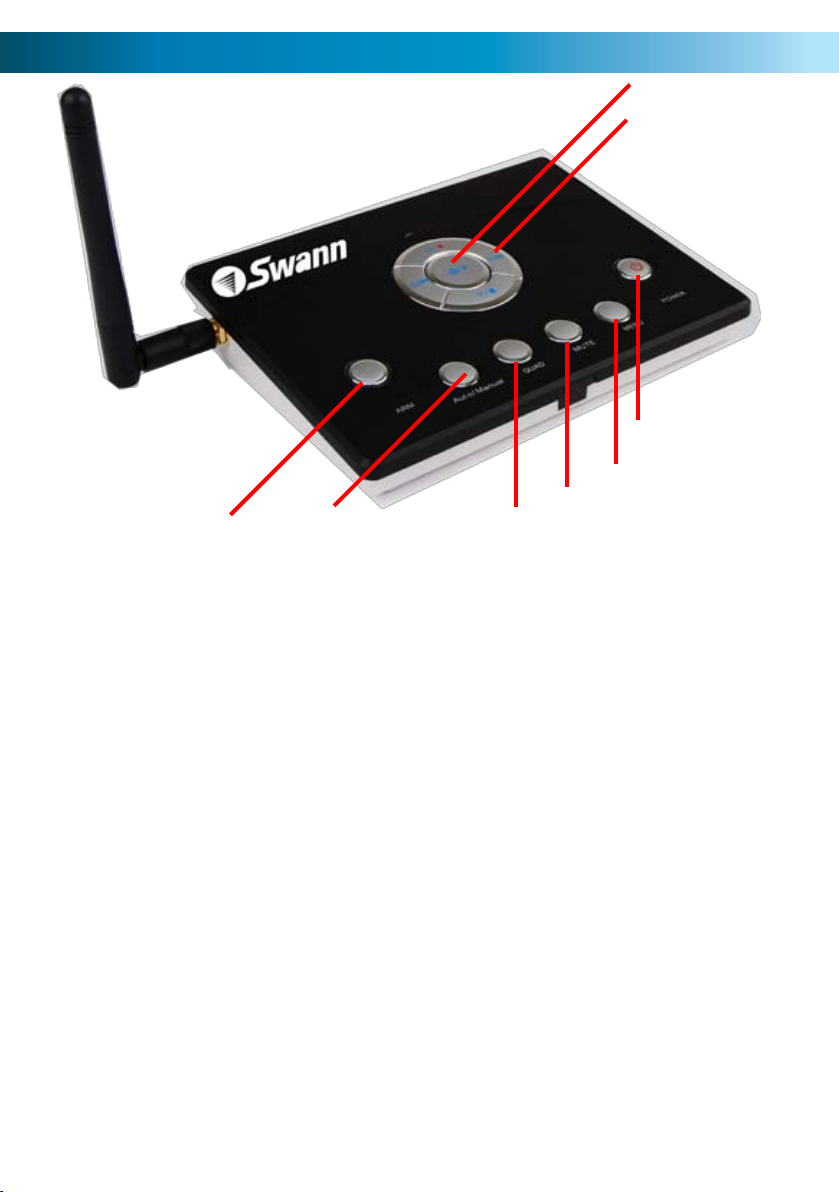

Layout of Receiver
ARM Auto/Manual QUAD
MUTE
MENU
POWER
Arrows /
Playback Controls
Play / Enter
Power: Activates and deactivates the receiver.
MENU: Opens the main menu, or goes back one step in a submenu.
MUTE: Turns the audio output on or off. Will not affect recording, only live
monitoring and playback.
QUAD: Toggles between single channel view (where the image from one camera
fills the whole screen) and quad view (where all four channels are displayed
simultaneously, each taking 1/4 of the screen).
Auto/Manual: Press to change the channel being displayed in manual switching
mode. Press and hold to toggle between manual switching and auto-switching
mode.
ARM: Turns the motion detection based recording functions on or off. When the
receiver is armed, it will automatically switch to QUAD view. You can subsequently
exit QUAD view without disarming the receiver by pressing the QUAD button. For
more information about recording and recording modes, see page 9.
Play / Enter: Starts and stops footage in playback mode. Acts as a Select / Enter
Arrows / Playback Controls: Used to navigate whilst in the menu system. In live
viewing mode, UP is a shortcut to RECORD. In playback mode, DOWN is a shortcut
to STOP, whilst LEFT and RIGHT are REWIND and FAST-FORWARD respectively.
7
Pairing
Pairing Instructions
You might have already noticed that there is no channel switch on the camera
– so, how do you assign the cameras to the channel you want? The answer is
“pairing”.
Pairing, in a nutshell, is a process which associates one camera with one channel,
hence “pairing” them together. There are no physical switches to worry about,
the change is handled by the software in the receiver. The camera and receiver will
retain their pairings even if the power is disconnected and restored.
To pair a camera with one channel on the receiver:
Press the MENU button on the receiver.•
Using the arrow buttons, navigate to “Pairing”.•
Press PLAY/ENTER.•
Using the LEFT and RIGHT arrows, choose the channel you would like to pair•
the camera to, from 1 to 4. Press PLAY/ENTER to confirm.
Once you’ve selected the channel you’d like to pair a camera to, a countdown•
will appear on screen, counting down from 30.
Whilst this countdown is in progress, press the pairing button on the rear of•
the camera you’d like to pair with this channel.
Note: Only one camera can be paired to a channel at a time, and pairing a camera
to a channel which already has a paired camera will replace the previously paired
camera.
The Main Menu with the
Pairing Menu selected.
The Pairing Menu with
the Channel 1 selected.
888

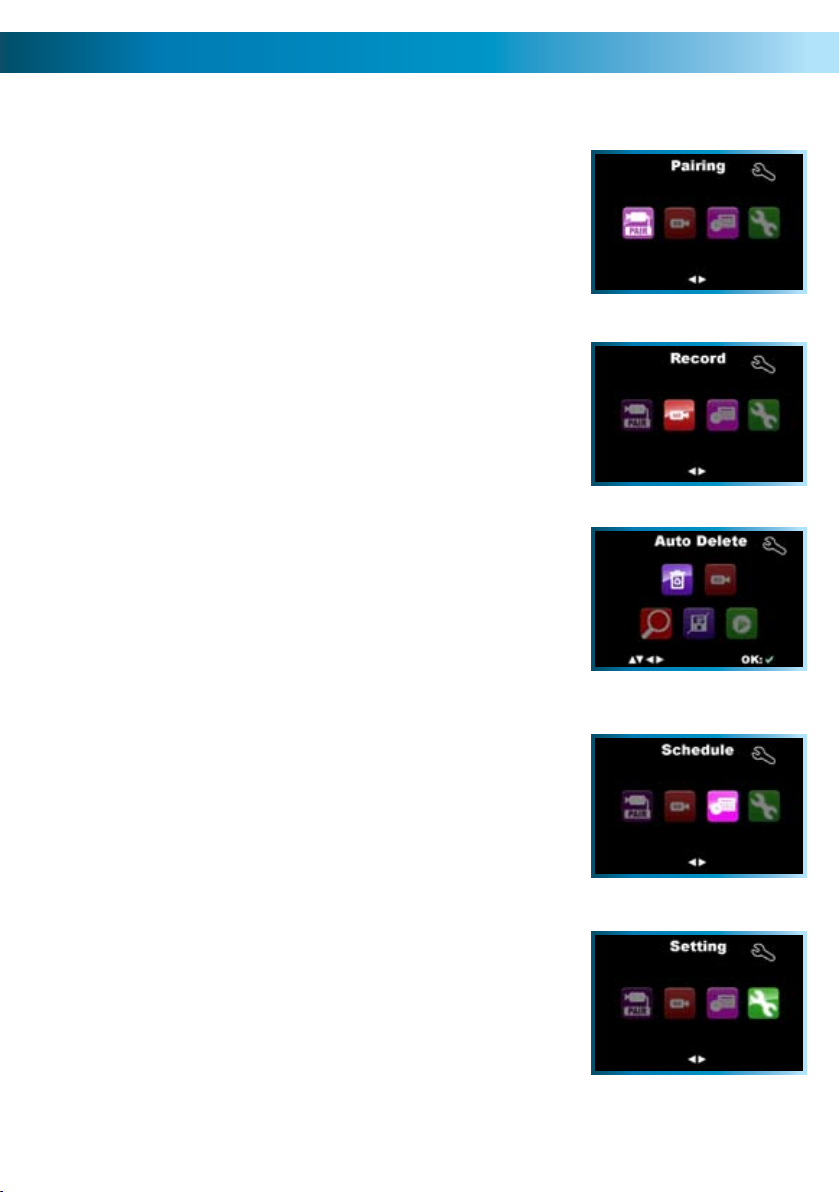

Using the Menus
When you open the Main Menu, you will see the following
four categories, each containing several options. Here’s a
quick rundown of what you’ll see.
Pairing
This is where you pair cameras with channels in the receiver.
See page 7 for more details.
Record
Auto-Delete:• Whilst Auto-Delete is turned on, and the
SD card is full, the receiver will automatically delete the
oldest event to have space to record a new event. If
Auto-Delete is off and the SD card fills up, the receiver
will no longer record.
Alarm Record Time:• The amount of time after a
motion/alarm event that the receiver will continue to
record for. You can set this time between 3 seconds
and 10 minutes.
Time Stamp:• When Time Stamp is set to on the time
and date of a recording will be overlaid on the video.
We suggest leaving this set to on, as recording the
time and date of an event typically makes the footage
more useful.
Format:• Formats the SD card in the receiver. Formatting
removes all data and re-writes the file allocation table.
Only use this option if the SD card seems incompatible
with the receiver, and/or you really want all data on
the card to be erased.
Playback:• Enter playback mode (see pages 14 - 15).
Schedule
You can set a start and end time for the period that•
you want the receiver to record each day.
Only one recording period can be defined each day.•
For the duration of the programmed schedule, the
receiver will record continuously, regardless of whether
there is movement in the camera’s line of sight.
For more information about Scheduled Recording, see•
page 11.
Setting
Here you can access and set many of the settings in the
receiver. You’ll be able to adjust the date and time, your
display settings, and alarm settings. For more details, see
pages 12 - 13. The Main Menu with the
Settings Menu selected.
The Main Menu with the
Schedule Menu selected.
The Main Menu with the
Record Menu selected.
Layout of the Record Menu
with Auto Delete selected.
The Main Menu with the
Pairing Menu selected.
9
Recording Modes
The ADW-400 Receiver offers two recording modes, Motion Recording and
Schedule Recording. Both of these can be used together - that is, the receiver
can always be ready to record on motion, and also record constantly for a certain
period each day.
Motion Recording
When Motion Recording is enabled, the receiver will record a short video file every
time something moves in the line of sight of the camera. You can choose how long
the receiver will continue to record for after a motion event has occurred.
Schedule Recording
You can have the receiver record constantly for a certain period each day. To set
this up, access Schedule from the main menu.
Simply enter a start and end time. Use the left/right arrows to navigate, and
up/down to change the values. Choose “On” to exit the schedule menu with
Schedule recording active, or “Off” to exit the menu leaving schedule recording
deactivated.
Note: If you set the schedule to record a long period each day, remember that
you’ll need to have a very large SD card in the receiver to store all that video data!
If the card is smaller than the total file size, then you’ll lose at least part of the
recording, and possibly all of it.
The motion detection is sensitive enough to detect a human being (or
human sized object/animal) moving at up to approximately 26ft (8m) from
the camera. Smaller objects/animals proportionally closer to the camera, as
well as larger things which are farther away. The criteria is how large things
appear on the screen and how fast they are moving.
Motion Alarm: You can set the receiver to emit a high-pitch alarm tone when it
detects motion.
To turn Motion Recording ON or OFF, press the ARM button on
the top of the receiver. The Motion Icon will be displayed on
screen whilst the receiver is armed for Motion Recording. The Motion
Detection icon.

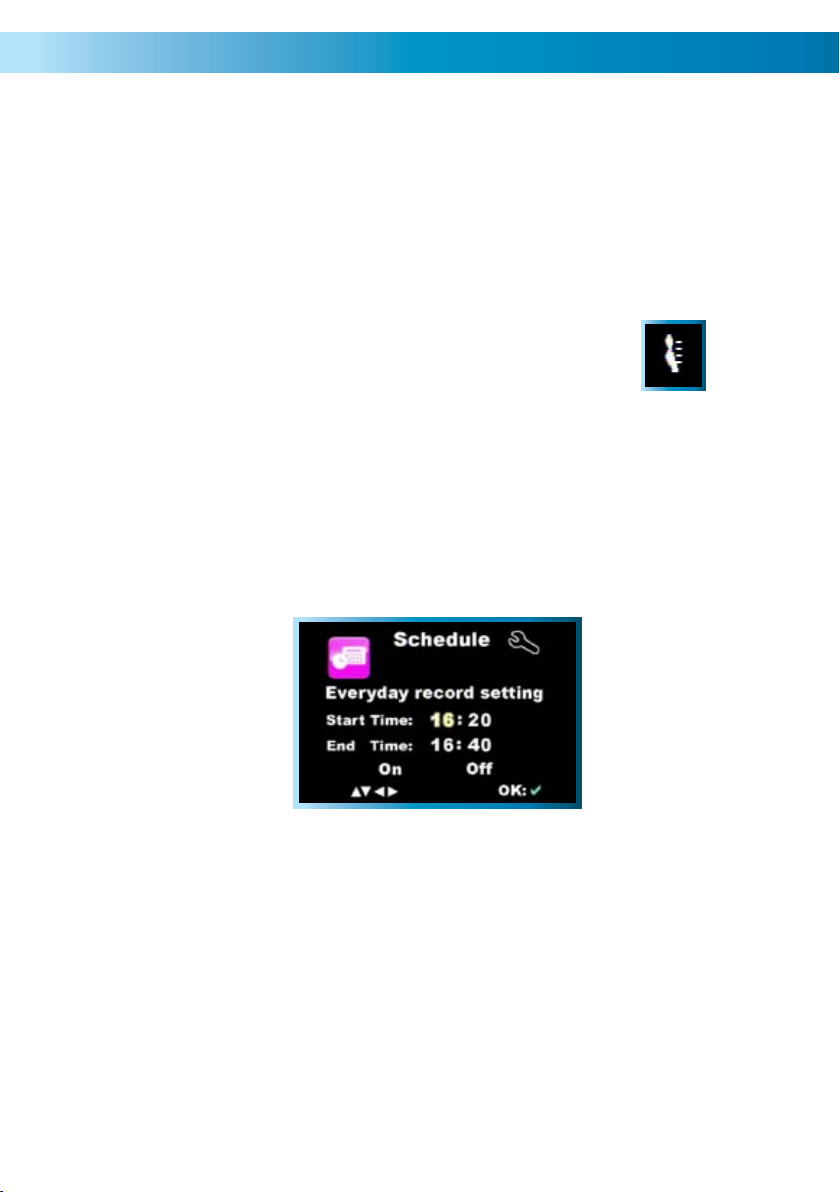

The Schedule menu.
101010
Connection Guide
INPUT
5A. Connect to VCR/DVD recorder (Optional) 5B. Connecting to TV
Connect the power
adapter plug into the power
socket attached to the
camera.
1
Connect the the A/V cable to your
TV or VCR
5
Connect the A/V cable
to the Input on the back
of the VCR/DVD recorder
i
If your VCR/DVD recorder is
not already connected to your
TV, connect another A/V cable
to the Output on the VCR
ii
From ReceiverFrom Receiver
To TV
From VCR
(Optional)
Plug the camera’s
power adapter into
the wall socket.
2
Connect the power adapter
plug into the receiver’s
power socket.
3
Input
Output
Connect the A/V Cable
to a TV Input
i
Connect the
power
adapter into
the wall
socket.
4
powe
r
h
e
Altri manuali per SW344-DWD
1
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali Swann Telecamera di sicurezza
Swann
Swann 3MP Manuale utente
Swann
Swann SWPRO-H856CAM-US Manuale utente
Swann
Swann PRO-643 Manuale utente
Swann
Swann DIY Security Cam SW211-DSC Manuale utente
Swann
Swann NHD-855 Manuale utente
Swann
Swann 1080p SDI Manuale utente
Swann
Swann PNP-50 Manuale utente
Swann
Swann Cloud Manuale utente
Swann
Swann PRO-536 Manuale utente
Swann
Swann Maxi Day/Night Cam Security Camera S243-4NU Manuale utente
Swann
Swann DIY Security Cam Manuale utente
Swann
Swann Bulldog Cam Manuale utente
Swann
Swann 700TVL Manuale utente
Swann
Swann BulletCam SW213-BCC Manuale utente
Swann
Swann ALPHA SWA31-C8 Manuale utente
Swann
Swann SWCSNO Manuale utente
Swann
Swann SWO-SVC01K SoundView Manuale utente
Swann
Swann Hidden Still Camera & Recorder Manuale utente
Swann
Swann SwannOne SoundView SWO-SV02K Manuale utente
Swann
Swann Maxi-Brite PNP-150 Manuale utente
