Swann Security DVRx-2500 Email Alert Setup Guide
This guide is for you to setup Email Alert for the DVRx-2500.
Problem: You may experience not able to send email alert from your DVRx-2500 to an email
address automatically when motion is detected on your computer. This is usually caused by
misconfigured email settings, your Internet Service Provider’s SMTP (outgoing email server)
blocking your internet connection to send out emails or your email server rejecting the emails.
Solution: We can use Gmail’s SMTP service (free service) to provide a secure and reliable
outgoing email service for your DVR. It is fully encrypted and secure through the use of Secure
Socket Layer (SSL).
For Gmail account setup in details, please refer to Appendix A for Gmail setup!
PLEASE NOTE:
WHILE THIS GUIDE DETAILS THE USE OF GMAIL WITH OUR DVR, UNDERSTAND THAT WE
CANNOT GIVE SPECIFIC GMAIL SUPPORT BECAUSE IT IS A 3RD PARTY APPLICATION. WE
INCLUDE THE GMAIL GUIDE AS AN EXAMPLE OF CONFIGURING THE DVR WITH AN EMAIL
PROVIDER.
WE HAVE BEEN ABLE TO USE GMAIL’S SERVICE TO CONFIGURE THE DVR TO SEND
EMAILS. UNFORTUNATELY, NOT ALL EMAIL PROVIDERS WILL WORK WITH THE DVR, SO
WE ALSO INCLUDE THE GMAIL GUIDE IN CASE YOU NEED A FALLBACK EMAIL
PROVIDER.
CreatedbytheSwannSupportTeam AUS:1300138324
Forfurtherinformationpleasecall USA:18006272799
INT:+61384124610
1 / 6
Advanced security make easy
Setting up Email Alert on DVRx-2500
STEP 1
First of all, press the Menu button to go into
Main Menu and choose “DEVICES” by using
the navigation keys and press SELECT key.
(as shown on the left)
Fig. 1
STEP 2
Once you are in “DEVICE MANAGEMENT”,
choose “ALARM” icon by using the
navigation key and SELECT key. (as shown
on the right)
Fig. 2
CreatedbytheSwannSupportTeam AUS:1300138324
Forfurtherinformationpleasecall USA:18006272799
INT:+61384124610
2 / 6
Advanced security make easy

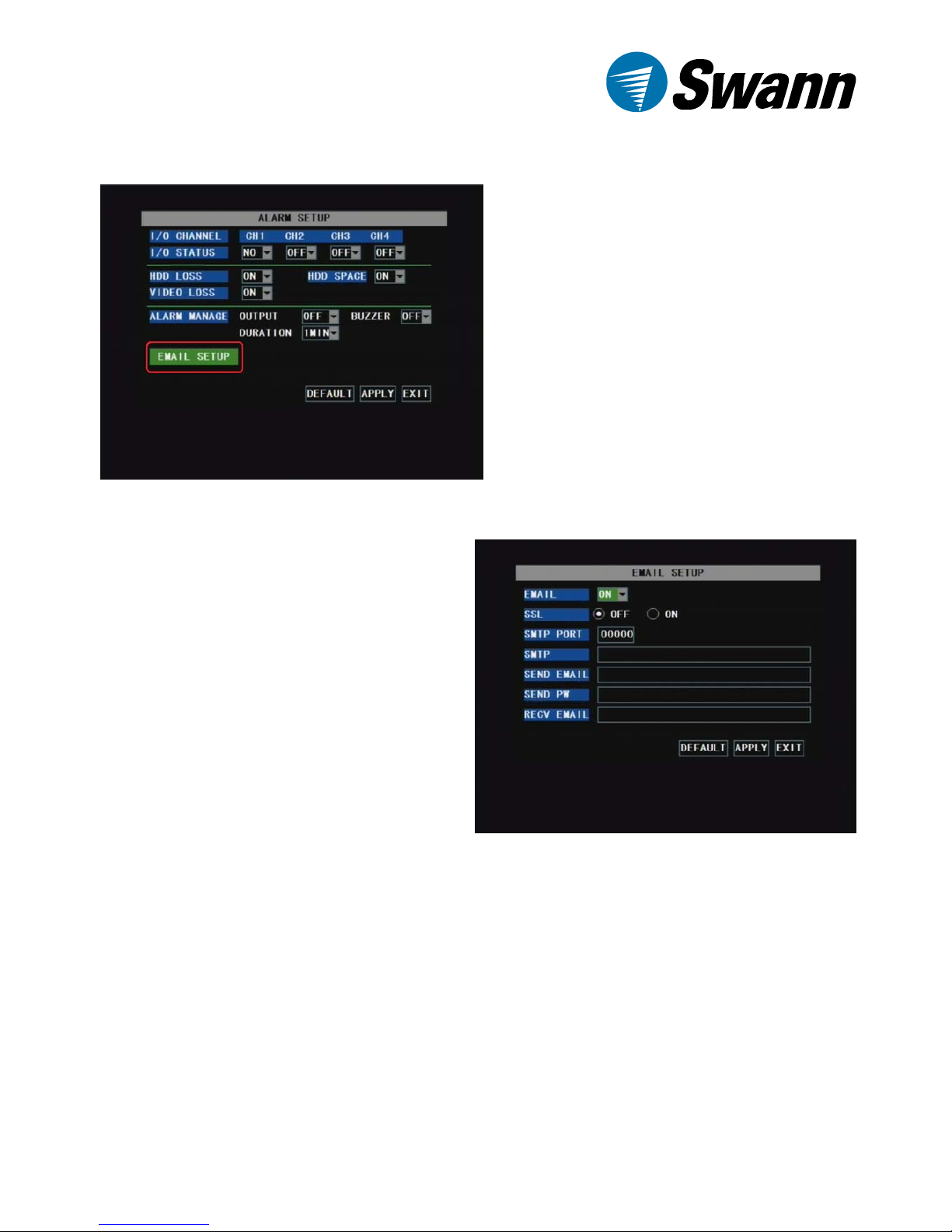

STEP 3
Using the navigation key to select “EMAIL
SETUP” and press SELECT key. (as
shown on the left)
Fig. 3
STEP 4
This is the detail setup for email settings.
Use the navigation keys to move between
the fields. If the field requires you to put in
alphanumeric characters, you need to press
the SELECT key twice on the intended field.
Then an on-screen keyboard will appear.
Using the navigation keys and SELECT key,
enter in the relevant information. Once the
intended field is complete, select the Enter
icon within the on-screen keyboard to exit
the on-screen keyboard.
The settings needed on this screen are the
settings from your Gmail account.
Fig.4
CreatedbytheSwannSupportTeam AUS:1300138324
Forfurtherinformationpleasecall USA:18006272799
INT:+61384124610
3 / 6
Advanced security make easy
STEP 5
Once you have completed the email
settings, they should appear similar to the
figure shown on the left. With this
example, the DVR will send out email alerts
from your Gmail email address to
email address).
After all the settings have been entered
and checked, use the navigation key to
choose “APPLY” and press the SELECT
key to apply the settings.
Fig. 5
Common Settings are shown below:
EMAIL: ON SEND EMAIL: your Gmail email address
SSL: ON SEND PW: your Gmail password
SMTP PORT: 00465 RECV EMAIL: recipient email address
SMTP: smtp.gmail.com
STEP 6
Once the settings have been applied, you
should see a screen like the one on the right.
Press the SELECT key again to clear the
confirmation. Finally, use the navigation keys
to choose EXIT and go back to the live screen.
Fig. 6
That’s all for setting up Email Alerts with DVRx-2500. If you have any difficulties setting it up,
please do not hesitate to contact our Support Team (contact number as shown below)!
CreatedbytheSwannSupportTeam AUS:1300138324
Forfurtherinformationpleasecall USA:18006272799
INT:+61384124610
4 / 6
Advanced security make easy
APPENDIX A – Setting up Gmail Account
Sometimes your email account cannot be used for sending motion email alerts out from your DVR
system automatically. This is usually because the email system cannot process the email
correctly.
You can use a free Gmail account as a post office to send out your alert emails.
Firstly, you will need to go to www.gmail.com and setup an account. After you have setup your
account, you can log in and get it ready to send out your emails.
From the main page, click ‘Settings’.
CreatedbytheSwannSupportTeam AUS:1300138324
Forfurtherinformationpleasecall USA:18006272799
INT:+61384124610
5 / 6
Advanced security make easy
CreatedbytheSwannSupportTeam AUS:1300138324
Forfurtherinformationpleasecall USA:18006272799
INT:+61384124610
6 / 6
In Settings, follow this procedure:
1. Click on Forwarding and POP/IMAP.
2. Click on ‘Enable POP for all email’.
3. Click on ‘Save Changes’.
That’s Gmail configured, now to set up the DVR to use Gmail as the sending email account.
Please copy down your Gmail email address and password you have created for later
use!
