Swarm M138 Manuale utente
Swarm M138 Modem
Product Manual

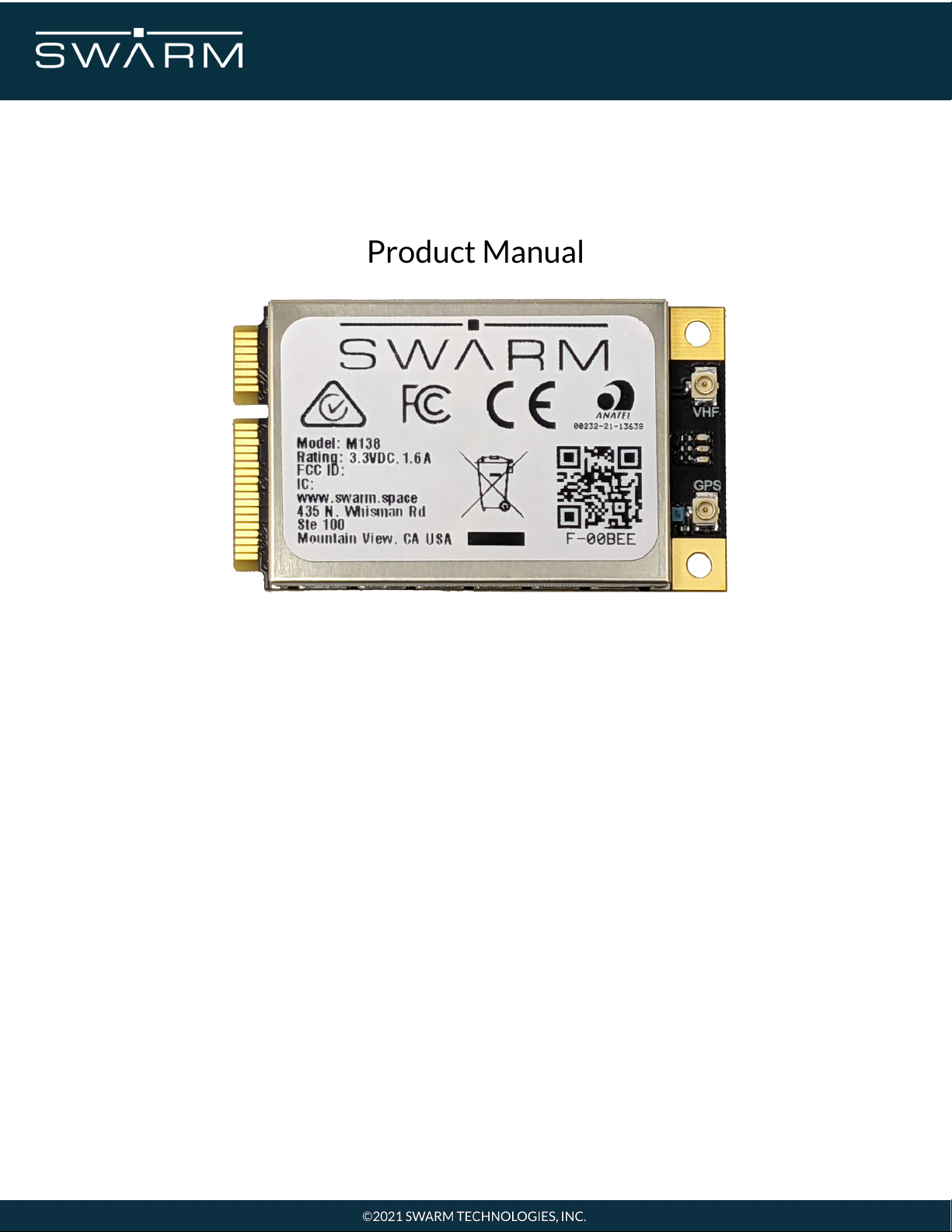

Swarm M138 Modem Product Manual
Revision 1.00
November 2021
© 2021 Swarm Technologies, Inc.
Legal Notices
This User Manual provides user information and is provided “as is.” Swarm Technologies and its affiliated
companies, directors, officers, employees, agents, trustees or consultants (“Swarm”) assume no
responsibility for any typographical, technical, content or other inaccuracies in this User Manual. Swarm
reserves the right to revise this User Manual or withdraw it at any time without prior notice. You can find
the current version of this Swarm Modem User Manual at www.swarm.space.
SWARM MAKES NO GUARANTEES, CONDITIONS, WARRANTIES, OR REPRESENTATIONS, EITHER
EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY IMPLIED REPRESENTATIONS,
GUARANTEES, CONDITIONS OR WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, NONINFRINGEMENT, SATISFACTORY QUALITY, NON-INTERFERENCE,
ACCURACY OF INFORMATIONAL CONTENT, OR ARISING FROM A COURSE OF DEALING, LAW,
USAGE, OR TRADE PRACTICE, USE, OR RELATED TO THE PERFORMANCE OR
NONPERFORMANCE OF ANY PRODUCTS, ACCESSORIES, FACILITIES, SERVICES OR USER
INFORMATION, EXCEPT AS EXPRESSLY STATED IN THE LIMITED WARRANTY. ANY OTHER
STANDARDS OF PERFORMANCE, GUARANTEES, CONDITIONS AND WARRANTIES ARE HEREBY
EXPRESSLY EXCLUDED AND DISCLAIMED TO THE FULLEST EXTENT PERMITTED BY LAW. THIS
DISCLAIMER AND EXCLUSION SHALL APPLY EVEN IF THE EXPRESS LIMITED WARRANTY
PROVIDED IN THE LEGAL INFORMATION BOOKLET FAILS OF ITS ESSENTIAL PURPOSE.
FURTHER, THE LIMITED WARRANTY COVERS THE SWARM M138 MODEM (INCLUDING
HARDWARE, SOFTWARE AND/OR FIRMWARE) AND ACCESSORIES ONLY, AND NO WARRANTY IS
MADE AS TO USER INFORMATION AND/ OR COVERAGE, AVAILABILITY OR GRADE OF SERVICE
PROVIDED BY SWARM SEPARATELY FOR SWARM SATELLITE SERVICES.
IN NO EVENT SHALL SWARM BE LIABLE, WHETHER IN CONTRACT OR TORT OR ANY OTHER
LEGAL THEORY, INCLUDING WITHOUT LIMITATION STRICT LIABILITY, GROSS NEGLIGENCE OR
NEGLIGENCE, OR IMPLIED WARRANTY, FOR ANY DAMAGES IN EXCESS OF THE PURCHASE
PRICE OF THE SWARM M138 MODEM (INCLUDING HARDWARE, SOFTWARE AND/OR FIRMWARE)
AND/OR ACCESSORIES AND/OR THE COST OF SWARM SATELLITE SERVICES PROVIDED, NOR
SHALL SWARM BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,
CONSEQUENTIAL, OR PUNITIVE DAMAGES OF ANY KIND, OR LOSS OF REVENUE OR PROFITS,
LOSS OF BUSINESS, LOSS OF PRIVACY, LOSS OF USE, LOSS OF TIME OR INCONVENIENCE,
LOSS OF INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL LOSS
CAUSED BY THE SWARM MODEM-M138 (INCLUDING HARDWARE, SOFTWARE AND/ OR
FIRMWARE) AND/OR ACCESSORIES AND/OR THE SWARM SATELLITE SERVICES, OR ARISING
OUT OF OR IN CONNECTION WITH THE ABILITY OR INABILITY TO USE THE SWARM
MODEM-M138 (INCLUDING HARDWARE, SOFTWARE AND/OR FIRMWARE) AND/OR
ACCESSORIES AND/OR THE SWARM SATELLITE SERVICES , TO THE FULLEST EXTENT THESE
DAMAGES MAY BE DISCLAIMED BY LAW AND REGARDLESS OF WHETHER SWARM WAS
ADVISED OF THE POSSIBILITIES OF SUCH DAMAGES.
November 2021 Swarm M138 Modem Manual - Rev 1.00 2/77
Third Party Information
This User Manual might refer to third party sources of information, hardware or software, products or
services and/or third party web sites (“third party information”). Swarm does not control, and is not
responsible for, any third party information, including without limitation the content, accuracy, copyright
compliance, compatibility, performance, trustworthiness, legality, decency, links, or any other aspect of
third party information. The inclusion of such third party information does not imply endorsement by
Swarm of the third party information. ANY THIRD PARTY INFORMATION THAT IS PROVIDED WITH
SWARM’S FACILITIES, SERVICES, PRODUCTS OR USER INFORMATION IS PROVIDED “AS IS.’’
SWARM MAKES NO REPRESENTATIONS, GUARANTEES OR WARRANTIES IN RELATION TO
THIRD PARTY INFORMATION AND SWARM SHALL NOT BE LIABLE FOR ANY LOSSES, DAMAGES,
LIABILITIES, JUDGMENTS, FINES, AMOUNTS PAID IN SETTLEMENT, EXPENSES OR COSTS OF
DEFENSE SUSTAINED IN RELATION TO ANY SUCH THIRD PARTY INFORMATION.
Intellectual Property, Trade Secret, Proprietary or Copyrighted Information
To protect Swarm proprietary and confidential information and/or trade secrets, this User Manual may
describe some aspects of Swarm technology in generalized terms. Swarm products may include
copyrighted Swarm and third party software. Any such copyrighted software contained in Swarm products
may not be modified, reverse engineered, distributed or reproduced in any manner to the extent provided
by law. The purchase of any Swarm products shall not be deemed to grant either directly or by implication
or otherwise, any license under copyrights, patents, or patent applications of Swarm or any third party
software provider, except for the normal, nonexclusive, royalty free license to use that arises by operation
of law in the sale of a product.
Content Copyright
You are exclusively responsible for the use of the Swarm Modem-M138, including proper use of third
party copyrighted materials. If you violate these terms you agree to defend, indemnify and hold Swarm
harmless with respect to any claims or actions by third parties related to your improper use of copyrighted
materials and to pay all costs, damages, fines and other amounts incurred by Swarm, or on its behalf, in
the defense of any such claims or actions.
Export Compliance
The Swarm Modem-M138 is controlled by the export laws and regulations of the United States of
America. The U.S. Government may restrict the export or re-export of this product to certain individuals
and/or destinations. For further information, contact the U.S. Department of Commerce, Bureau of
Industry and Security or visit www.bis.doc.gov
November 2021 Swarm M138 Modem Manual - Rev 1.00 3/77
Revision History 4
Additional Resources: 4
1 Safety Information and Compliance 7
1.1 FCC Compliance 7
1.2 ISED Compliance 7
1.3 RF Exposure Guidance 7
1.4 EU RED Certification 8
1.5 Transceiver Regulatory Certification 8
2 Product Overview 9
3 Mechanical Specification 10
3.1 Modem Dimensions 10
3.2 Environmental 11
3.3 Moisture Sensitivity Level 11
4 Electrical Interfaces 12
4.1 User Host Device 12
4.2 Modem Pin Allocation 13
4.3 DC Power Interface 15
4.4 Power On/Off Control 18
4.5 Serial Data Interface 18
4.6 LED Indicators 19
5 Design Guidance 20
5.1 Input Connections 20
5.2 Decoupling and Feed-through Capacitors 20
5.3 Input Voltage Examples 21
5.4 Communications 23
5.4.1 Level Shifting 24
5.5 Example Design 25
6 RF Interfaces 27
6.1 RF Connectors 27
6.2 RF Antenna 27
6.2.1 Antenna Characteristics 28
6.2.2 Ground Plane Requirements 29
6.3 Antenna Debugging 31
November 2021 Swarm M138 Modem Manual - Rev 1.00 5/77
7 Software interface 32
Message types 32
General command structure 32
Command timing 33
Command responses 33
Boot-up sequence 33
GPS Date/Time Reference 33
Messages 34
Table of Commands 35
$CS - Configuration Settings 36
$DT - Date/Time 37
$FV - Firmware Version 40
$GJ - GPS Jamming/Spoofing Indication 41
$GN - Geospatial information 43
$GP - GPIO1 Control 46
$GS - GPS Fix Quality 49
$MM - Messages Received Management 52
$MT - Messages to Transmit Management 56
$PO - Power Off 59
$PW - Power Status 60
$RD - Receive Data Message 62
$RS - Restart Device 63
$RT - Receive Test 64
$SL - Sleep mode 67
$M138 - Modem Status 70
$TD - Transmit data 71
November 2021 Swarm M138 Modem Manual - Rev 1.00 6/77
1 Safety Information and Compliance
The Swarm M138 Modem is designed to comply with the standards for Radio Emissions
Compliance and Electromagnetic Compatibility in the United States, Canada, Australia, New
Zealand, United Kingdom, European Union, Brazil, as well as worldwide.
1.1 FCC Compliance
Currently under review
1.1.4 FCC ID:
The Swarm Modem is currently under test and will receive FCC ID at a later date.
1.2 ISED Compliance
Currently under review
1.2.2 IC ID:
The Swarm Modem is currently under test and will receive IC ID at a later date.
1.3 RF Exposure Guidance
Currently under review
November 2021 Swarm M138 Modem Manual - Rev 1.00 7/77
1.4 EU RED Certification
1.4.1 Declaration of Conformity:
Currently under review
1.4.2 Article 10(2)/(10):
Currently under review
1.5 Transceiver Regulatory Certification
The Swarm Modem is a regulatory approved modular transmitter that is designed to be
integrated into an enclosed host system. With appropriate external connections, the host can be
designed to meet full regulatory tests and sold as a regulatory certified product that meets FCC,
IC, and CE requirements. Table 1 below is a partial list of regulatory approvals.
Regulatory
Approvals
Radio Tests
EMC Tests
Safety Tests
FCC
Currently under review
IC
Currently under review
CE
Currently under review
Table 1: Overview of the Swarm M138 Modem regulatory approvals.
November 2021 Swarm M138 Modem Manual - Rev 1.00 8/77
2 Product Overview
The Swarm Modem (Model: M138) satellite data modem transmits and receives data to and
from Swarm’s space network and is designed to be embedded into a third-party product. Swarm
backend systems support the delivery of customer data via a REST API or Webhook to the
cloud service of each user’s choice.
The Swarm Modem is a module suitable for a variety of low-bandwidth use cases: from
connecting people and tracking vehicles, ships, or packages to relaying sensor data for
agriculture, energy, and industrial IoT applications.
The Swarm Modem is a Mini-PCI Express Card that can be easily integrated into any new or
existing PCB design. The Swarm Modem communicates via a standard 3.3V CMOS serial
UART interface or a PC interface with a USB-to-serial converter.
Category
Description
Components
GPS, VHF radio with integrated T/R switch, U.FL connector for GPS and
VHF antenna, indicator LEDs, 3.3V serial interface, 3.3V GPIO, 1PPS GPS
Onboard
Sensors
uBLOX GPS (lat/lon/alt), 1 pulse per second signal
Dimensions
and Mass
51.0 mm x 30.0 mm x 5.3 mm, 9.6 g
See detailed description in the Mechanical Specification section.
Power
Mode
Typical
Peak
3.3V
5V
3.3V
5V
Sleep
-
-
70μA
110μA
Receiver Active
26mA
25mA
40mA
42mA
Transmitter On
1275mA
785mA
1600mA
790mA
Protocol
Modified NMEA two-letter command set
Bit rate
1 kbps. Maximum packet size is 192 bytes
Table 2: Overview of the Swarm Modem.
November 2021 Swarm M138 Modem Manual - Rev 1.00 9/77
3 Mechanical Specification
3.1 Modem Dimensions
The overall dimensions of the Modem and its weight are summarized in Table 3.
Parameter
Value
Length
51.0 mm
Width
30.0 mm
Height
5.3 ±0.1 mm
Weight
9.6 g
Table 3: Modem Mechanical Dimensions and Weight.
Figure 1: Modem front and back views.
November 2021 Swarm M138 Modem Manual - Rev 1.00 10/77
