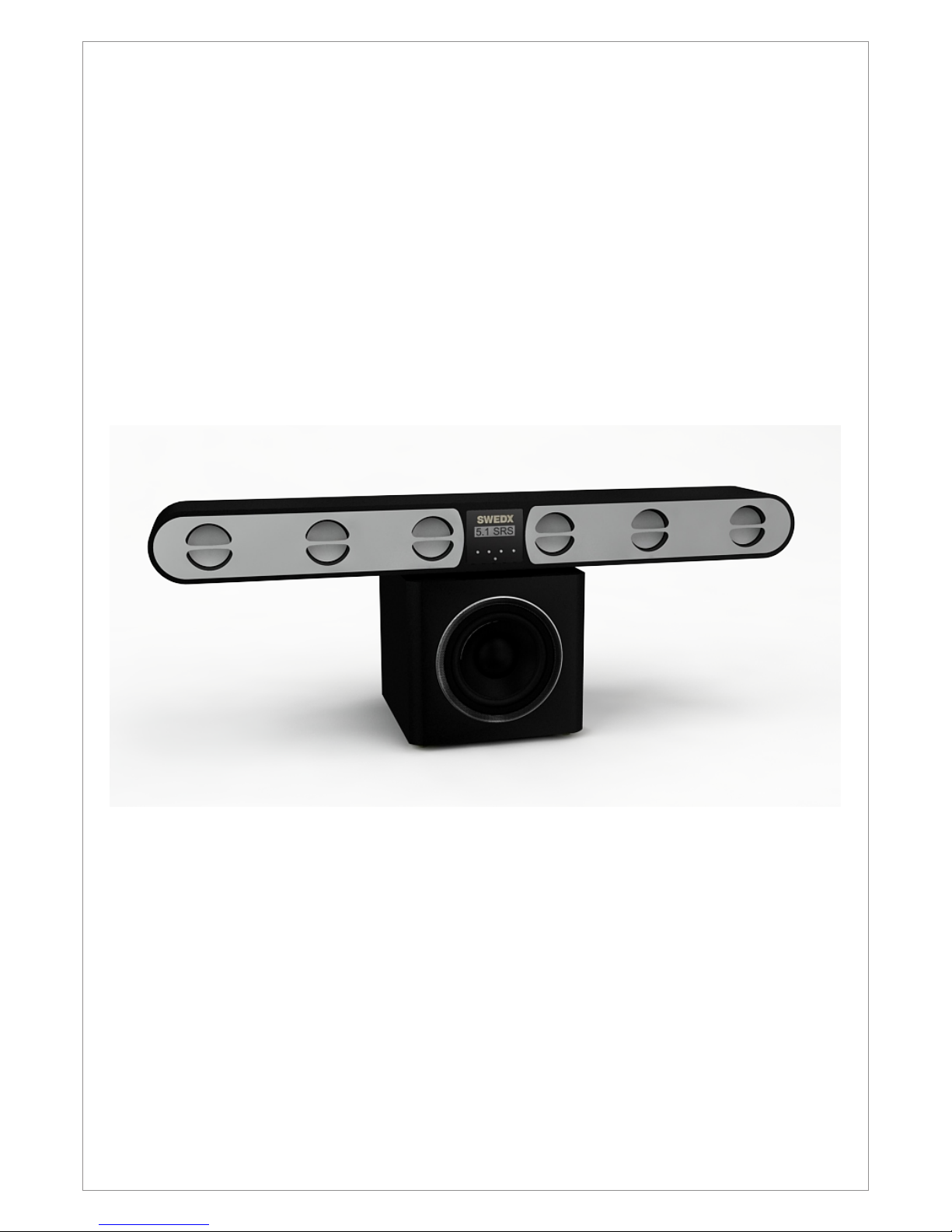

SWEDX SQ-88T5 Manuale utente
User’s Guide
SQ-88T5
Design and specifications are subject to change without notice.
www.swedx.com
Design and specifications are subject to change without notice.
2
Design and specifications are subject to change without notice.
INDEX
Safety precautions 4
Description of the soundbar and the subwoofer 6
Description of the remote control 7
8
9
Connections
Specifications
Functions 8
3
Design and specifications are subject to change without notice.
4
Safety precaution
When used in the directed manner, this unit has been designed and manufactured to ensure your
personal safety. However, improper use can result in potential electrical shock or fire hazards.
Please read al l safety and operating instructions careful ly before installation and use. Be sure to
keep these instructions handy for future reference. Take special note of all warnings listed in
these instructions and on the unit.
The lightning flash with arrowhead symbol within an equilateral is intended to alert
the user to the presence of uninsulated dangerous voltage within the product
enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is intended to alert the user to
the presence of important operating and maintenance (serving) instructions in the
literature accompanying the appliance
.
lWater and Moisture: The unit should not be used near water, for example near a bathtub,
kitchen sink, laundry tub, swimming pool or in a wet basement.
lVentilation: The unit should be situated so that its location or position does not interfere with its
proper heat ventilation, for example, it should not be situated on a bed, sofa, rug or similar
surface that may block ventilation openings. Also, it should not be placed in a built-in
installation, such as a bookcase or cabinet, which may impede the flow of air through the
ventilation openings.
lHeat: The unit should be situated away from heat sources such as radiators, heat ducts, stoves
or appliance (including amplifiers) that generate heat.
lPower Source: The unit should be connected to a power supply of the type described in the
operating instructions or as marked on the unit.
lPower-cord Protection: Power supply cords should be routed so that they are subject to wear
or abuse. It is always best to have a clear area from where the cord exists the unit to where it is
plugged into an AC outlet.
lCleaning---the unit should be cleaned only as recommended. see the maintenance section of
this manual for cleaning instructions.
lObjects and liquid Entry: Be careful that objects do not fall and liquids are not spilled into any
openings or vents located on the unit.
lAttachments: Do not use attachments that are not recommended by the product manufacturer.
lLightning and power surge protection: Unplug the unit from the wall outlet and disconnect the
antenna or cable system during a lightning storm. This will prevent any damage to the unit.
lOverloading: Do not overload wall outlets, extension cords, or integral convenience receptacles
as this can result in a risk of fire or electric shock.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER(OR BACK). REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL
lDamage requiring service: The unit should be serviced by qualified service personnel when:
A. The power supply cord or plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the unit.
C. The unit has been exposed to rain.
D. The unit has been dropped or the enclosure damaged.
E. The unit exhibits a marked change in performance or does not operate normally.
lPeriods of Non-use: If the unit is to be left un-used for an extended period of time ,such as a
month or longer, the power cord should be unplugged form the unit go prevent damage or
corrosion.
lService: The user should not attempt to service the unit beyond those methods described in the
user's qualified service personnel.
Design and specifications are subject to change without notice.
5
Contents
Included items:
2 x AAA Battery Remote Control
User’s Guide AC Cable Soundbar+Woofer
POWER MUTE
VOL
MENU
SURROUND
SUBWOOFER
MUSIC
MOVIENORMAL
REPEATNEWS
USB/SD
EQ
SOURCE
VOL
SOURCE
User´s Guide
Woofer to Soundbar
cable
Design and specifications are subject to change without notice.
6
MUTE SOURCE VOL - VOL +
POWER
Description of the soundbar and the subwoofer
Front View
MUTE SOURCE VOL - VOL +
POWER
1
2
34567
1. LED display
2. Remote sensor
3. Mute button
4. Source selection button
5. Standby/Power button
6. Volume down button
7. Volume up button
Back View
678
9
10 11 12
1. Subwoofer connection
2. SD card reader
3. Power switch On/Off
4. USB input
5. Power input (110-240 V @ 50-60 Hz)
6. Coaxial input
7. Optical Input
8. AUX1 input
9. AUX2 input
10. AUX3 input
11. Head phone input
12. Subwoofer signal output
1 2 3 4 5
1
Subwoofer
1. Subwoofer connection
Connect the subwoofer to the soundbar (input 1)
using the included cable
Design and specifications are subject to change without notice.
Description of the remote control
Buttons
1. Standby/Power: Turn the unit on or off
2. Change the source input to next one
3. Decrease the volume/value
4. Change the source input to previous one
5. Activate/deactivate surround
6. Select MOVIE sound settings
7. Select NORMAL sound settings
8. Choose/Switch between USB and SD card source input
9. Select NEWS sound settings
10. Skip to the PREVIOUS track in the USB/SD device
11. Choose preprogrammed equalizer setting
12. Mute the volume
13. Increase the volume/value
14. Activate/Deactive the subwoofer output (choose between
5.0 or 5.1 mode)
15. Select MUSIC sound settings
16. Select a repeat play mode for the connected USB/sd
device
17. Skip to the NEXT track in the USB/SD device
Note
Buttons 6, 7, 9 and 15 are deactivated in USB/SD mode.
POWER MUTE
VOL
MENU
SURROUND
SUBWOOFER
MUSICMOVIENORMAL
REPEATNEWSUSB/SD
EQ
SOURCE
VOL
SOURCE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Install remote control batteries
1. Open the battery compartment.
2. Insert 2 pcs AAA batteries with correct polarity(+/-) as
indicated
3. Close the battery compartment
Note
If you are not going to use the remote control for a long
time, remove the battery.
Design and specifications are subject to change without notice.
Functions
Press Menu buttons to adjust available values. When
pressing MENU button it will choose respective
adjustable values according to below:
1. S (0-60 DB). Adjust the subwoofer output level
2. TB (0-100). Adjust bass level
3. DF (0-100). Adjust surround level
4. DC (0-100). Adjust CENTER speakers effect
5. C (0-60 DB). Adjust CENTER speakers volume
6. M (0-60 DB). Adjust MAIN volume
Note
1. The proper combination of input and output mode (Both the Active Subwoofer
and the supply source, i.e CD,MP3,VCD,DVD…..)will produce optimize
sound quality. Please refer to both instruction Manual.
2. Some DVD device has high level signal output. When the Master Volume is
turn high until the distortion occurs, please turn down the Master Volume to
prevent damaged to the speaker unit and amplifier.
When this product is subjected to strong external interference(mechanical shock,
excessive static electricity, abnormal supply voltage due to lighting ,etc.) or it
is operated incorrectly, it may malfunction. If such problem occurs do the
following to reset the system.
1. Set the system to STANDBY mode and turn the POWER on again.
2. If the system is not restored using the previous operation, turn off the MAIN
POWER switch, unplug the power cord plug for few minutes and try to Power
on it again.
VOL
MENU
VOL
Connections
Connect the woofer to the soundbar using the included
cable.
Connect your devices to the soundbar. Choose the
appropriate source input depending on the made
connections, i.e If you insert an USB device then choose
USB as the source input. Refer to the available source
inputs, page 6.
Note
- Do not connect the power cord into the AC outlet until all
connection are made and are correct.
- Please turn on the unit before turn on the external active
subwoofer.
- Please turn off the external active subwoofer before turn
off the unit.
MUTE SOURCE VOL - VOL +
POWER
Design and specifications are subject to change without notice.
9
Specifications
Amplifier
Rated Output Power 140W+60W
Frequency Response 30 - 16000 Hz, -3dB
Signal to Noise Ratio >65dB
AUX1-3 Input 1.0V RMS 20kohm
Coaxial Input 0.5V RMS 75ohm
Total Harmonic Distortion <1%
L/R Speakers
Speaker Impedance 3 inch speakers 8ohm
Sensitivity >82dB/m/W
Subwoofer
Speaker Impedance 50ohm
Speaker Driver 6.5 inch subwoofer + 1 passive subwoofer
Sensitivity >78dB/m/W
Dimension / Weight W x H x D / KG
Main Unit 960 x 105 x 120 mm / 5.2 kg
Subwoofer 265 x 255 x 265 mm / 5.6 kg
Box - Main Unit 1020 x 155 x 165 mm / 6 kg
Box - Subwoofer 325 x 315 x 310 mm / 6.4 kg
General Information
AC Power 110-230V - 50-60Hz
Operation Power Consumption 28W
Standby Power Consumption <10W
Eco Standby Power Consumption <1W
USB Direct Full Speed Ver1.1
TruSurround HD4, SRS and the symbol are trademarks of SRS Labs, Inc. TruSurround HD4
technology is incorporated under license from SRS Labs, Inc.
is a trademark of SRS Labs, Inc. TruSurround HD4 technology is incorporated
under license from SRS Labs, Inc.
Design and specifications are subject to change without notice.
19
www.swedx.com
