Swegon ESENSA Manuale utente

ESENSA

DEFROST KIT

EN - Installation instructions..........2

NL - Installatie instructies..............8

FR - Instructions d’installation......14

DE - Installationsanleitung...........20

DK - Installationsanvisning...........26

2 www.swegon.com

MULTI.ESENSA.DEFROST.230821

Click here to open link

Table of content

1. Installation video

2. General information

3. Control conguration

4. Kit and recommended tools

5. Option location

6. Defrost kit installation

7. Defrost kit connection

1. Installation video

2.General information

The component of the option will be delivered separately from

the unit and must be installed by the installer.

Electrical cables must be adjusted to the unit. Connect length

to avoid any damage inside the unit.

The defrost kit will be used to continuously measure the need

to defrost the unit and activate this function as required.

3. Control conﬁguration

In addition to installing and connecting the option, congure

the unit's option in the hand controller HMI using the

commissionning manual.

Defrost kit

The document was originally written in English.

We reserve the right to alter speciﬁcations.

www.swegon.com 3

MULTI.ESENSA.DEFROST.230821

4. Kits and recommended tools

Kits delivered with the each coil,separately from the unit.

Tools not provided.

Picture 1

6. Hex drill bit and power drill 7. Wire cutter

1. RJ12

connection cable

2. Sensor hoses

(2 colours) 3. Sensor box Entries

4. M5 hex screw 5. Connector T

Components kit

Recommended tools

Picture 2

We reserve the right to alter speciﬁcations.

4 www.swegon.com

MULTI.ESENSA.DEFROST.230821

RIGHT VERSION

K1 J2

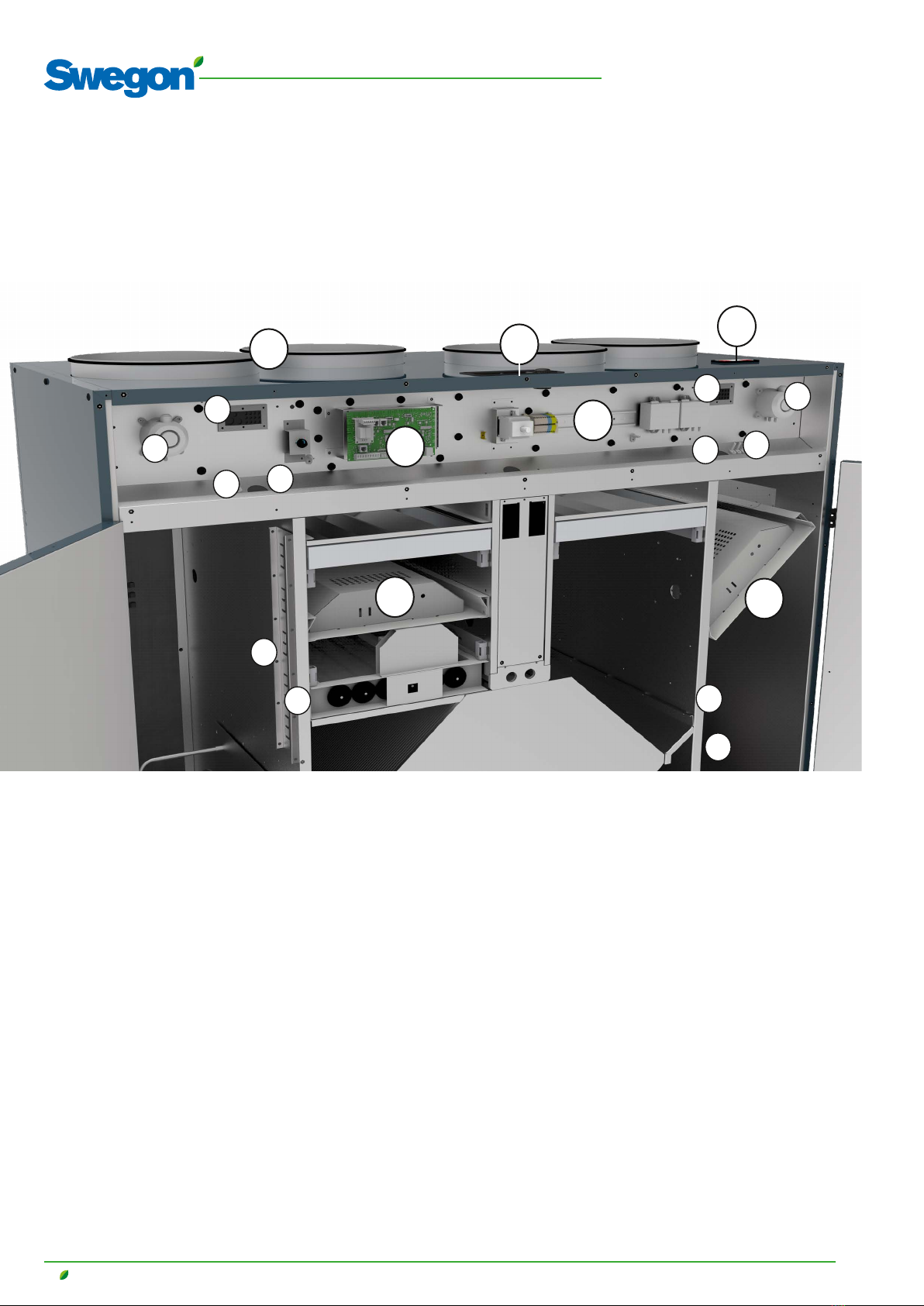

5. Option location

Picture 3

A. Duct connection (circular or rectangular)

B. Cable gland

C1/C2. Membrane entry grommet (control cable)

D. Main board

E. Slotted DIN rail (free space for other components)

G1/G2. Pressure sensors/stats

I1/I2. Membrane entry grommet (supply cable)

J1/J2. Holding tray (control cable)

K1/K2. Holding tray (supply cable)

L. Preheating coil location (electrical)

M. Postheating coil location (electrical/water)

Q. Hydraulics connection

R1/R2. Pressure tappings

We reserve the right to alter speciﬁcations.

www.swegon.com 5

MULTI.ESENSA.DEFROST.230821

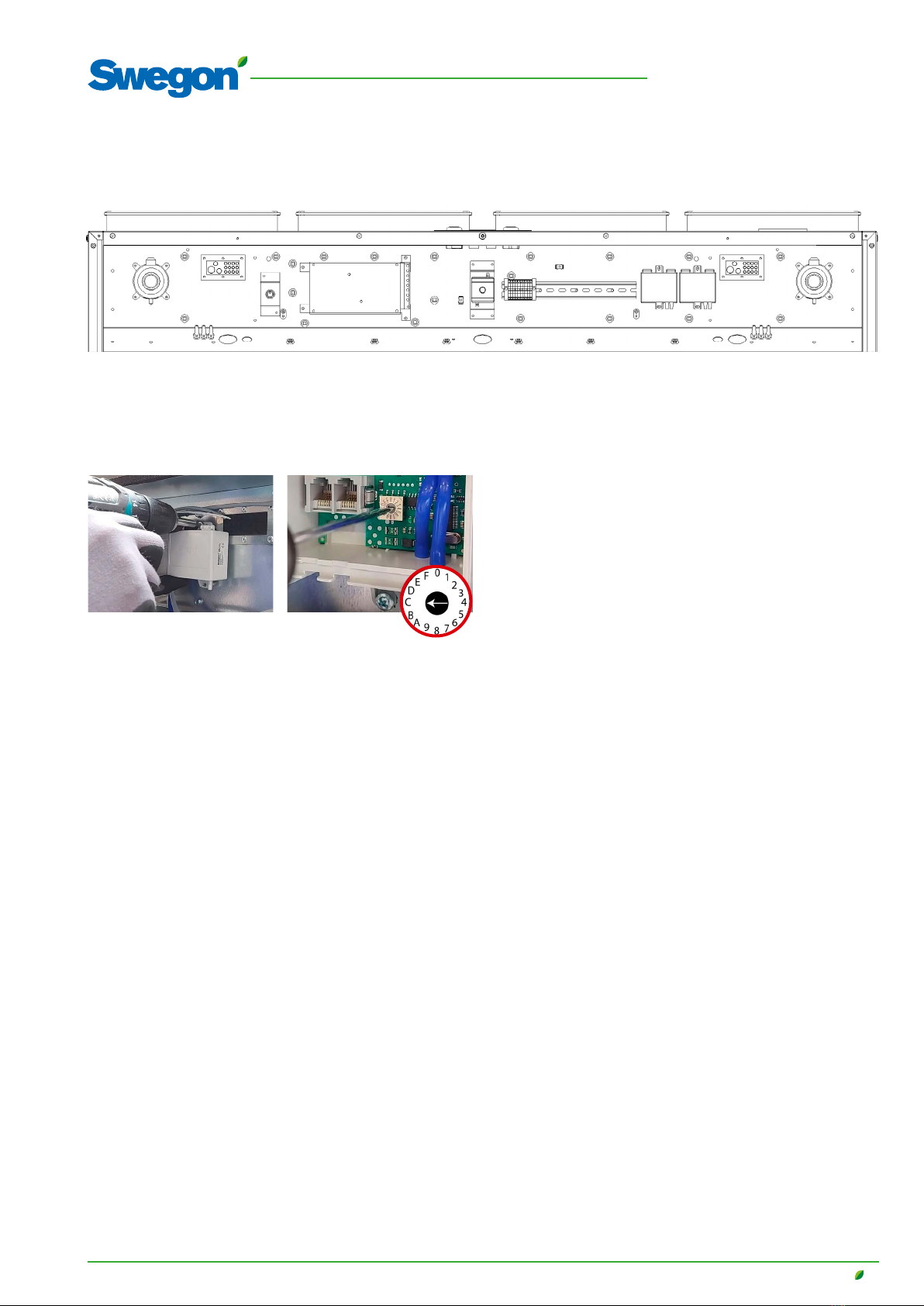

picture 5

Open the electric cabinet by unscrewing the panel (picture 4).

Place the defrost sensor box in position on the unit, provided

in the kit (kit n°3) and use the screw to x it on the threaded

tubes (already present). Use the M5 hex screw to attach the

box on the unit (kit n°4).

The cover of the box must be oriented towards the doors and

the pressure sensors entries must be positioned downwards)

(picture 5).

Open the defrost sensor box.Change the selection wheel inside.

Using a screwdriver, position the point of the arrow on the

letter "C"(picture 2).

Check the position of the pressure sensors/stats labelled "E"

(Extraction)(component G1/2 - picture 3 - page 4). It must

indicate 150 Pa (picture 6).

To connect the defrosting kit, see wiring diagram (picture 8).

picture 6

6. Defrost kit installation

picture 4

We reserve the right to alter speciﬁcations.

6 www.swegon.com

MULTI.ESENSA.DEFROST.230821

Sensor boxes Pressure stat E

Pressure tappings Pressure tappings

picture 8

RJ12

Defrost sensor box

7. Defrost kit connection

See component R2 on picture 3

BEFORE

AFTER

Sensor boxes Defrost sensor box Pressure stat E

Pressure tappings Pressure tappings

We reserve the right to alter speciﬁcations.

www.swegon.com 7

MULTI.ESENSA.DEFROST.230821

Step 1 (green hose)

Disconnect the hose between the pressure sensor/stat "E"

(component G1/2 - Picture 3) and the pressure tapping "F"

(component R1/R2 - Picture 3).

Install the T-connector provided in the kit (kit n°5).

Use the green hose supplied in the kit (kit n°2).

It must be cut to the needed length connect the two parts of

the T-connector.

• One piece of tubing connects the T-connector and the "F"

pressure tapping.

• The other piece connects the T-connector and the defrost

box on the inlet +.

Please respect the colour of the pipes.

Cut the appropriate length of pipe.

Step 3 (red control cable)

Connect the sensor box "S" and the defrost box using the RJ12

cable provided in the kit (kit n°1).

Use the free terminal insideof the sensor boxes "S" and one of

the ports on the defrost box.

Step 2 (transparent hose)

Disconnect the hose from the sensor box "E. Cut transparent

hose near the "E" sensor box to insert the T-connector

provided in the kit (kit n°5).

Use the corresponding hose supplied in the kit (kit n°2).It must

be cut to the length required to connect the two parts of the

T-connector.

• One piece of tubing connects the T-connector and the

sensor box "E".

• The other piece connects the T-connector and the defrost

box on the input -.

Observe the colour of the pipes.

Cut the necessary length of pipe.

In addition to installing and connecting the option, congure the unit's option using the commissioning manual.

We reserve the right to alter speciﬁcations.

8 www.swegon.com

MULTI.ESENSA.DEFROST.230821

Klik hier om de link te openen

1. Installatievideo

2 Algemene informatie

Deze optie wordt los meegeleverd en dient door de installateur

gemonteerd te worden.

Pas de elektrische kabels aan de unit aan. Voorzie voldoende

kabellengte om de unit niet te beschadigen.

De ontdooikit meet continu de noodzaak om de unit te

ontdooien en activeert deze functie indien nodig.

3. Conﬁguratie van de

sturing

Naast het installeren en aansluiten van de optie dient u deze

ook in de handmatige HMI-controller te congureren. Hiertoe

kan u de handleiding over de inbedrijfstelling raadplegen.

Ontdooikit

Inhoudsopgave

1. Installatievideo

2. Algemene informatie

3. Conguratie van de sturing

4. Kits en aanbevolen gereedschappen

5. Locatie van de opties

6. Installatie van de ontdooikit

7. Aansluiting van de ontdooikit

Dit document werd oorspronkelijk in het Engels opgesteld.

We behouden ons het recht voor om speciﬁcaties te wijzigen.

www.swegon.com 9

MULTI.ESENSA.DEFROST.230821

4. Kits en aanbevolen gereedschappen

Kits los meegeleverd bij elke batterij.

Gereedschappen niet inbegrepen.

Afbeelding 1

6. Zeskantboor en boormachine 7. Kniptang

Componentenkit

Aanbevolen gereedschappen

Afbeelding 2

1. RJ12

verbindingskabel

2. Sensorslangen

(2 kleuren) 3. Sensorbox Ingangen

4.M5 zeskantschroef

5. T-connector

We behouden ons het recht voor om speciﬁcaties te wijzigen.

10 www.swegon.com

MULTI.ESENSA.DEFROST.230821

K1 J2

5. Positie van de opties

Afbeelding 3 RECHTSE UITVOERING

We behouden ons het recht voor om speciﬁcaties te wijzigen.

A. Kanaalaansluiting (rond of rechthoekig)

B. Kabelwartel

C1/C2. Kabeldoorvoer (stuurkabel)

D. Hoofdprintplaat

E. DIN-rail met ruimte voor andere componenten

G1/G2. Druksensoren/pressostaten

I1/I2. Kabeldoorvoer (voedingskabel)

J1/J2. Kabelhouder (stuurkabel)

K1/K2. Kabelhouder (voedingskabel)

L. Positie voor voorverwarmingsbatterij (elektrisch)

M. Positie voor naverwarmingsbatterij (elektrisch/water)

Q. Hydraulische aansluiting

R1/R2. Drukmeetpunten
