Swingline FUSION 3000L Manuale di istruzioni
FUSION
™3000L&3100L
start here
démarrez ici
empieza aquí
12" LAMINATORS
FUSION
™3000L&3100L
GB instruction manual 4
F manuel d’utilisation 10
E manual de instrucciones 12
12" LAMINATORS
English
faster to the finish!
Welcome to the new Swingline GBC Fusion 3000L and
3100L laminators which allows lamination to be completed
quickly and simply with Swingline GBC quality lamination.
For best lamination results and performance, use only
Swingline GBC branded pouches.
Please take a little time to study these instructions to ensure
you get the best results out of your machine.
Electrical shock hazard.
Do not open. No user
servicable parts inside.
Refer servicing to qualied
service personnel.
WARNING
m
c
The following warning is found on the
product in several languages.
This safety message means that you
could be seriously hurt or killed if you
open the product and expose yourself
to hazardous voltage.
safety instructions
Your safety as well as the safety of others is important to ACCO®Brands. In this
instruction manual and on the product are important safety messages. Read these
messages carefully.
m
The safety alert symbol precedes each safety message in this instruction manual.
This symbol indicates a potential personal safety hazard that could hurt you or others,
as well as cause product damage or property damage.
m
4register this product online at www.acco.com
service
Do not attempt to service or repair the pouch laminator yourself. Unplug the unit and
contact an authorized Swingline GBC service representative for any required repairs.
English
FUSION™3000L & 3100L 12" LAMINATORS 5
Electrical Fusion 3000L:
120V AC / 60Hz /
9.0A / 1080W
Fusion 3100L:
120V AC / 60Hz /
12A / 1430W
Machine Dimensions 19.72x5.91x4.17 inch
(501x150x106mm)
Machine Weight 3000L: 5.0lbs (2.27kg)
3100L: 5.44lbs (2.47kg)
Maximum Pouch Width 12.0 inch (303mm)
Maximum Pouch
Thickness
3000L
5 mil (up to legal) (125 mic)
3100L
7 mil (175 mic)
Maximum Thru-put
Thickness
1.0mm
Warm-Up Time 3000L
Approximately 1.5 minutes
3100L
Approximately 1 minute
Speed 3000L
20 inches (500mm) per minute
3100L
Variable
(max. 32 inches (800mm)
per minute)
technical specifications
points to note
• Use this unit only for its intended use of laminating documents
• Do not laminate an empty pouch
• The unit must be connected to a supply voltage corresponding to the electrical rating
shown on the unit
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• Do not use a carrier with this machine
• Ensure the machine is clear of pouches prior to starting the next pouch
• Clean the lamination rollers on a regular basis
• Maximum 12” document pouch
11
½”
x 17
½” on 12” Swingline GBC Fusion 3000L or
3100L laminators
• Active anti jam feature may not detect issue on smaller items
• Failure to comply will result in damage and invalidate guarantee
m
m
m
m
m
getting ready to laminate
NOTE: Your new laminator may emit
a slight odour during the initial
operation. Its is normal and will
diminish after a few hours of
operation.
Easy Set Up
1Remove the plastic exit tray from the box and place into the two holes on the back of the
laminator and extend to use. Ensure that there is sucient space behind the laminator for the
item to be removed.
2Take the electrical plug and place in an appropriate power source, which is near the table you
intend to use.
3 The laminator will respond with a single beep and a sequence of brief ashes across the control
panel.
Touch Control
4To use the laminator gently tap the ‘power on’ button.
NOTE: Following “power on” it will
automatically set to the 75mic.
5An orange ‘ ’ will ash indicating that the laminator is warming up to the setting which is
indicated by a white light on the control panel.
6If setting indicated by white light on the control panel is not approporaite for your pouch
thickness, select the appropriate pouch setting by tapping the micron setting which is indicated
on pouch packaging.Your new selection will be indicated by a white light on control panel.
English
6register this product online at www.acco.com
loading the pouch
1Take your item to be laminated and place in to the appropriate sized laminating pouch,
ensuring it is rmly located along the sealed edge. This is to help ensure that you get optimal
quality output.
Before laminating important or unique documents, always run a test pouch through
the laminator using a similar type document.
SEALED EDGE
letter, menu, photo Irregular shaped item
SEALED EDGE
NOTE: Do not cut pouches prior to
lamination.
NOTE: During warm up, the orange light
next to the ‘ ’ mark will be ashing
until the machine is ready to use.
With Fusion 3100L you cannot feed
a pouch into the laminator until
green ‘tick ’ is illuminated.
Visual & Audible Ready Alerts
7When the laminator is ready to use the green light next to the ‘tick ’ is illuminated (shown in
gure) and a series of 2 beeps are heard.
English
FUSION™3000L & 3100L 12” LAMINATORS 7
3Upon exiting remove your laminated item immediately to ensure optimal quality.
4Do not force guides tightly against pouch. Move guides to an appropiate setting to allow pouch
to be fed in without touching guides.
5 When you are nished laminating tap the ‘power’ button and if required remove the tray, unplug
and store accordingly.
Remove your laminated item
immediately to ensure the
best quality and nish

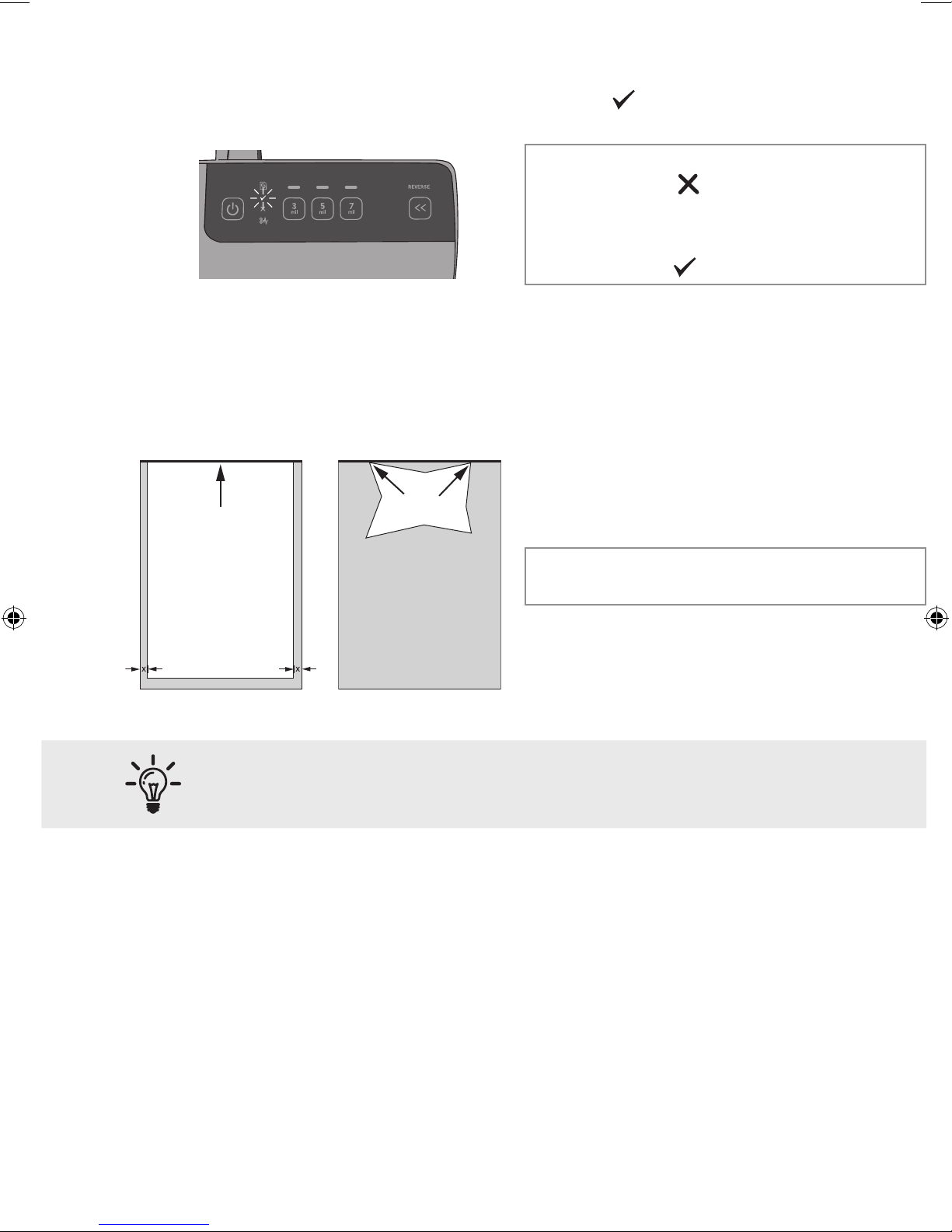

2Feed the sealed edge of the pouch, into the laminator between the guides.The laminator will
grip the pouch and guide it through to the exit tray.
NOTE: Do not force guides
against pouch
laminating
1 On the front of the laminator there are adjustable guides to help you feed your pouch accurately.
Move the guides to appropriate line which matches your pouch/ item to be laminated.
Accurate
Feed Guides
English
8register this product online at www.acco.com
cleaning
mWARNING: UNPLUG THIS PRODUCT BEFORE CLEANING THE EXTERIOR.
WIPE EXTERIOR ONLY WITH A DAMP CLOTH AND DO NOT USE
DETERGENTS OR SOLVENTS.
Regularly feed a cleaning card or sheet of paper through the laminator to
clean the rollers.
additional features
Intelligent Status Alert
If pouch misfeeds or a jam starts to occur a series of
beeps will will be heard to alert the user to take action
along with a red ashing light with ‘jam icon ’.
Manual Release
Fusion 3000L 12” Laminator
Press and hold the release button ( ) and pull the
pouch towards you out of the laminator.
Manual Reverse
Fusion 3100L 12” Laminator
Press and hold reverse button (indicated by
reverse ) until the pouch completely reverses
out of the laminator.
Intelligent Power O
For added safety and environmental reasons the laminator will automatically go into
sleep mode after 30 minutes of inactivity.You will hear a single beep before this occurs
English
FUSION™3000L & 3100L 12” LAMINATORS 9
10 register this product online at www.acco.com
English
Limited One (1) Year Warranty
ACCO Brands USA LLC, 300 Tower Parkway, Lincolnshire, IL 60069 (in Canada, ACCO Brands
Canada Inc., 5 Precidio Court, Brampton, ON L6S-6B7; and in Mexico, ACCO Mexicana, S.A. de
C.V. Av. Circuito Industrial Norte #6 Parque Industrial Lerma 52000, Lerma Edo. de México) (each,
respectively, “ACCO Brands”) warrants to the original purchaser that this ACCO Brands product is
free from defects in workmanship and material under normal use and service for a period of 1 year
after purchase.
ACCO Brands’ obligation under this warranty is limited to replacement or repair, at ACCO Brands’
option, of any warranted part found defective by ACCO Brands without charge for material or labor.
Any replacement, at ACCO Brands’ option, may be the same product or a substantially similar
product that may contain remanufactured or refurbished parts.This warranty shall be void in the
following circumstances:
(i) if the product has been misused,
(ii) if the product has been damaged by negligence or accident, or
(iii) if the product has been altered by anyone other than ACCO Brands or ACCO Brands’
authorized agents.
For warranty execution, please call 1-800-541-0094 in the USA/1-800-268-3447 in
Canada/1-800-759-6825 in Mexico or go to HYPERLINK “http://www.gbc.com” www.gbc.com.
TO THE EXTENT ALLOWED BY APPLICABLE LAW, THIS WARRANTY IS IN LIEU OF ALL
OTHER EXPRESSED WARRANTIES. REPRESENTATIONS OR PROMISES INCONSISTENT
WITH OR IN ADDITION TO THIS WARRANTY ARE UNAUTHORIZED AND SHALL NOT BE
BINDING ON ACCO BRANDS.TO THE EXTENT PERMITTED BY APPLICABLE LAWS, ANY
IMPLIED WARRANTIES (IF APPLICABLE) ARE LIMITED IN DURATION TO THE DURATION
OF THIS WARRANT. SOME STATES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS
ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT
APPLY TO YOU.TO THE EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL
ACCO BRANDS BE LIABLE FOR ANY SPECIAL, INCIDENTAL, PUNITIVE, EXEMPLARY,
CONSEQUENTIAL OR SIMILAR DAMAGES, WHETHER OR NOT FORSEEABLE. SOME STATES
AND JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF SPECIAL,
INCIDENTAL, PUNITIVE, EXEMLARY, CONSEQUENTIAL, OR SIMILAR DAMAGES, SO THE
ABOVE EXCLUSION OR LIMITAITON MAY NOT APPLY TO YOU.
FOR CONSUMERS WHO HAVE THE BENEFIT OF CONSUMER PROTECTION LAWS OR
REGULATIONS IN THEIR JURISDICTION OF PURCHASE OR, IF DIFFERENT, IN THEIR
JURISDICTION OF RESIDENCE, THE BENEFITS CONFERRED BY THIS WARRANTY ARE IN
ADDITION TO ALL RIGHTS AND REMEDIES CONVEYED BY SUCH CONSUMER PROTECTION
LAWS AND REGULATIONS.
To the extent permitted by law, this warranty is not transferable and will automatically terminate if
the original product purchaser sells or otherwise disposes of the product.
This warranty gives you specic legal rights. Other rights, which vary from jurisdiction to jurisdiction,
may exist. In addition some jurisdictions do not allow (i) the exclusion of certain warranties, (ii)
limitations on how long an implied warranty lasts and/or (iii) the exclusion or limitation of certain
types of costs and/or damages, so the above limitations may not apply.
