Swisher KVF008 Manuale utente

Part Number: KVF008

INSTRUCTIONS:

1. Remove two screws holding the top of the front gravel shield. This will allow the gravel

shield to clear the front atv bars (replace bolts after winch mount installation).

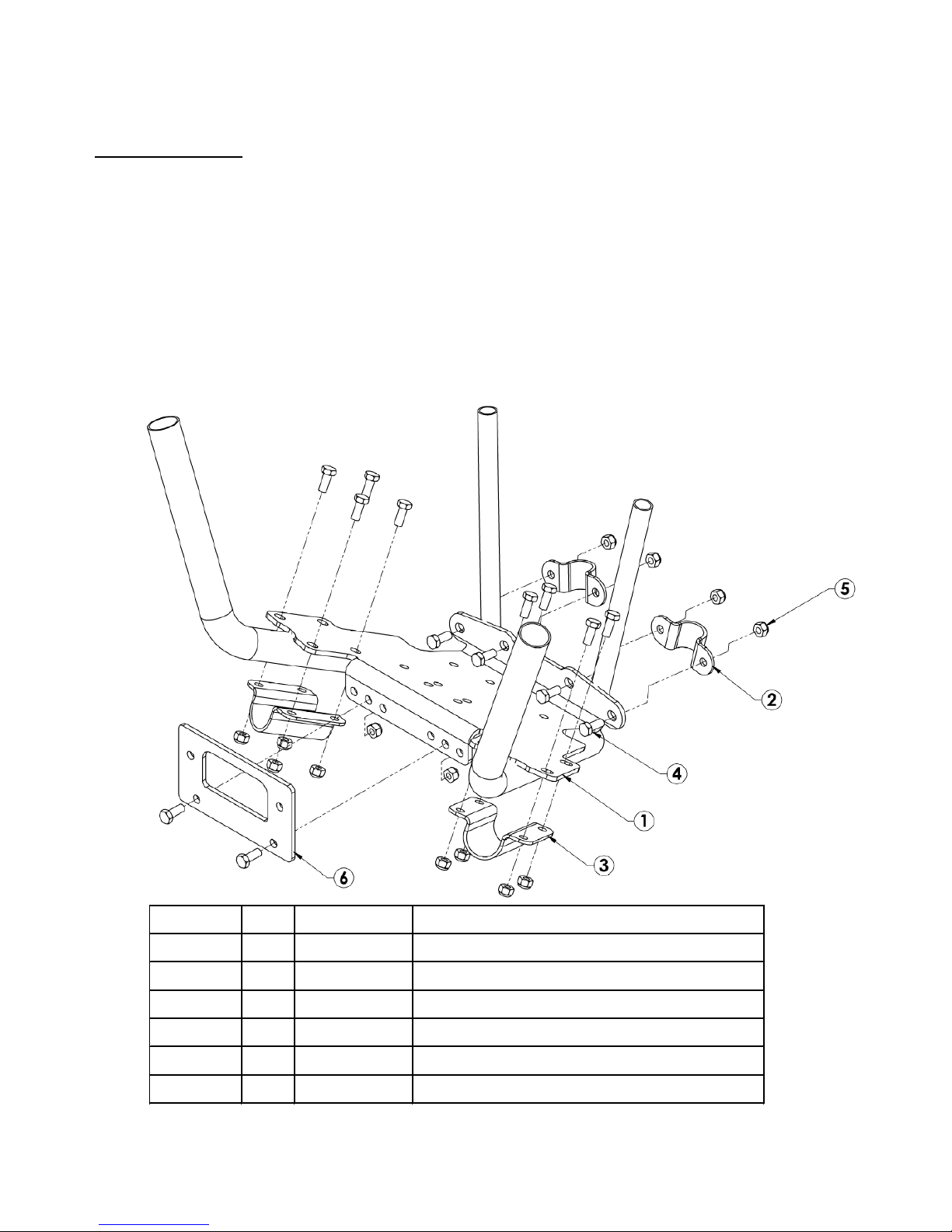

2. Set mounting plate on atv bars as shown below.

3. Install rear frame clamps and loosely assemble (4) 5/16 bolts and nyloc nuts. Install front

frame clamps and loosely assemble (8) 5/16 bolts nyloc nuts. Assure plate is centered on

all atv bars and securely tighten nuts.

4. Install fairlead bracket to mount plate with (2) 5/16 bolts and nyloc nuts.

5. Using fasteners supplied with the winch, assemble winch and roller to the winch mount

plate.

6. Using instructions supplied with winch, wire accordingly.

Please call 1-800-222-8183 with questions or comments

11513 Rev 06-312

ITEM NO. QTY. PART NO. DESCRIPTION

1 1 11510TK Plate - Mounting; KVF008; Txt Blk

2 2 11511Z Clamp - Front Frame, KVF008, ZP

3 2 11512Z Clamp - Rear Frame, KVF008, ZP

4 12 NB578 5/16-18 X 3/4 GR5 ZP

5 12 NB181 5/16-18 NYLOC NUT

6 1 11514TK Bracket - Rllr Fairlead Rnd Holes;Txt Bl

Fits Models: -Brute Force 650 4 x 4i

(Independent Suspension)

-Brute Force 750 4 x 4i

(Independent Suspension)
