Sygonix 1888207 Manuale utente
Operating Instructions
Fingerprint code lock
Item No. 1888207
Table of contents
Page
1. Introduction................................................................................................................... 4
2. Explanation of symbols ................................................................................................ 5
3. Intended use................................................................................................................. 5
4. Package contents......................................................................................................... 6
5. Safety instructions........................................................................................................ 7
6. Battery safety information............................................................................................. 9
7. Connections and control elements ............................................................................. 10
8. Mounting and connection ........................................................................................... 12
9. Setup.......................................................................................................................... 22
a) IR remote control................................................................................................. 22
b) Code lock ............................................................................................................ 22
10. Programming.............................................................................................................. 23
a) General notes...................................................................................................... 23
b) Activating/exiting programming mode ................................................................. 24
c) Changing the master code .................................................................................. 25
d) Settingtheuserngerprint .................................................................................. 26
e) Tuning-in the user transponder ........................................................................... 30
f) Deleting the user ID............................................................................................. 37
g) Deletingtheuserngerprint ................................................................................ 38
h) Deleting the user transponder............................................................................. 40
i) Deleting all user data........................................................................................... 43
j) Setting the activation duration for output or toggle operation.............................. 44
k) Selecting access mode ....................................................................................... 45
l) Setting the alarm duration ................................................................................... 47
m) Security function for invalid access attempts ...................................................... 48
n) Security function with door sensor ...................................................................... 49
o) Reset................................................................................................................... 50
2
Page
11. Wiegand function........................................................................................................ 52
a) Connection .......................................................................................................... 52
b) Setting Wiegand device ID.................................................................................. 53
c) ConguringtheWiegandoutput.......................................................................... 54
d) UsingngerprintswiththeWiegandcontroller.................................................... 55
12. Interlock function ........................................................................................................ 56
13. Operation.................................................................................................................... 57
a) Enabling the changeover contact........................................................................ 57
b) Enabling the changeover contact via button ....................................................... 57
c) Terminating the alarm sound............................................................................... 57
d) Superuser lock function....................................................................................... 58
14. Sound signals and LED displays................................................................................ 59
15. Troubleshooting.......................................................................................................... 60
16. Care and Cleaning ..................................................................................................... 61
17. Declaration of Conformity (DOC)................................................................................ 61
18. Disposal...................................................................................................................... 62
a) Product................................................................................................................ 62
b) Battery information .............................................................................................. 62
19. Technical Data............................................................................................................ 63
a) Code lock ............................................................................................................ 63
b) IR remote control................................................................................................. 63
3
1. Introduction
Dear customer,
Thank you for purchasing this product.
This product complies with statutory national and European regulations.
To ensure that the product remains in this state and to guarantee safe operation, always
follow the instructions in this manual.
These operating instructions are part of this product. They contain important infor-
mation on setting up and using the product. Do not give this product to a third party
without the operating instructions.
Therefore, retain these operating instructions for reference!
All company and product names are trademarks of their respective owners. All rights re-
served.
If there are any technical questions, please contact: www.conrad.com/contact
4
2. Explanation of symbols
The symbol with the lightning in a triangle indicates that there is a risk to your
health, e.g. due to an electric shock.
The symbol with an exclamation mark in a triangle is used to highlight important
information in these operating instructions. Always read this information carefully.
The arrow symbol indicates special information and tips on how to use the product.
3. Intended use
Thisproductisdesignedtopreventunauthorisedaccesstodoors(e.g.inanofce)andto
activate/disable alarm systems. Control is possible either via suitable transponders or the
integratedngerprintsensor.
Ifyouholdatuned-intransponderinfrontofthecodelockorplaceangerthatisstoredin
thesystemonthengerprintsensor,apotential-freechangeovercontactwillbeactivated
(for contact rating, see chapter “Technical data”). This can be used, for example, to trigger a
door opener or an alarm system.
The product is designed for operation indoors and outdoors (IP66).
For safety purposes, do not convert and/or modify this product. Using the product for pur-
poses other than those described above may damage the product. In addition, improper
usecancausehazardssuchasashortcircuit,reorelectricshock.Readtheinstructions
carefully and store them in a safe place. If you pass the product on to a third party, please
hand over these operating instructions as well.
5
4. Package contents
• Code lock
• IR remote control with CR2025 battery
• 1x transponder card for adding user transponders
• 1x transponder card for deleting user transponders
• Mounting material (2x screws, 2x dowels)
• 1x L-key
• 3x 1N4004 diodes
• Operating instructions
Up-to-Date Operating Instructions
Download the up-to-date operating instructions at www.conrad.com/downloads or scan the
QR code shown. Follow the instructions on the website.
6
5. Safety instructions
Read the operating instructions and safety information carefully. If you do
not follow the safety instructions and information on proper handling in
these operating instructions, we assume no liability for any resulting per-
sonal injury or damage to property. Such cases will invalidate the warranty/
guarantee.
• Theunauthorisedconversionand/ormodicationoftheproductisprohibited
for safety and approval reasons.
• The device is not a toy. Keep out of the reach of children and pets.
• The product is designed for operation indoors and outdoors (IP66). However, it
must never be used in or under water, as this will destroy it.
• Protecttheproductfromextremetemperatures,impacts,ammablegases,
vapours and solvents.
• Never exceed the contact rating for the potential-free changeover contact
speciedinchapter“Technicaldata”.Neverattempttoconnectthecodelock
to a mains voltage, as this may cause a fatal electric shock.
• Please handle the product carefully. Jolts, impacts or a fall even from a low
height may damage the product.
• Do not place the product under any mechanical stress.
• Always observe the safety and operating instructions of any other devices
which are connected to the product (e.g. door openers and alarm systems).
• Always comply with the accident prevention regulations for electrical equip-
ment when using the product in commercial facilities.
• If it is no longer possible to operate the product safely, take it out of opera-
tion and protect it from any accidental use. Safe operation can no longer be
guaranteed if the product:
- is visibly damaged,
- is no longer working properly,
- has been stored for extended periods in poor ambient conditions or
- has been subjected to any serious transport-related stresses.
7
• Do not leave packaging material lying around carelessly. It may become a
dangerous toy for children!
• Maintenance,modicationsandrepairsmustbecarriedoutbyatechnicianor
a specialist repair centre.
• If you are not sure how to operate the product correctly, or if you have any
questions that are not answered in these operating instructions, contact us or
another specialist.
8
6. Battery safety information
Keep batteries out of the reach of children.
Do not leave batteries lying around in the open; there is a risk of them being swallowed by
children or pets. If swallowed, consult a doctor immediately, it could be fatal!
Always ensure that the battery in the IR remote control is inserted with the correct polarity
(observe the plus/+ and minus/- symbols).
Batteriesmust notbe short-circuited,opened, takenapart orthrown intoa re.Thismay
causeareorexplosion!
Never attempt to recharge non-rechargeable batteries, as this may cause an explosion.
Old or depleted batteries may emit chemical liquids that cause damage to the product.
Therefore, if the device is not to be used for a long time (e.g. storage), remove the battery
from the IR remote control.
Leaking or damaged batteries can lead to caustic burning upon skin contact. Therefore, use
suitable protective gloves.
Liquids leaking from batteries are very chemically aggressive. Objects or surfaces coming
into contact with these liquids could be severely damaged. Therefore, store batteries in a
suitable location.
To dispose of batteries in an environmentally friendly manner, see “Disposal” chapter.
9

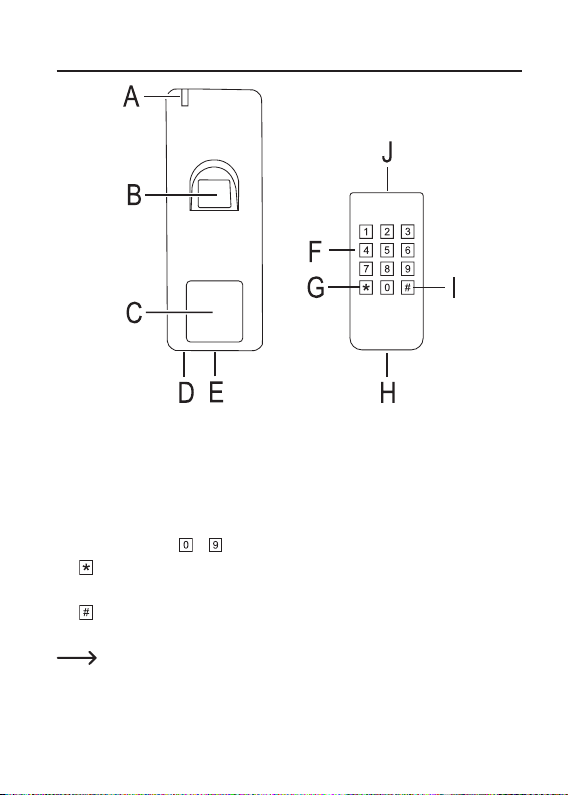

7. Connections and control elements
A Control LED
B Fingerprint sensor
C Transponder sensor surface
D IR receiver
E Fastening screw
F Keypad for buttons to
G button
H Clip for battery compartment
I button
J IR transmission LED
The wall mounting bracket and the connection cable are located on the back of the
code lock.
10
