10. V-BELT DRIVING SYSTEM/KICK STARTER

Mechanism Diagram ··························· 10-1 Driving Belt···········································10-4

Maintenance Description···················· 10-2 Drive Face·············································10-6

Clutch Outer/Driven Pulley··················10-9Trouble Diagnosis······························· 10-2

Left Crankcase Cover ························· 10-3

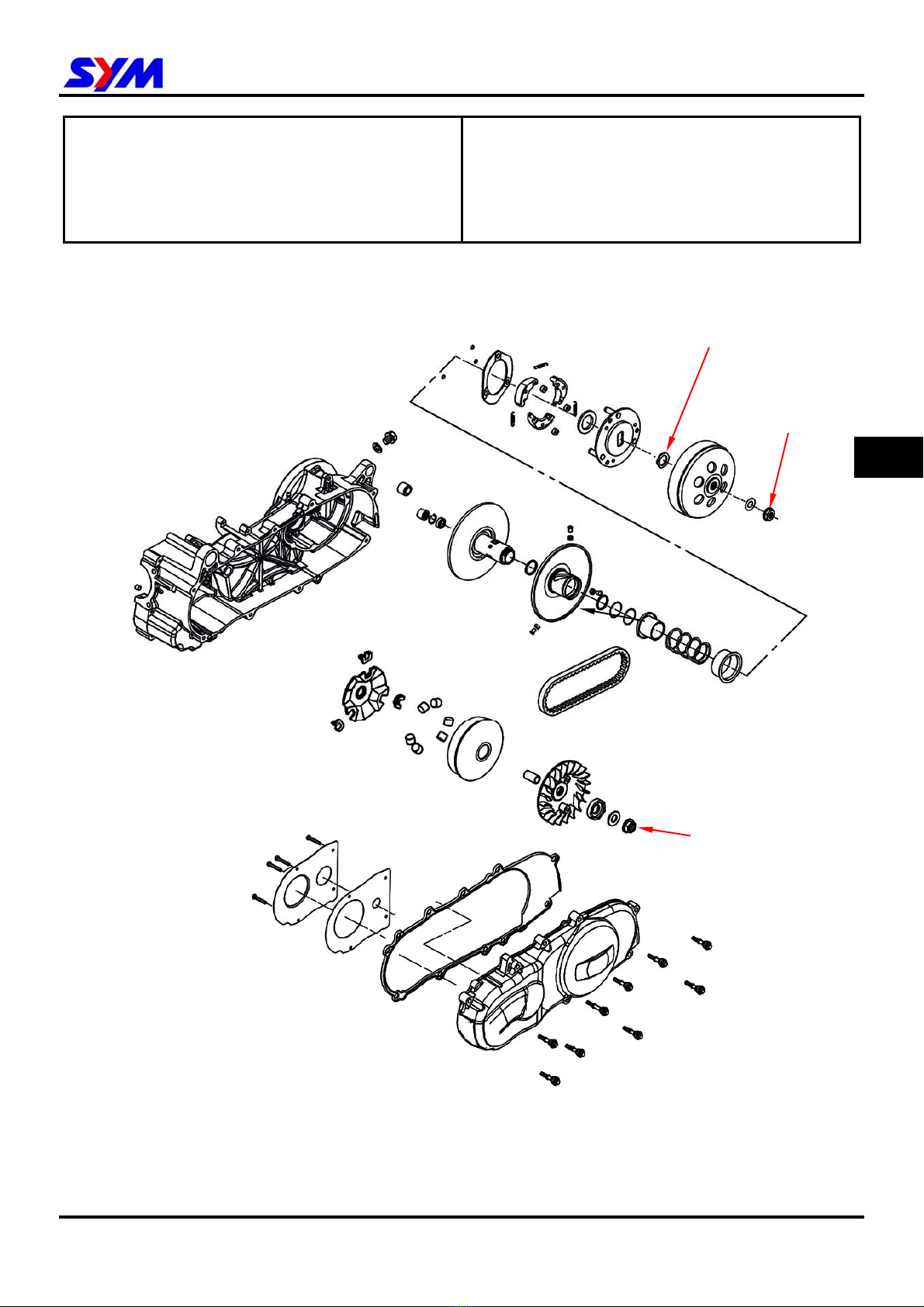

Mechanism Diagram

3.5~4.5kgf-m

10-1

5.0~6.0kgf-m

10. V-BELT DRIVING SYSTEM/KICK STARTER

10-2

Maintenance Description

Precautions in Operation

General Information

yDrive face, clutch outer, and driven pulley can be serviced on the motorcycle.

yDriving belt and driving pulley must be free of grease.

Specification Unit：mm

Item Standard value (mm) Limit (mm)

Driving belt width 19.500~20.500 18.500

ID of drive face boss 23.989~24.052 24.060

OD of drive face 23.960~23.974 23.940

OD of roller 17.920~18.080 17.400

ID of clutch outer 125.000~125.200 125.500

Thickness of clutch weight 4.000~4.100 1.200

Free length of driven pulley spring 168.900 163.700

OD of driven pulley 43.65~43.85 43.800

ID of drive face 39.000~39.025 39.060

Torque value

yDriven face nut: 5.0~6.0kgf-m

yClutch outer nut: 5.0~6.0kgf-m

Special Service Tools

Clutch spring compressor: SYM-2301000

Inner bearing puller: SYM-6204002

Clutch nut wrench 39 x 41 mm: SYM-9020200

Universal holder: SYM-2210100

Bearing driver: SYM-9100100

Trouble Diagnosis

Engine can be started but motorcycle can

not be moved

1. Worn driving Belt

2. Worn drive face

3. Worn or damaged clutch weight

4. Broken driven pulley

Shudder or misfire when driving

1. Broken clutch weight

2. Worn clutch weight

Insufficient horsepower or poor high

speed performance

1. Worn driving belt

2. Insufficient spring force of driven pulley

3. Worn roller

4. Driven pulley operation un-smoothly

10. V-BELT DRIVING SYSTEM/KICK STARTER

10-3

Left Crankcase Cover

Left crankcase cover removal

Remove body cover.

Remove kick starter arm ass'y.

Remove air cleaner ass'y (2 bolts 6×25).

Remove L. Cover fender Comp.

Remove L. Crankcase cover (8 special bolts 6×37

ass'y).

Left crankcase cover install

Install left crankcase cover in the reverse

procedures of removal.

Drive face and Driven face Comp.

L. Crank case cover Comp. Kick starter spindle Comp.

Drive face

Kick return spring

Driven faceDrive belt

10. V-BELT DRIVING SYSTEM/KICK STARTER

Driving Belt

10-4

Removal

Remove left crankcase cover

Hold drive face with universal holder, and remove

nut and drive face.

Hold clutch outer with universal holder, and

remove nut and clutch outer.

Caution

yUsing special service tools for tightening or

loosening the nut.

yFixed rear wheel or rear brake will damage

reduction gear system.

Push the driving belt into belt groove as diagram

shown so that the belt can be loosened, and then

remove the driven pulley.

Remove driven pulley.Do not remove driving belt.

Remove the driving belt from the groove of driven

pulley.

Inspection

Check the driving belt for crack or wear.Replace it

if necessary.

Measure the width of driving belt as diagram

shown.

Service Limit: 18.5 mm

Replace the belt if exceeds the service limit.

Caution

yUsing the genuine parts for replacement.

yThe surfaces of driving belt or pulley must be

free of grease.

yClean up all grease or dirt before installation.

Nut

Universal holder

Drive belt

Universal holder

Belt tooth

Width

10. V-BELT DRIVING SYSTEM/KICK STARTER

10-5

Installation

Caution

Pull out driven face to avoid it closing.

Install driving belt onto driven pulley.

Install the driven pulley that has installed the belt

onto drive shaft.

On the drive belt another end to the movable drive

face.

Install the clutch outer with universal holder, and

then tighten nut to specified torque value.

Torque value: 5.0~6.0kgf-m

Install the drive face with universal holder, and

then tighten nut to specified torque value.

Torque value: 5.0~6.0kgf-m

Driven face

Clutch outer

Nut

Universal holder

10. V-BELT DRIVING SYSTEM/KICK STARTER

10-6

Drive Face

Removal

Remove left crankcase cover.

Hold generator flywheel with universal holder, and

then remove drive face nut.

Remove drive face.

Remove driving belt and movable drive face comp

from crankshaft.

Remove ramp plate.

Remove weight rollers from movable drive face.

Crankshaft Drive face boss

Movable drive face

Ramp plate

Movable drive face

Universal holder

Weight roller

10. V-BELT DRIVING SYSTEM/KICK STARTER

10-7

Inspection

The weight rollers are to press movable drive face

by means of centrifuge force.

Thus, if weight rollers are worn out or damaged,

the centrifuge force will be effect.

Check if rollers are worn or damaged. Replace it if

necessary.

Measure each roller’s outer diameter. Replace it if

exceed the service limit.

Service limit: 17.4 mm

Weight: 14.0 g

Check if drive face boss is worn or damaged and

replace it if necessary.

Measure the outer diameter of movable drive face,

and replace it if it exceed service limit.

Service limit: 23.94 mm

Measure the inner diameter of movable drive face,

and replace it if it exceed service limit.

Service limit: 24.06 mm

Reassembly/installation

Install weight rollers.

Caution

The weight roller two end surfaces are not

certainly same. In order to lengthen the roller life

and prevented exceptionally wears the

occurrence, Please end surface of the closure

surface counter clockwise assembles onto

movable drive face.

Install ramp plate.

Weight roller

Movable drive face

Drive face boss

Weight roller

Closure surface

Guide collar

Ramp plate
