Symmons Dia SLS-3522-1.5 Guida di riferimento

2.5 mm

PLUMBERS

PUTTY

Model Numbers

SLS-3522-1.5 Lavatory faucet only,

(5" height)

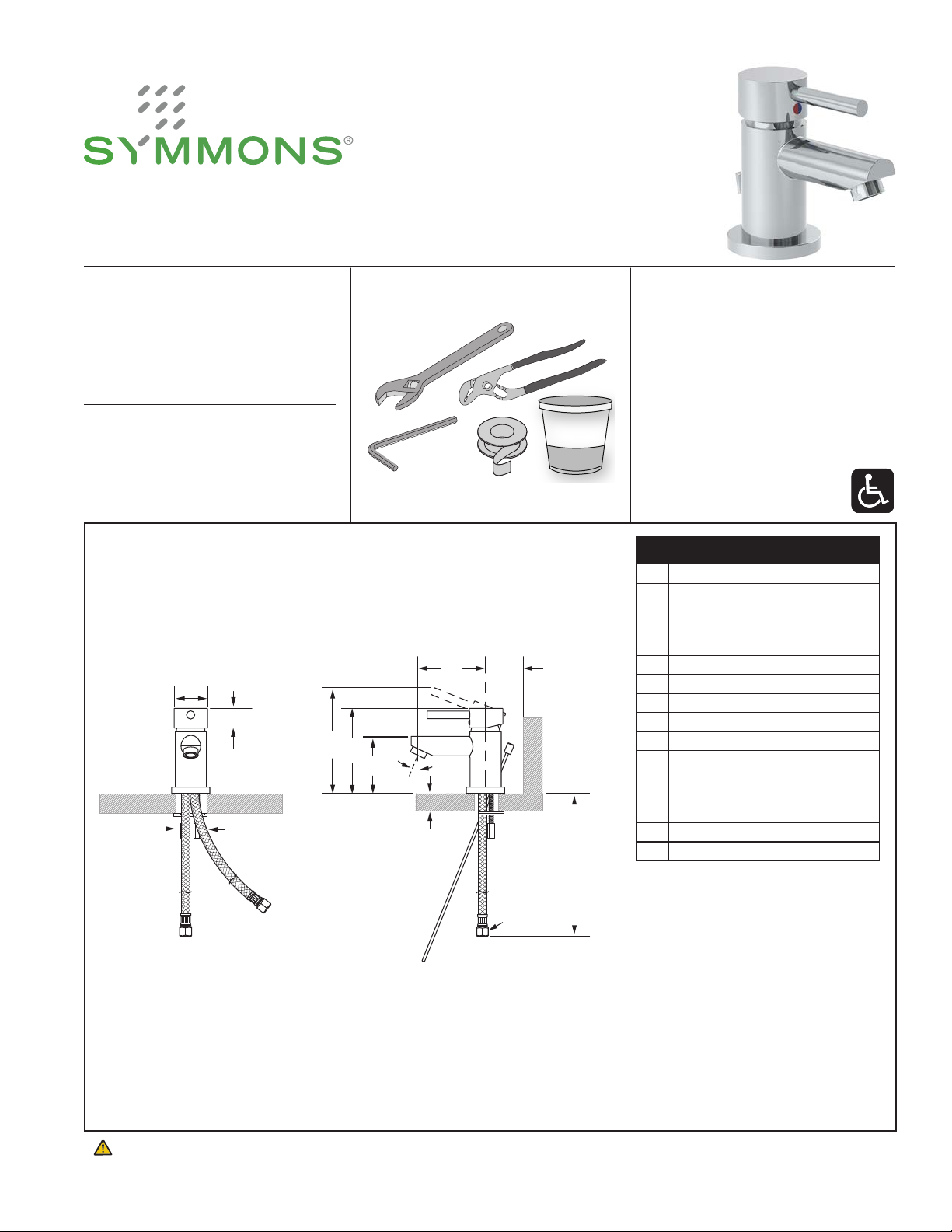

Dimensions Dia Lavatory Faucet, SLS-3522-1.5

AA B

CJJ

HII

Modiﬁcation Options

Append -suffix code to part numbers

when applicable

 -1.0 1.0 gpm (3.8 L/min) aerator

Measurements

A 1-7/8", 48 mm

B 1-3/16", 30 mm

Hole Size

Min. Ø 1-1/4", 32 mm

Max. Ø 1-1/2", 38 mm

D 4-1/16", 103 mm

E Min. 2-1/2", 64 mm

F 6-1/8", 155 mm

G 5", 127 mm

H 3-5/16", 84 mm

I 26°

Deck Thickness Ref.

Min. 7/8", 22 mm

Max. 1-7/8", 47 mm

K 25-7/8", 658 mm

L 3/8" compression tting

WARNING: This product can expose you to chemicals including lead, which is known to the state of California to cause

cancer, birth defects, or other reproductive harm. For more information, go to www.P65Warnings.ca.gov.

 Need Help?

Contact Symmons customer service at

P: (800) 796-6667, (781) 848-2250

Email: [email protected]

Monday - Friday 7:30 am - 6:00 pm EST

Please check Symmons website

for technical help, the latest product

information, warranty policy and a list of

Symmons distributors

www.symmons.com

Tools & Materials

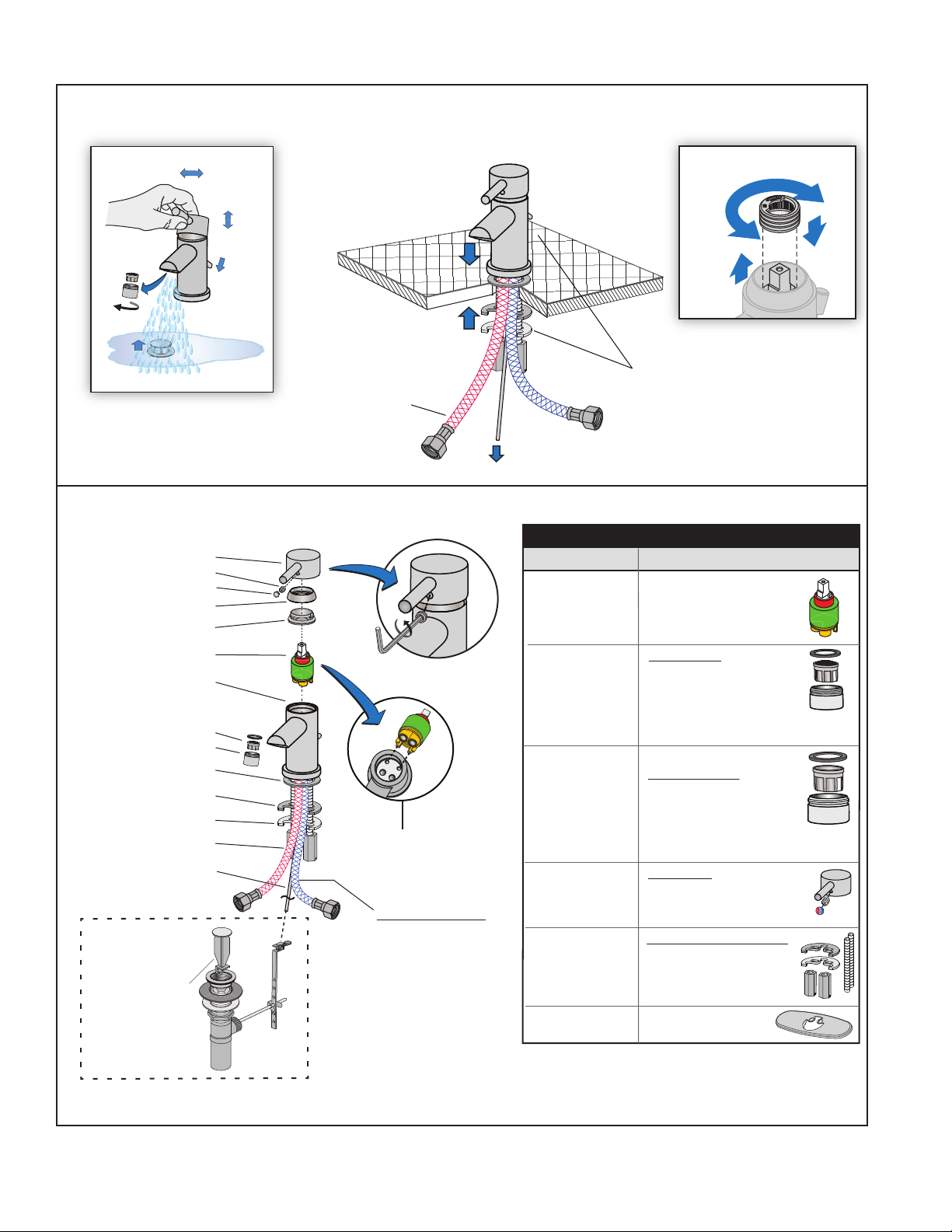

Installation Brief

Dia®

Lavatory Faucet SLS-3522-1.5

Hotter (+)

Colder (–)

HOT COLD

OFF

Step 2

Connect supply hoses

HOT COLD

Step 3

Flush lines and

check for leaks

SLS-3522-1.5

Step 1

Attach faucet assembly

Limit stop adjustment

Pop-up Drain

Quick Install Guide Dia Lavatory Faucet, SLS-3522-1.5

Symmons Industries, Inc. ■ 31 Brooks Drive ■Braintree, MA 02184 ■Phone: (800) 796-6667 ■ Fax: (800) 961-9621

Aerator kits

1.5 gpm (5.7 L/min)

1.0 gpm (3.8 L/min)

0.5 gpm (1.9 L/min)

Cartridge w/

Limit Stop

Part Number Item

Replacement Parts

Non-aerated laminar

ow outlet kits

1.5 gpm (5.7 L/min)

1.0 gpm (3.8 L/min)

0.5 gpm (1.9 L/min)

LN-15-1.5-NA*

LN-15-1.0-NA*

RL-019*

includes aerator, retainer & washer

Handle kit

includes handle, allen

screw & RB button plug

requires 2.5 mm Allen wrench

Mounting hardware kit

threaded studs (2)

hex nut (2)

rubber washer (1)

metal washer (1)

LN-01660* 4” deck plate

RL-066*

*Note: For decorative nish faucets append the

appropriate sufx code letters to part numbers

marked with an asterisk (*)

aerator

1.5gpm (5.7L/min)

aerator retainer

base gasket

mounting gasket

mounting plate

mounting nut

ex supply hoses

SLS-3522-1.5

length: 27-9/16"

(700 mm)

COLD: blue stripe

HOT: red stripe

3/8" compression

cap

retainer nut

cartridge

faucet body

handle

allen screw

button plug

lift rod

stopper

P-100N

pop-up drain

assembly

RL-154LR*

includes stopper

2.5 mm wrench

included

Model

SLS-3522-1.5

RL-070

RL-059-1.5*

RL-059-1.0*

RL-059-0.5*

RL-070

RL-067*

Parts Assembly Dia Lavatory Faucet, SLS-3522-1.5
